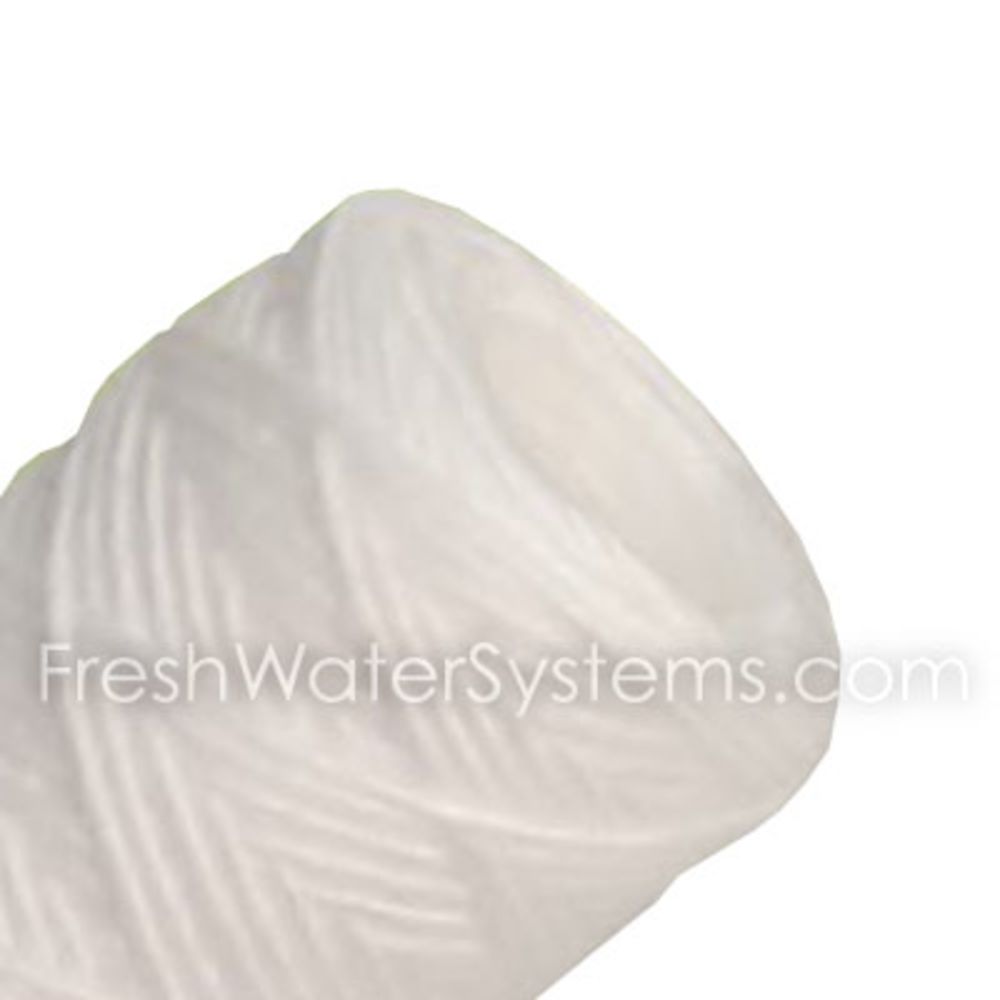

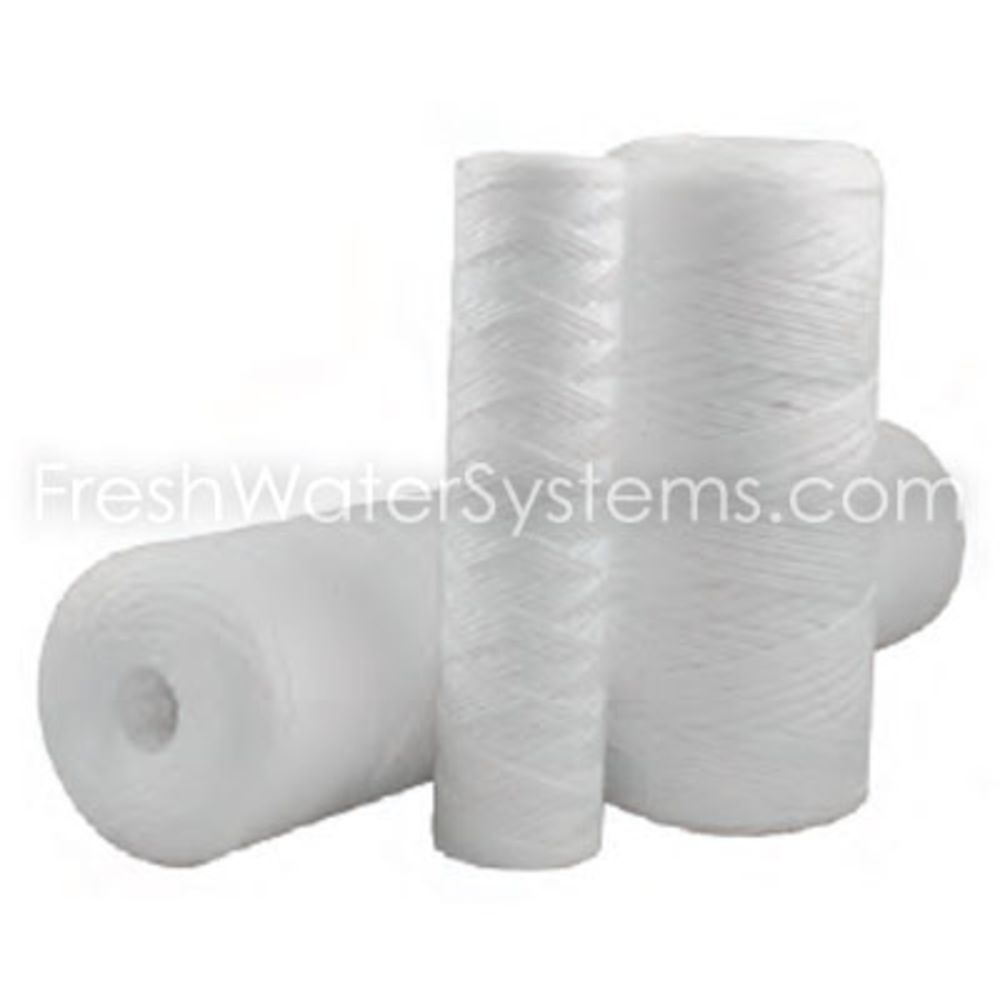

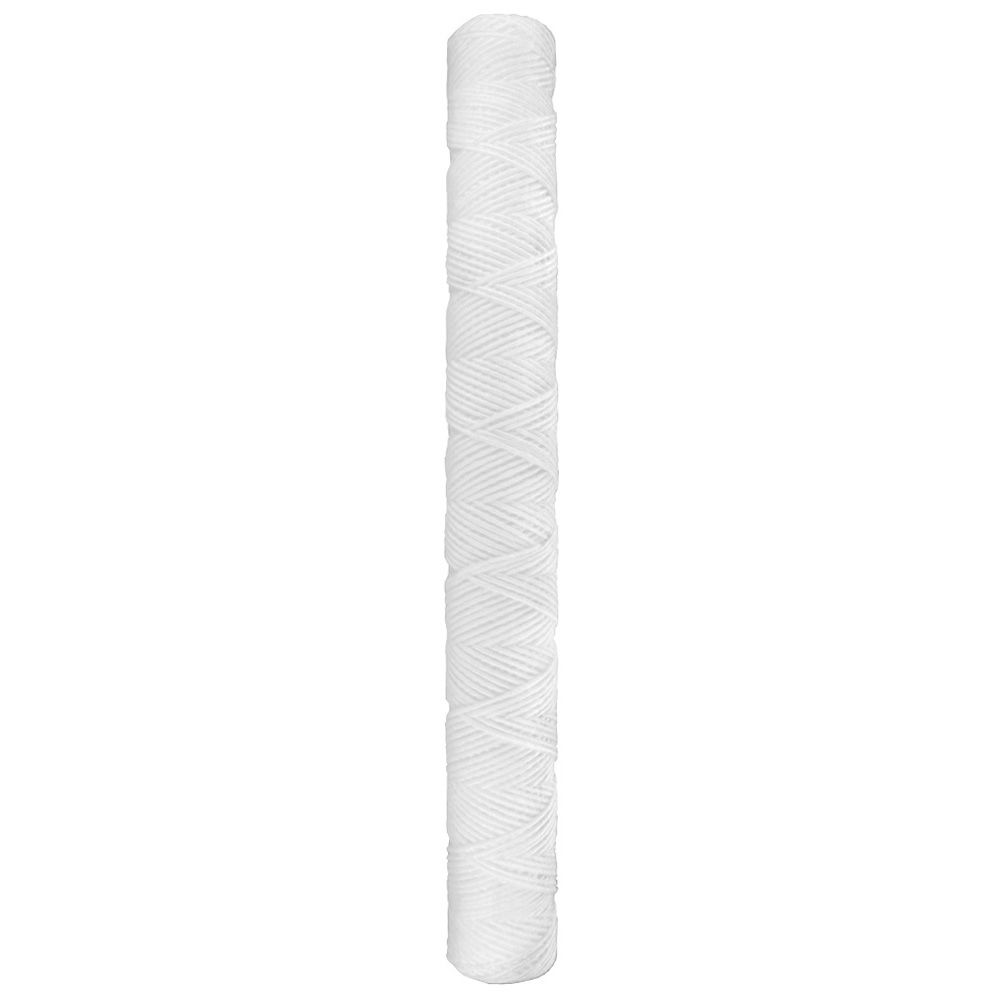

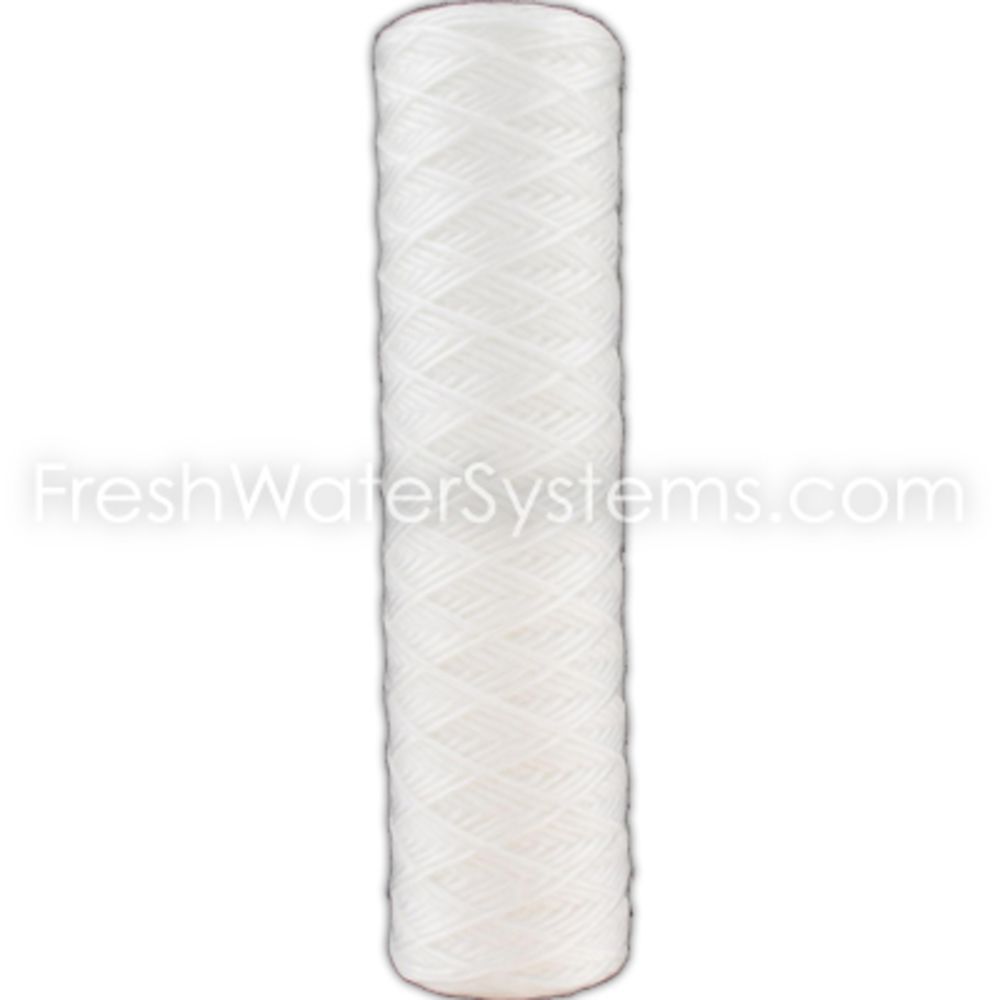

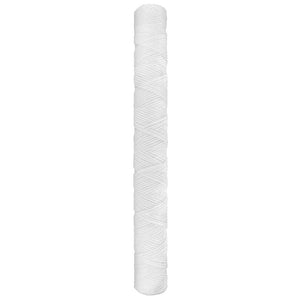

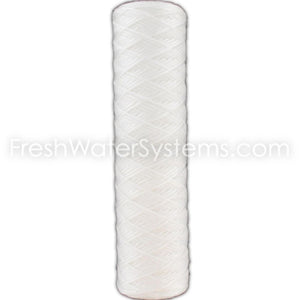

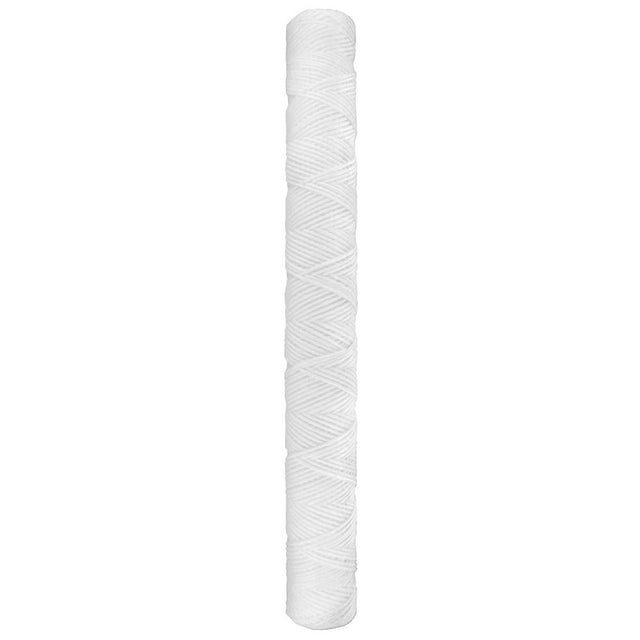

20" String Wound Polypropylene - 30 Micron Filter
This item is discontinued. We recommend the Neo-Pure WPP-25200-20 20" Surfactant Free String Wound Filter 20 Micron as a substitute.
The string wound polypropylene filters are a cost effective solution for the reduction of sand, silt, rust, dirt, and scale particles. Made from 100% polypropylene cord, string wound filters can withstand temperatures up to 165º F. They are suitable for a variety of applications including residential and commercial applications using both municipal and well water. Different wound patterns for different micron ratings ensure that you are getting the right product for the right application.
Specifications:
- Manufactured from 100% Polypropylene Cord
- High dirt holding capactity
- Reduces sand, silt, rust and scale particles
- Filter Media: Polypropylene Fiber Cord
- Core: Polypropylene
- Temperature Range: 40-165F (4.4-73.9C)
Compatible with:
| Hydronix | SWC-25-2030 |
| Liquatec | SWF-25-2030 |
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 20 |
Weight (lbs) | 1.2 |
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Max Temp (°F) | 165 |
Micron Rating (Nominal) | 30 µm |
Min Temp (°F) | 40 |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) |
Media Type | Polypropylene Fiber Cord |
Micron Rating | 30 µm |
Product Length | 20" |
The string wound polypropylene filters are a cost effective solution for the reduction of sand, silt, rust, dirt, and scale particles. Made from 100% polypropylene cord, string wound filters can withstand temperatures up to 165º F. They are suitable for a variety of applications including residential and commercial applications using both municipal and well water. Different wound patterns for different micron ratings ensure that you are getting the right product for the right application.
Specifications:
- Manufactured from 100% Polypropylene Cord
- High dirt holding capactity
- Reduces sand, silt, rust and scale particles
- Filter Media: Polypropylene Fiber Cord
- Core: Polypropylene
- Temperature Range: 40-165F (4.4-73.9C)
Compatible with:
| Hydronix | SWC-25-2030 |
| Liquatec | SWF-25-2030 |
NOTE: This item is discontinued. We recommend the Neo-Pure WPP-25200-20 20" Surfactant Free String Wound Filter 20 Micron as a substitute.
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Case Quantity | 20 |
Weight (lbs) | 1.2 |
Details
Capacity | As Needed |
Filter Application | Sediment/Dirt/Rust |
Max Temp (°F) | 165 |
Micron Rating (Nominal) | 30 µm |
Min Temp (°F) | 40 |
Cartridge Style | Drop-in |
Change Frequency | As Needed |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) |
Media Type | Polypropylene Fiber Cord |
Micron Rating | 30 µm |
Product Length | 20" |
