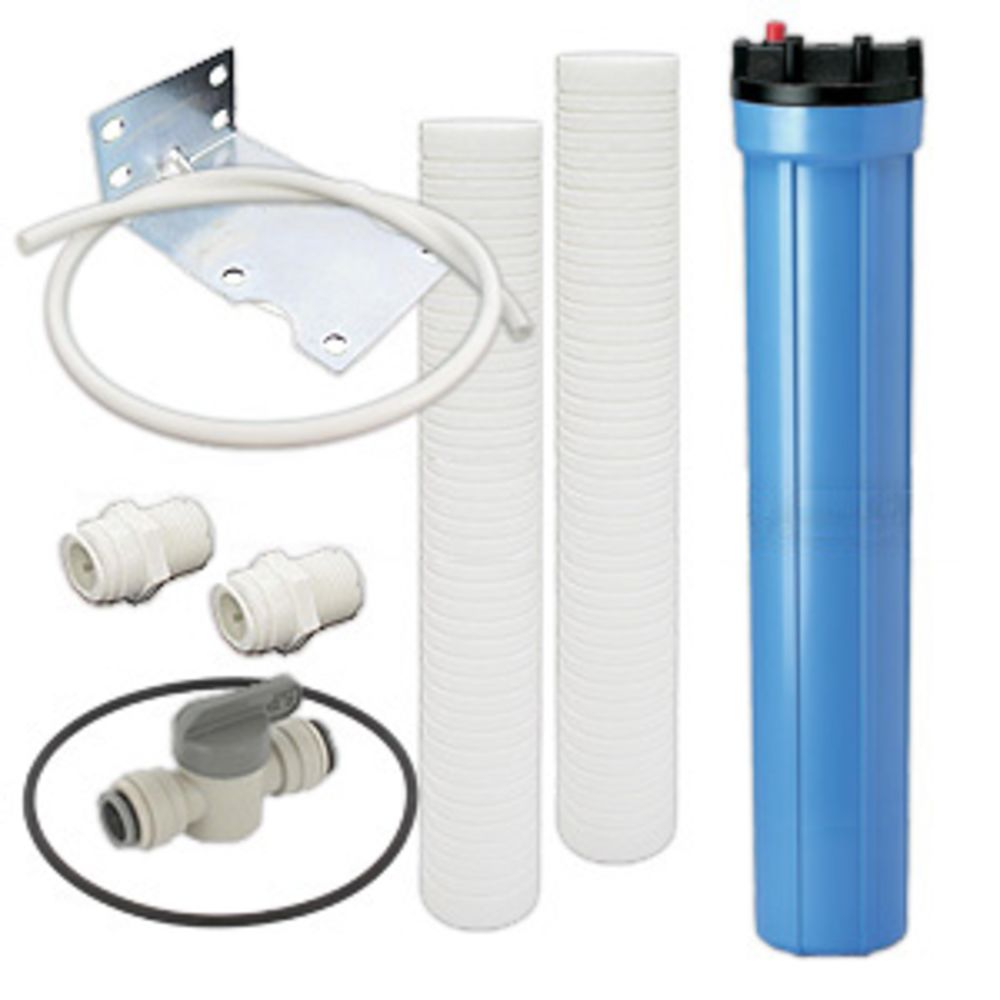

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:
Features:
- 20" Slimline Filter Housing 1/2" Inlet/Outlet
- Metal Housing Bracket with mounting screws
- Filter Wrench for Slimline Housings
- Extra O-ring for Slimline Housings
- Two Grooved Polypropylene 5 micron filters
- Two 1/2" OD x 1/2" NPT Male Connectors
- 1/2" OD Ball Valve
- 1/2" OD Tubing 4 ft. Section
Standard Set-Up Diagram:
Optional Bypass Set-up Diagram:
Weight & Dimensions
Approx Depth | 5" |
Approx Height (Inches) | 21-7/8" |
Approx Width (Inches) | 4-3/8" |
Weight (lbs) | 20 |
Details
Housing Material | Polypropylene |
Inlet/Outlet Connection | 1/2" FPT |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 145 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Nut / Fitting Material | Acetal, Polypropylene |
Size | 1/2" |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Flow Rate | 3-5 GPM |
Media Type | Dual Gradient Polypropylene |
Type | Sediment Filtration System |
The Slimline Sediment Prefilter Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 5 gpm using our dual gradient polypropylene filters at 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.
