Pentek

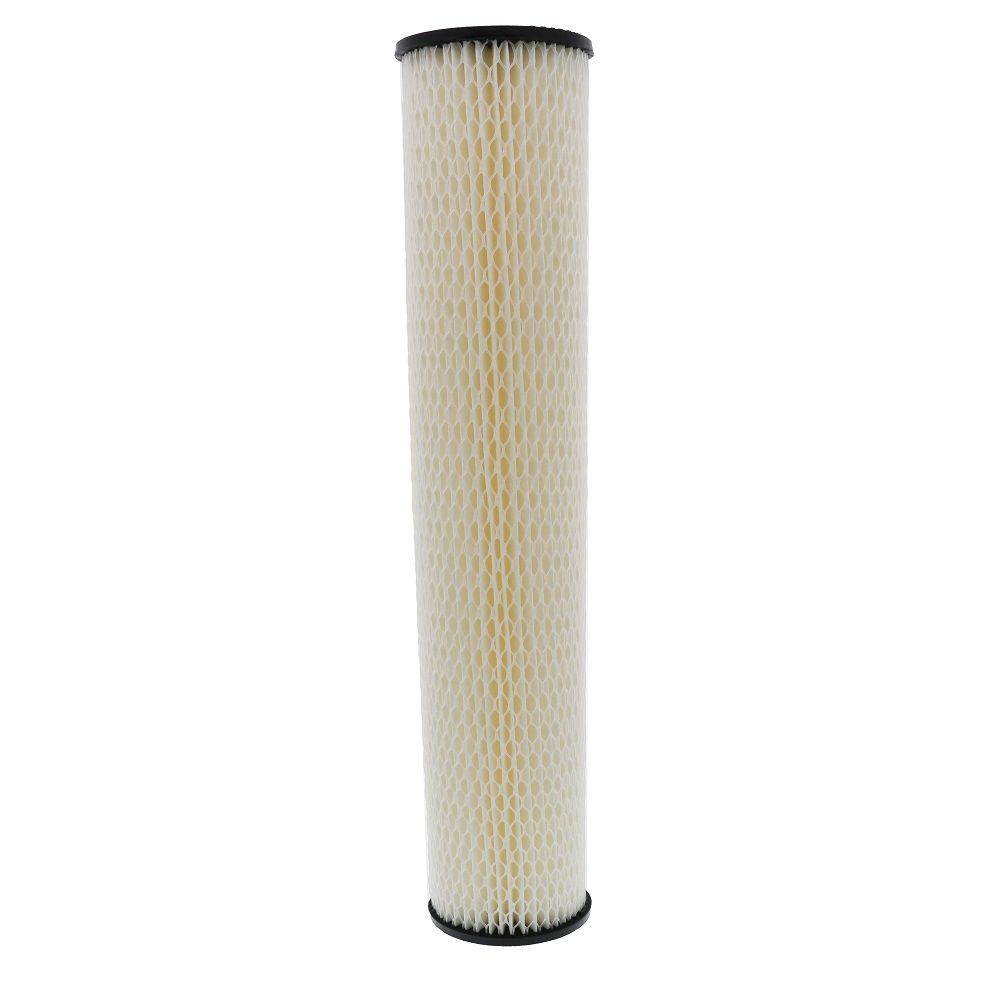

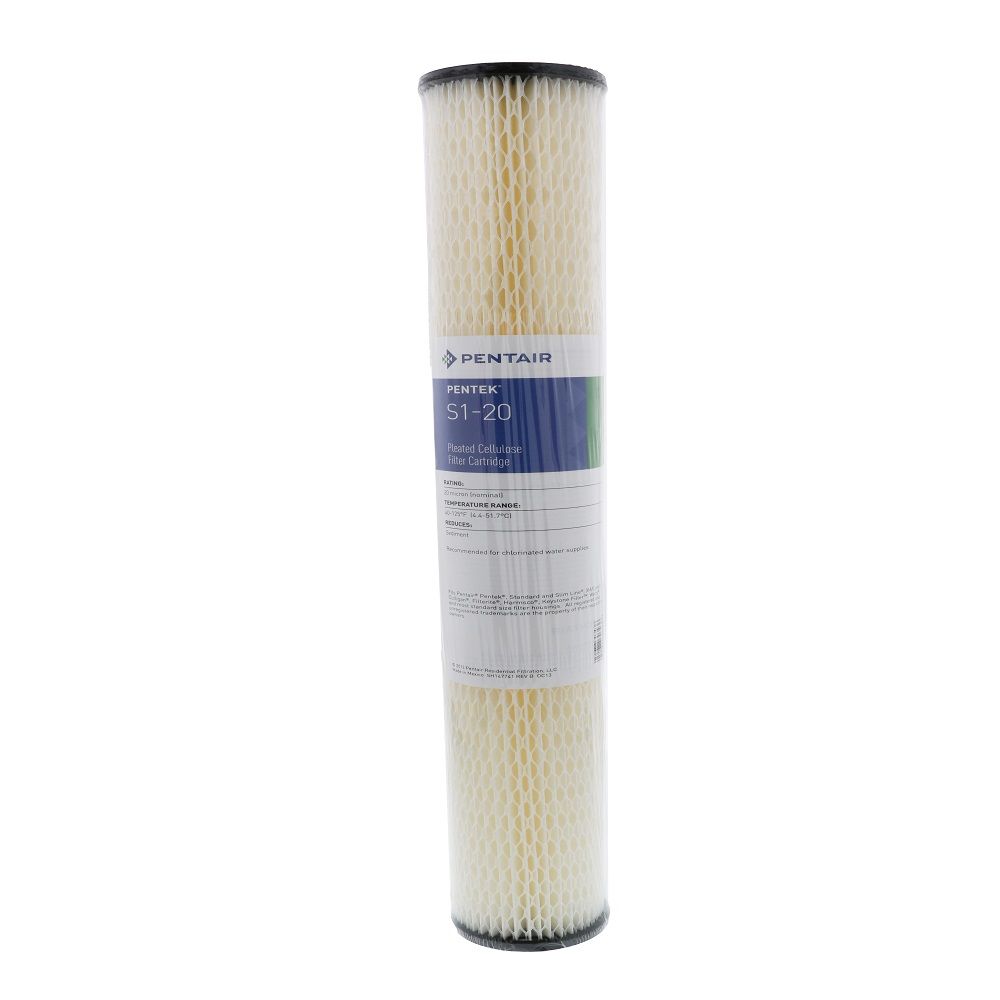

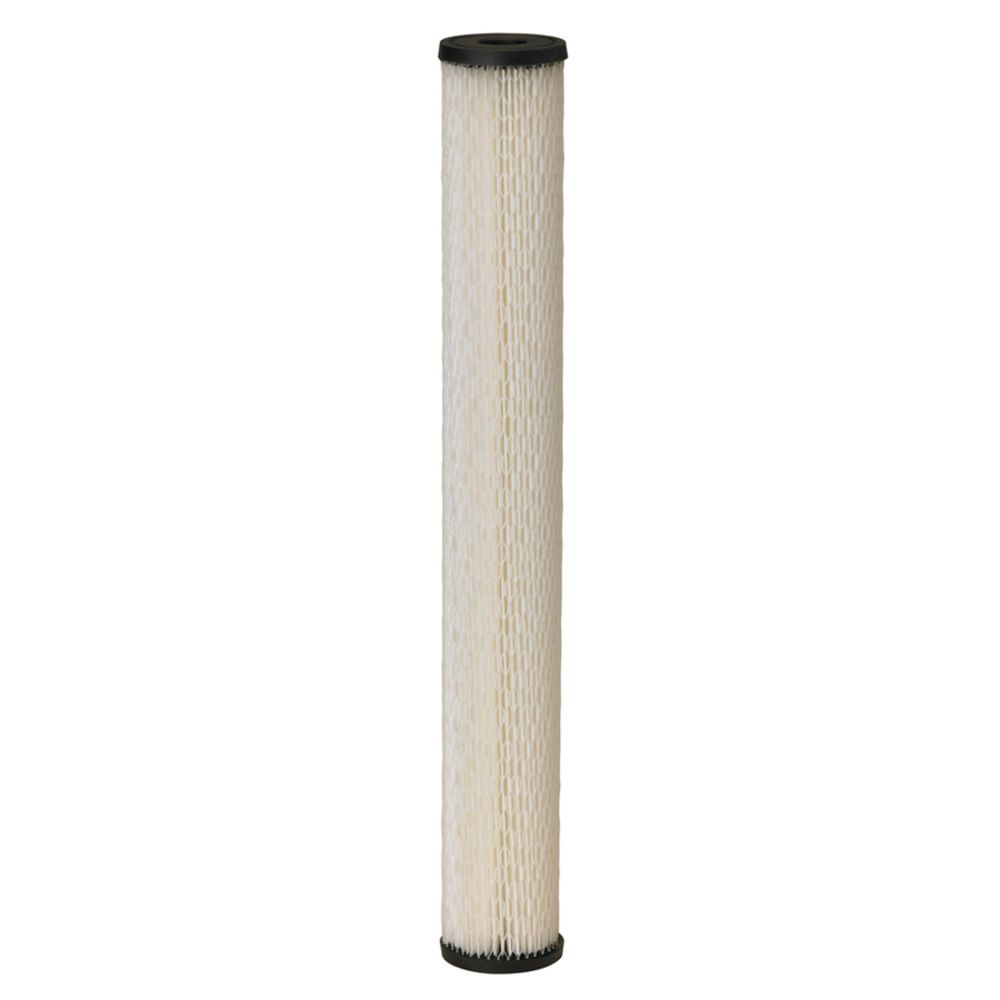

20" Pentek S1-20 Pleated Cellulose 20 mic Filter

Part Number: 155303-43

In Stock

out of stock

In Stock

$8.96

S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.

Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.



Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

14

Cube Measurement

1.49982986111111

Height (inches)

22.3

Length (inches)

14.9

Weight (lbs)

8

Width (inches)

7.8

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

.8 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

0.8 psid @ 10 GPM

Recommended Flow Rate

15 GPM

Surface Area

1,110 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-5/8"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

15 GPM

Media Type

Resin Impregnated Cellulose

Micron Rating

20 µm

Origin

Mexico

Product Length

20"


20"

20"




S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes. The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.

Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

14

Cube Measurement

1.49982986111111

Height (inches)

22.3

Length (inches)

14.9

Weight (lbs)

8

Width (inches)

7.8

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

.8 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

0.8 psid @ 10 GPM

Recommended Flow Rate

15 GPM

Surface Area

1,110 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-5/8"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

15 GPM

Media Type

Resin Impregnated Cellulose

Micron Rating

20 µm

Origin

Mexico

Product Length

20"
