Pentek

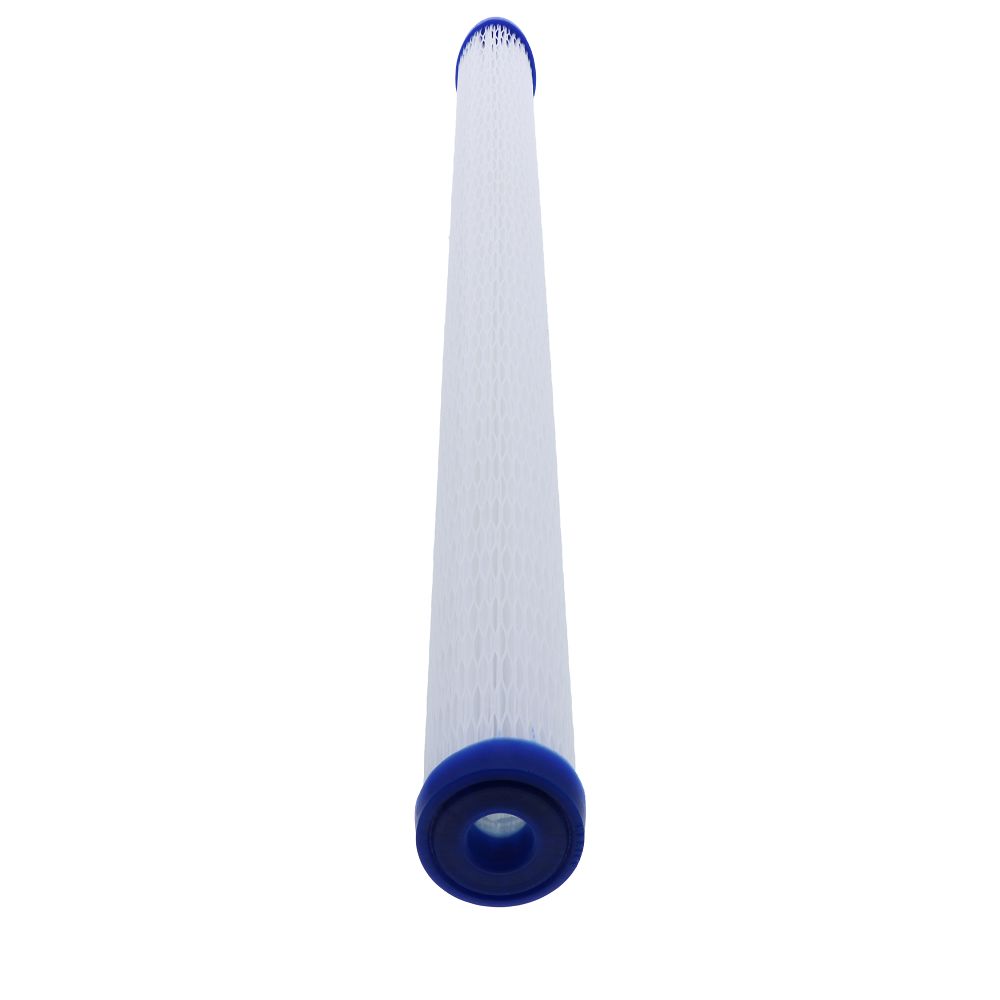

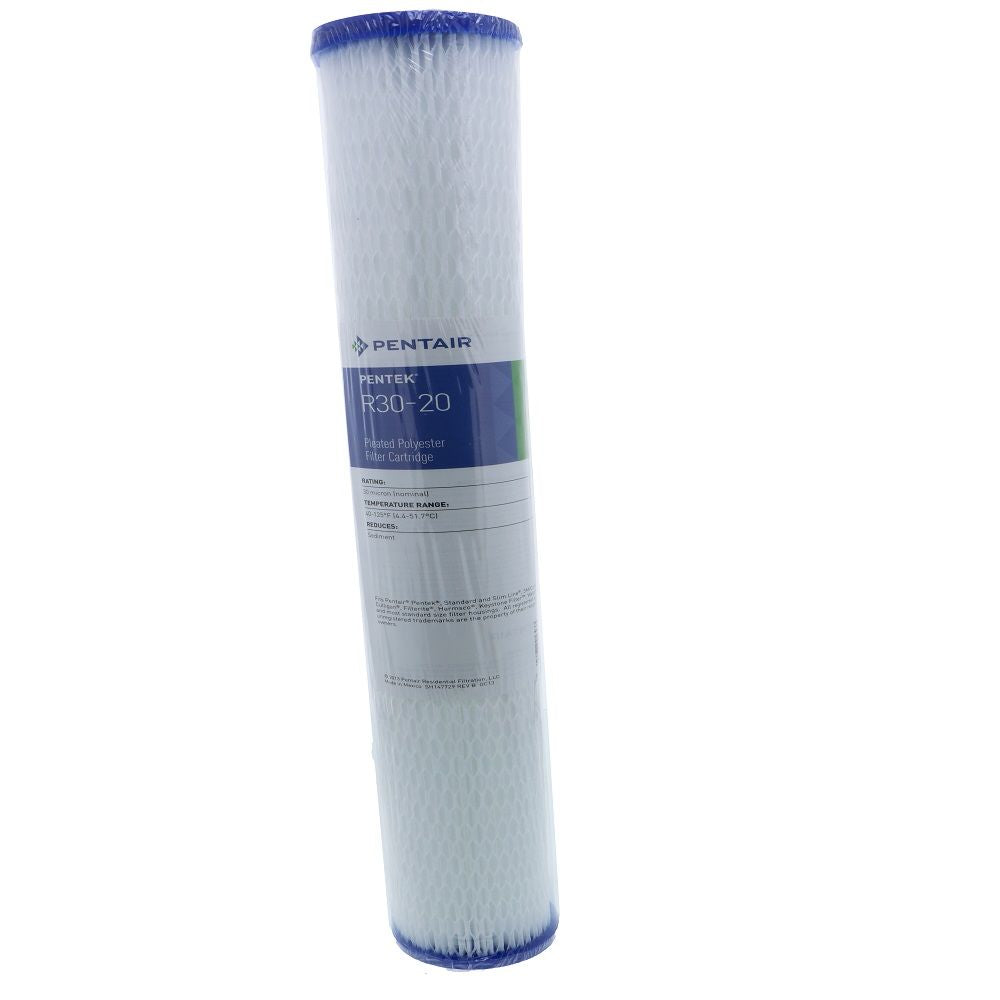

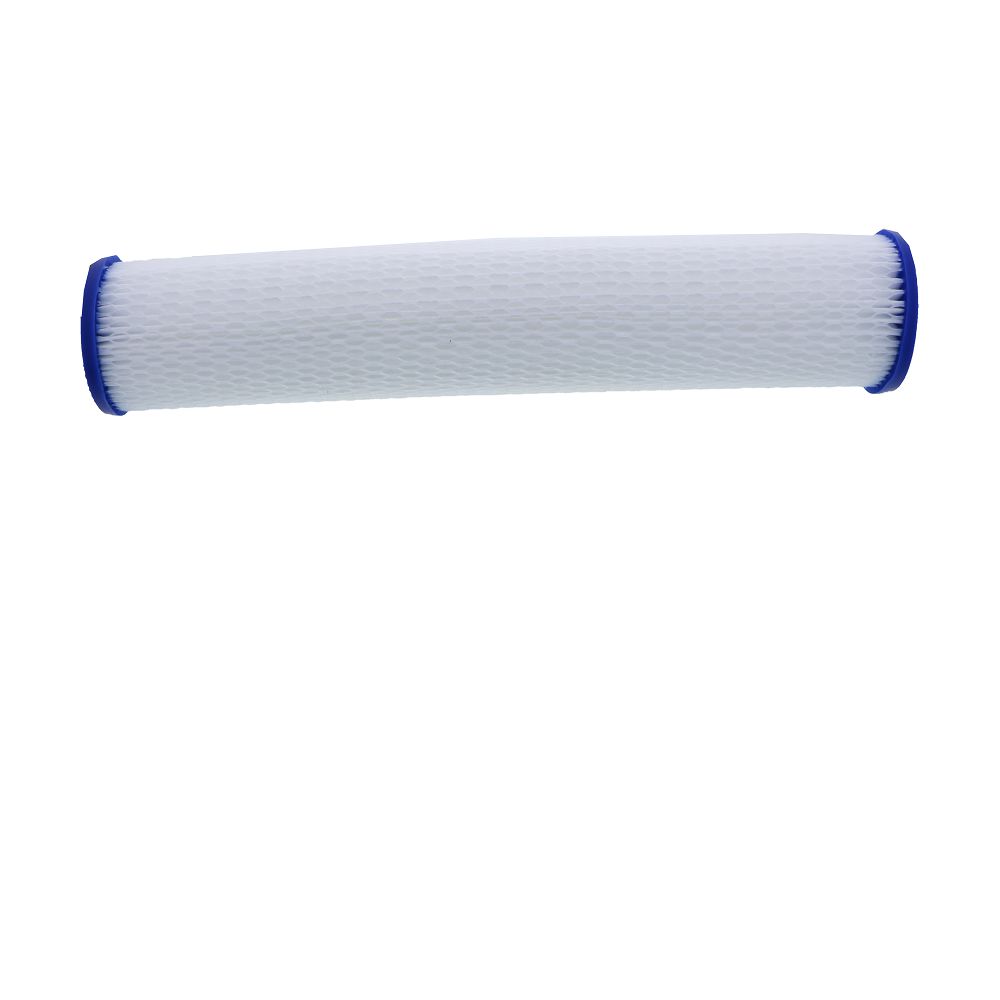

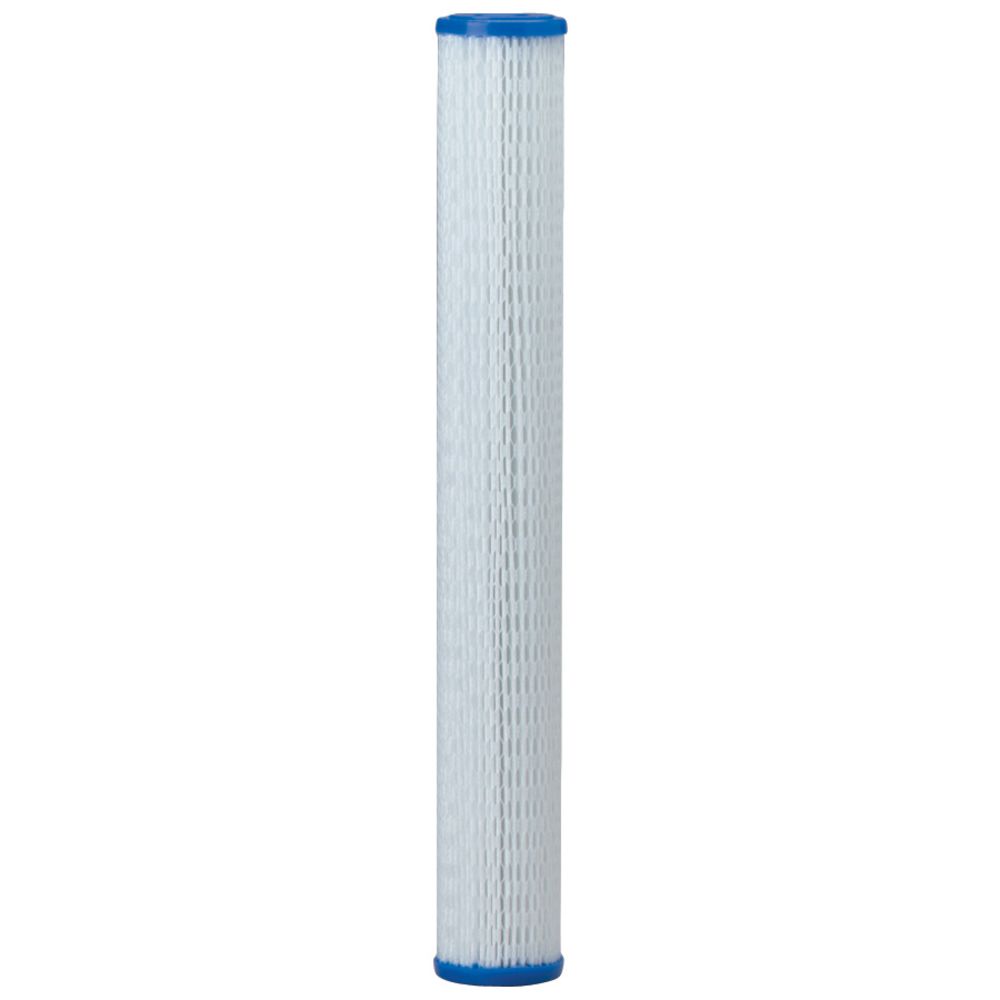

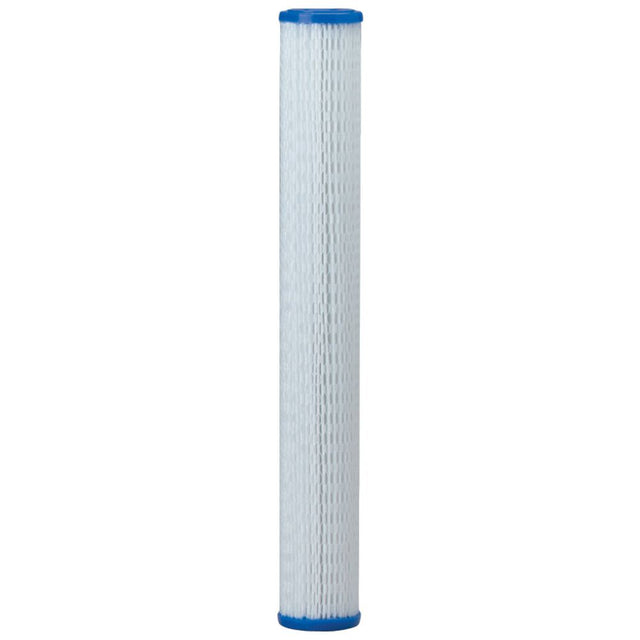

20" Pentek R30-20 Reusable Pleated Polyester 30 Micron Filter

Part Number: 155416-43

In Stock

out of stock

In Stock

$12.29


Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.
Features:
  • Replacement filter for most 20" Standard Housings
  • Pleated design maximizes dirt-holding capacity
  • Versatile and reusable, allowing for a variety of uses
  • Durable non-woven polyester media is bacteria and chemical resistant
  • Applications: potable water, light industrial applications, swimming pool and spa, and well water applications


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

14

End Cap Type

DOE

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.625"


20"

20"





Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.
Features:
  • Replacement filter for most 20" Standard Housings
  • Pleated design maximizes dirt-holding capacity
  • Versatile and reusable, allowing for a variety of uses
  • Durable non-woven polyester media is bacteria and chemical resistant
  • Applications: potable water, light industrial applications, swimming pool and spa, and well water applications

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

14

End Cap Type

DOE

Flow Rate

10 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

2.625"
