Kit

20" Heavy Duty Sediment Prefilter Kit - 1.5"

Part Number: FK-20BB15-SD05

Alt. Part Number: 152087

In Stock

out of stock

In Stock

$96.05

The Heavy Duty Sediment Prefilter Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 20 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

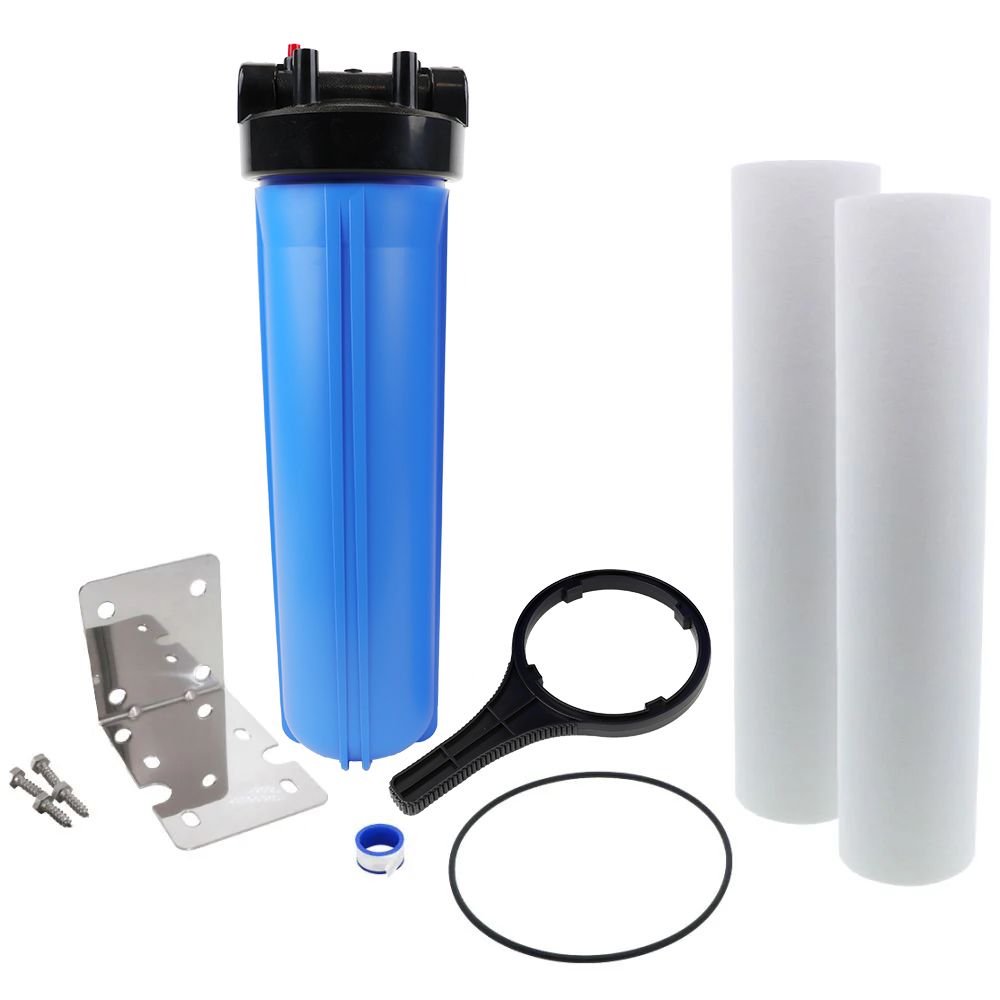

Features:
  • 20" Heavy Duty Filter Housing 1.5" Inlet/Outlet

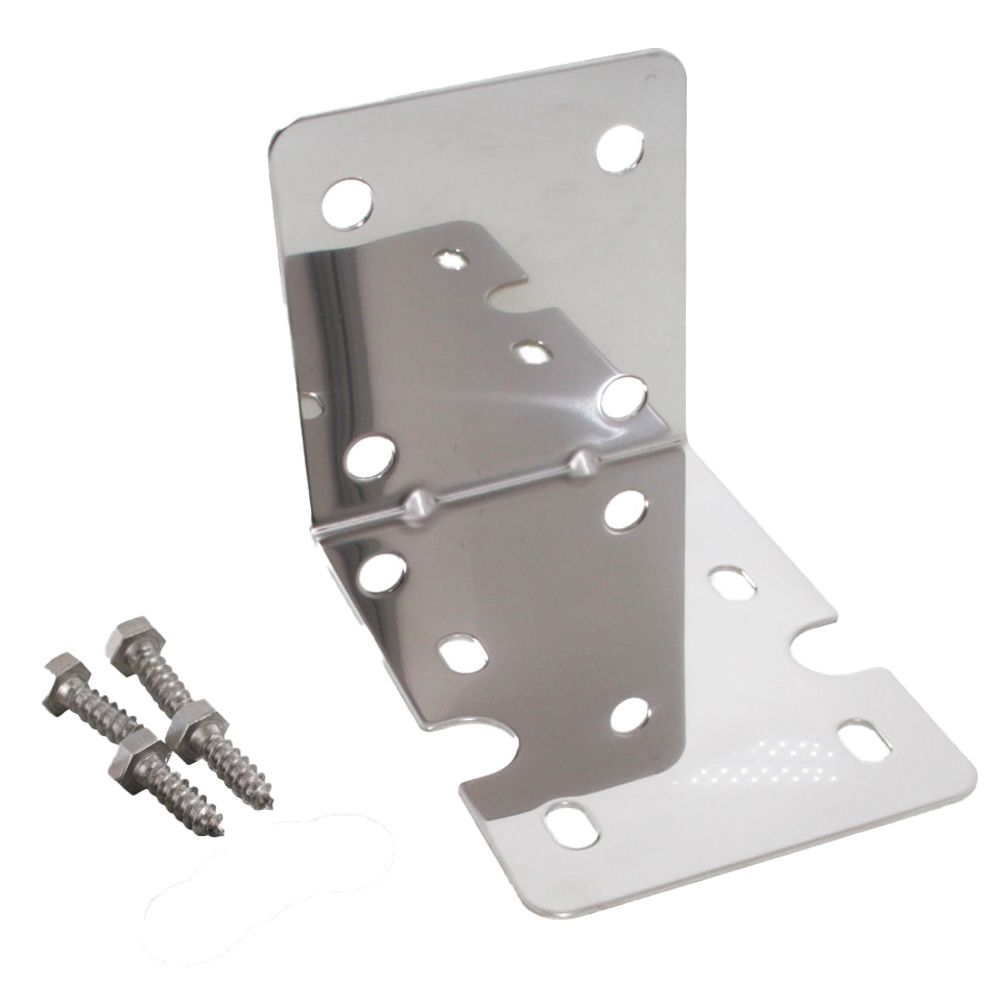

  • White Powder Coated Steel Mounting Bracket w/lag bolts
  • Filter Wrench for Heavy Duty Housings
  • Extra O-ring for Heavy Duty Housings

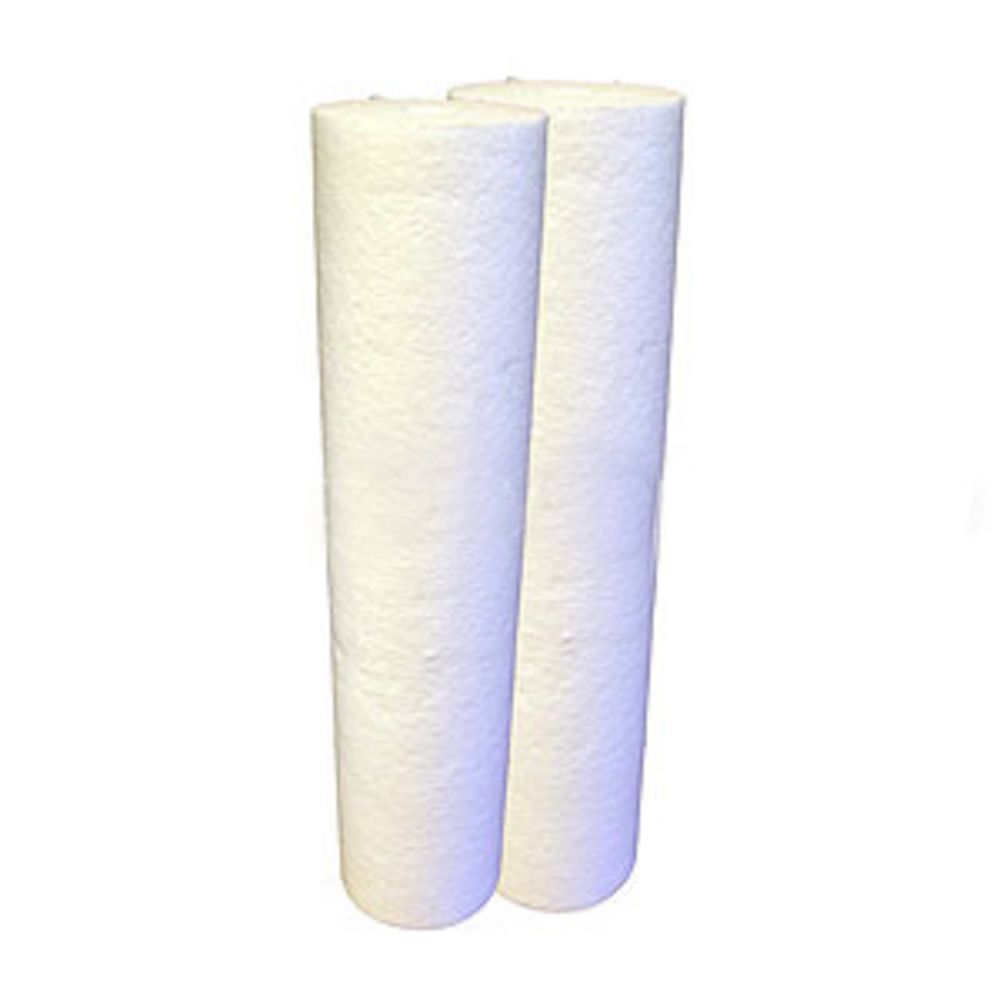

  • Two Dual Gradient Polypropylene 5 micron filters
NOTE: Fittings and Inline Ball Valve are not available in 1-1/2" configuration. All systems should be plumbed in with a bypass.

Standard Set-Up Diagram:


Optional Bypass Set-up Diagram:


Weight & Dimensions

Approx Height (Inches)

23-7/8"

Approx Width (Inches)

7-1/4"

Weight (lbs)

19

Details

Housing Material

Polypropylene

Inlet/Outlet Connection

1-1/2" FPT

Max Pressure (Psi)

100

Max Temp (°F)

100

Micron Rating (Nominal)

5 µm

Nut / Fitting Material

Polysulfone

Size

1-1/2"

Connection Type

Female (FPT)

Contaminants Reduced

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Dual Gradient Polypropylene

Type

Sediment Filtration System



The Heavy Duty Sediment Prefilter Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 20 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Features:
  • 20" Heavy Duty Filter Housing 1.5" Inlet/Outlet
  • White Powder Coated Steel Mounting Bracket w/lag bolts
  • Filter Wrench for Heavy Duty Housings
  • Extra O-ring for Heavy Duty Housings
  • Two Dual Gradient Polypropylene 5 micron filters
NOTE: Fittings and Inline Ball Valve are not available in 1-1/2" configuration. All systems should be plumbed in with a bypass.

Standard Set-Up Diagram:


Optional Bypass Set-up Diagram:

Weight & Dimensions

Approx Height (Inches)

23-7/8"

Approx Width (Inches)

7-1/4"

Weight (lbs)

19

Details

Housing Material

Polypropylene

Inlet/Outlet Connection

1-1/2" FPT

Max Pressure (Psi)

100

Max Temp (°F)

100

Micron Rating (Nominal)

5 µm

Nut / Fitting Material

Polysulfone

Size

1-1/2"

Connection Type

Female (FPT)

Contaminants Reduced

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Dual Gradient Polypropylene

Type

Sediment Filtration System
