Kit

20" Heavy Duty Sediment Prefilter Kit - 1"

Part Number: FK-20BB10-SD05

In Stock

out of stock

In Stock

$161.93


The Heavy Duty Sediment Prefilter Kit, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 20 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

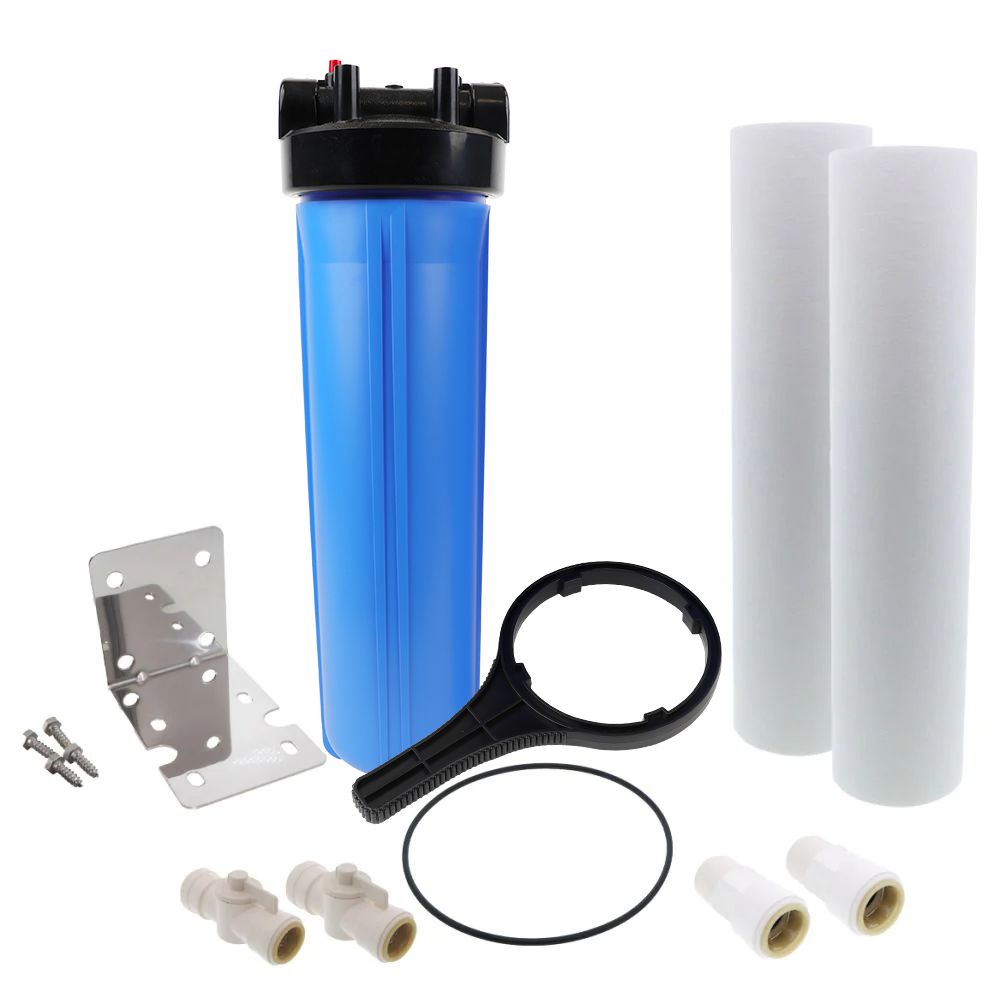

Kit Includes:
  • 20" Heavy Duty Filter Housing 1" Inlet/Outlet

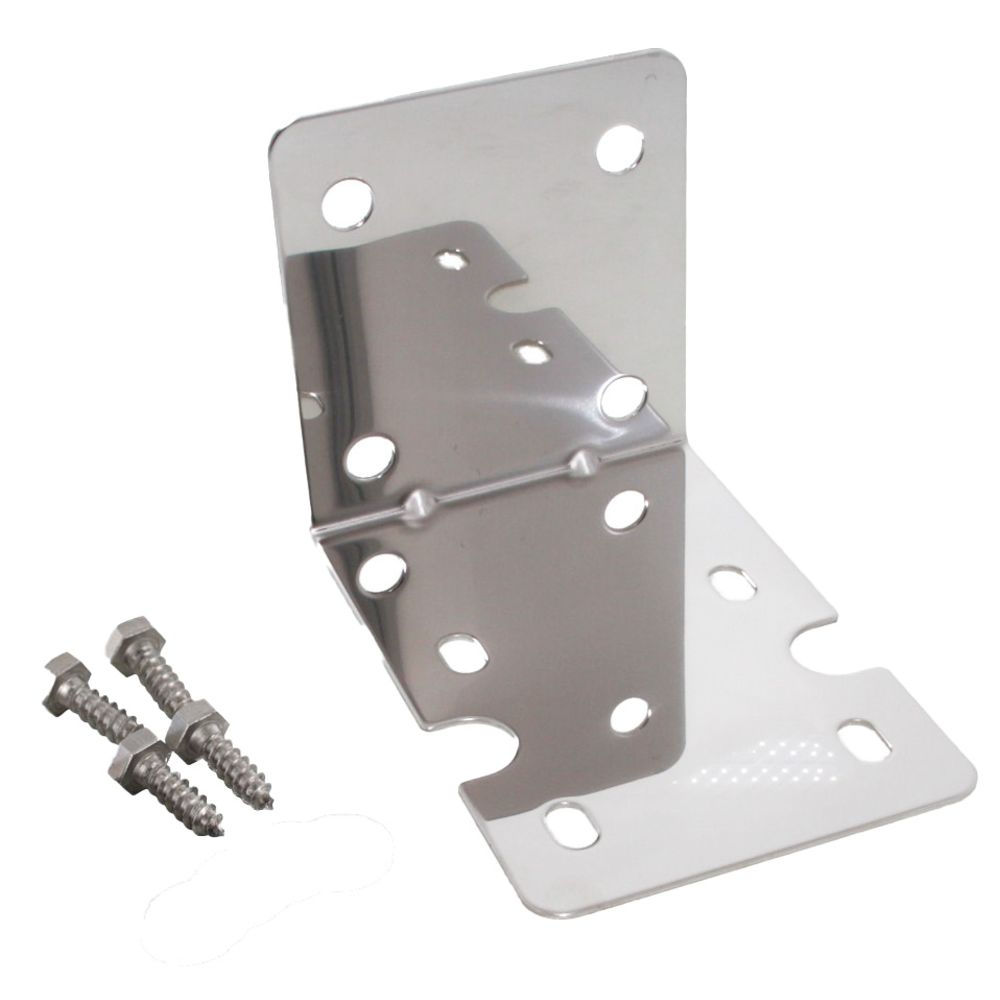

  • White Powder Coated Steel Mounting Bracket w/lag bolts

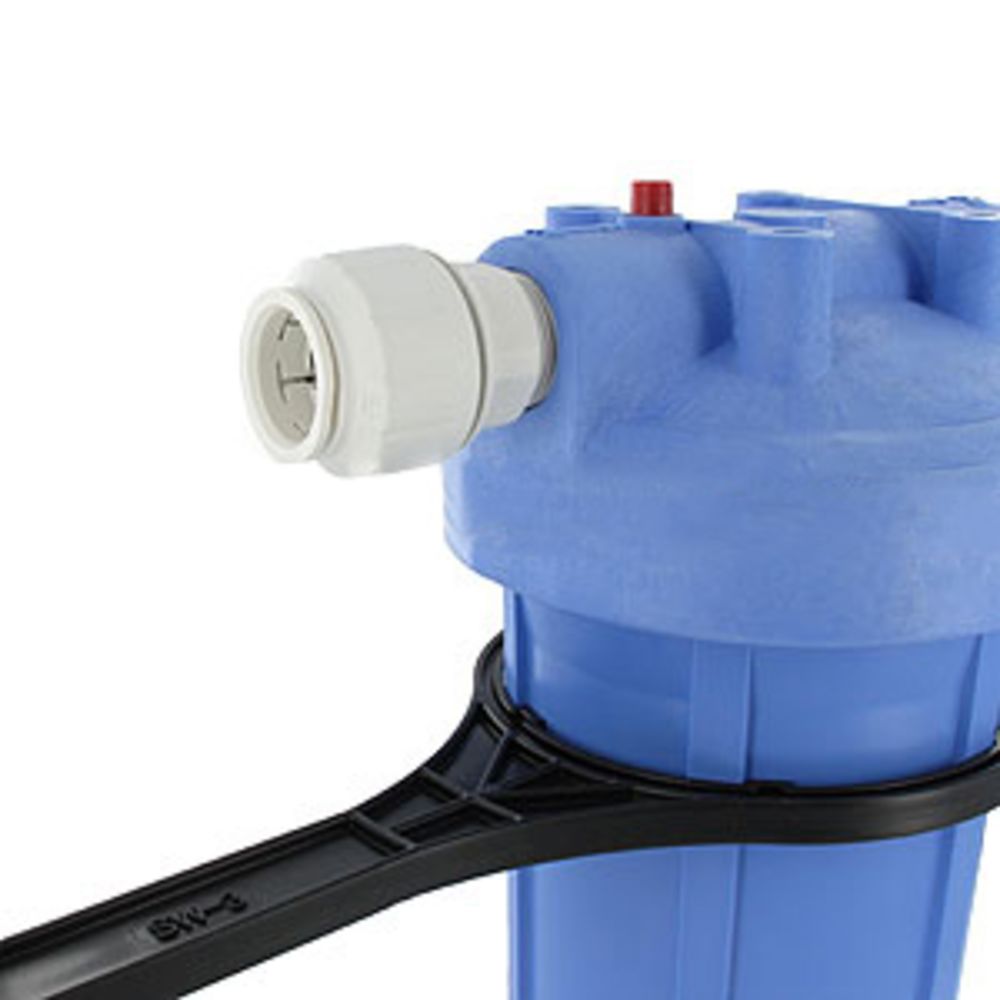

  • Filter Wrench for Heavy Duty Housings
  • Extra O-ring for Heavy Duty Housings
  • Two Dual Gradient Polypropylene 5 micron filters
  • Two 1" CTS x 1" NPT Male Connectors for Copper, PEX, and CPVC
  • Two 1" CTS In-Line Valves

Sediment Prefilter Kit Set-up Diagram for UV Disinfection Water System


Weight & Dimensions

Approx Height (Inches)

23-7/8" Inches

Approx Width (Inches)

7-1/4" Inches

Details

Application

Sediment Prefiltration

Connections

1" NPT

Flow Rate

20 Gallons Per Minute

Housing Material

Polypropylene

Media Type

Dual Gradient Polypropylene

Micron Rating (Nominal)

5 Micron

Nut / Fitting Material

Polysulfone

Operating Pressure Range

100 PSI

Operating Temperature Range

100 Degrees Fahrenheit

Contaminants Reduced

Sediment; Turbidity (cloudiness)




The Heavy Duty Sediment Prefilter Kit, for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 20 gpm using our dual gradient polypropylene filter that starts at 50 microns, down to 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Kit Includes:
  • 20" Heavy Duty Filter Housing 1" Inlet/Outlet
  • White Powder Coated Steel Mounting Bracket w/lag bolts
  • Filter Wrench for Heavy Duty Housings
  • Extra O-ring for Heavy Duty Housings
  • Two Dual Gradient Polypropylene 5 micron filters
  • Two 1" CTS x 1" NPT Male Connectors for Copper, PEX, and CPVC
  • Two 1" CTS In-Line Valves

Sediment Prefilter Kit Set-up Diagram for UV Disinfection Water System

Weight & Dimensions

Approx Height (Inches)

23-7/8" Inches

Approx Width (Inches)

7-1/4" Inches

Details

Application

Sediment Prefiltration

Connections

1" NPT

Flow Rate

20 Gallons Per Minute

Housing Material

Polypropylene

Media Type

Dual Gradient Polypropylene

Micron Rating (Nominal)

5 Micron

Nut / Fitting Material

Polysulfone

Operating Pressure Range

100 PSI

Operating Temperature Range

100 Degrees Fahrenheit

Contaminants Reduced

Sediment; Turbidity (cloudiness)
