20" Big Flow Triple Series Plumbed Filter Housing DIY 1" FPT

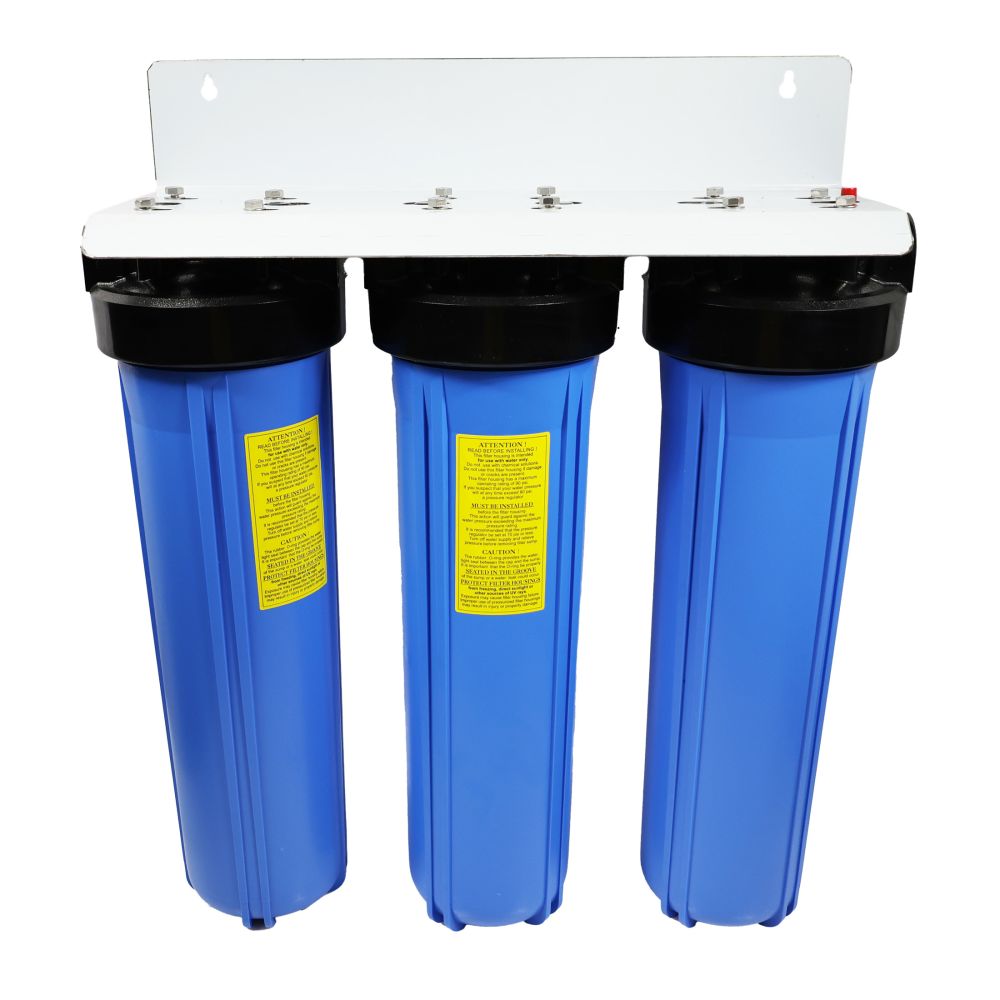

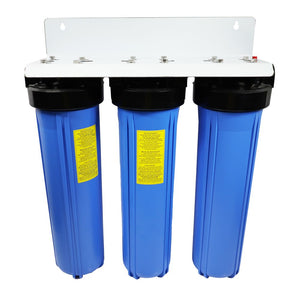

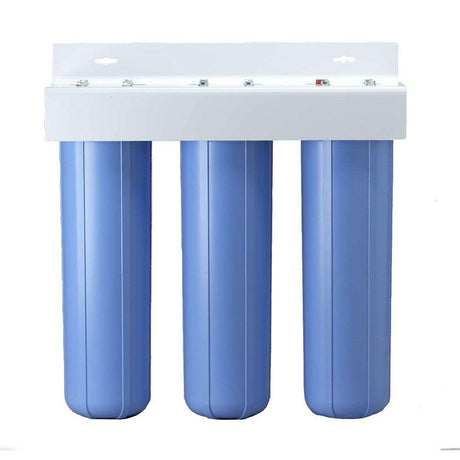

This BB 20" Triple Series Plumbed Filter Housing DIY 1" FPT consists of three 20" Big Blue Housings which are plumbed in series with a wall mounting bracket and hardware. The system consists of a series of large capacity #20 Big Blue housings, allowing for greater cartridge capacities and higher flow rates. Each system is also equipped with a pressure relief button to relieve housing pressure during cartridge changes. All filter housings are manufactured of a durable polypropylene, have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.
Features:
Specifications:
Includes:
Features:
- System does not include filter cartridges
- Assembly required
- System for reducing Sediment & Chlorine Taste & Odor
- Can also be used for Prefiltration before a UV System

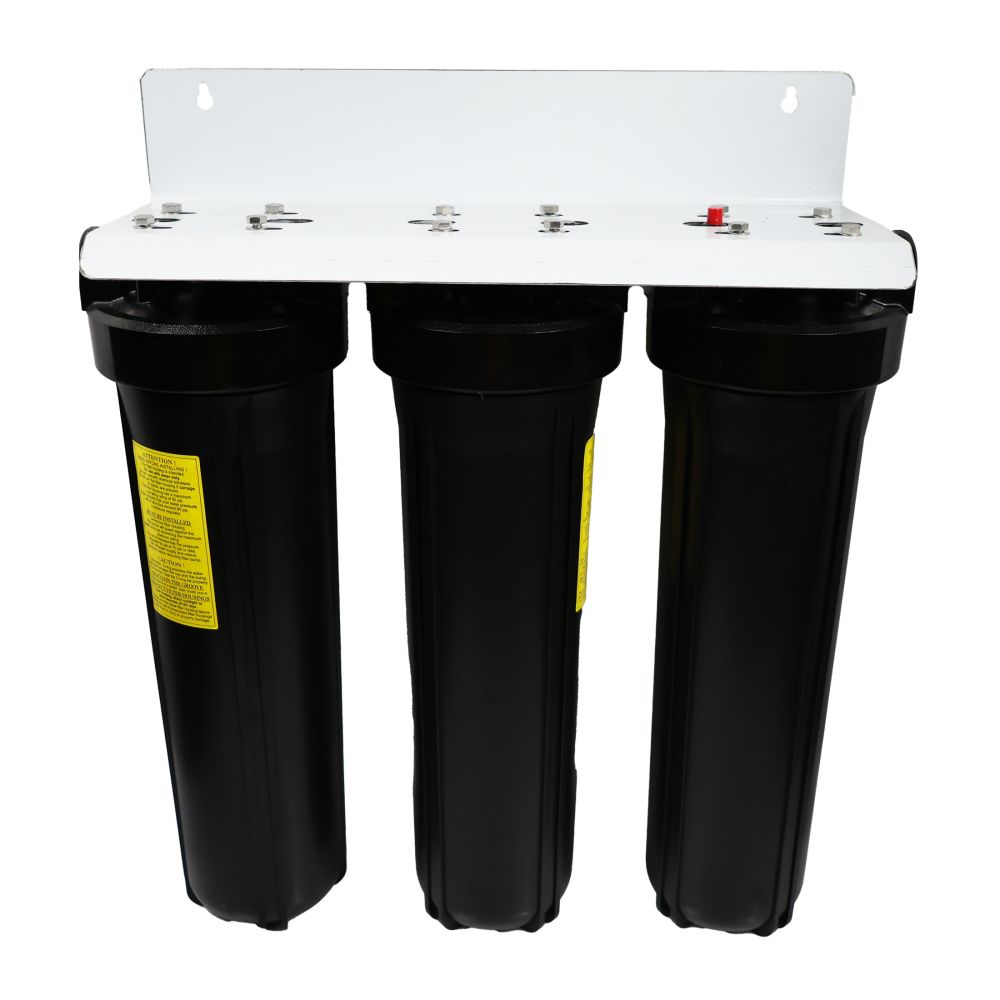

- Available in Black/Blue and Black/Black
Specifications:
- Connection Type: Female (FPT)
- Inlet/Outlet Connection: 1" FPT
- Max Pressure (PSI): 90
- Max Temperature: 100°F
- Flow Rate: 40 GPM
- O-Rings: Buna-N
- Cap Material: Polypropylene
- Housing Material: Polypropylene
- Features: Pressure Relief

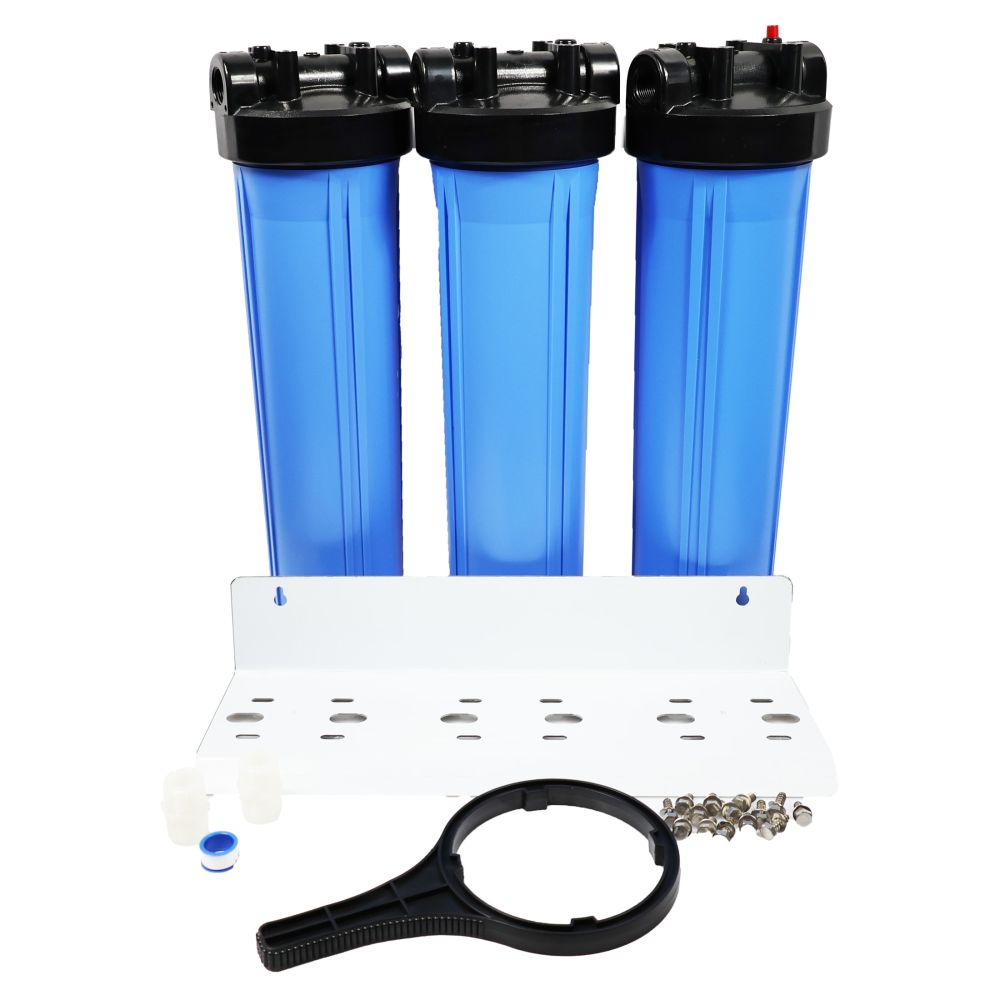

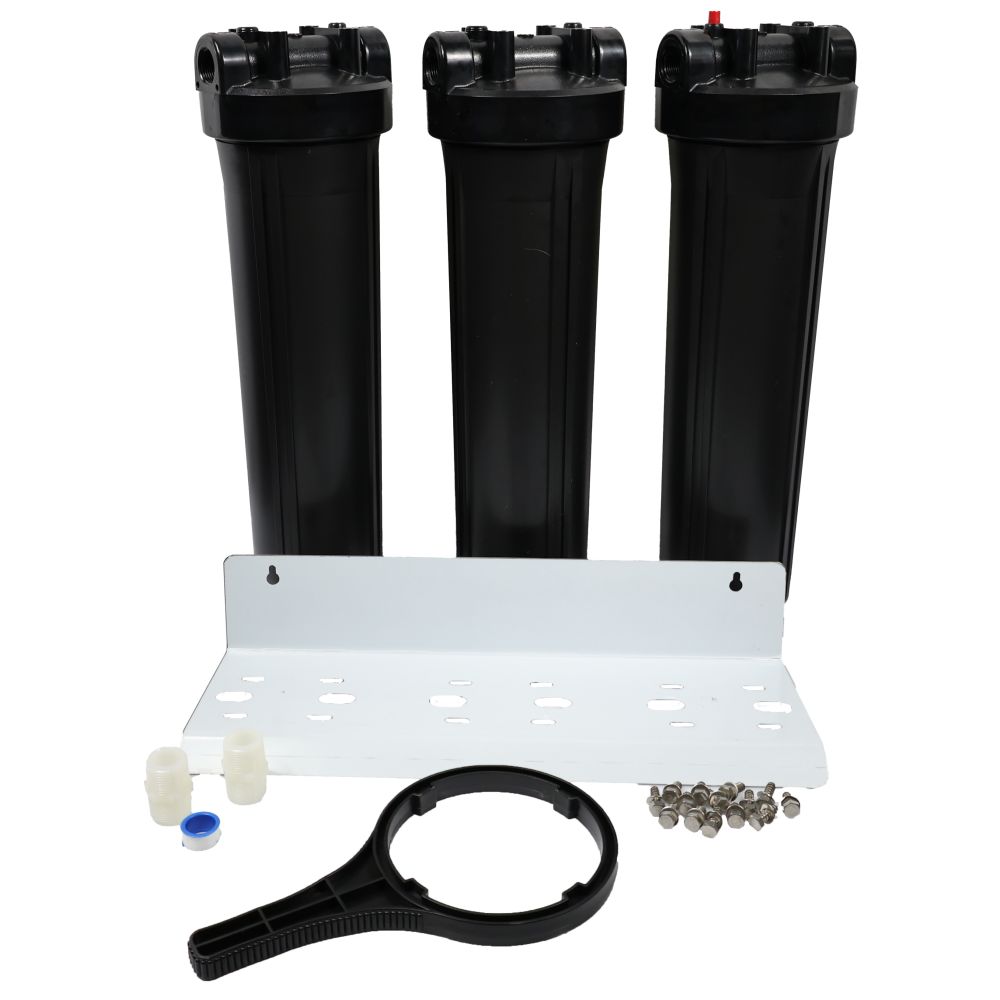

Includes:
- Bracket: 1
- Housing: 3
- Lag Bolt: 14
- Pipe Seal: 1
- Appropriate Sized Nipple: 2
- Filter Wrench: 1
California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
