Pentek

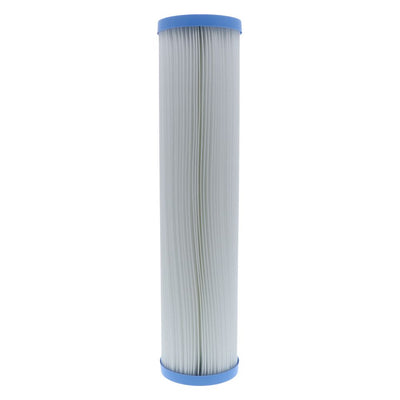

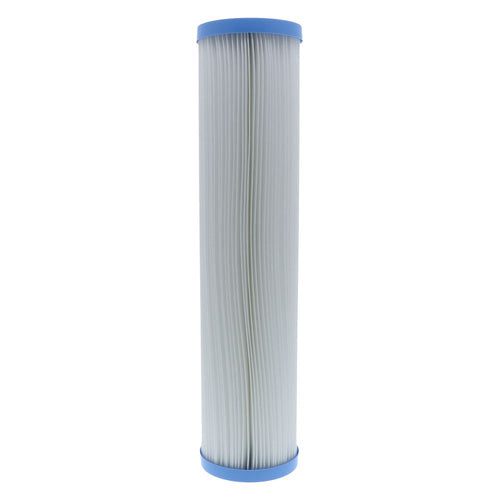

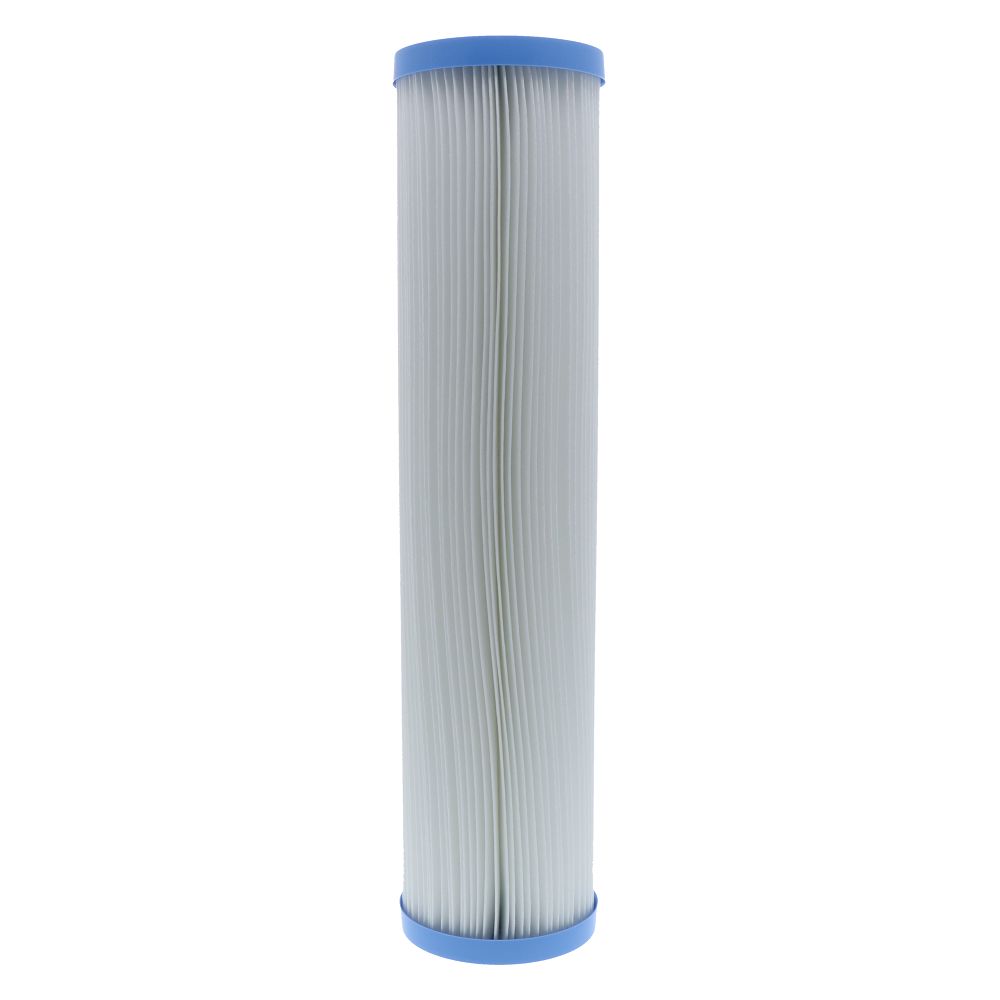

20" BB Pentek R30-20BB Pleated Polyester 30 mic Filter

Part Number: 155430-43

Alt. Part Number: 155430-88, EF30-20FPVXDVP

In Stock

out of stock

In Stock

$29.95


Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Applications:
  • potable water, light industrial applications, swimming pool and spa, and well water applications
  • Pleated to maximize its dirt holding capacity and extending the time period between changes
  • Also known as the Proflex Series Pleated Polyester Cartridges from Pentair Industrial.

Compatible with: Pentek | 155430, EF30-20FPVXDVP


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

6

End Cap Type

DOE

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

Mexico

Outer Diameter

4.5" (11.4 cm)


20"

20"





Pentek R Series cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.

Applications:
  • potable water, light industrial applications, swimming pool and spa, and well water applications
  • Pleated to maximize its dirt holding capacity and extending the time period between changes
  • Also known as the Proflex Series Pleated Polyester Cartridges from Pentair Industrial.

Compatible with: Pentek | 155430, EF30-20FPVXDVP

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Case Quantity

6

End Cap Type

DOE

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Non-Woven Polyester

Micron Rating (Nominal)

30 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

Mexico

Outer Diameter

4.5" (11.4 cm)
