20" BB No PR Sediment Prefilter Kit - 3/4"

Part Number: 20BBPRE34

In Stock

out of stock

In Stock

$68.36

This Sediment Prefilter Kit offers sediment prefiltration at the point of entry with flow rates up to 20 gpm using our 50/5 micron graded density polypropylene sediment filter, which reduces dirt, sediment, and turbidity in the water. This kit is also ideal for use with ultraviolet (UV) disinfection water systems. It prefilters for sediment so your water supply can safely go through your UV water treatment system for disinfection. This kit features a 20" BB housing with 3/4" NPT, and no pressure relief.

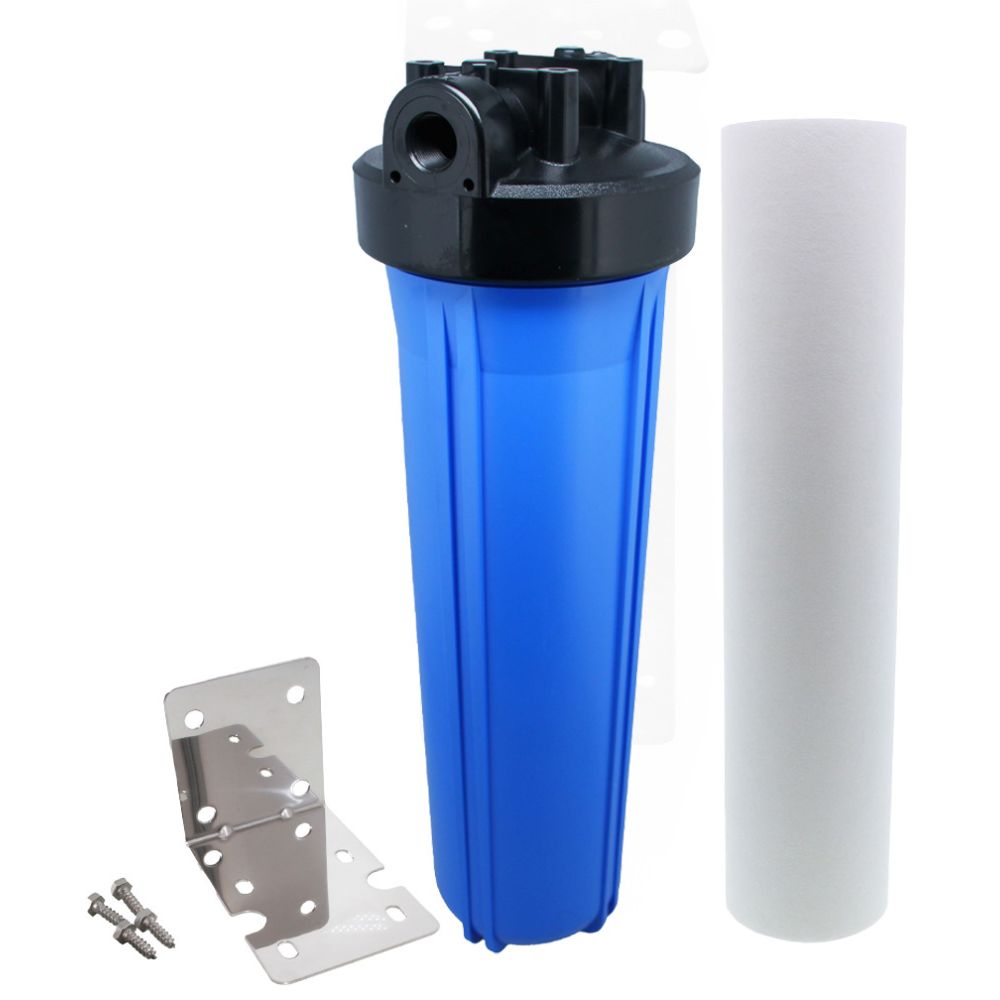

Kit Includes:
  • (1) Neo-Pure MB-45200-05 20" BB Graded Density Polypropylene Sediment Filter 50/5 Micron
  • (1) Pentek 20" BB Filter Housing 3/4" NPT w/out PR
  • (1) Metal Mounting Bracket for 10" & 20" BB Housings
  • (4) Lag Bolts for Mounting Bracket for 10" & 20" BB Housings
Specifications:
  • Contaminants Reduced: Dirt, Sediment, Turbidity (cloudiness)
  • Rating (Nominal): 50/5 µm
  • Flow Rate: 20 gpm
  • Connection Type: 3/4" NPT
  • Media Type: Polypropylene
  • Operating Temperature: 40-145 °F
  • Height: 20"
  • Width: 4.5"




Weight & Dimensions

Weight (lbs)

20.05

Approx Height (Inches)

20"

Approx Width (Inches)

4-1/2"

Details

Max Temp (°F)

145

Min Temp (°F)

40

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

50/5 µm

Size

3/4"

Contaminants Reduced

Sediment/Dirt/Rust

Inlet/Outlet Connection

3/4" FPT



This Sediment Prefilter Kit offers sediment prefiltration at the point of entry with flow rates up to 20 gpm using our 50/5 micron graded density polypropylene sediment filter, which reduces dirt, sediment, and turbidity in the water. This kit is also ideal for use with ultraviolet (UV) disinfection water systems. It prefilters for sediment so your water supply can safely go through your UV water treatment system for disinfection. This kit features a 20" BB housing with 3/4" NPT, and no pressure relief.

Kit Includes:
  • (1) Neo-Pure MB-45200-05 20" BB Graded Density Polypropylene Sediment Filter 50/5 Micron
  • (1) Pentek 20" BB Filter Housing 3/4" NPT w/out PR
  • (1) Metal Mounting Bracket for 10" & 20" BB Housings
  • (4) Lag Bolts for Mounting Bracket for 10" & 20" BB Housings
Specifications:
  • Contaminants Reduced: Dirt, Sediment, Turbidity (cloudiness)
  • Rating (Nominal): 50/5 µm
  • Flow Rate: 20 gpm
  • Connection Type: 3/4" NPT
  • Media Type: Polypropylene
  • Operating Temperature: 40-145 °F
  • Height: 20"
  • Width: 4.5"



Weight & Dimensions

Weight (lbs)

20.05

Approx Height (Inches)

20"

Approx Width (Inches)

4-1/2"

Details

Max Temp (°F)

145

Min Temp (°F)

40

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

50/5 µm

Size

3/4"

Contaminants Reduced

Sediment/Dirt/Rust

Inlet/Outlet Connection

3/4" FPT
