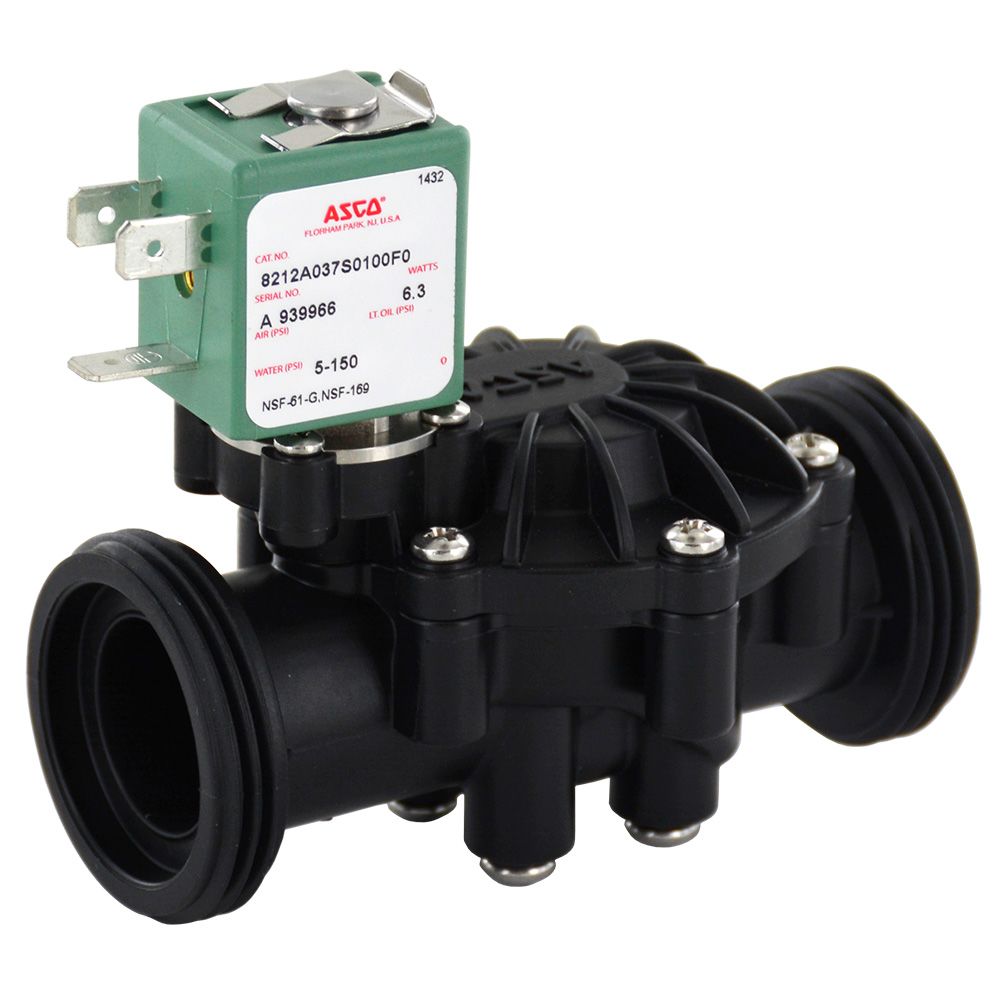

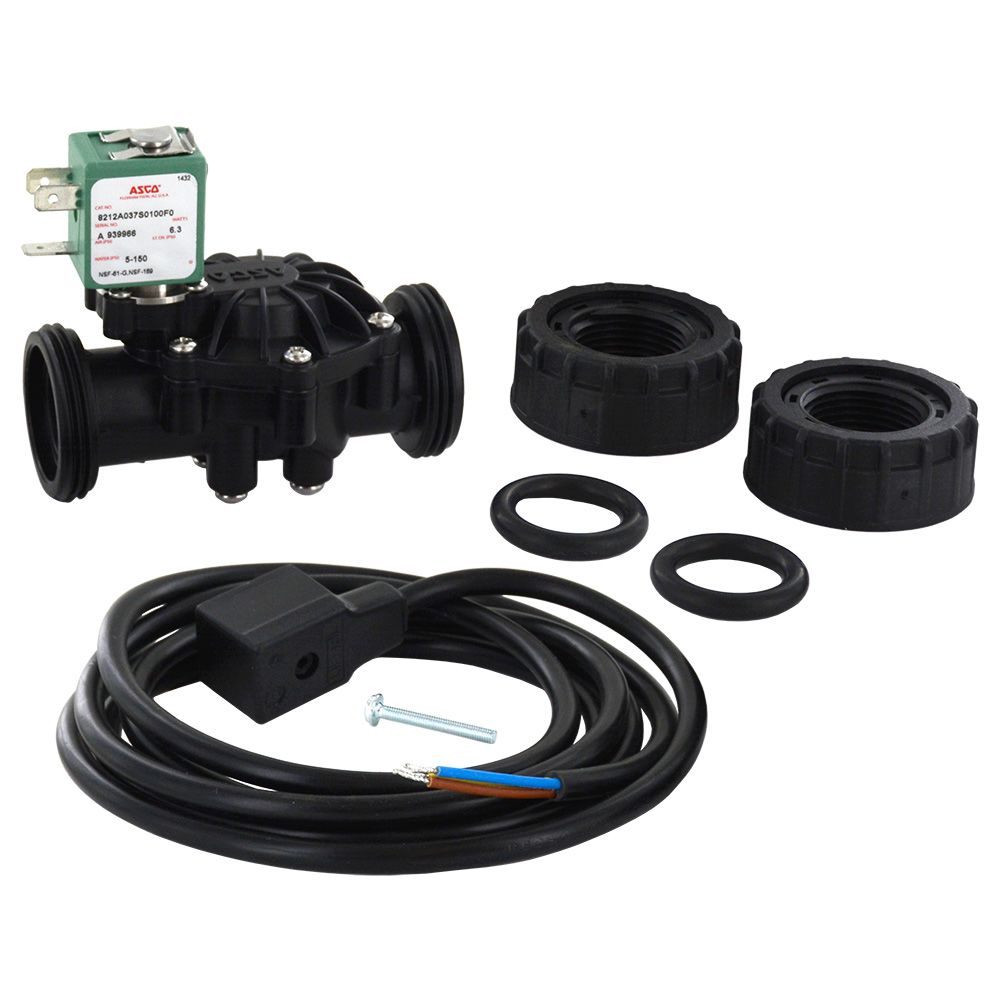

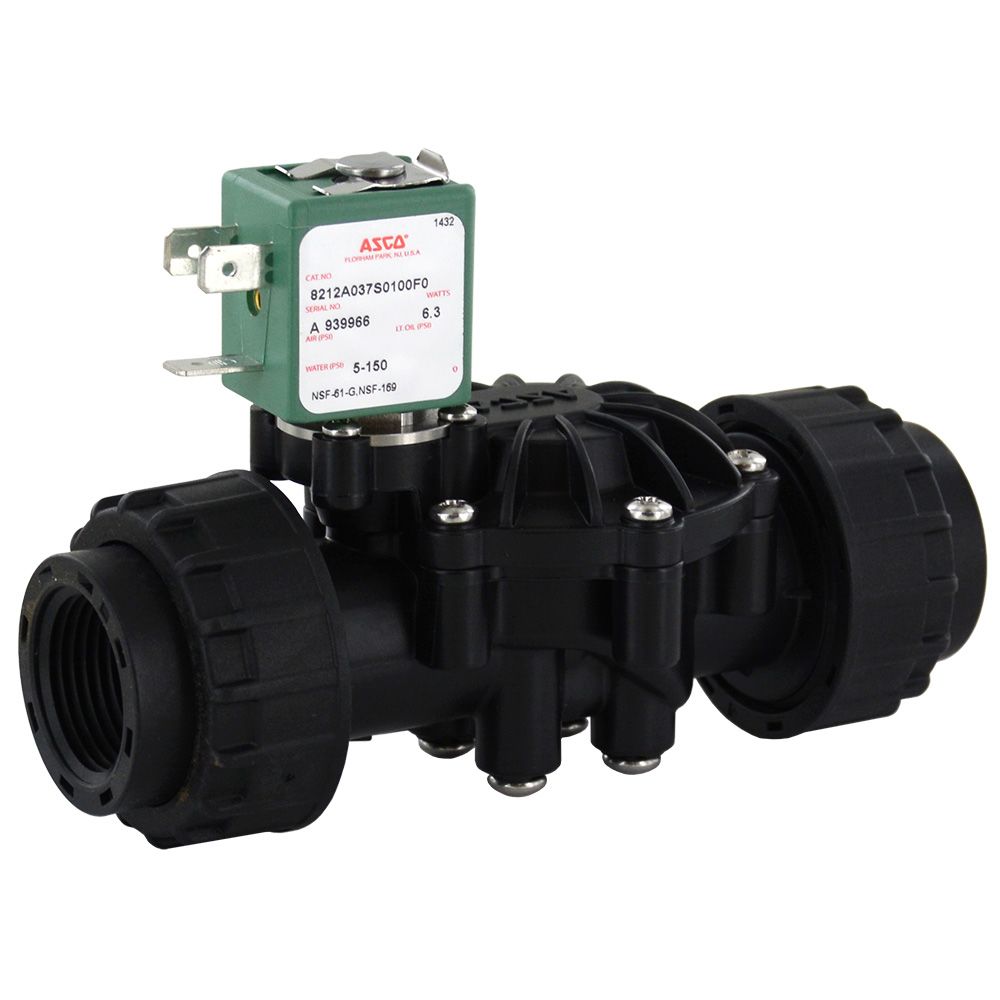

2-Way Solenoid Valve Normally Closed 3/4 FPT 120V

Part Number: SOL-0.75

Alt. Part Number: 8212A037S0100F0

In Stock

out of stock

In Stock

$164.99 Regular price


This 2-way normally closed solenoid valve is suitable for use in commercial/industrial water purification applications such as reverse osmosis systems, restaurant food and beverage equipment and grocery store produce misting systems. It can also be used with UV water treatment system. Valves are easy to install and are NSF certified.

Specifications:
  • Composite body valve
  • 2-way normally closed valve
  • FasN­­™ connection system with 3/4" FPT fittings
  • Temperature rating: Up to 180°F
  • Max Pressure: 150 psi
  • Voltage: 120V
  • UL listed and NSF certified
  • Manufacturer: ASCO  Mfg Part #: 8212A037S0100F0

Compatible with: AXEON/RO Ultratec | 207626


Details

Flow Factor (Metric Or English)

7 (GPM@1psi drop, 16°C)

Body Material

Polyphenylene Ether (PPE)

Frequency

60 Hertz

Mounting Options

Any

Operating Pressure Range

5-150 PSI

Operating Temperature Range

max. 180°F (+82°C)

Seal Material

EPDM

Voltage

120V

Watts

6.3

Rating

F

Va Inrush / Va Holding

12.1/8.8

Wetted Materials

Stainless Steel, Composite Engineered Plastic

Port Size

3/4" FPT Inches

Warranty & Certifications

Certifications

NSF 61, ANNEX G; UL Listed; CSA Listed; NSF 169; NSF 42; NSF 372


2-Way

2-Way





This 2-way normally closed solenoid valve is suitable for use in commercial/industrial water purification applications such as reverse osmosis systems, restaurant food and beverage equipment and grocery store produce misting systems. It can also be used with UV water treatment system. Valves are easy to install and are NSF certified.

Specifications:
  • Composite body valve
  • 2-way normally closed valve
  • FasN­­™ connection system with 3/4" FPT fittings
  • Temperature rating: Up to 180°F
  • Max Pressure: 150 psi
  • Voltage: 120V
  • UL listed and NSF certified
  • Manufacturer: ASCO  Mfg Part #: 8212A037S0100F0

Compatible with: AXEON/RO Ultratec | 207626

Details

Flow Factor (Metric Or English)

7 (GPM@1psi drop, 16°C)

Body Material

Polyphenylene Ether (PPE)

Frequency

60 Hertz

Mounting Options

Any

Operating Pressure Range

5-150 PSI

Operating Temperature Range

max. 180°F (+82°C)

Seal Material

EPDM

Voltage

120V

Watts

6.3

Rating

F

Va Inrush / Va Holding

12.1/8.8

Wetted Materials

Stainless Steel, Composite Engineered Plastic

Port Size

3/4" FPT Inches

Warranty & Certifications

Certifications

NSF 61, ANNEX G; UL Listed; CSA Listed; NSF 169; NSF 42; NSF 372
