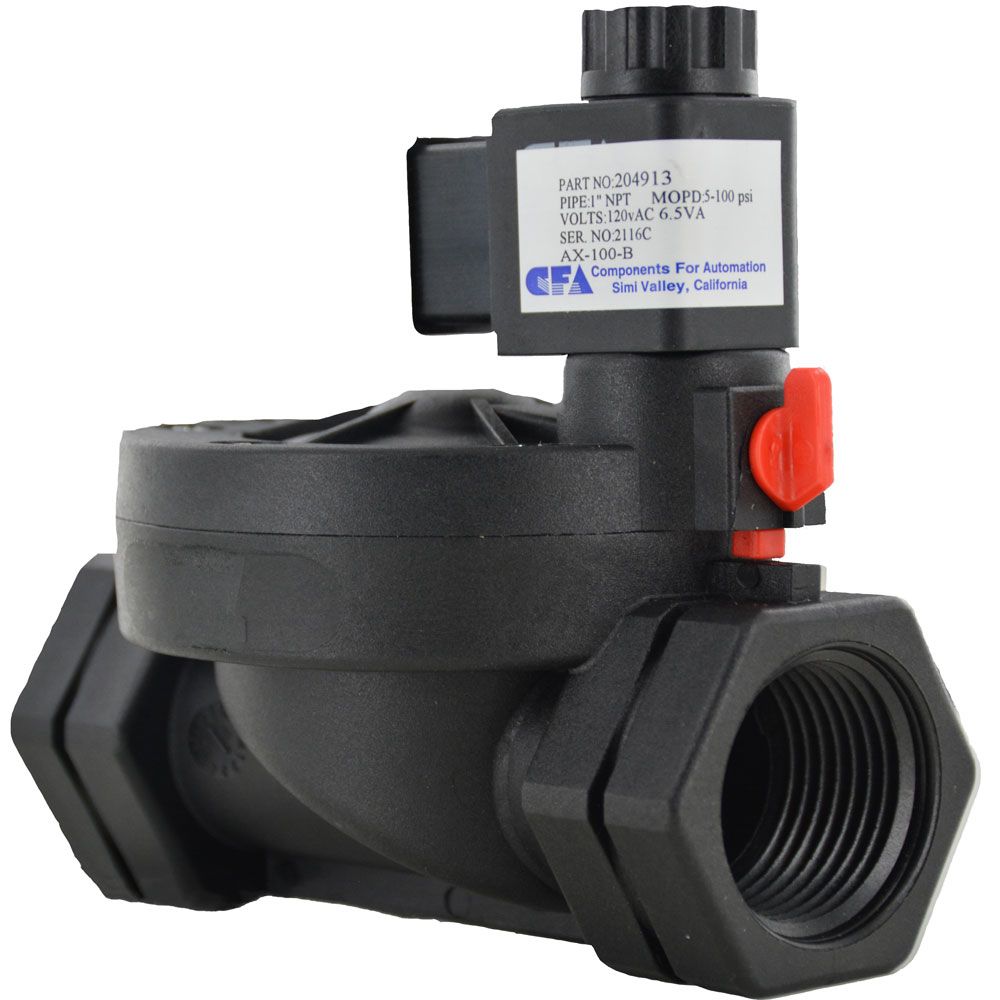

2-Way Solenoid Valve Normally Closed 1" NPT 120V

Part Number: 208788

Alt. Part Number: 204913

In Stock

out of stock

In Stock

$167.40 Regular price


This 2-way normally closed solenoid valve is suitable for use in commercial/industrial water purification applications such as reverse osmosis systems, restaurant food and beverage equipment and grocery store produce misting systems. It can also be used with UV water treatment system. Valves are easy to install and are NSF certified.

Specifications:
  • Water Tight Sealed Molded Coil
  • 3 – Meter (118 in) Length Cord
  • PVC Jacketed Extension Cable
  • Normally Closed Operation
  • 18/3 Wire Size
  • Class H (6.5 VA draw)
  • UL Recognized, CE
  • Manual Bypass Valve
  • Flow  Range: 5-35 GPM or 18.9 - 132.3 LPM
  • Pressure Range: 5 - 100 PSI
  • Voltage: 120V
  • UL listed and NSF certified


Details

Body Material

Glass filled nylon

Frequency

60 Hertz

Operating Pressure Range

10 - 125 PSI

Operating Temperature Range

max. 180°F (+82°C)

Valve Type

Closed

Voltage

120 Volts

Watts

6.5 VA

Rating

H

Wetted Materials

Stainless Steel; Composite Engineered Plastic

Port Size

1" NPT Inches

Warranty & Certifications

Certifications

UL Listed


2-Way





This 2-way normally closed solenoid valve is suitable for use in commercial/industrial water purification applications such as reverse osmosis systems, restaurant food and beverage equipment and grocery store produce misting systems. It can also be used with UV water treatment system. Valves are easy to install and are NSF certified.

Specifications:
  • Water Tight Sealed Molded Coil
  • 3 – Meter (118 in) Length Cord
  • PVC Jacketed Extension Cable
  • Normally Closed Operation
  • 18/3 Wire Size
  • Class H (6.5 VA draw)
  • UL Recognized, CE
  • Manual Bypass Valve
  • Flow  Range: 5-35 GPM or 18.9 - 132.3 LPM
  • Pressure Range: 5 - 100 PSI
  • Voltage: 120V
  • UL listed and NSF certified

Details

Body Material

Glass filled nylon

Frequency

60 Hertz

Operating Pressure Range

10 - 125 PSI

Operating Temperature Range

max. 180°F (+82°C)

Valve Type

Closed

Voltage

120 Volts

Watts

6.5 VA

Rating

H

Wetted Materials

Stainless Steel; Composite Engineered Plastic

Port Size

1" NPT Inches

Warranty & Certifications

Certifications

UL Listed
