2.5 X 40 Fiberglass Membrane Housing 1000 psi

Home / Filter Housings & Components / Membrane Housings / 2.5 X 40 Fiberglass Membrane Housing 1000 psi

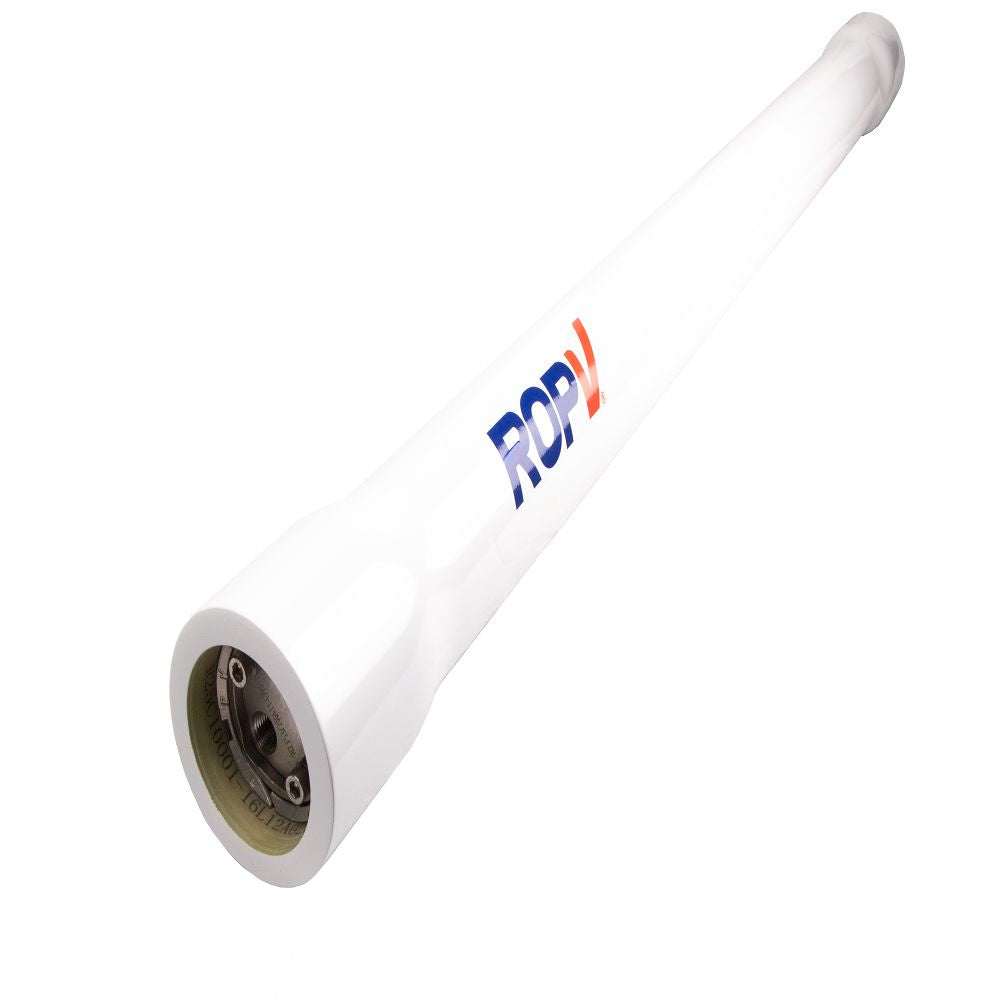

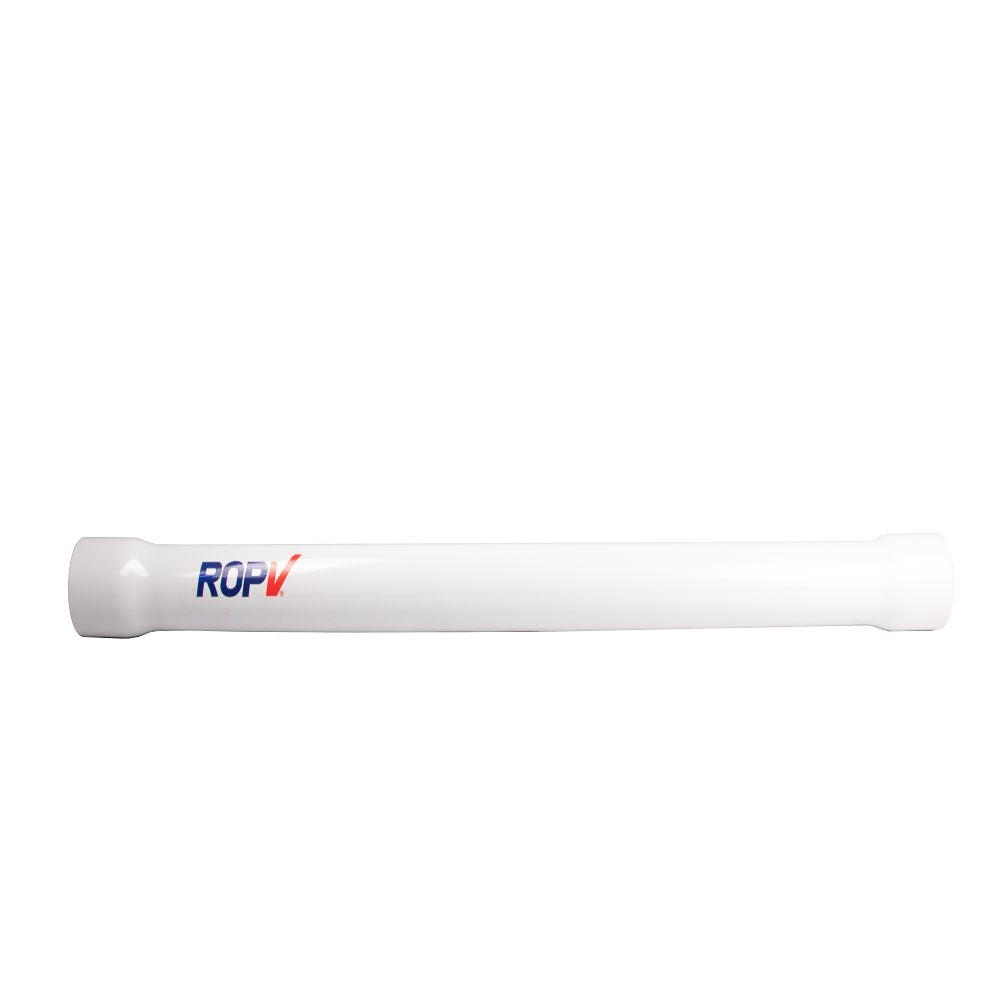

ROPV 2.5" x 40" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials. These fiberglass pressure vessels accommodate standard 2.5" membrane filtration elements and operate at pressures up to 1000 psi. Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.

Features:

Easy installation and maintenance
Constructed for best chemical compatibility and corrosion resistance
End port design
Operating temperature range: 14° F to 150° F
Operating pressure: 1000 psi
Feed and concentrate port: 1/4" FNPT
Permeate port: 1/4" FNPT

Comparable to housings manufactured by A & M and HCTI.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Cleaning Ph Range	2-12
Closure Type	Locking Ring
Housing Material	Fiberglass
Max Pressure (Psi)	1000
Max Temp (°F)	150
Min Temp (°F)	14
O-Rings	EPDM
Ph Range	3-11
Diameter	3.2"
End Cap Type	Super Duplex Stainless Steel
Port Size	1/4"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	48 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Length	43.6"
Product Weight (lbs)	13.95
