ROPV

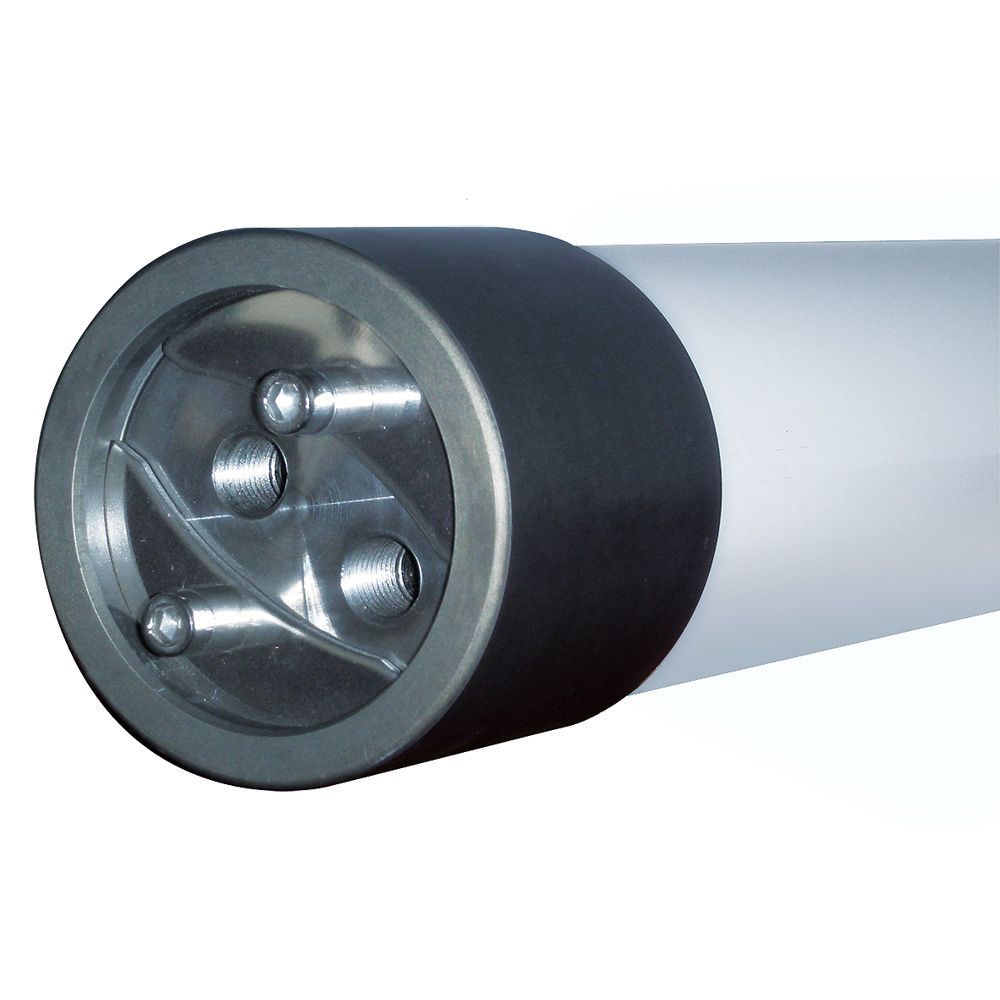

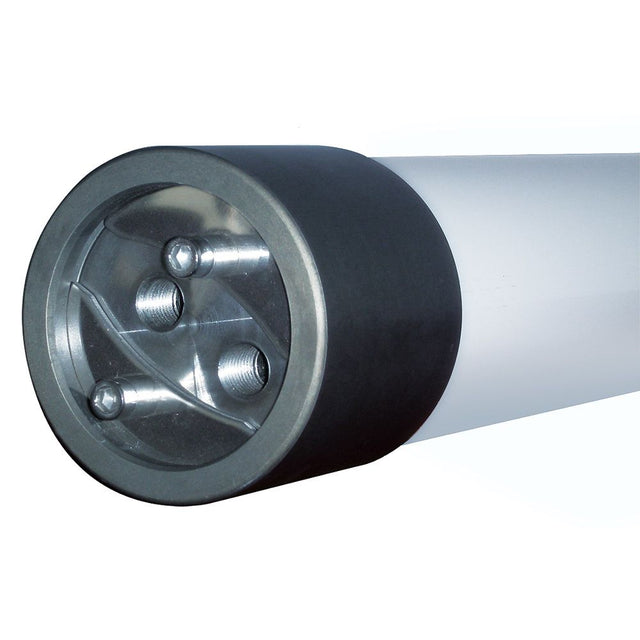

2.5 X 21 Fiberglass Membrane Housing 1000 psi

Part Number: MHFG-2521-14-1000

In Stock

out of stock

In Stock

$299.99

ROPV 2.5" x 21" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials. These fiberglass pressure vessels accommodate standard 2.5" membrane filtration elements and operate at pressures up to 1000 psi. Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.

Specifications:
  • Easy installation and maintenance
  • Constructed for best chemical compatibility and corrosion resistance
  • End port design
  • Operating temperature range: 14° F to 150° F
  • Operating pressure: 1000 psi
  • Feed and concentrate port: 1/4" FNPT
  • Permeate port: 1/4" FNPT
NOTE:Comparable to housings manufactured by A & M and HCTI.



Weight & Dimensions

Approx Length (Inches)

24.6"

Weight (lbs)

40

Details

Cleaning Ph Range

2-12

Closure Type

Locking Ring

Housing Material

Fiberglass

Max Pressure (Psi)

1000

Max Temp (°F)

150

Membrane Size

2.5 x 21

Min Temp (°F)

14

O-Rings

EPDM

Ph Range

3-11

Diameter

3.2"

End Cap Type

Super Duplex Stainless Steel

Port Size

1/4"

Warranty & Certifications

Certifications

Certified to NSF/Ansi Standard 61 by Underwriters Laboratories


2.5

2.5




ROPV 2.5" x 21" Fiberglass Membrane Housings are manufactured to very exacting specifications with only the highest quality materials. These fiberglass pressure vessels accommodate standard 2.5" membrane filtration elements and operate at pressures up to 1000 psi. Fiberglass housings are stronger than PVC and more corrosion resistant than stainless steel.

Specifications:
  • Easy installation and maintenance
  • Constructed for best chemical compatibility and corrosion resistance
  • End port design
  • Operating temperature range: 14° F to 150° F
  • Operating pressure: 1000 psi
  • Feed and concentrate port: 1/4" FNPT
  • Permeate port: 1/4" FNPT
NOTE:Comparable to housings manufactured by A & M and HCTI.


Weight & Dimensions

Approx Length (Inches)

24.6"

Weight (lbs)

40

Details

Cleaning Ph Range

2-12

Closure Type

Locking Ring

Housing Material

Fiberglass

Max Pressure (Psi)

1000

Max Temp (°F)

150

Membrane Size

2.5 x 21

Min Temp (°F)

14

O-Rings

EPDM

Ph Range

3-11

Diameter

3.2"

End Cap Type

Super Duplex Stainless Steel

Port Size

1/4"

Warranty & Certifications

Certifications

Certified to NSF/Ansi Standard 61 by Underwriters Laboratories
