Colder Products

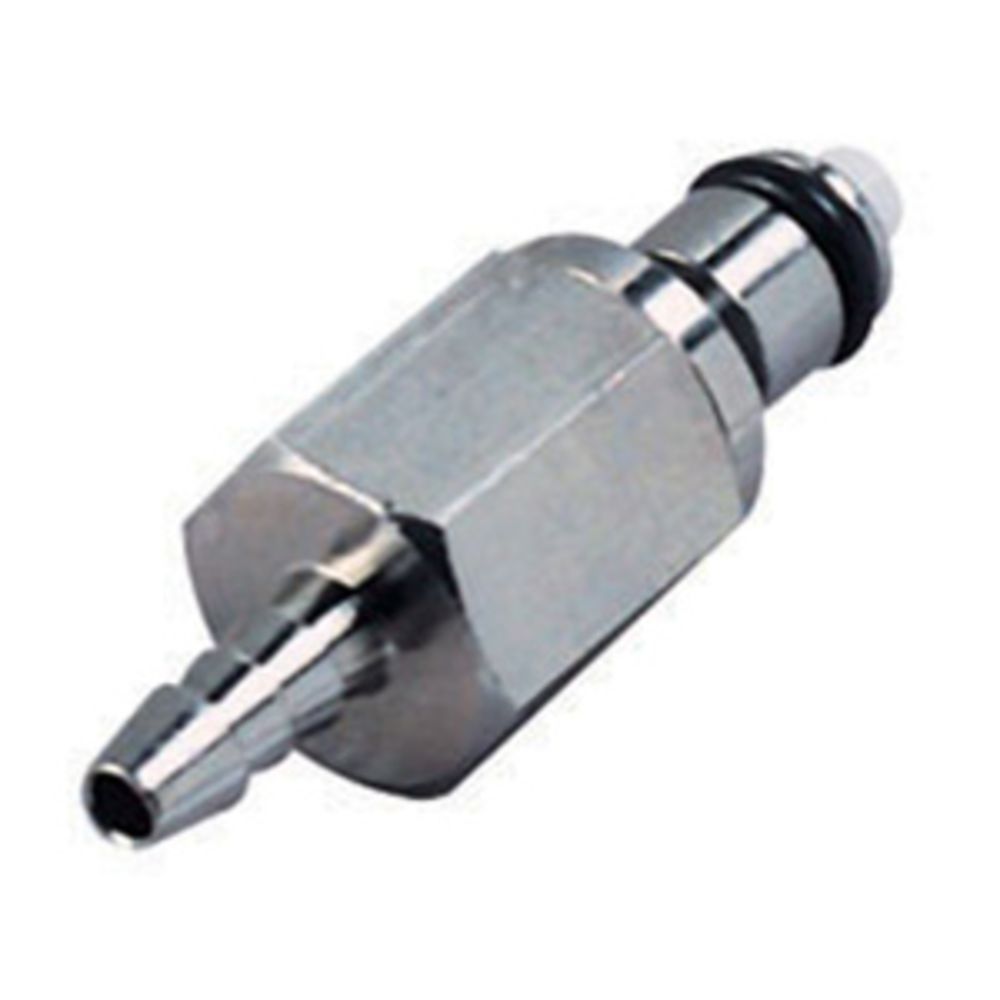

19400 NSF Valved Hose Barb Coupling Insert 1/8 ID Barb

Part Number: 19400

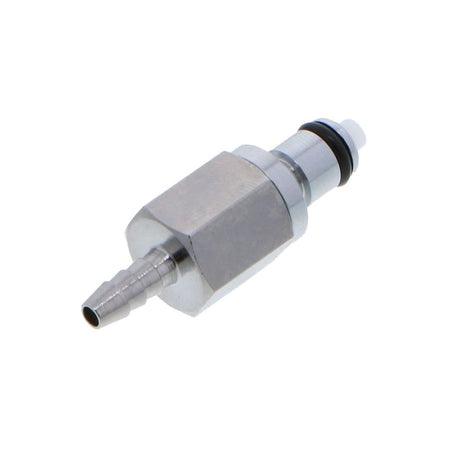

Alt. Part Number: MCD2202 (Non-NSF)

In Stock

out of stock

In Stock

$11.06


MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F


Details

Series

MC

Barb Size

1/8"

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

O Rings

Buna-N

Operating Pressure Range

Vacuum to 250 psi, 17.3 bar

Operating Temperature Range

40 to 180 Degrees Fahrenheit

Origin

USA

Seal Material

FDA BUNA-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


19400
