Colder Products

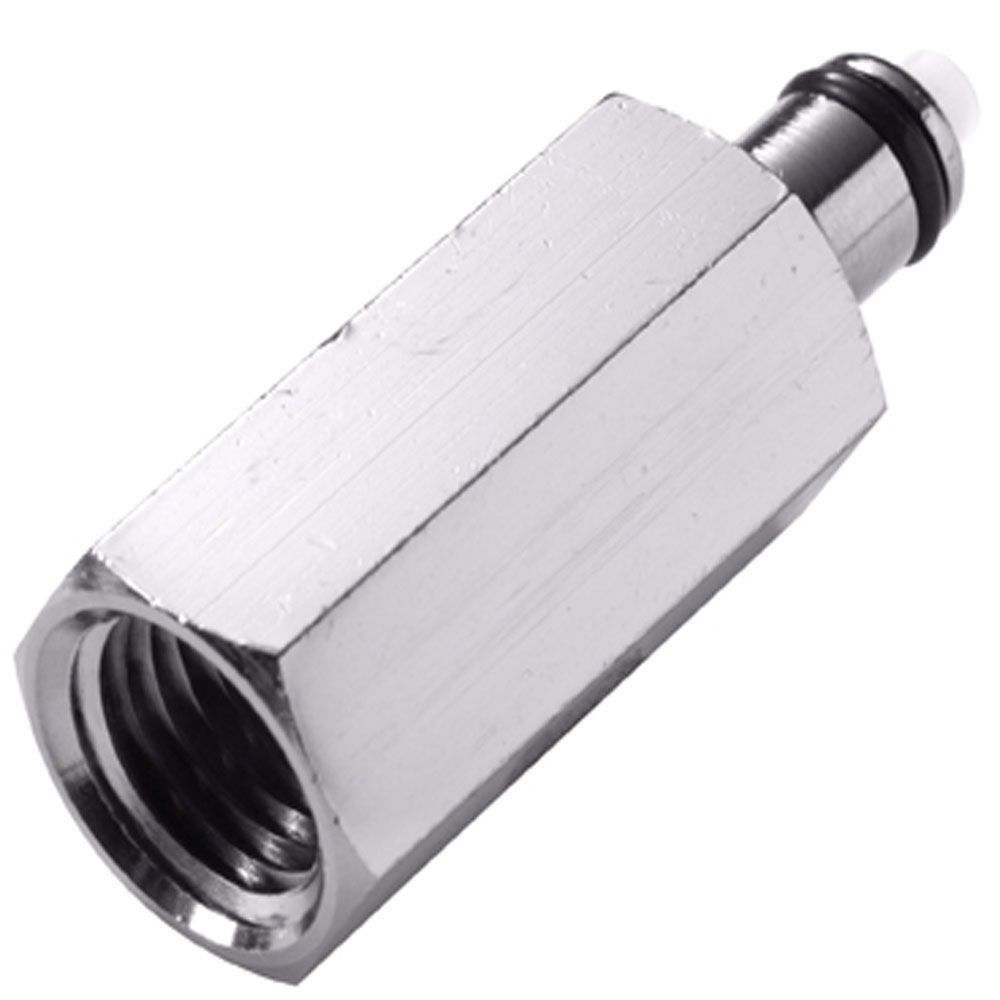

18200 NSF Valved Coupling Insert 1/4 NPT

Part Number: 18200

In Stock

out of stock

In Stock

$13.91


MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 250 psi, 17.3 bar


Details

Series

MC

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Max Operating Pressure

Vacuum to 250 PSI, 17.3 bar

Mounting Options

Thread

O Rings

Buna-N

Operating Temperature Range

-40-180 °F

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | MPT


18200





MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Valve Option: Valved
  • Mounting Option: Thread
  • Temperature Range: -40°F to 180°F
  • Seal Options: FDA BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 250 psi, 17.3 bar

Details

Series

MC

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Max Operating Pressure

Vacuum to 250 PSI, 17.3 bar

Mounting Options

Thread

O Rings

Buna-N

Operating Temperature Range

-40-180 °F

Seal Material

FDA BUNA-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | MPT

Documentation
18200
