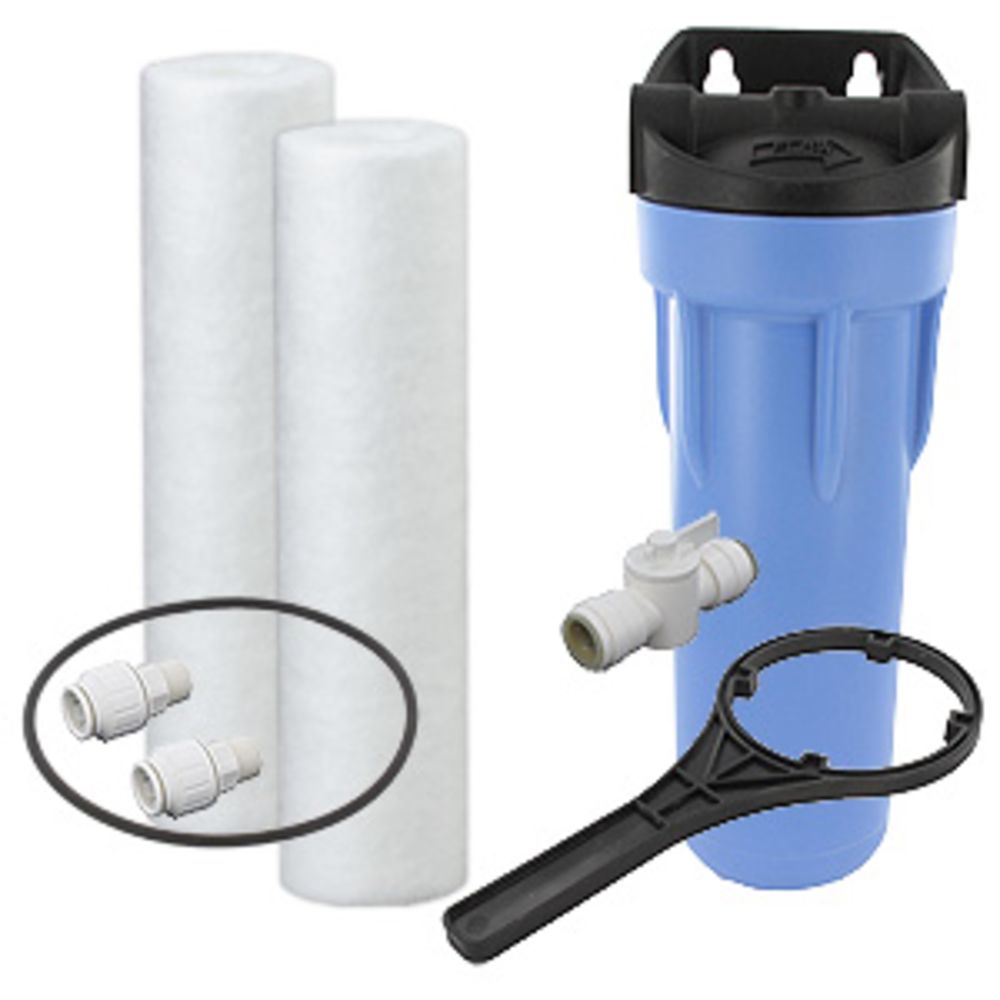

The Standard Filter Housing Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 5 gpm using our dual gradient polypropylene 5 micron filter. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.
Features:
Standard Set-Up Diagram:
Optional Bypass Set-up Diagram:
Features:
- 10" Standard 3G Filter Housing 3/4" Inlet/Outlet
- Integrated Bracket with Pressure Relief Button
- Filter Wrench for Standard Housings
- Extra O-ring for Standard Housings
- Two Grooved Polypropylene 5 micron sediment filters
- Two 3/4" CTS x 3/4" NPT Male Connectors for Copper, PEX, and CPVC
- 3/4" CTS Stop Valve for Copper, PEX, and CPVC
Standard Set-Up Diagram:
Optional Bypass Set-up Diagram:
Weight & Dimensions
Weight (lbs) | 10 |
Approx Height (Inches) | 13-1/4" |
Approx Width (Inches) | 5-1/8" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 100 |
Filter Application | Sediment/Dirt/Rust |
Flow Rate | 2.5 GPM |
Housing Material | Polypropylene |
Media Type | Dual Gradient Polypropylene |
Micron Rating (Nominal) | 5 µm |
Nut / Fitting Material | Polysulfone |
Size | 3/4" |
Contaminants Reduced | Sediment/Dirt/Rust |
Inlet/Outlet Connection | 3/4" FPT |
