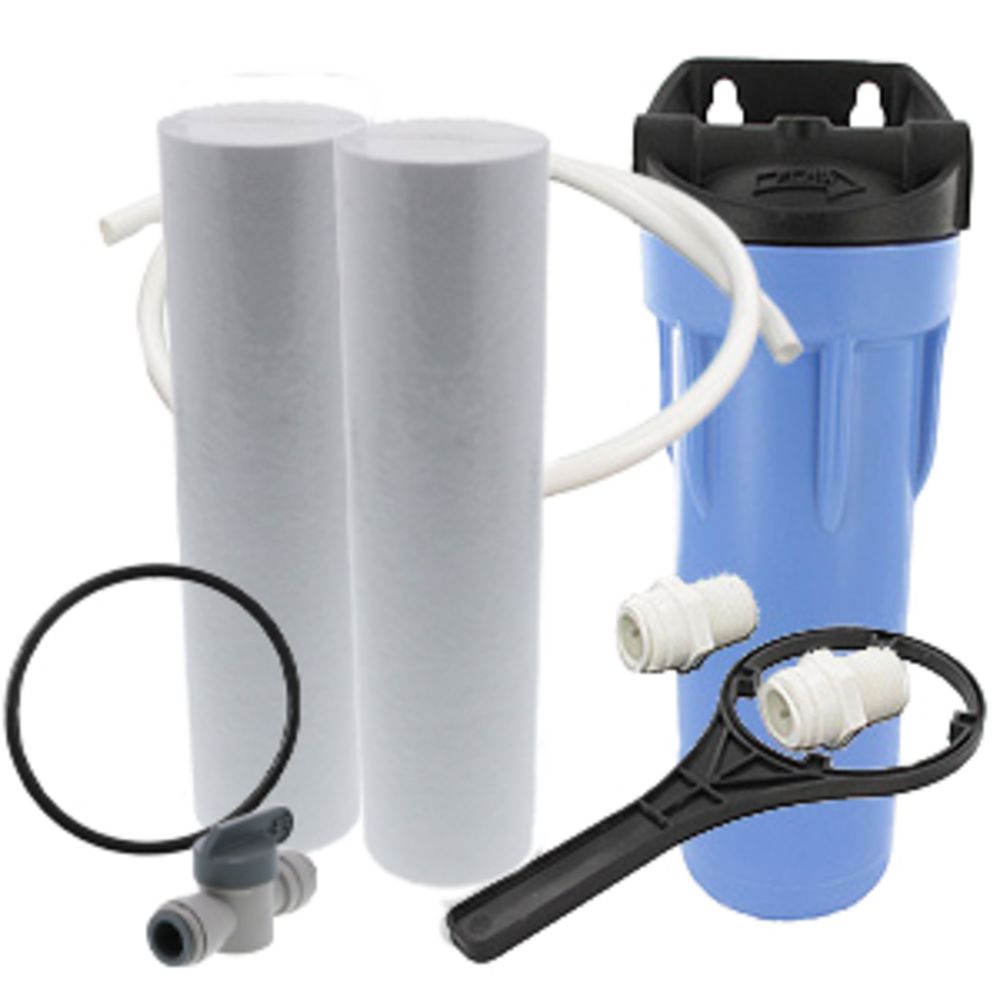

10" Slimline Sediment Prefilter Kit - 1/2"

Part Number: FK-10SL12-SD05

In Stock

out of stock

In Stock

$36.16

The Slimline Sediment Prefilter Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 2.5 gpm using our dual gradient polypropylene filters at 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:

Features:
  • 10" Slimline Filter Housing 1/2" Inlet/Outlet
  • Integrated Bracket with Pressure Relief
  • Filter Wrench for Slimline Housings
  • Extra O-ring for Slimline Housings
  • Two Grooved 5 micron sediment filters
  • Two 1/2" OD x 1/2" NPT Male Connectors
  • 1/2" OD Ball Valve
  • 1/2" OD Tubing 4 ft. Section


Standard Set-Up Diagram:


Optional Bypass Set-up Diagram:


Weight & Dimensions

Weight (lbs)

10

Approx Height (Inches)

13-3/8"

Approx Width (Inches)

5-3/8"

Details

Max Temp (°F)

100

Max Pressure (Psi)

100

Filter Application

Sediment/Dirt/Rust

Flow Rate

2.5 GPM

Housing Material

Polypropylene

Media Type

Dual Gradient Polypropylene

Micron Rating (Nominal)

5 µm

Nut / Fitting Material

Acetal

Size

1/2"

Contaminants Reduced

Sediment/Dirt/Rust

Inlet/Outlet Connection

1/2" FPT



The Slimline Sediment Prefilter Kit for use with UV disinfection water systems, offers sediment filtration at the point of entry with flow rates up to 2.5 gpm using our dual gradient polypropylene filters at 5 microns. This reduces the turbidity in the water to enable your UV water treatment system to effectively disinfect your water supply.

Sediment Pre-filter kit for Ultraviolet (UV) Disinfection Water Systems Includes:

Features:
  • 10" Slimline Filter Housing 1/2" Inlet/Outlet
  • Integrated Bracket with Pressure Relief
  • Filter Wrench for Slimline Housings
  • Extra O-ring for Slimline Housings
  • Two Grooved 5 micron sediment filters
  • Two 1/2" OD x 1/2" NPT Male Connectors
  • 1/2" OD Ball Valve
  • 1/2" OD Tubing 4 ft. Section


Standard Set-Up Diagram:


Optional Bypass Set-up Diagram:

Weight & Dimensions

Weight (lbs)

10

Approx Height (Inches)

13-3/8"

Approx Width (Inches)

5-3/8"

Details

Max Temp (°F)

100

Max Pressure (Psi)

100

Filter Application

Sediment/Dirt/Rust

Flow Rate

2.5 GPM

Housing Material

Polypropylene

Media Type

Dual Gradient Polypropylene

Micron Rating (Nominal)

5 µm

Nut / Fitting Material

Acetal

Size

1/2"

Contaminants Reduced

Sediment/Dirt/Rust

Inlet/Outlet Connection

1/2" FPT
