Pentek

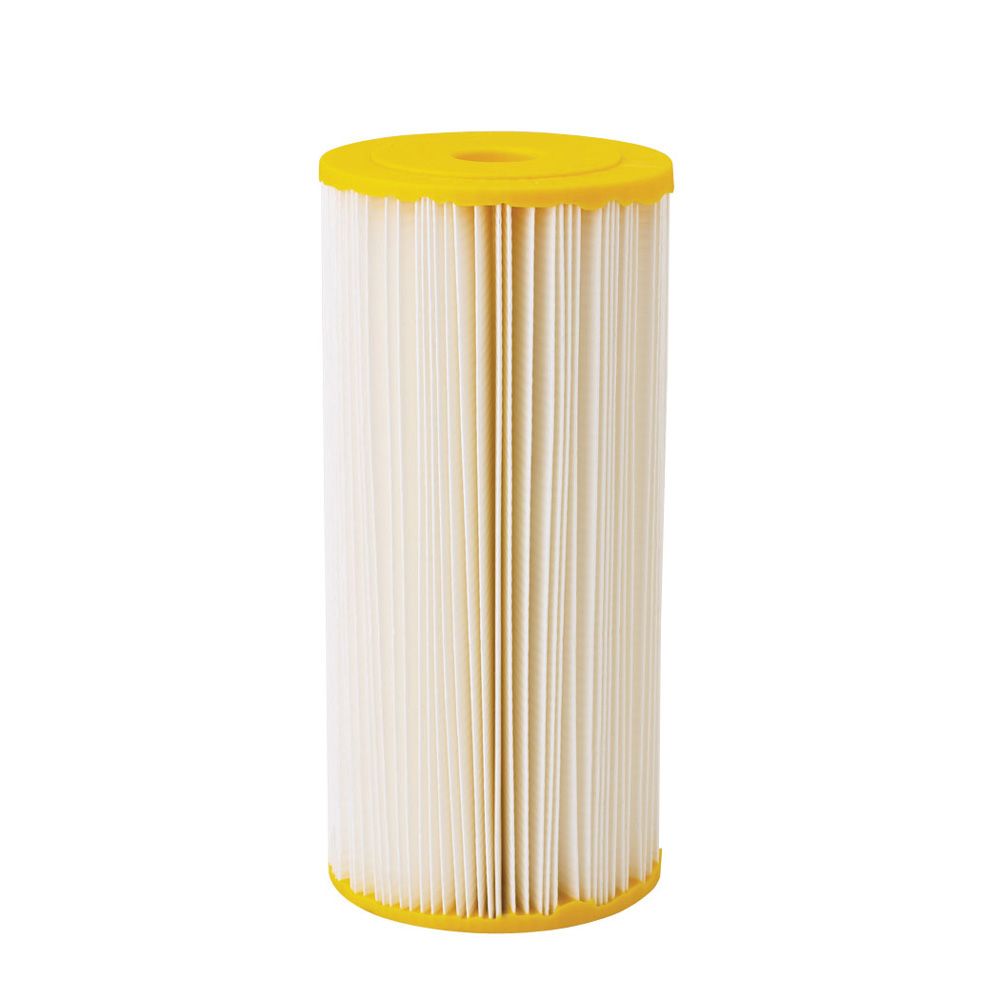

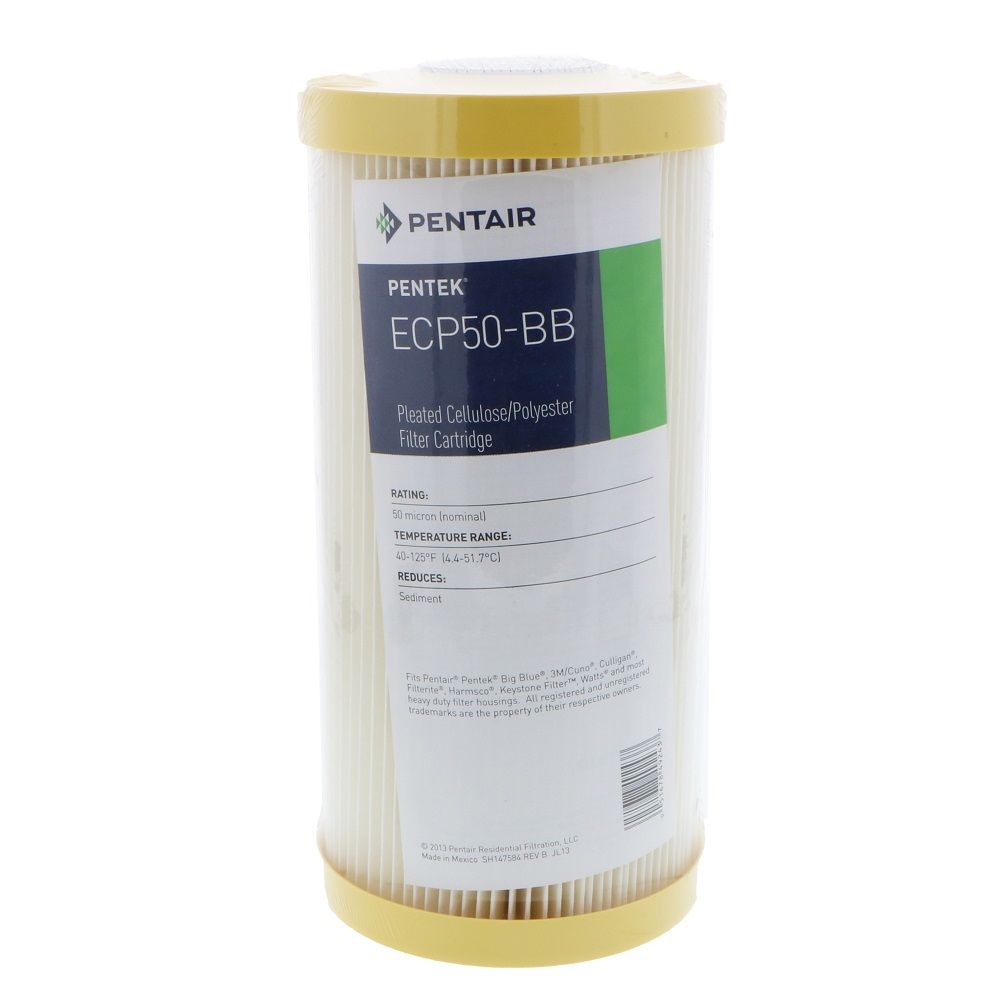

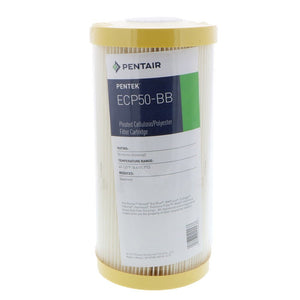

10" BB Pentek Pleated Cellulose-Polyester ECP50-BB 50 mic Filters

Part Number: 255492-43

In Stock

out of stock

In Stock

$11.65


ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges. The 10" Big Blue ECP cartridges contain 18 square feet of media.
Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings   Replaces CP and HFCP Series Cartridges


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

8

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

50 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)


10"

10"





ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength that regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity, while maintaining extremely low pressure drop.

Features:
  • Special formulation of resin-impregnated cellulose and polyester fibers
  • Provides higher wet strength than regular cellulose cartridges
  • Provides high flow rates and dirtholding capacity, while maintaining extremely low pressure drop.
  • Minimal unloading and media migration
  • Contains more media surface area than most competitive cartridges. The 10" Big Blue ECP cartridges contain 18 square feet of media.
Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings   Replaces CP and HFCP Series Cartridges

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

8

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

20 Gallons Per Minute

Initial Pressure Drop

1 PSI Differential

Media Type

Pleated Cellulose Polyester

Micron Rating (Nominal)

50 Micron

Operating Temperature Range

40-125 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Documentation
10"
10"
