Fresh Water Systems

10" BB Dual Gradient Polypropylene Sediment Filter 100/20 mic

Part Number: SGD-45-1020

In Stock

out of stock

In Stock

$12.76

Intended Use:

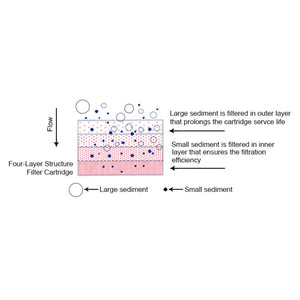

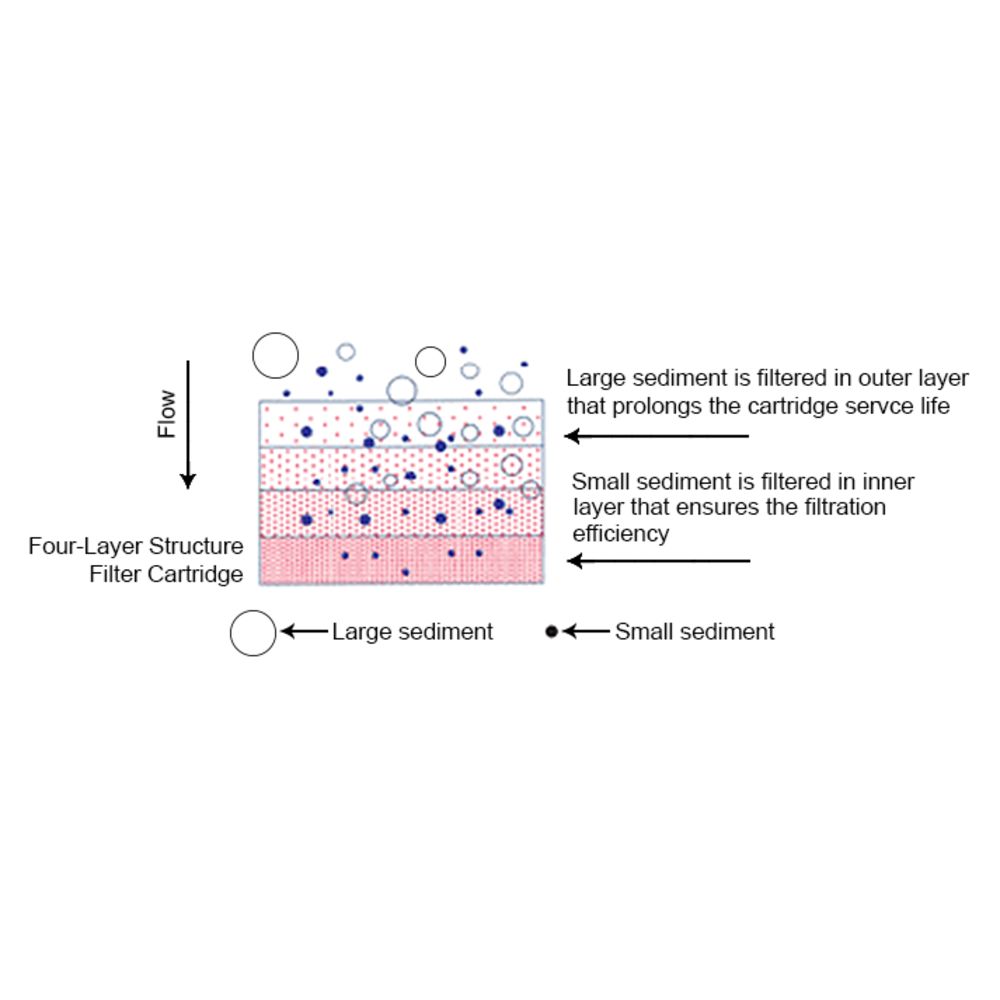

Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 100 micron pre-filter that takes out larger sediment, thus reducing the load on the 20 micron inner-layer post filter allowing it to operate more efficiently and consistently. The pure polypropylene construction makes it resistant to chemicals and corrosion.


Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications

Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.


Weight & Dimensions

Approx Length (Inches)

9-7/8" (25.1 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

100-pre/20-post Micron

Operating Temperature Range

40 - 145 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Warranty & Certifications

Certifications

NSF 42



Intended Use:


Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 100 micron pre-filter that takes out larger sediment, thus reducing the load on the 20 micron inner-layer post filter allowing it to operate more efficiently and consistently. The pure polypropylene construction makes it resistant to chemicals and corrosion.


Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications

Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.

Weight & Dimensions

Approx Length (Inches)

9-7/8" (25.1 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 Gallons Per Minute

Media Type

Spun Bonded Polypropylene

Micron Rating (Nominal)

100-pre/20-post Micron

Operating Temperature Range

40 - 145 Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Warranty & Certifications

Certifications

NSF 42
