Flowmatic

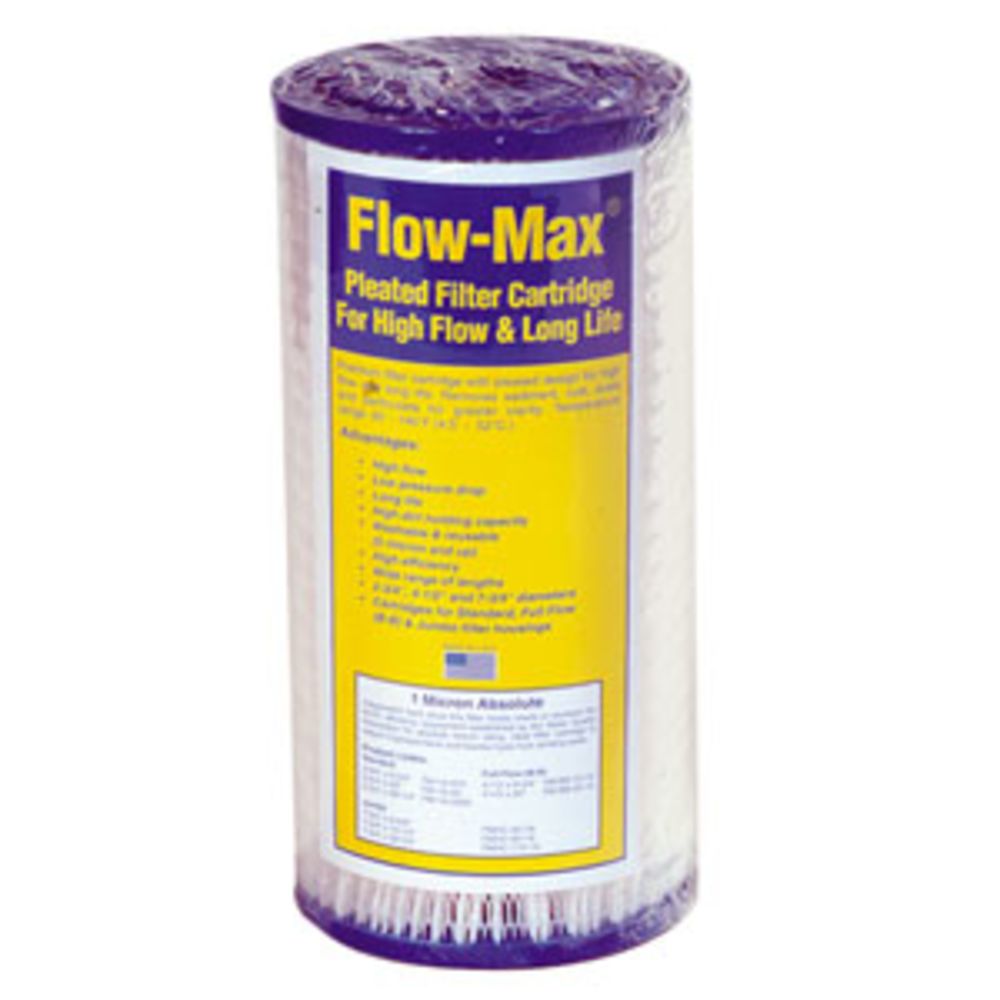

10" × 4-1/2" BB Flow-Max Pleated - 1 mic Absolute (Cyst) Filter

Part Number: FM-BB-10-1A

In Stock

out of stock

In Stock

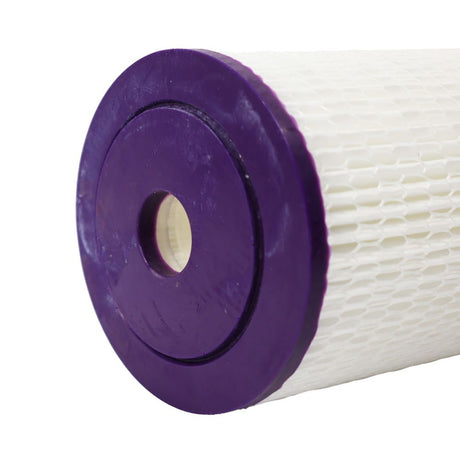

This item is discontinued. We recommend the Neo-Pure PS-45097-1A 9-3/4" BB Standard Efficiency Pleated Filter 1 micron ABS as a substitute....


The Flow-Max FM-BB-10-1A Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Sediment Filtration
  • Cryptosporidium and Giardia Cyst Filtration to 99.9%
  • 1 Micron Absolute
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free



Compatible with:
WattsPWPL10BBM1AB

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

8

Weight (lbs)

1.05

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust, Cyst Reduction

Max Pressure (Psi)

40

Max Temp (°F)

140

Micron Rating (Absolute)

1 µm

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

8 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-3/4"


10"





The Flow-Max FM-BB-10-1A Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Sediment Filtration
  • Cryptosporidium and Giardia Cyst Filtration to 99.9%
  • 1 Micron Absolute
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free



Compatible with:
WattsPWPL10BBM1AB

NOTE: This item is discontinued. We recommend the Neo-Pure PS-45097-1A 9-3/4" BB Standard Efficiency Pleated Filter 1 micron ABS as a substitute.

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

8

Weight (lbs)

1.05

Details

Capacity

As Needed

Filter Application

Sediment/Dirt/Rust, Cyst Reduction

Max Pressure (Psi)

40

Max Temp (°F)

140

Micron Rating (Absolute)

1 µm

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

8 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-3/4"

Documentation
10"
