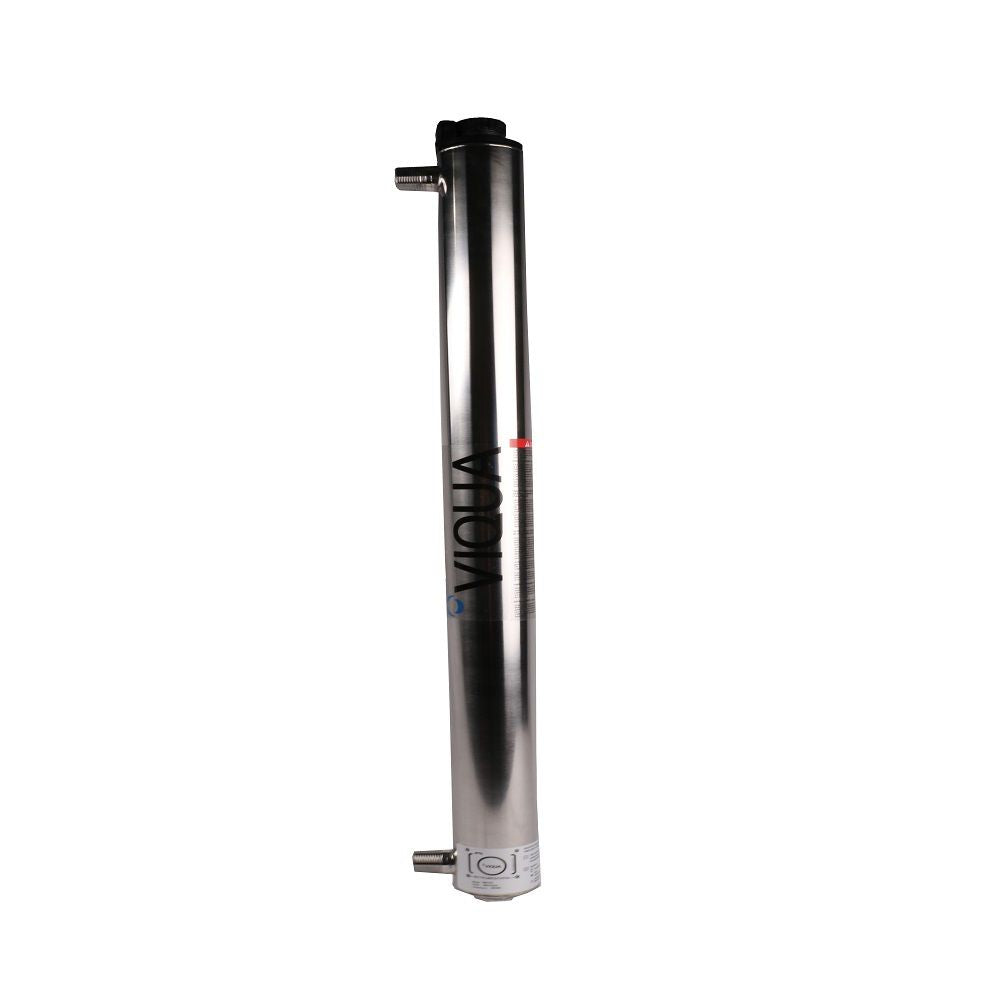

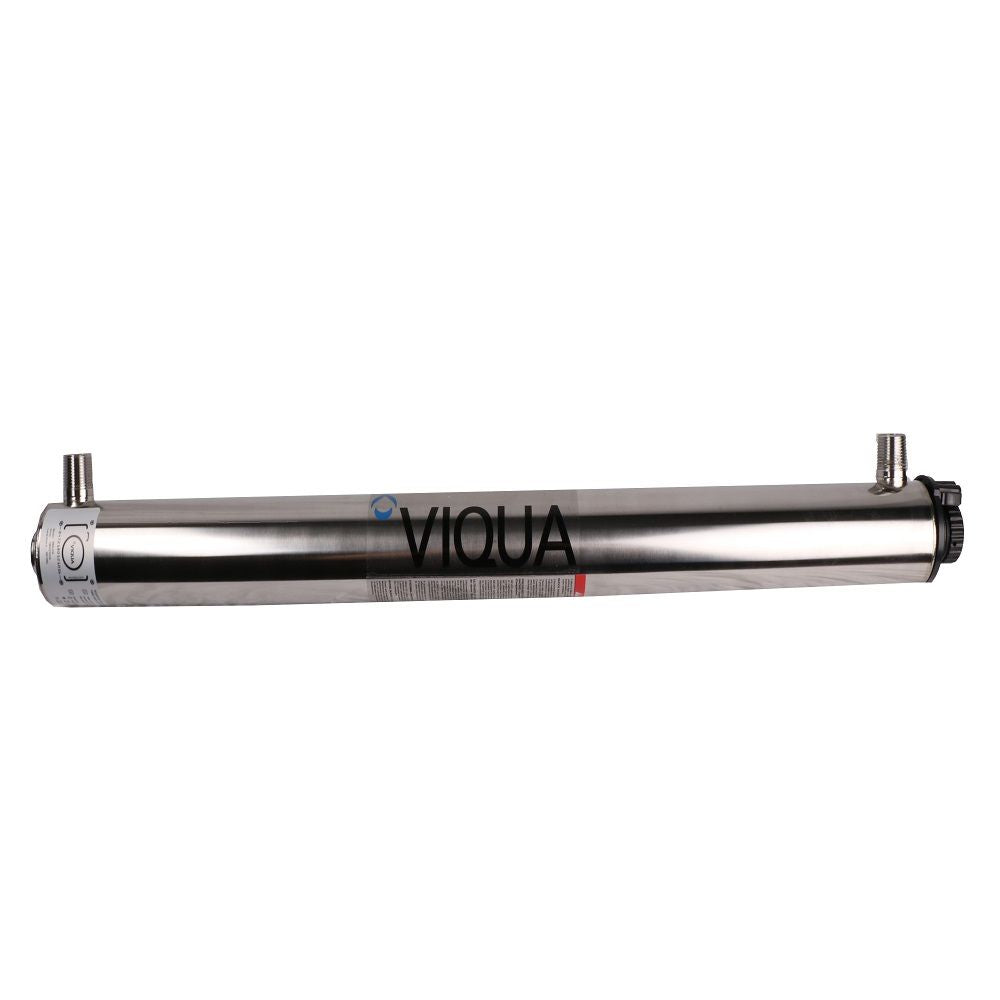

Viqua S8Q-PA Silver Series UV System Powered by Sterilight 10 gpm

Viqua S8Q-PA Silver Series UV System Powered by Sterilight 10 gpm
Mouse over to view larger image.
You might like:

Free Shipping!
Part Number: S8Q-PA
Alt. Part Number: S8Q-PA/2
In Stock, Ready to Ship!
Qty Price
$449.00 / 120 volt
$449.00 / 230 volt
Select Additional Options
Viqua S810-QL UV Lamp/Quartz Sleeve Combo Kit for S8Q-PA/SSM-37 +$119.00
20" BB No PR Sediment Prefilter Kit - 3/4" +$68.36
Stainless Steel Flexible Water Connector 3/4 FIP x 3/4 FIP x 24 +$9.78
Neo-Pure Stainless Steel Flow Restrictor 3/4 FNPT 10 gpm +$49.99

Viqua S8Q-PA Silver Series UV System Powered by Sterilight 10 gpm

The Viqua S8Q-PA is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water. The Viqua S8Q-PA is suitable for whole-home disinfection and is ideal for the average size residence. The S8Q-PA is recommended for flow rates up to 10gpm.

  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant

This system is compatible with the S810RL Sterilight Lamp and the QS-810 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S8Q includes:

  • Sterilight Lamp (1): S810RL
  • Sterilight Quartz Sleeve (1): QS-810
  • Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Viqua S8Q-PA Silver Series UV System System Info
Viqua S8Q-PA Silver Series UV System Owners Manual

3/4" MPT
35.4 "
2.5 "
304 Stainless Steel Reactor
Visual Power On
7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
System Type
100-240 V
50-60 Hz
46 W
Operating Conditions
20 gpm
10 gpm
7.7 gpm
36-104 °F
5-125 psi
