Davey BT14-45 Booster System with Torrium2 - +45 psi 14 gpm

Davey BT14-45 Booster System with Torrium2 - +45 psi 14 gpmShow Picture 1Show Picture 2Show Picture 3
Mouse over to view larger image.
You might like:

For small homes and two story homes

Free Shipping!
Part Number: BT14-45
Alt. Part Number: BT14-45, BT14-45-D
Qty Price
$694.07
/ each

Davey BT14-45 Booster Pump w/ Torrium2


The Davey BT14-45 Mulitistage Centrifugal Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quiety, featuring low noise between 54 and 56 dBa. The BT14-45 is ideal size for a small residences, mobile homes, cottages and yachts.


Davey BT14-45 Booster PumpAre you experiencing low water pressure issues?

The Davey BT14-45 Booster Pump can solve your problems. The system will give you a stronger and even water pressure by boosting your exisisting pressurized water supply. You will no longer struggle with water pressure fluctuations when someone flushes a toilet or have low pressure in a bathroom faucet.

Opposite to flow switch controllers that require a minimum flow before they will operate, Davey BT pumps will begin as soon as the faucet is opened and keeps running until the water is no longer needed. But that's not all! The Torrium 2 Pressure System Controller automatically adapts to changing conditions because it has a built-in 'brain' that can out smart every-day problems. This also means far less installation and maintenance issues. The Torrium2 ensures that a steady, reliable flow of water is available day after day, year after year.



3 Year Warranty
Three year warranty starts the day of installation - customer receipt is the warranty ticket.



NSF / CSA Certified
This pump has been third party tested and certified to NSF / ANSI Standard 61 & CSA Approved.



Quick and Easy Installation
These high quality booster pumps are compact, quiet, low maintenance, and easy to install.




Torrium 2Torrium 2 Features
Smart controller with adaptive cut-in knows to come on for even constant pressure
Needs no adjustment - comes on with half gallon flow or a 20% pressure loss
Swivels 360 degrees with top and side discharge
Built-in spring loaded check valve and accumulator - no tank required
Key Features
  • Dry run protection & automatic restart below 60°C
  • Water leakage detection which minimises pump cycling
  • High current shutdown & low voltage indication
  • High water temp protection
  • Built-in check valve
  • No tank necessary
Applications
  • Residential water supply
  • Light commercial
  • Irrigation
  • Water Transfer
  • Washing systems
  • Pressure boosting
Economical Choice. The Davey BT14-45 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump's cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply.


Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.

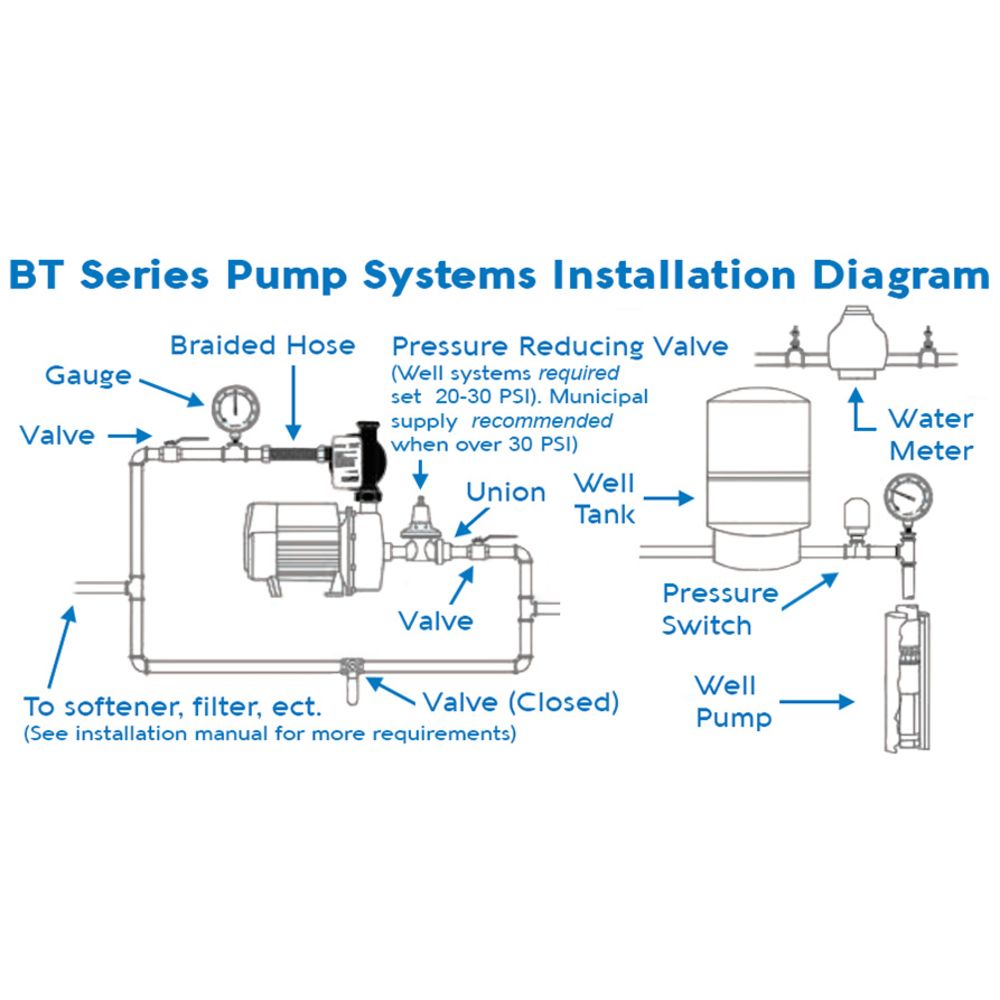

Comparison Chart and Installation Diagram


BT Home Pressure System  Max System Pressure Max Boost Nominal Flow  Voltage  Usage Single / Multi Stage
BT14-30 76 PSI 38 PSI 14 GPM 120V/1 Small homes or Weekenders Single Impeller
BT14-45 100 PSI 58 PSI 14 GPM 120V/1 Small two stories or long runs Mulitistage Centrifugal Pump - has suction lift of 25'
BT20-30 50 PSI 50 PSI 20 GPM 120V/1  Large homes Mulitistage Centrifugal Pump - has suction lift of 25'
BT20-40 100 PSI 78 PSI 20 GPM 220-240V/1  Average to large homes with two stories or large runs Mulitistage Centrifugal Pump - has suction lift of 25'
BT30-30 100 PSI 50 PSI 20 GPM 220-240V/1  Large homes Single Impeller



Specification Sheets & Manuals




100% Compatible with: Grundfos MQ3-45, Amtrol RP15 & DuraMac 17052R Systems. Formerly known as HS12-40HT1.
Pump Specifications
Booster
1" FPT
1" MPT
14
120VAC
1hp
Operating Conditions
76 psi
150 max °F
120 °F
25ft sq. ft.
116 psi
100 psi
5ft
1.2 gpm
0.7 gpm
58
Dimensions
15.35 "
14.54 "
7.85 "
Materials
Baked polyester
Certifcations
NSF61
Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.
