Product Details

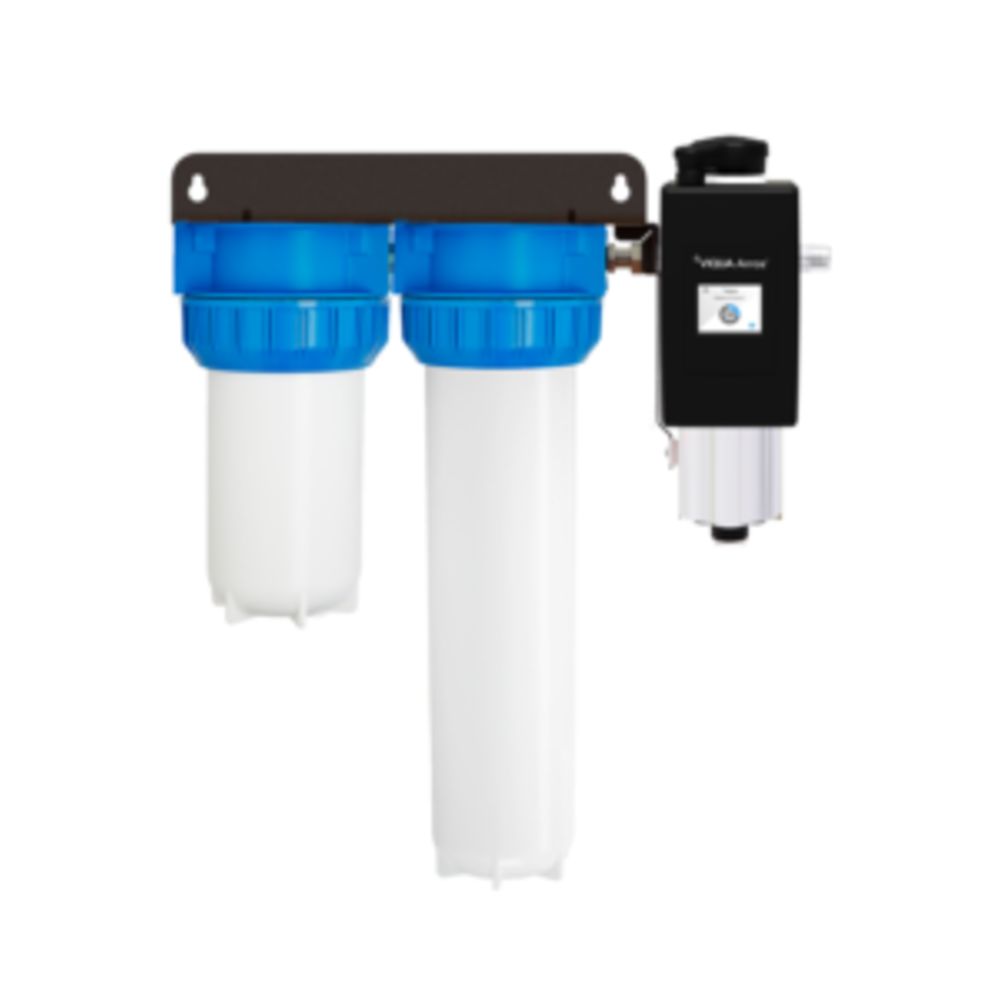

The VIQUA Arros 9 is a top-of-the-line residential UV water treatment system, designed for efficiency and reliability. This unit combines innovative chamber design with integrated pre-filtration, delivering a flow rate of 9 GPM for comprehensive whole-home water purification.

Reduced Installation Complexity

• Tidal™ Chamber Design: Aligns inlet and outlet ports on a single plane, streamlining installation and reducing material usage.
• PolyProtect™ Shield: Prevents UV light exposure, allowing direct plumbing to PEX and other polymer materials without any risk of degradation.
• Simplified Mounting: Features an elongated steel bracket for easy system installation.

Features & Specs

• Connection Size: Inlet: 1” FNPT, Outlet: (Combo Port) 1” MNPT / ¾” FNPT
• Dimensions: 24.95″ × 27.5″ × 9.0″ (63.4 cm × 69.9 cm × 22.9 cm)
• Flow Rate: 30 mJ/cm²: 9 GPM (34.1 lpm) 2.0 m³/hr
• Housing Details: One 10″ and one 20″ 3-piece filter housing
• Power Consumption: 33 W
• Shipping Weight: 46 lbs (20.9 kg)

Ease of Maintenance

• All-in-One Design: The compact lamp unit is easier to handle and replace.
• Quick Drain Plug: Allows for quick and clean draining of the system.
• User-Friendly Interface: Features an easy-to-navigate LCD touchscreen for identifying replacement parts and dealer contact information.

Optimized Treatment Performance

• Stream™ Technology: Provides accurate in-lamp usage measurement, optimizing system performance.
• Space Efficient: Improved dose efficiency results in a more compact UV chamber and lamp.

Integrated Pre-Filtration

• Premium 3-Piece Filter Housing: Ensures seamless filter replacements.

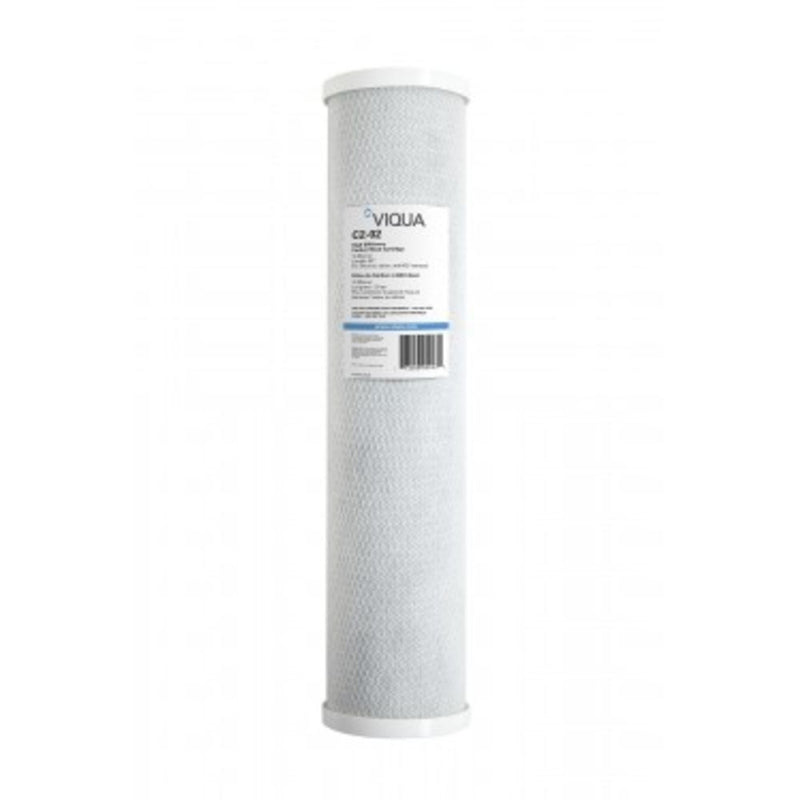

• Includes: A sediment filter for removing common particles and a carbon block filter for reducing odors and color.

Application
This versatile system is ideal for whole-home, point-of-entry water treatment solutions in residential settings, cottages, or OEM applications. The VIQUA Arros has been validated through rigorous microbial testing, demonstrating its effectiveness in inactivating Cryptosporidium, Giardia, Escherichia coli (E. coli), and fecal coliform, ensuring safe and clean drinking water.
