Specifications:
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
- Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- Hard glass, low pressure mercury vapour lamps with high isolation pin design
- Natures way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp
- CSA and CE compliant
- Sterilight Lamp (1): S330RL
- Sterilight Quartz Sleeve (1): QS-330
- Sterilight O-Rings (2): 410867
Details
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Diameter | 2-1/2" |
Features | Visual Power On |
Flow Rate | 2.9 GPM (30mJ/cm2 Dose) |
Number Of Lamps | 1 |
Power | 22 W |
Size | 1/2" |
Voltage | 12 VDC |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Inlet/Outlet Connection | 1/2" MPT |
Warranty & Certifications
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |

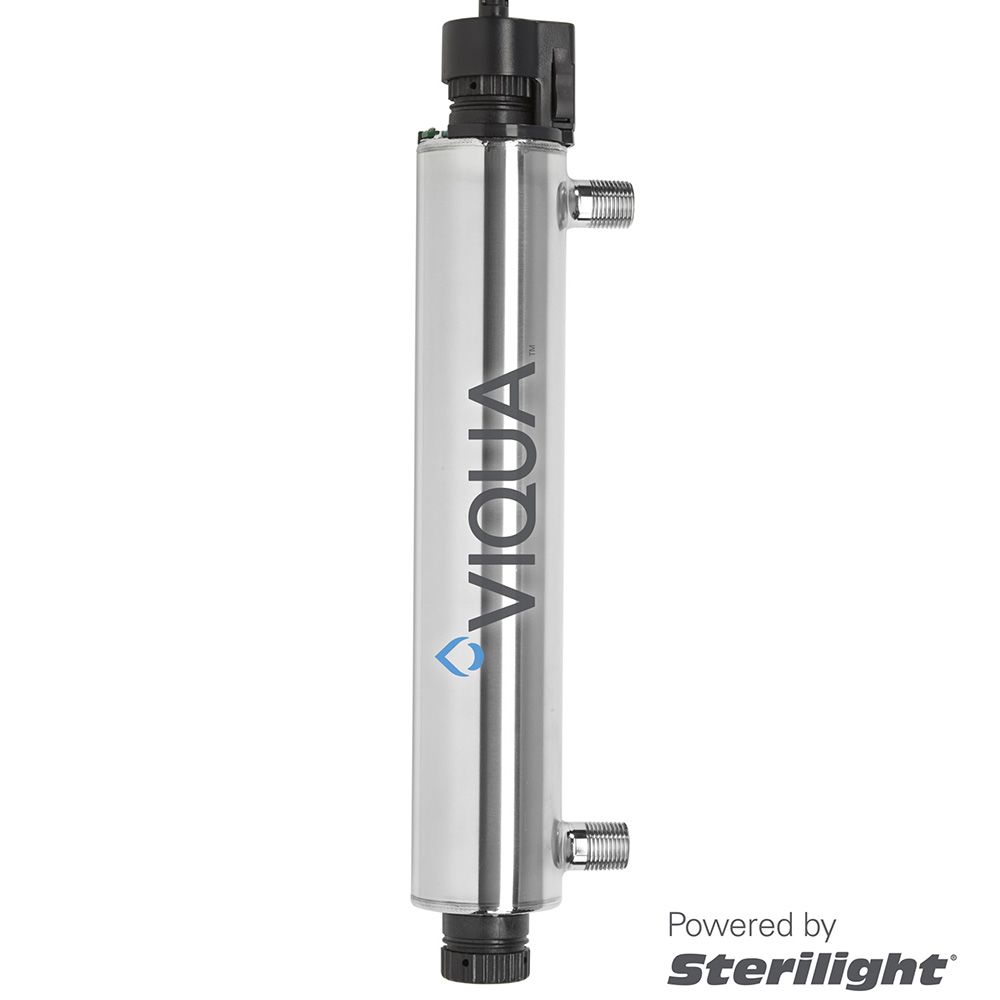

The Viqua S2Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.
Specifications:
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
- Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- Hard glass, low pressure mercury vapour lamps with high isolation pin design
- Natures way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp
- CSA and CE compliant
- Sterilight Lamp (1): S330RL
- Sterilight Quartz Sleeve (1): QS-330
- Sterilight O-Rings (2): 410867
Details
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Diameter | 2-1/2" |
Features | Visual Power On |
Flow Rate | 2.9 GPM (30mJ/cm2 Dose) |
Number Of Lamps | 1 |
Power | 22 W |
Size | 1/2" |
Voltage | 12 VDC |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Inlet/Outlet Connection | 1/2" MPT |
Warranty & Certifications
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
