SHURflo

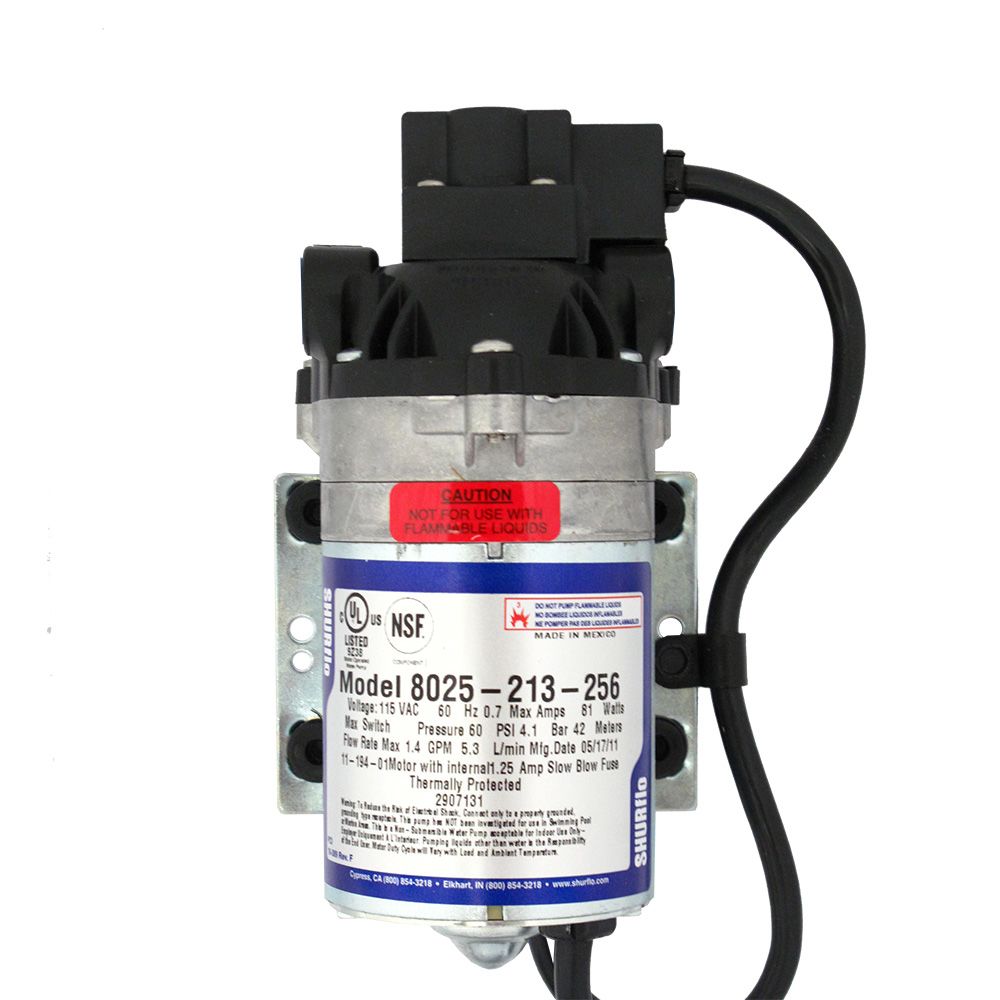

SHURflo 8025-213-256 Delivery Pump 1.5 gpm 45 psi 115V

Part Number: 8025-213-256

In Stock

out of stock

In Stock

$155.29

The SHURflo 8025-213-256 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

Features:
  • 1.4 GPM flow rate
  • Demand Switch
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • 3/8" NPT female ports
  • Santoprene® diaphragm
  • Built-in check valve
  • NSF, UL and CSA listed
Applications:
  • Water delivery
  • Soil extraction




Weight & Dimensions

Length (inches)

9

Height (inches)

5.5

Width (inches)

4

Weight (lbs)

4.294

Details

Series

8000

Amps

0.35-0.61 Amps @ 0-50 PSI

Diaphragm Materials

Santoprene

Flow Rate

1.4 GPM

Housing Material

Zinc Plated Steel

Liquid Temperature

170 °F

Size

3/8"

Voltage

115VAC

Inlet Pressure

30 PSI

Suction Lift

Self prime up to 10 ft

Psi Bypass

60 PSI

Inlet/Outlet Connection

3/8" FPT

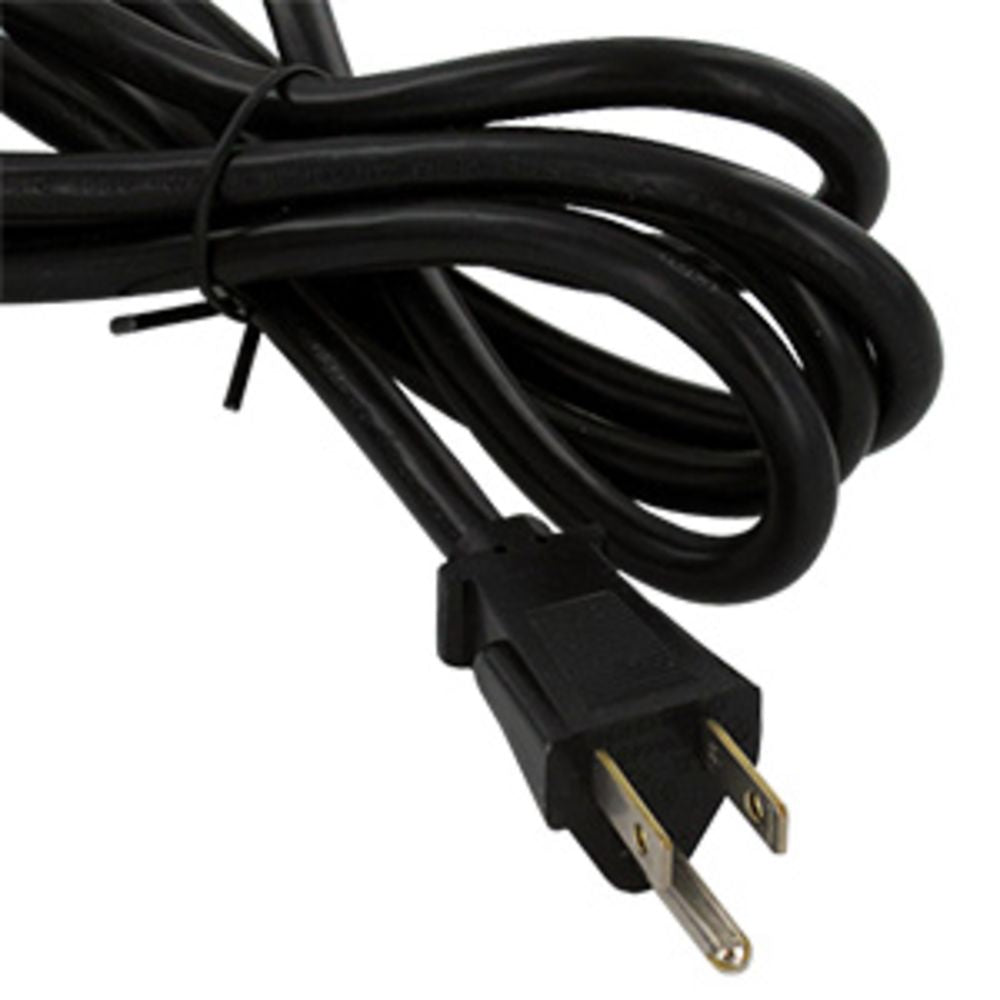

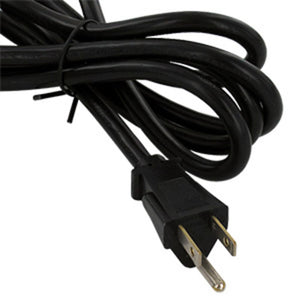

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA


SHURflo

SHURflo

SHURflo




The SHURflo 8025-213-256 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

Features:
  • 1.4 GPM flow rate
  • Demand Switch
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • 3/8" NPT female ports
  • Santoprene® diaphragm
  • Built-in check valve
  • NSF, UL and CSA listed
Applications:
  • Water delivery
  • Soil extraction



Weight & Dimensions

Length (inches)

9

Height (inches)

5.5

Width (inches)

4

Weight (lbs)

4.294

Details

Series

8000

Amps

0.35-0.61 Amps @ 0-50 PSI

Diaphragm Materials

Santoprene

Flow Rate

1.4 GPM

Housing Material

Zinc Plated Steel

Liquid Temperature

170 °F

Size

3/8"

Voltage

115VAC

Inlet Pressure

30 PSI

Suction Lift

Self prime up to 10 ft

Psi Bypass

60 PSI

Inlet/Outlet Connection

3/8" FPT

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF; UL; CSA
