Rusco Spin Down Filter PE Screen T Style 1.5"

4.6

(8 reviews)

Part Number: 1-1/2-24-F

1 5

Rusco

Rusco Spin Down Filter PE Screen T Style 1.5"

4.6

(8 reviews)

Part Number: 1-1/2-24-F

MSRP: $0.00

$90.54

Choose:

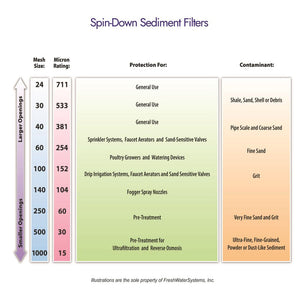

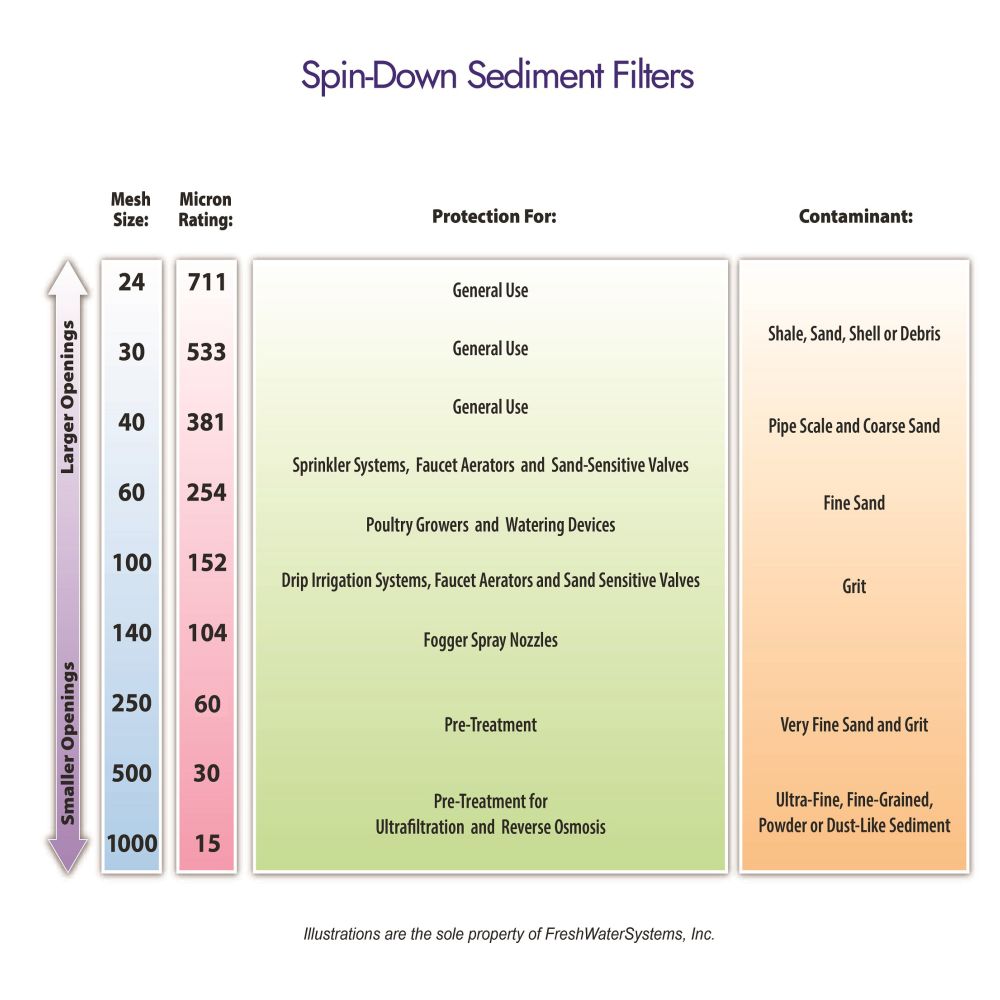

24 Mesh (711 micron) 30 Mesh (533 micron) 40 Mesh (381 micron) 60 Mesh (254 micron) 100 Mesh (152 micron) 140 Mesh (104 micron) 250 Mesh (61 micron) 500 Mesh (30 micron) 1000 Mesh (15 micron)

Product variants

You May Also Need

Optional Accessory

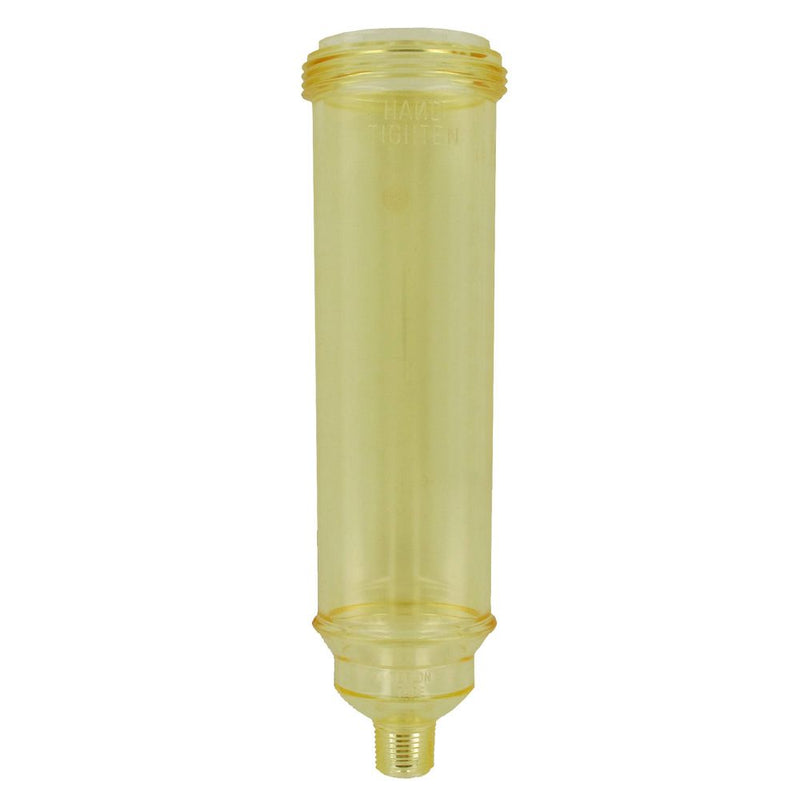

Rusco/Vu-Flow HW/CR Filter Cover for Sediment Trapper/Sand Separator - 1 1/2"

Regular price $55.00
Optional Accessory
Rusco Head Only for Spin Down & Sed. Trappers - 1.5" SxS

Regular price $24.59
Optional Accessory
Schedule 80 PVC Molded-In-Place Ball Valve 1/2" FPT

Regular price From $2.56
Optional Accessory
O-Ring for Rusco/Vu-Flow Filters - 1.5" Housing

Regular price $2.19

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

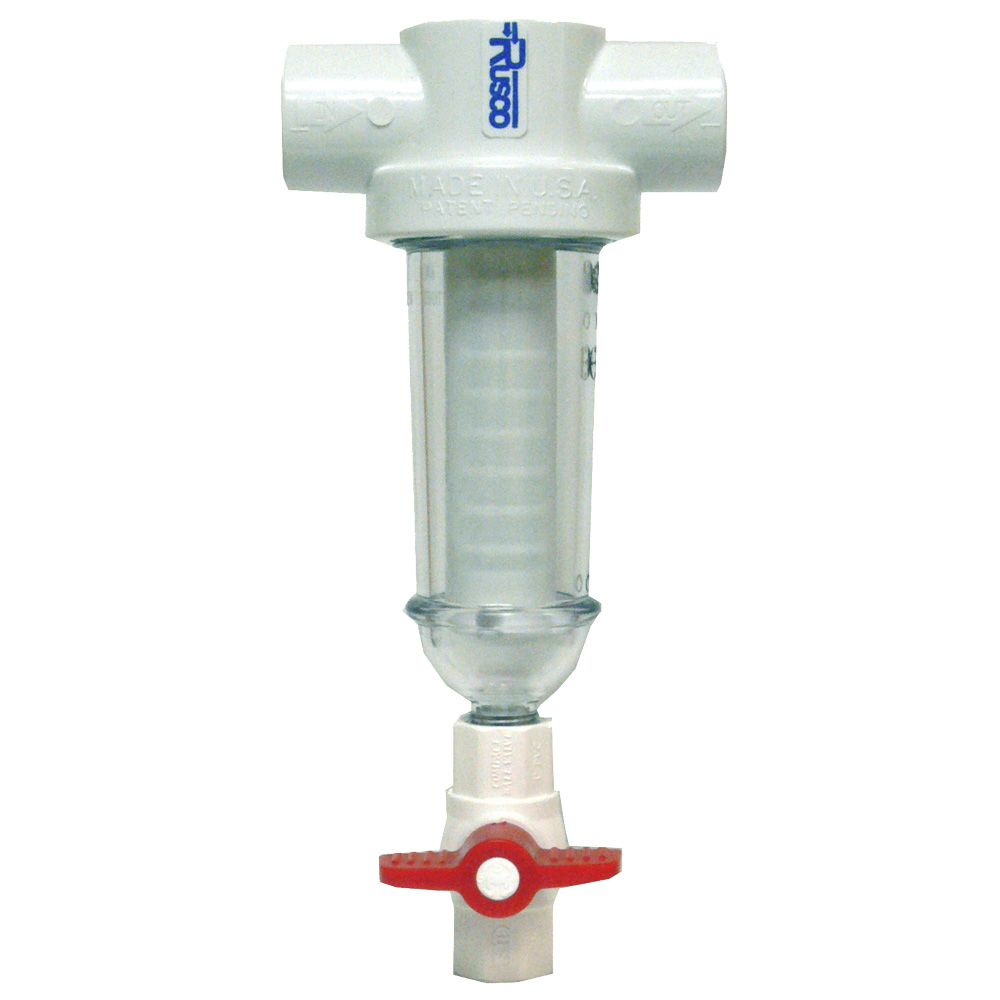

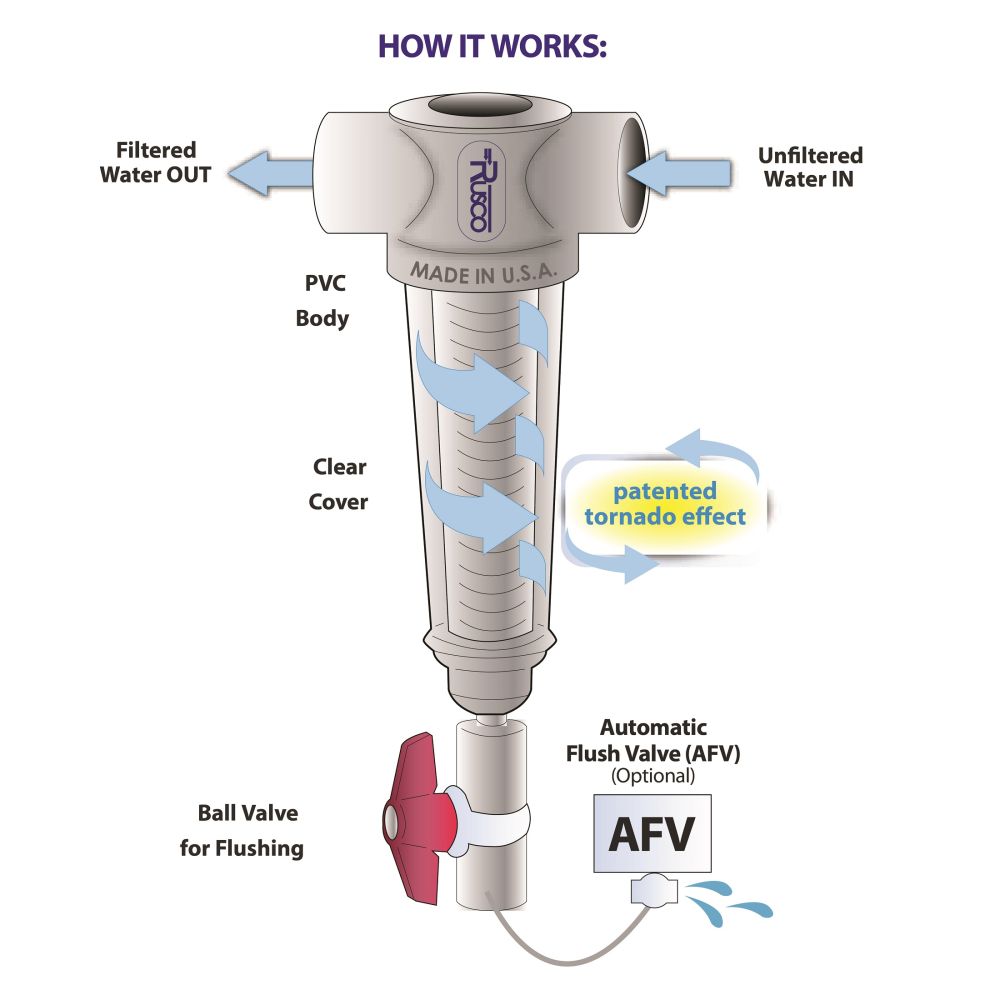

Rusco 1 1/2 Spin Down Sediment Filter System with Polyester Filter Screen make solid particle removal simple and economical. The benefit of the 1 1/2" Spin Down filter system is its ability to be cleaned and reused. The 1 1/2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge Spin-Down type sediment separation
No down time!

Specification:

The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required

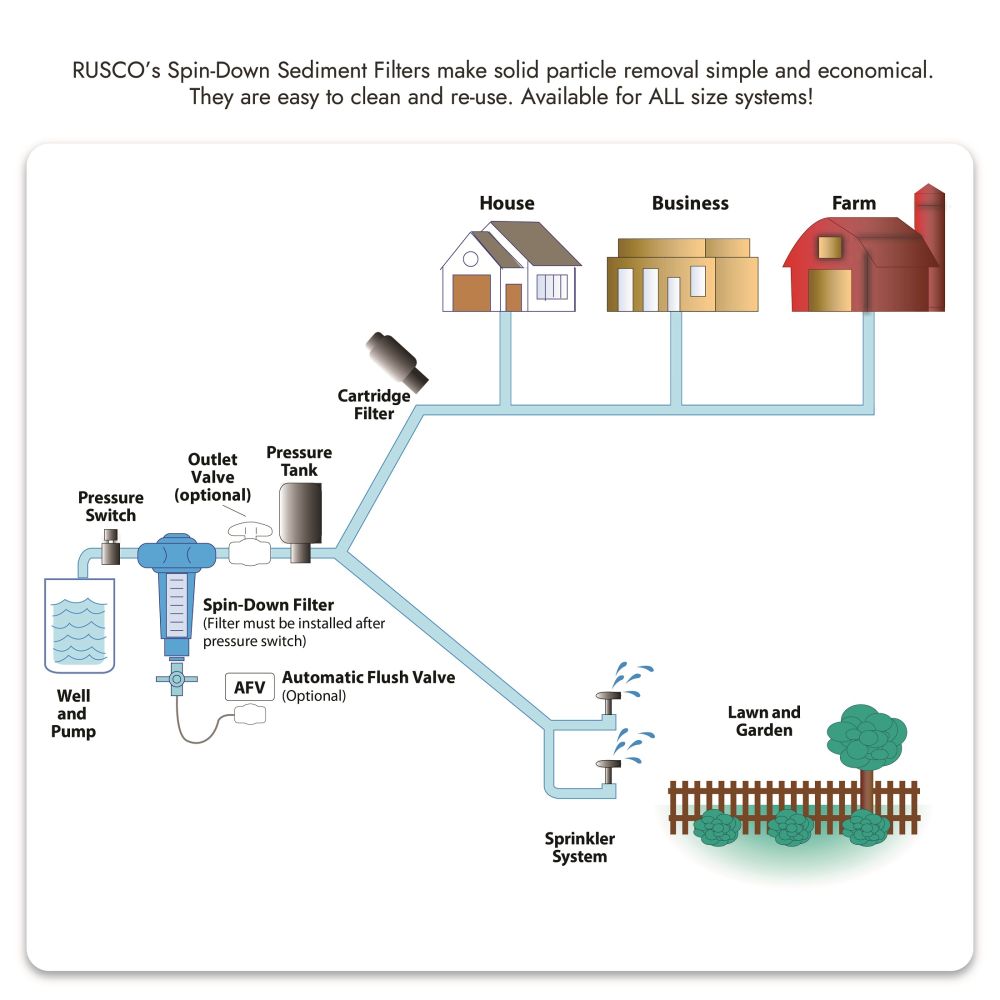

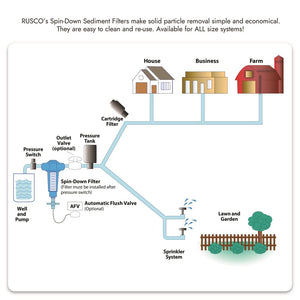

Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis

NOTE:
Also known as the following models:
Rusco Spin Down: 1-1/2-24-F, 1-1/2-30-F, 1-1/2-40-F, 1-1/2-60-F, 1-1/2-100-F, 1-1/2-140-F, 1-1/2-250-F, 1-1/2-500-F, 1-1/2-1000-F
Ace Hardware / Campbell: FS6-60 (49507), FS6-100 (49508)
Vu-Flow (VuFlow) Screen Filter: NT150-30P, NT150-60P, NT150-100P, NT150-140P, NT150-250P, NT150-500P, NT150-1000P

Compatible with:

Ace Hardware	FT6-60 (49483), FT6-100 (49484)
Campbell®	FT6-60 (49483), FT6-100 (49484)
Vu-Flow Sediment Filter Replacement Screens	NT150-30P, NT150-60P, NT150-100P, NT150-140P, NT150-250P, NT150-500P, NT150-1000P

Specifications

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1.5"
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
O-Rings	EPDM
Outlet Connection	1-1/2" Slip
Cartridge Style	Spin-down
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SPIN-DOWN \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2"

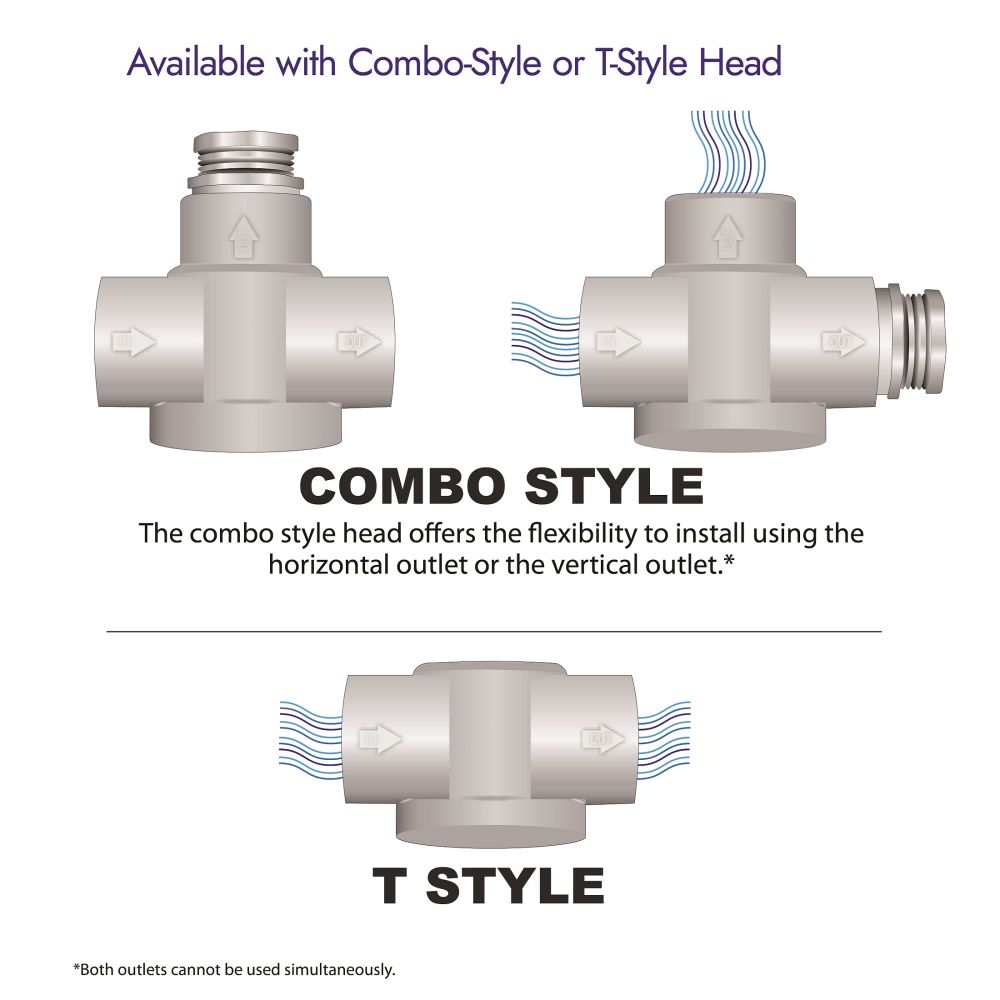

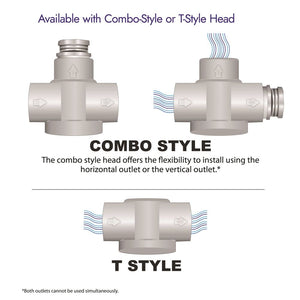

Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	5-1/4"
Product Length	11-3/8"
Product Width	5-1/4"
Product Weight (lbs)	2.1
