Rusco

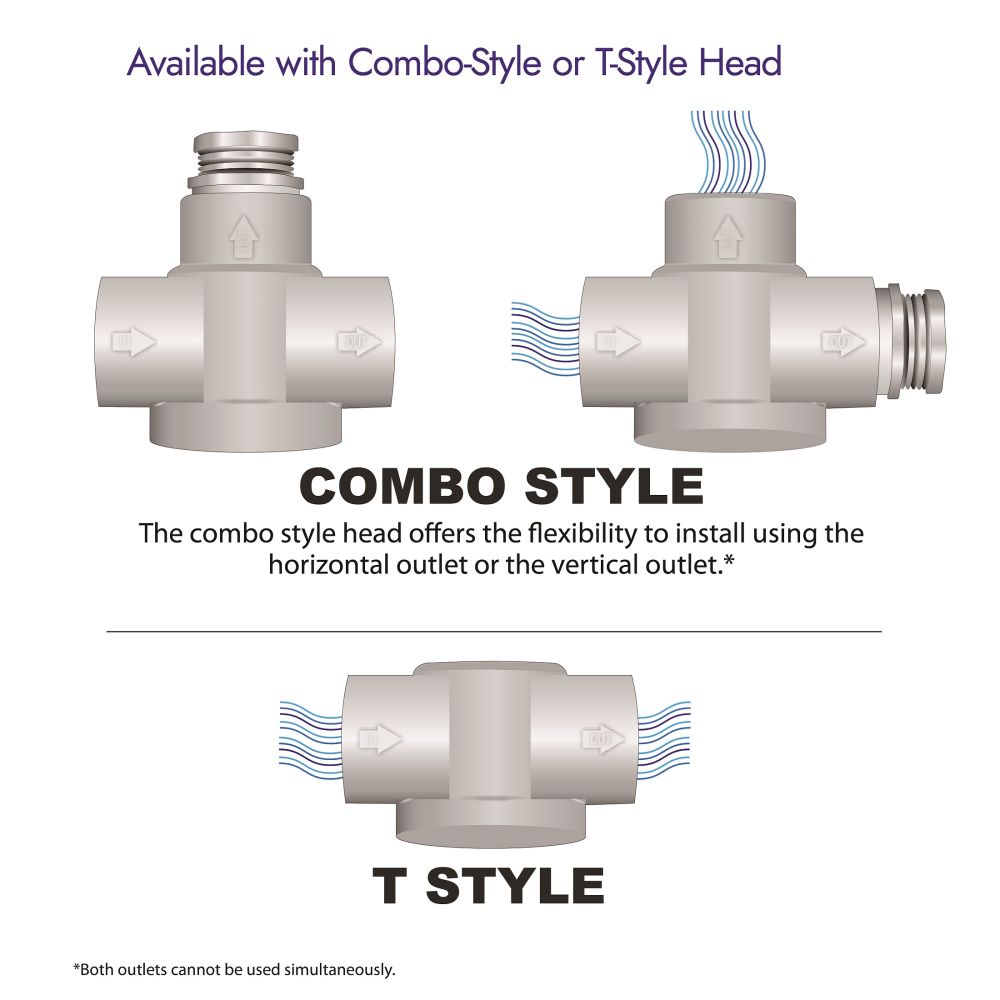

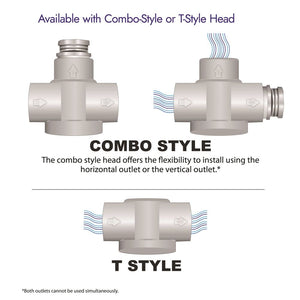

Rusco Spin Down Filter PE Screen T Style 1"

Part Number: 1-24-F

In Stock

out of stock

In Stock

$54.35

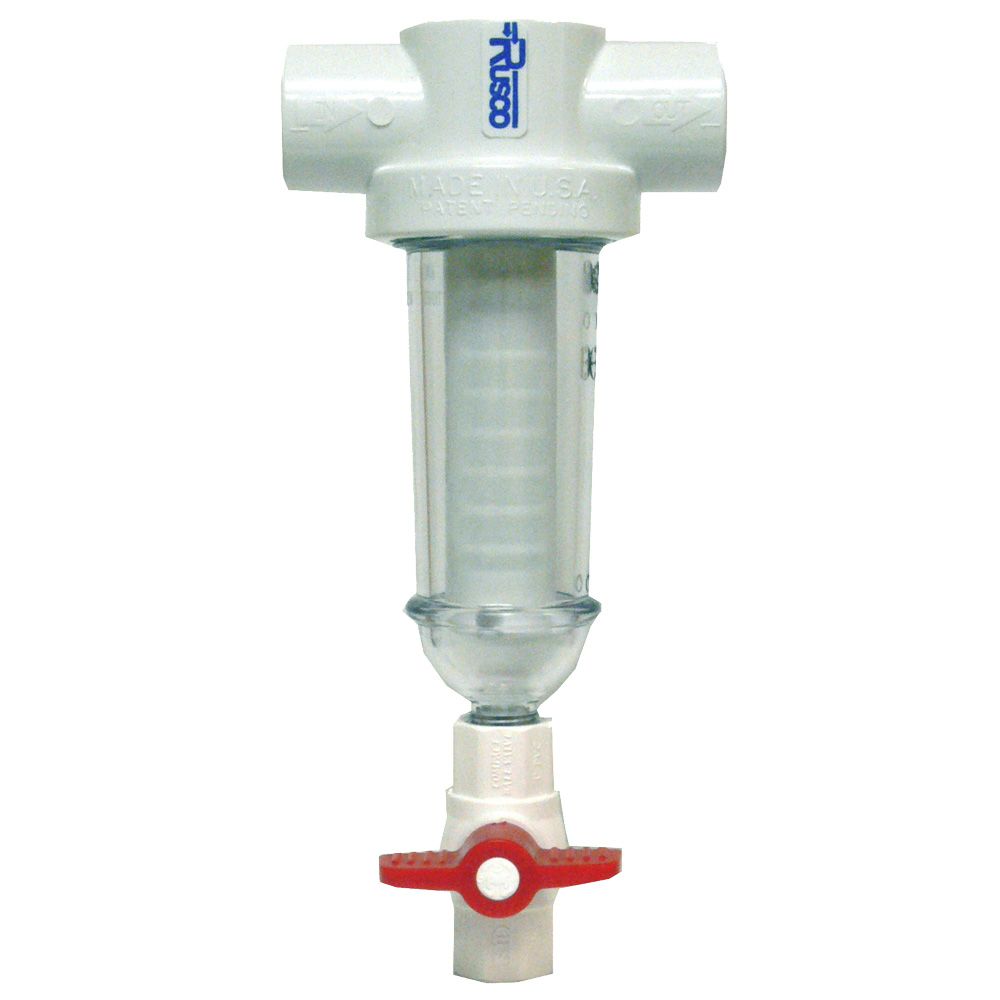

The Rusco 1" Spin-Down Sediment Filter System with polyester filter screen makes solid particle removal simple and economical. The benefit of the 1" spin-down filter system is its ability to be cleaned and reused. The 1" spin-down sediment filter by Rusco has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required – using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover

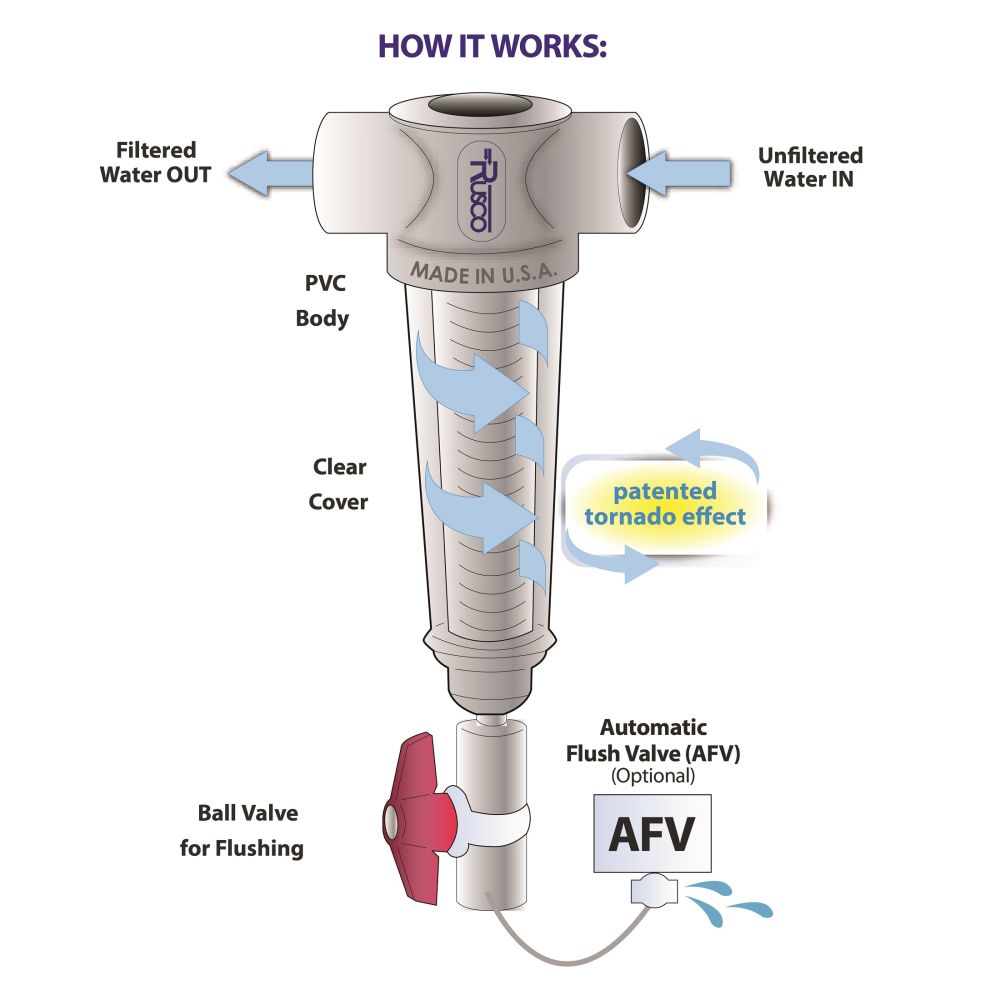

  • Centrifuge spin-down-type sediment separation
  • No down time!!
Rusco Spin Down Filter Polyester Screen - 1" Benefits:
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

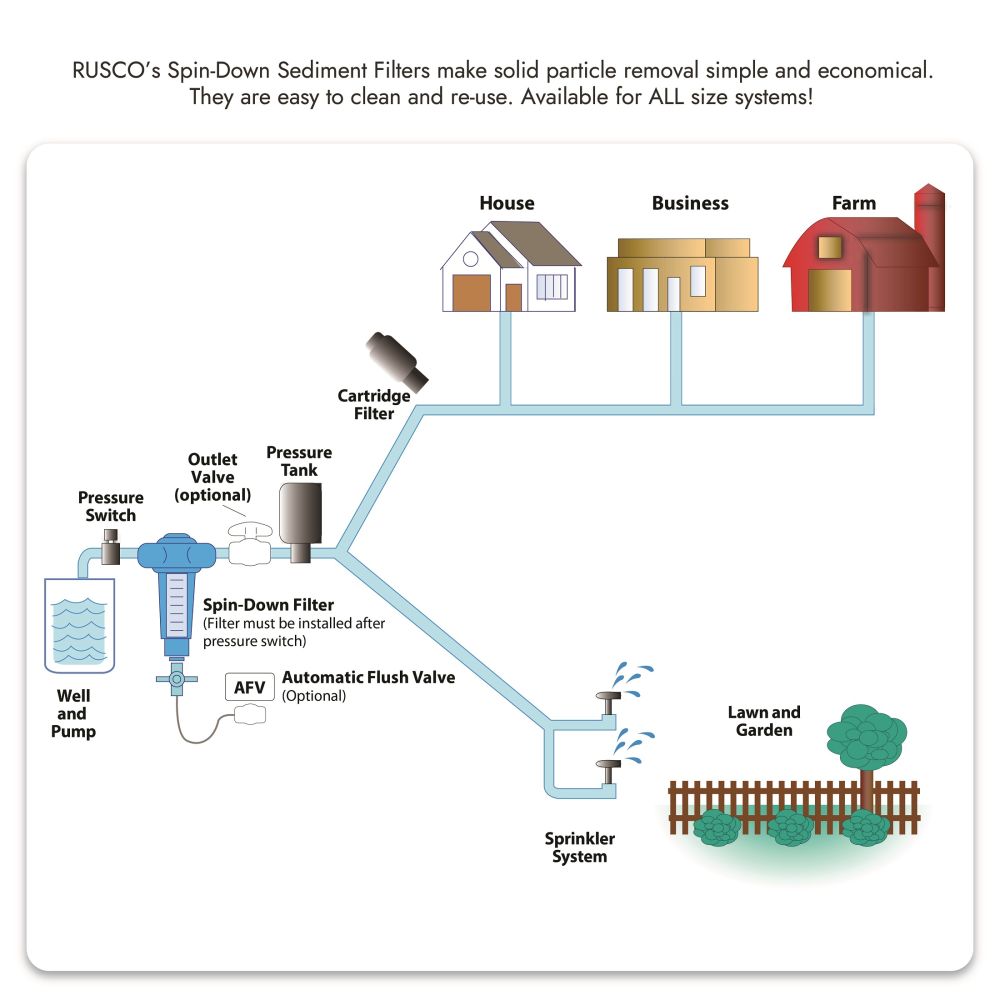

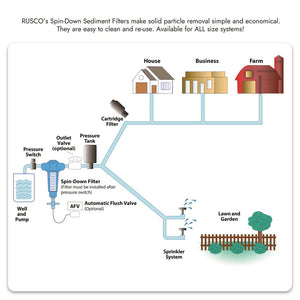

  • Multiple uses: well water, irrigation, sand-sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultrafiltration water systems and reverse osmosis
Also known as the following models:
  • Rusco Spin-Down: 1-24-F, 1-30-F, 1-40-F, 1-60-F, 1-100-F, 1-140-F, 1-250-F, 1-500-F, 1-1000-F
  • Ace Hardware / Campbell: FT4-60 (4188603), FT4-100 (4188611)
  • Vu-Flow (VuFlow) Screen Filter: NT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P



Compatible with:
Ace HardwareFT4-60 (4188603), FT4-100 (4188611),
Campbell®FT4-60 (4188603), FT4-100 (4188611),
Vu-Flow Sediment Filter Replacement ScreensNT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P

Details

Screen Material

Polyester Screen

Housing Resistance

Fresh Water Only

Max Temp (°F)

100

Max Pressure (Psi)

150

Body Material

PVC

Cartridge Style

Spin-Down

Diameter

.021, .010, .006, .004, .0024, .0012, .0006

Flow Rate

1-25 GPM

Housing Material

High Impact Polymer Resin

Media Type

Polyester

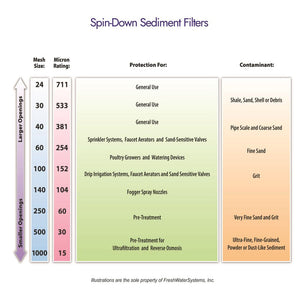

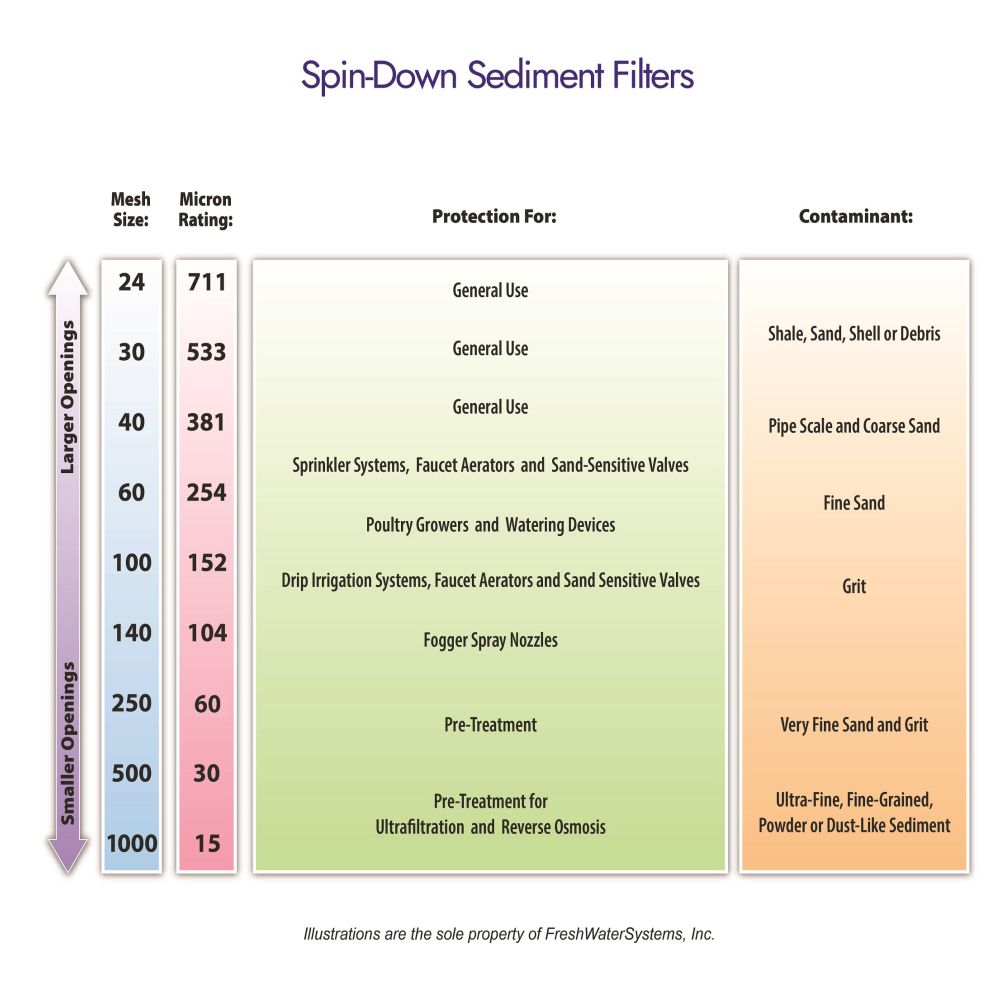

Mesh Size

30, 60, 100, 140, 250, 500, 1000

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm

O-Rings

EPDM

Size

1"

Inlet/Outlet Connection

1" Slip


Rusco

Rusco

Rusco




The Rusco 1" Spin-Down Sediment Filter System with polyester filter screen makes solid particle removal simple and economical. The benefit of the 1" spin-down filter system is its ability to be cleaned and reused. The 1" spin-down sediment filter by Rusco has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required – using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge spin-down-type sediment separation
  • No down time!!
Rusco Spin Down Filter Polyester Screen - 1" Benefits:
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand-sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultrafiltration water systems and reverse osmosis
Also known as the following models:
  • Rusco Spin-Down: 1-24-F, 1-30-F, 1-40-F, 1-60-F, 1-100-F, 1-140-F, 1-250-F, 1-500-F, 1-1000-F
  • Ace Hardware / Campbell: FT4-60 (4188603), FT4-100 (4188611)
  • Vu-Flow (VuFlow) Screen Filter: NT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P



Compatible with:
Ace HardwareFT4-60 (4188603), FT4-100 (4188611),
Campbell®FT4-60 (4188603), FT4-100 (4188611),
Vu-Flow Sediment Filter Replacement ScreensNT100-30P, NT100-60P, NT100-100P, NT100-140P, NT100-250P, NT100-500P, NT100-1000P

Details

Screen Material

Polyester Screen

Housing Resistance

Fresh Water Only

Max Temp (°F)

100

Max Pressure (Psi)

150

Body Material

PVC

Cartridge Style

Spin-Down

Diameter

.021, .010, .006, .004, .0024, .0012, .0006

Flow Rate

1-25 GPM

Housing Material

High Impact Polymer Resin

Media Type

Polyester

Mesh Size

30, 60, 100, 140, 250, 500, 1000

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm

O-Rings

EPDM

Size

1"

Inlet/Outlet Connection

1" Slip
