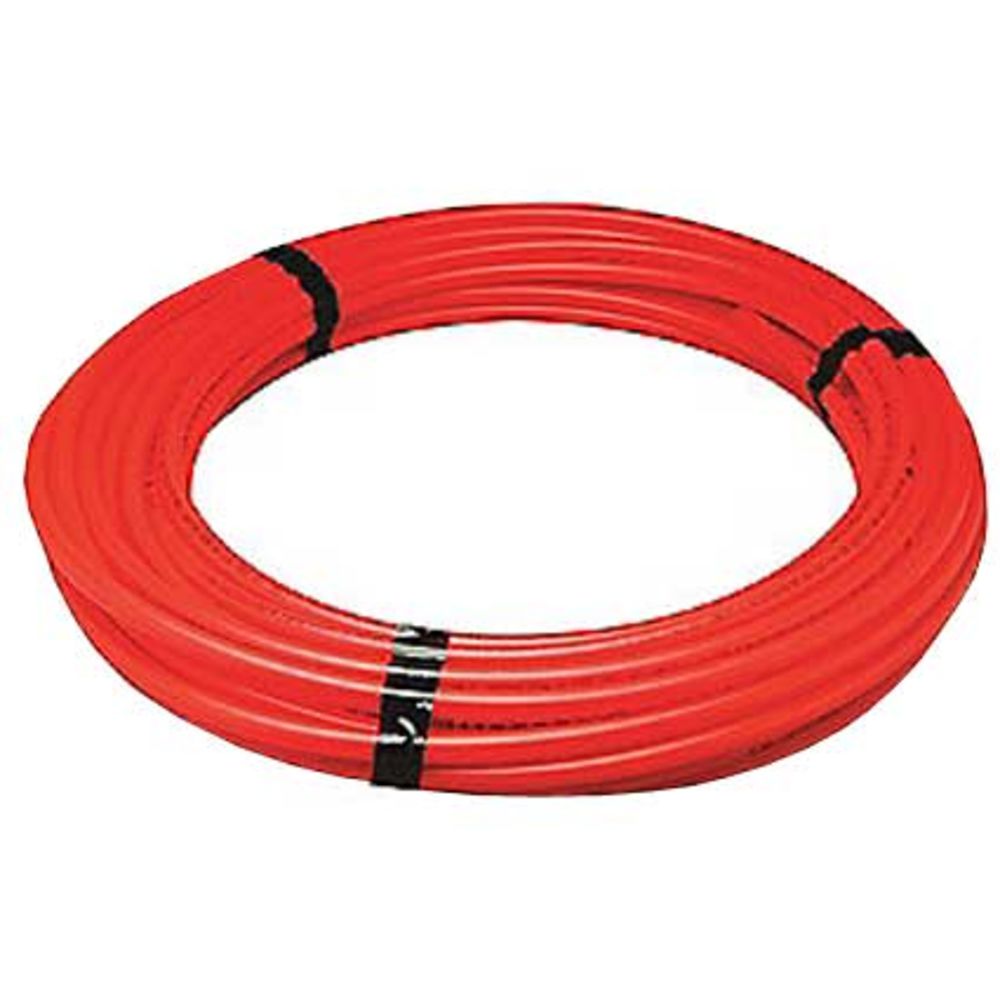

PEX-B Tubing - 1" CTS (ID) RED

Part Number: PEXB16-RED:25FT Alt. Part Number: Q5PC100XRED

American Granby

PEX-B Tubing - 1" CTS (ID) RED

Part Number: PEXB16-RED:25FT Alt. Part Number: Q5PC100XRED

$32.82

Length (ft.)

Unit Price

Price

Savings

25'

$1.31

$32.82

—

50'

$1.10

$55.28

16%

100'

$0.89

$89.83

32%

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Zurn PEX Non-Barrier Tubing is a flexible, low-lead compliant tubing that is suitbable for potable water plumbing applications. Produced from a high performance, cross-linked polyethylene material, ZurnPEX is easy to install and requires fewer fittings than rigid pipe. It is also resistant to mineral build-up and freeze damage.

Specifications:

Tubing Performance Rating:
Operating Pressure Vacuum to 160 psi
Max Temperature: 200º F @ 80 psi
Max Temperature: 73º F @ 160 psi
Coil Length: 100'*

Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.

Specifications

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Thickness	1/8"
Color / Finish	Red
Diameter	1-1/2"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25-year warranty
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	12 in.
Product Width	1.5 in.
Product Weight (lbs)	0.25

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Thickness	1/8"
Color / Finish	Red
Diameter	1-1/2"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25-year warranty
Product Weight & Dimensions
Product Height	6"
Product Width	29-1/2"
Product Weight (lbs)	12.5

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200°F
Thickness	1/8"
Color / Finish	Red
Diameter	1-1/2"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25-year warranty
Product Weight & Dimensions
Product Height	6"
Product Width	29-1/2"
Product Weight (lbs)	25
