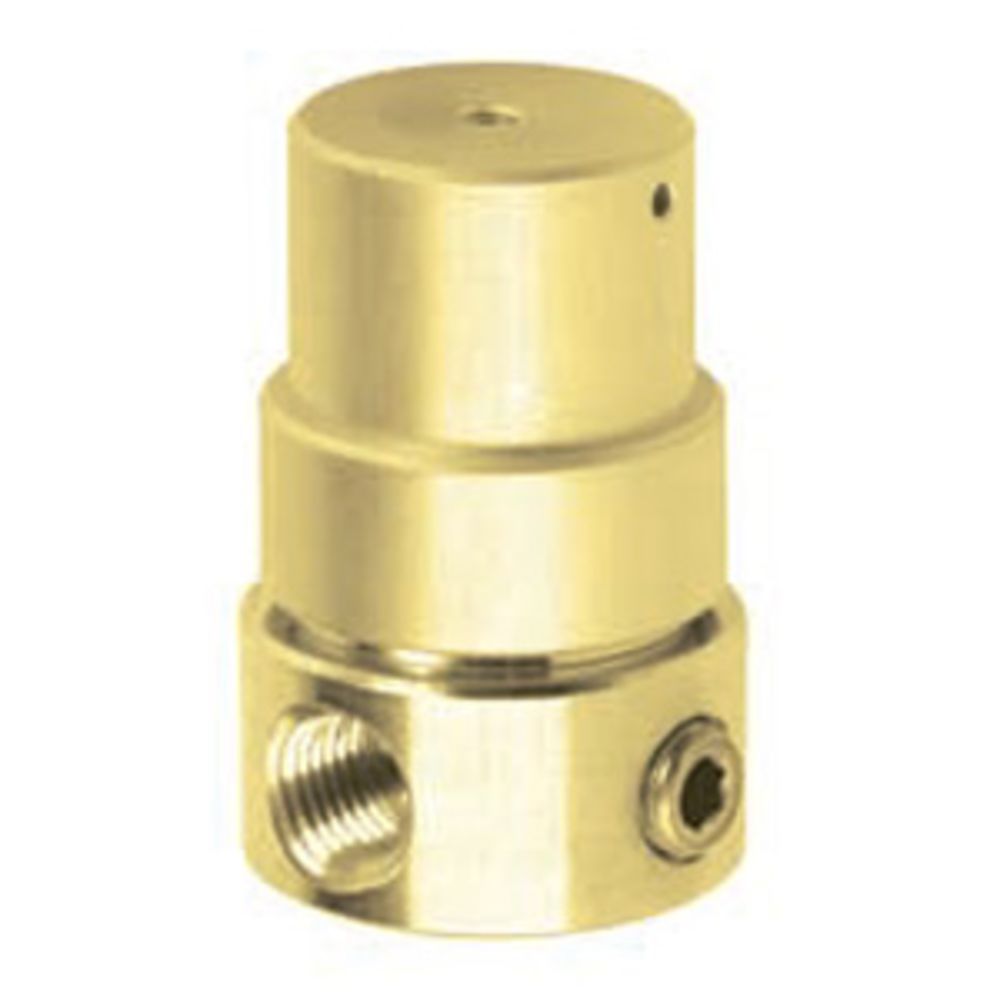

Norgren R16-200-R50A Nonadjustable Relieving Water/Air Regulator 1/4 FPT

Part Number: R16200R50A

Alt. Part Number: R16

In Stock

out of stock

In Stock

$70.49

The Norgren R16-200-R50A water/air pressure regulator features a compact corrosion resistant design. The R16-200-R50A has a factory preset, tamper resistant pressure setting. This regulator is suitable for use on compressed air and water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body and bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 100 psig (7 Bar)
  • Outlet pressure (not adjustable): 50 psig (3.5 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 scfm
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)



Weight & Dimensions

Approx Height (Inches)

2.28"

Approx Length (Inches)

1.48"

Weight (lbs)

0.7

Details

Body Material

Brass

Elastomer Type

Nitrile

Flow Rate

Water: 1.3 GPM Air:12 scfm

Max Inlet Pressure

100 psi (7 Bar)

Max Temp (°F)

150

Min Temp (°F)

Air: -30; Water: 35

Outlet Pressure

50 psig (3.5 Bar) (not adjustable) PSI

Port Size

1/8" FPT"; 1/4" FNPT

Seat

Acetal Resin


Norgren




The Norgren R16-200-R50A water/air pressure regulator features a compact corrosion resistant design. The R16-200-R50A has a factory preset, tamper resistant pressure setting. This regulator is suitable for use on compressed air and water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body and bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 100 psig (7 Bar)
  • Outlet pressure (not adjustable): 50 psig (3.5 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 scfm
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


Weight & Dimensions

Approx Height (Inches)

2.28"

Approx Length (Inches)

1.48"

Weight (lbs)

0.7

Details

Body Material

Brass

Elastomer Type

Nitrile

Flow Rate

Water: 1.3 GPM Air:12 scfm

Max Inlet Pressure

100 psi (7 Bar)

Max Temp (°F)

150

Min Temp (°F)

Air: -30; Water: 35

Outlet Pressure

50 psig (3.5 Bar) (not adjustable) PSI

Port Size

1/8" FPT"; 1/4" FNPT

Seat

Acetal Resin
