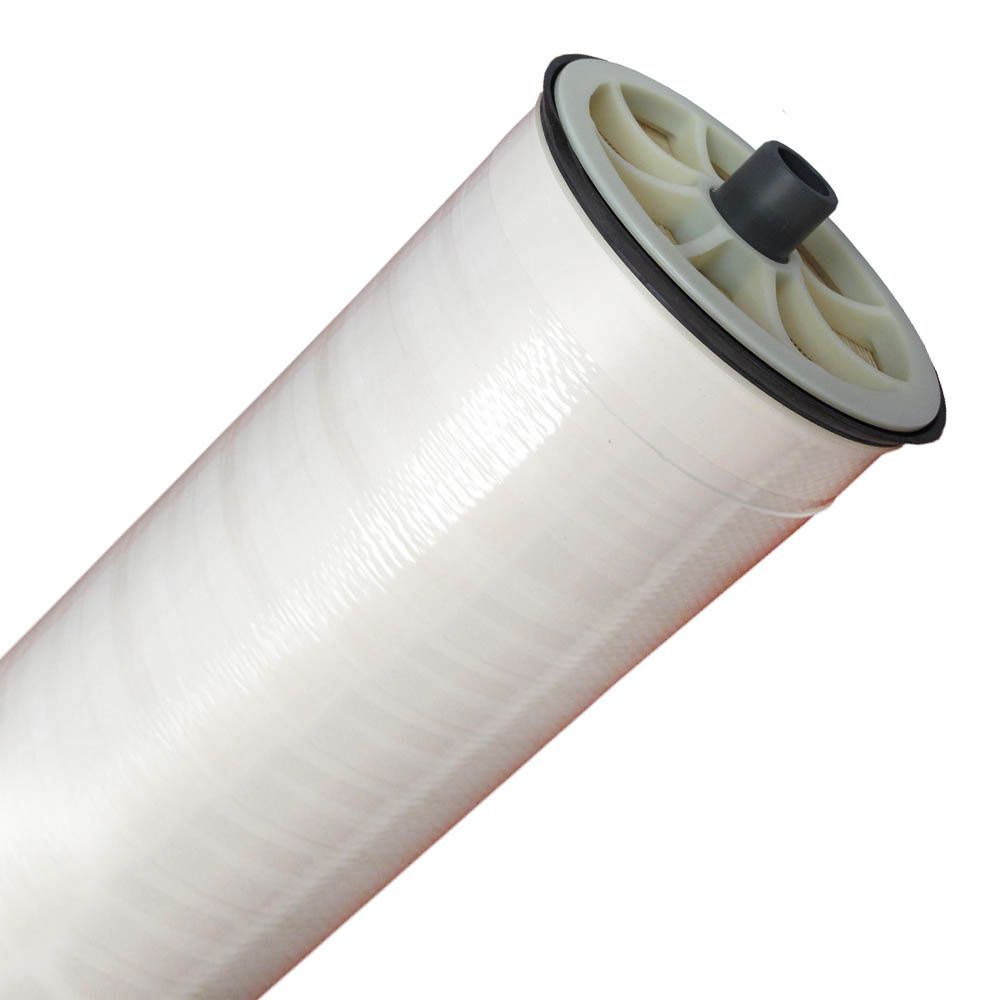

Veolia Osmonics Desal AG8040F 9200 GPD RO Membrane Element

Part Number: 1206779

Veolia Osmonics Desal AG8040F 9200 GPD RO Membrane Element

Part Number: 1206779
Regular price $778.60

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.

Specifications:
  • High Flux and Excellent NaCL Rejection
  • Thin-Flim Reverse Osmosis Membrane Element
  • 9200 Gallons Per Day
  • Dimensions: 8" x 40"
  • Male End Connections
  • Tape Outer Wrap
  • 28 mil Feed Spacers
  • Operating Pressures as low as 200 PSIG

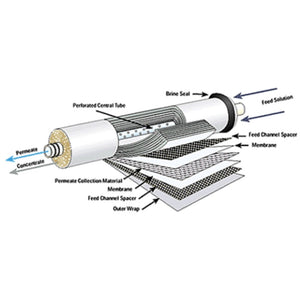

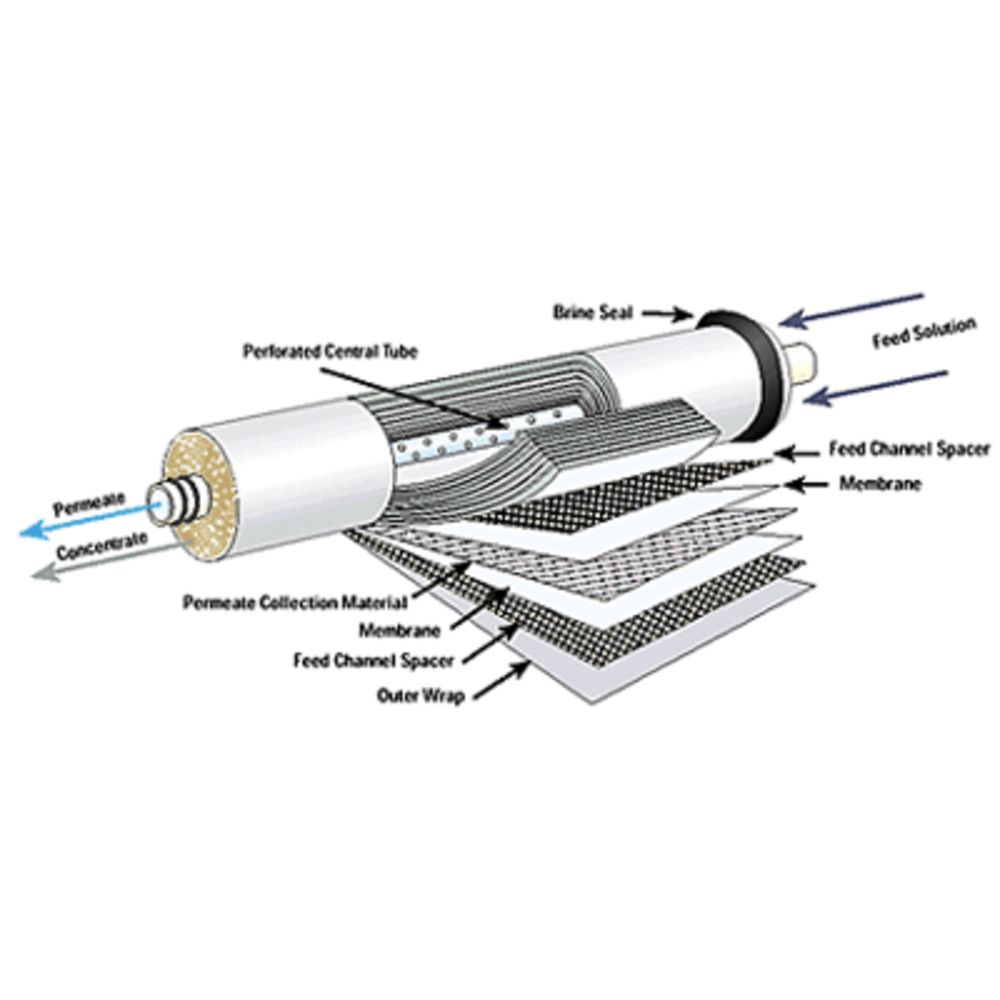

Element Membrane Diagram (not the encapsulated model):
Compatible with:
Toray MembranesTM720-370

Specifications

    Product Details

    Active Area

    350 sq. ft.

    Average Nacl Rejection

    0.995

    Chlorine Tolerance

    1,000 ppm-hrs

    Cleaning Ph Range

    2-11.5

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    200 PSI

    Inner/Outer Wraps

    Fiberglass

    Material Of Construction

    Thin Film Membrane

    Max Feed Silt Density Index

    <3 Silt Density Index

    Max Feed Water Turbidity

    <1 Nephelometric Turbidity Units

    Max Pressure Drop

    10 PSI Differential

    Max Pressure (Psi)

    600psi

    Max Temp (°F)

    122 °F

    Membrane Type

    Spiral Wound

    Minimum Salt Rejection Cl- (%)

    0.99

    Permeate Flow Rate

    9,200 gpd (34.8)

    Permeate Tube Diameter

    1-1/8"

    Ph Range

    4-11

    Recovery Rate

    0.15

    Diameter

    7.88"

    Shipping Dimensions

    Shipping Length

    40 in.

    Product Weight & Dimensions

    Product Length

    40 in.

    Product Weight (lbs)

    18.5

Downloads

Veolia Osmonics Desal AG8040F 9200 GPD RO Membrane Element Manual
