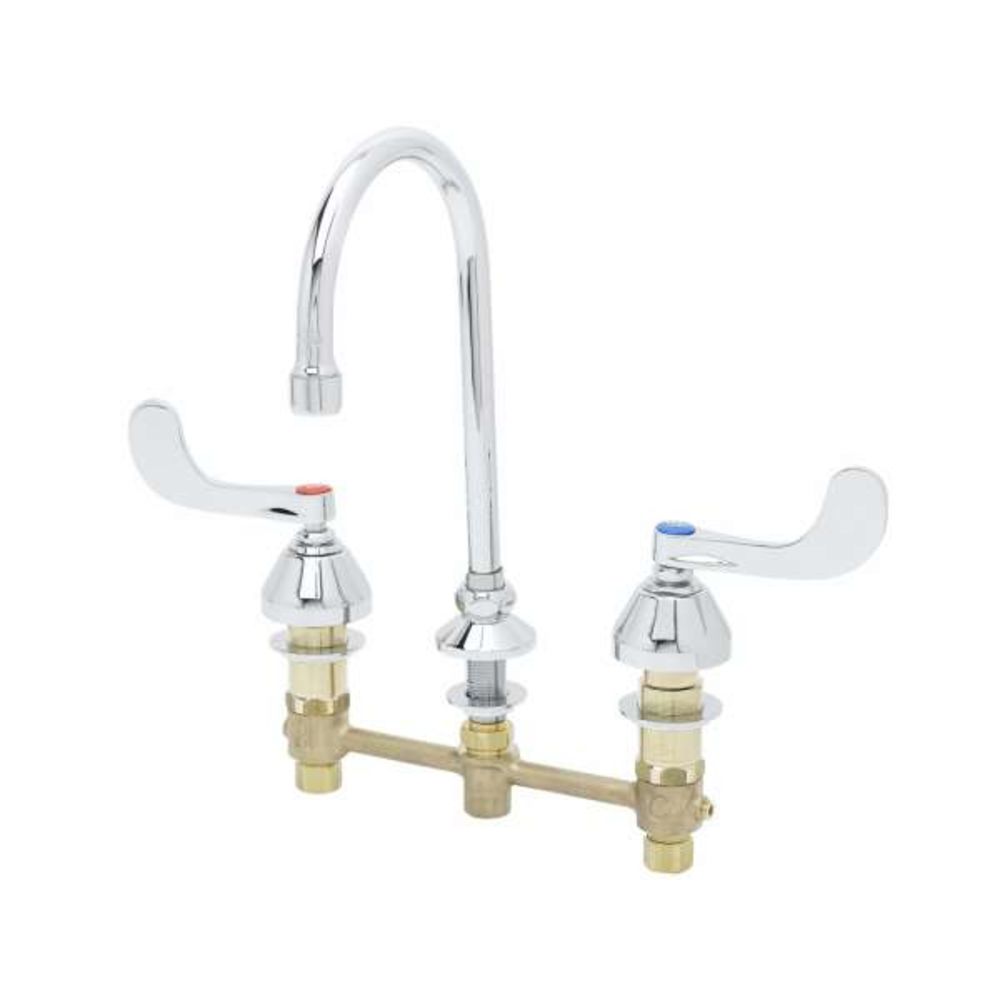

B-2866-05 Medical Faucet, 8" Centers, Swivel/Rigid GN, Non-Splash Aerator, 4" Wrist Action Handles
Part Number:
B-2866-05
Loading...
B-2866-05 Medical Faucet, 8" Centers, Swivel/Rigid GN, Non-Splash Aerator, 4" Wrist Action Handles
Part Number:
B-2866-05
MSRP: $376.50
Regular price
$245.29
Unit price
Unit price
/
Unavailable
Shipping Information
Shipping Information
Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
Description
Description
8" concealed deck mount mixing faucet with forged brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridges with spring checks, 4" wrist action handles, chrome plated escutcheons and1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Nozzle Flow: 2.2 GPM (8.33 L/min)
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
- 1/2" NPT male inlets w/ coupling nuts
- 2.2 GPM aerator, Series 1 (B-0199-01)
- 4" wrist action handles w/ color coded indexes
- 5 3/4" swivel/rigid gooseneck
- 8" EasyInstall concealed deck mount mixing faucet w/ forged brass body
- Lock washer provided for rigid application
- Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheons.
-
Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
Specifications
