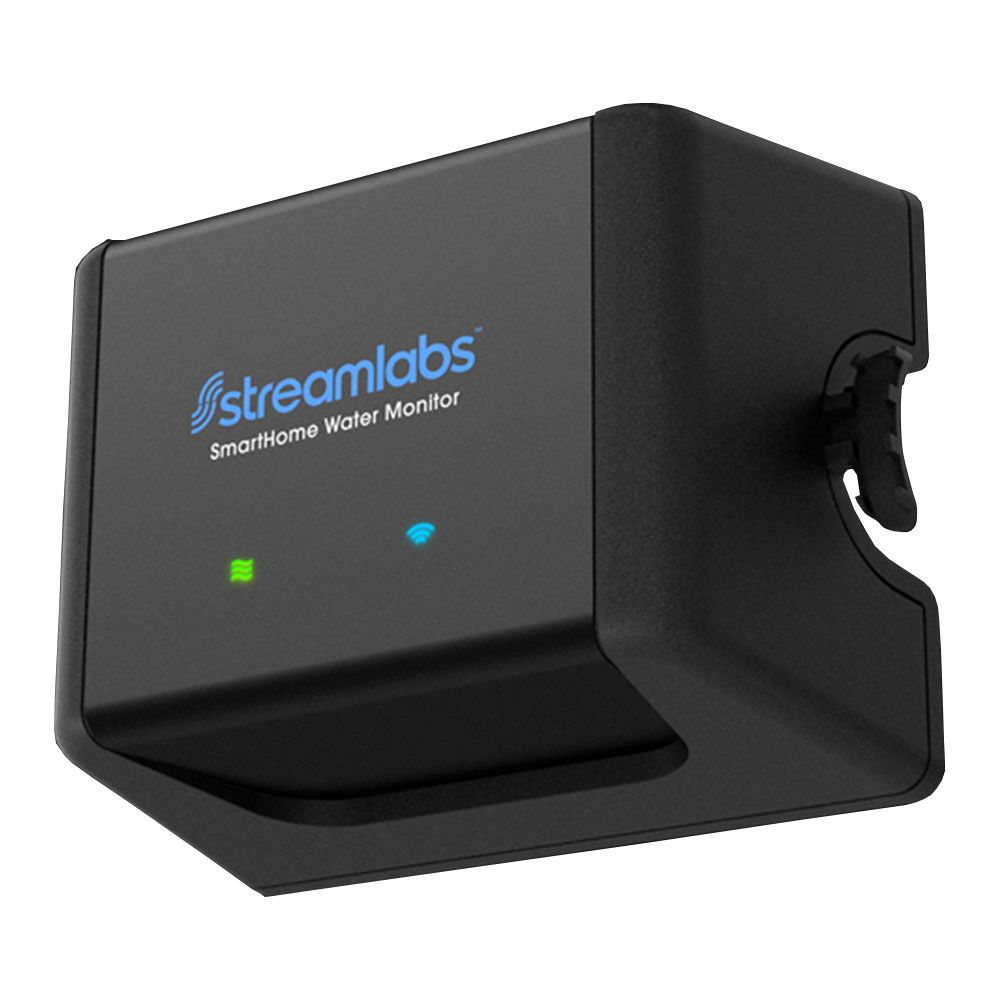

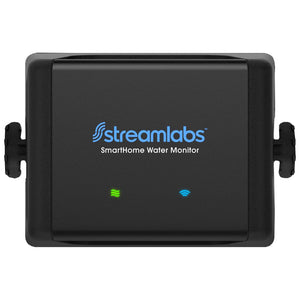

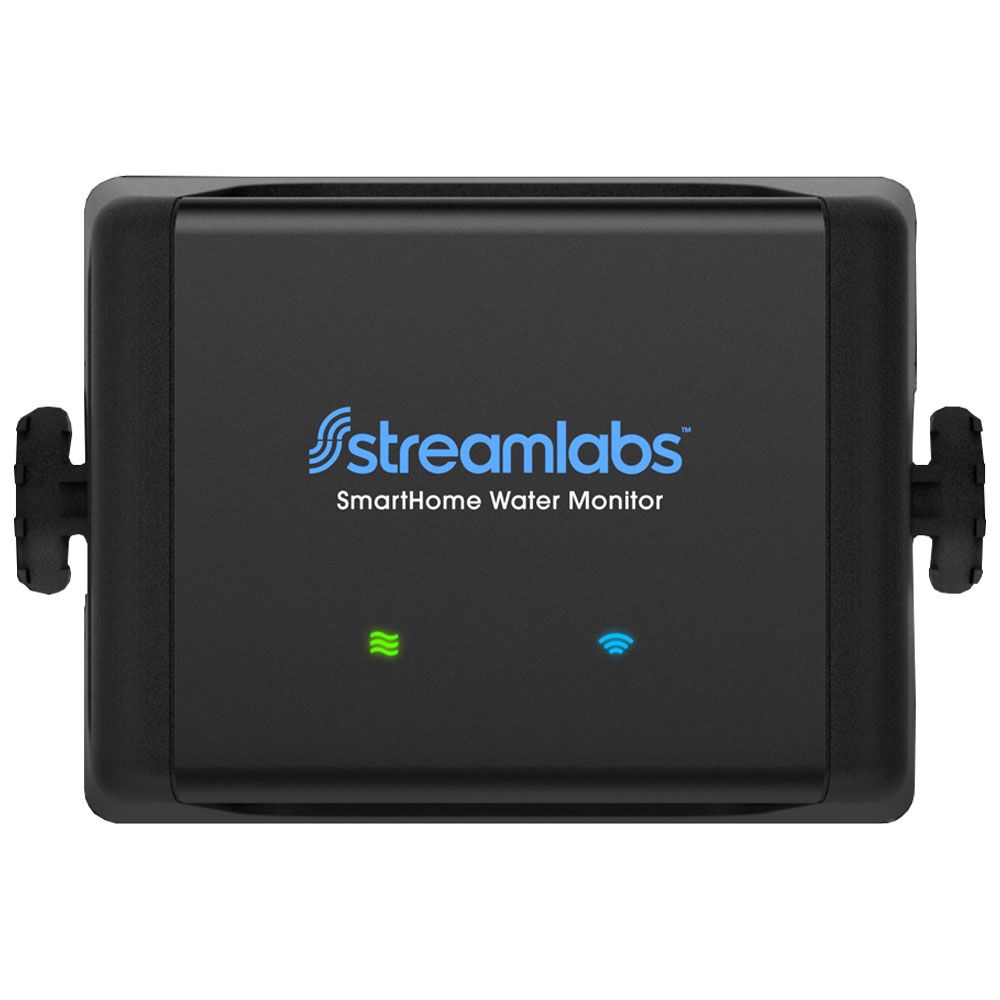

The StreamLabs® UMFT-1000 is the ultimate home water monitor. This monitor is key for tracking water usage and will alert the homeowner of possible leaks in real-time. Homeowners are not only faced with catastrophic breaks, but many types of leaks occur daily such as a dripping faucet, a leaking shower, or even a running toilet. The StreamLabs® home water monitor will instantly alert a homeowner of any unusual water flow.

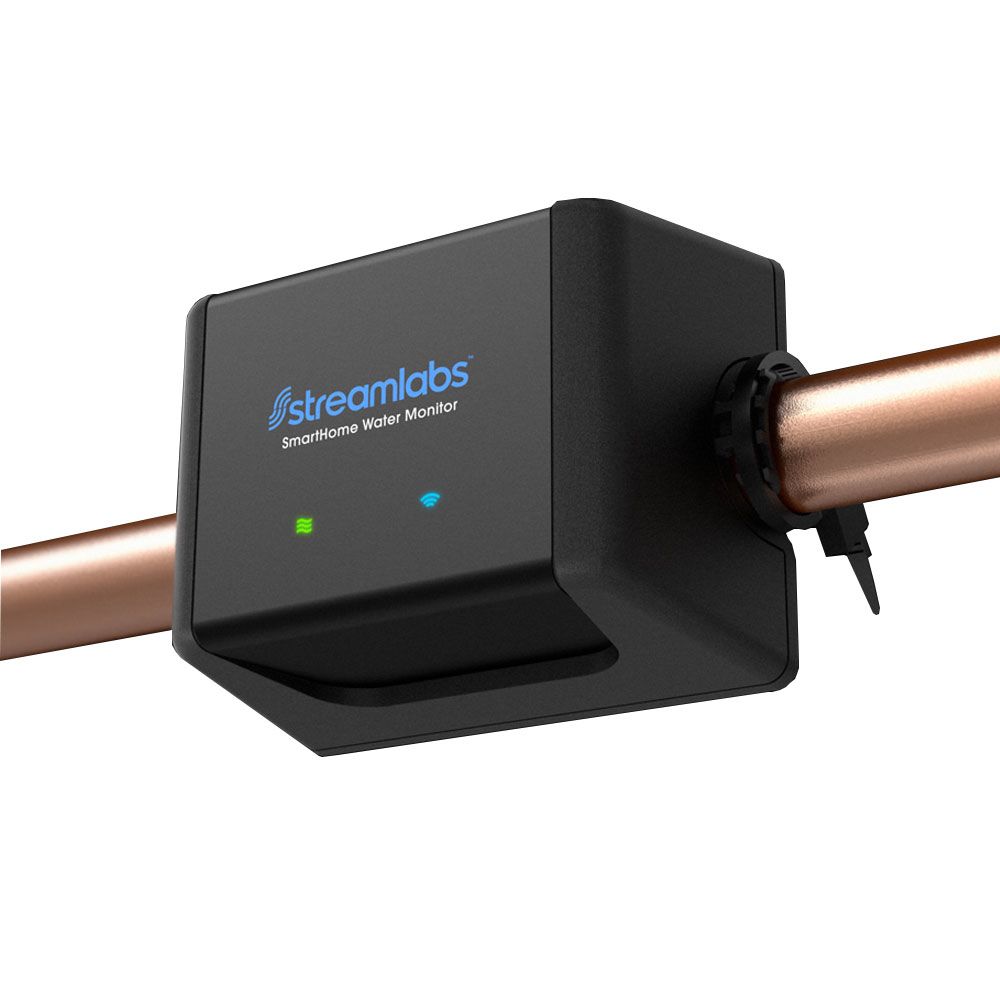

The UMFT-1000 monitor installs easily to your main water line, as it does not require pipe-cutting. It will fit on Copper M/L, PEX, and CPVC pipe in both 3/4" and 1" pipe sizes, with push-to-connect or any threaded connections.

Whether you are home or away this smart monitor can notify you anywhere. By simply downloading the StreamLabs® App you are ready to customize, track, and monitor your water flow anytime day or night. By tracking the water usage in the home it will enable the homeowner to find ways to conserve water. This unit allows the settings to be adjusted for sensitivity and it also features a home or away mode. Finally, this monitoring system can easily tie into the smart home features by integrating with both the NEST and ALEXA systems.

Applications:

• Water Usage Tracking
• Leak Detection
• Submetering
• Sustainability and Water Conservation

Leak Detection Settings:

• Slow Leak: 0.25, 0.5, and 1.0 GPM for 5, 10, 15, 20, 30, or 60 minutes
• Major Leak: 2.0, 4.0, and 6.0 GPM for 2.5, 5, 10, 15, 20, or 30 minutes
• Away Mode: 0.25 GPM for 15 seconds
• Note: Copper Type L leak detection begins at greater than 0.5 GPM

Specifications:

• App Compatibility: Works on Modern Apple or Android Devices
• Compatible Pipe Sizes: 3/4" & 1" CTS
• Compatible Pipe Types: Copper Type M & L; PEX; CPVC
• Universal Power Supply: 100-240VAC 50/60Hz (Included)
• Water Temperature: 40° - 80° F (4.4° - 26.6° C)
• Max Operating Pressure: 232 PSI (16 bar)
• Ambient Temperature: 32° - 115° F (0° - 46.1° C)
• Operating Environment: Indoor use only
• WiFi Enabled: Connects to home WiFi Networks. Integrates with NEST and ALEXA

Installation Steps:

1. Download the StreamLabs® App and Connect to WiFi
2. Install easy-to-attach Water Monitor & Calibrate
3. Adjust & Set Alerts
