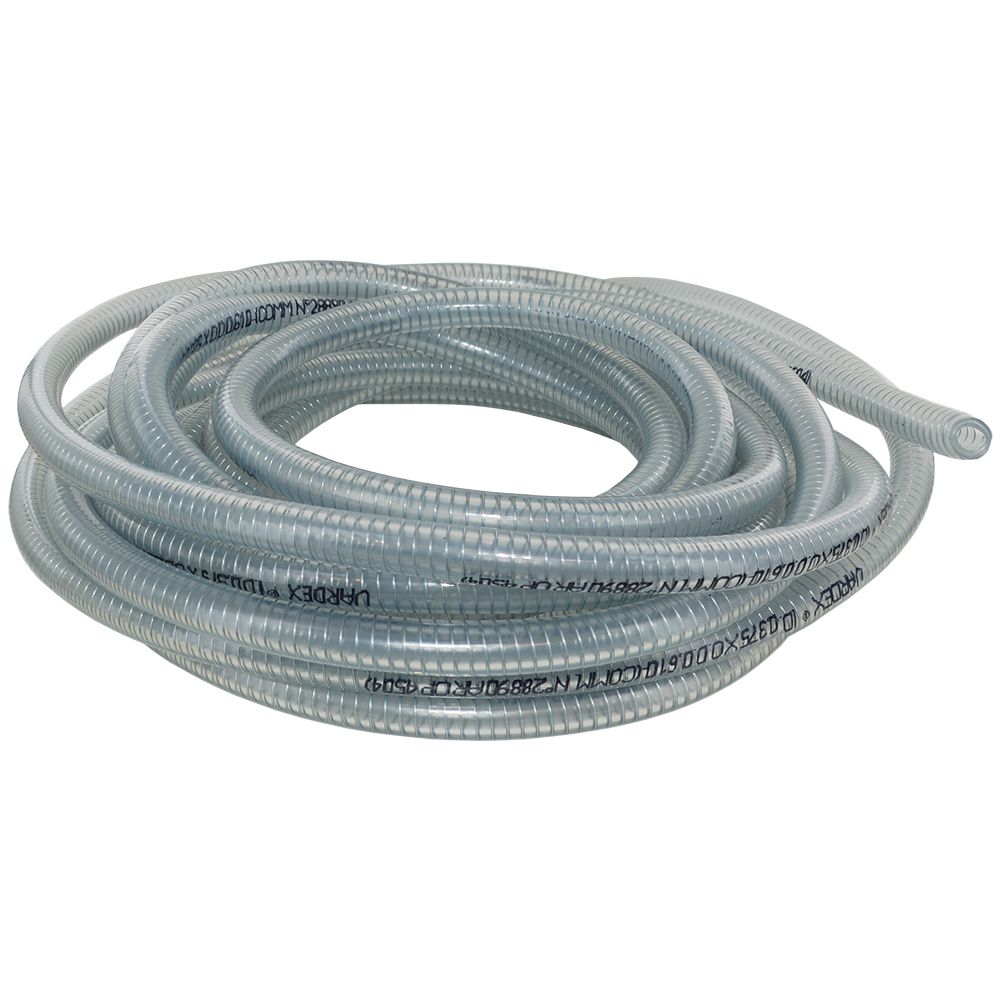

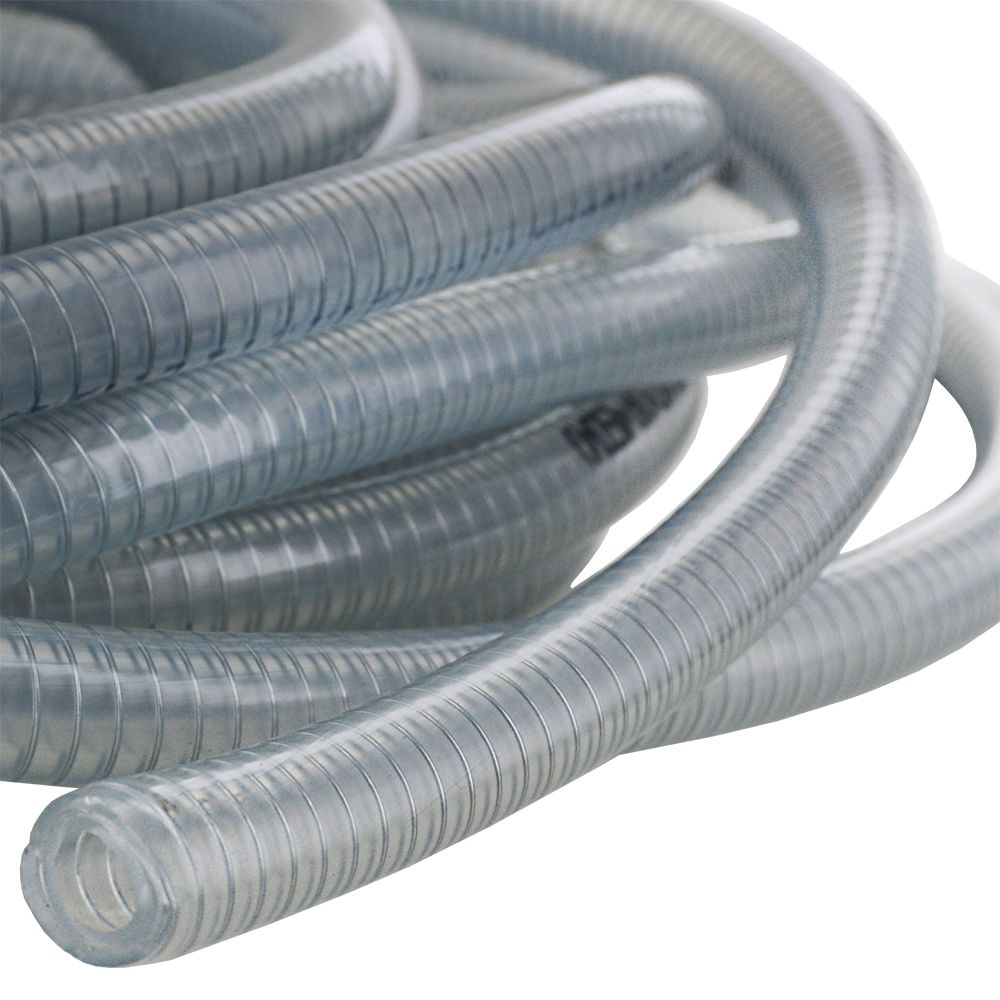

The Vardex® Clear Steel Wire Reinforced PVC Suction Hose is constructed of non-toxic, corrosion-resistant PVC, and is specifically suited for transporting chemicals in areas with sharp bends or tight turns. This is because its bend radius is approximately four times its inner diameter, making it perfect for applications where resistance to crushing and kinking is of primary importance. During its manufacture, a proprietary construction technique is employed which permits Vardex full vacuum capabilities (29.9 in./Hg.) for all sizes without hose collapse.

Applications:

• Chemical Transfer

• Coolant Lines

• Environmental Suit Air Feed

• Floor Cleaning Equipment

• Food & Beverage Lines

• Shop Air Supply

• Spray Systems

• Vacuum Lines

• Water Feeds

Features:

• Kink & crush resistant

• Made from non-toxic ingredients conforming to FDA standards

• Handles pressure & full vacuum (29.9 in./Hg.) applications

• Spiral steel wire reinforcement incorporated within the wall of flexible PVC tubing

• Glass-like clarity with mirror-smooth surfaces provide outstanding visual flow characteristics

• Lightweight (compared to rubber hoses) yet tough & abrasion resistant

Specifications:

• Inner Diameter: 3/8"

• Outer Diameter: .610"

• Wall Thickness: .118"

• Working PSI @ 70°F : 175

• Burst PSI @ 70°F: 525

• Standard Coil Length: 100 ft. *

• Hardness: 73 Shore A ±5

• Tensile Strength: 2100 psi

• Elongation at Break: 270%

• Brittle Temperature: 23 °F

• Materials: Steel Wire Reinforced PVC

• Maximum Operating Temperature: 150 °F


* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment. Any length of tubing less than a 100' must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

This tubing is comparable to the following brands:

• Cole-Parmer EW-06602-02, EW-06602-11

• Ideal Vacuum P103174

• Grainger 1PBL3

• Kuriyama K7160-06X100
