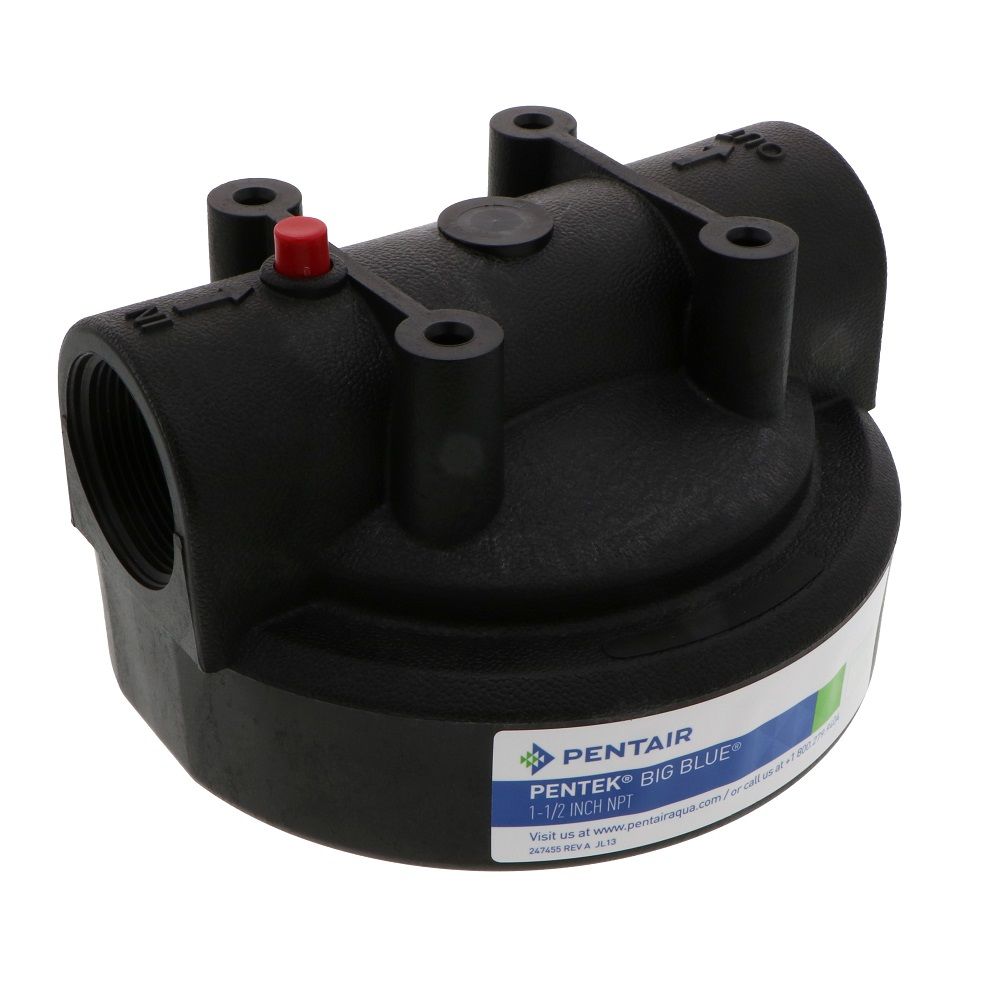

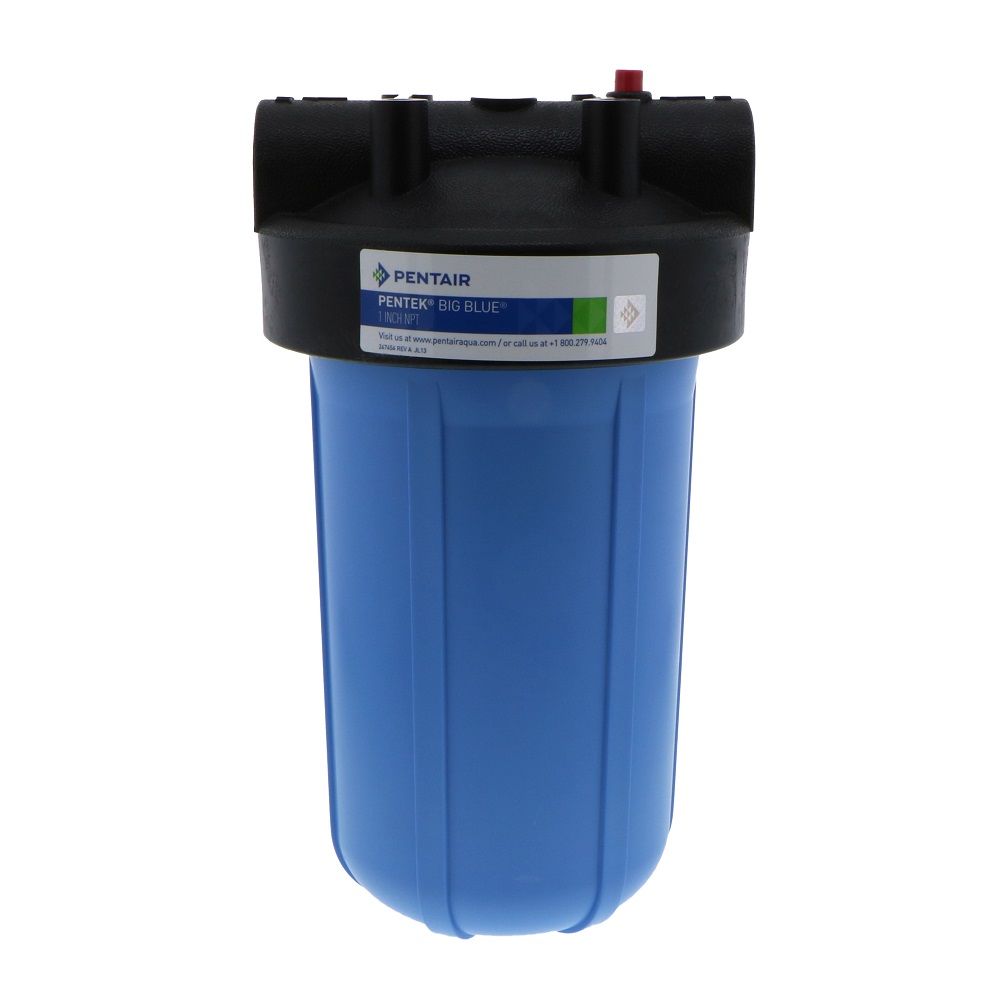

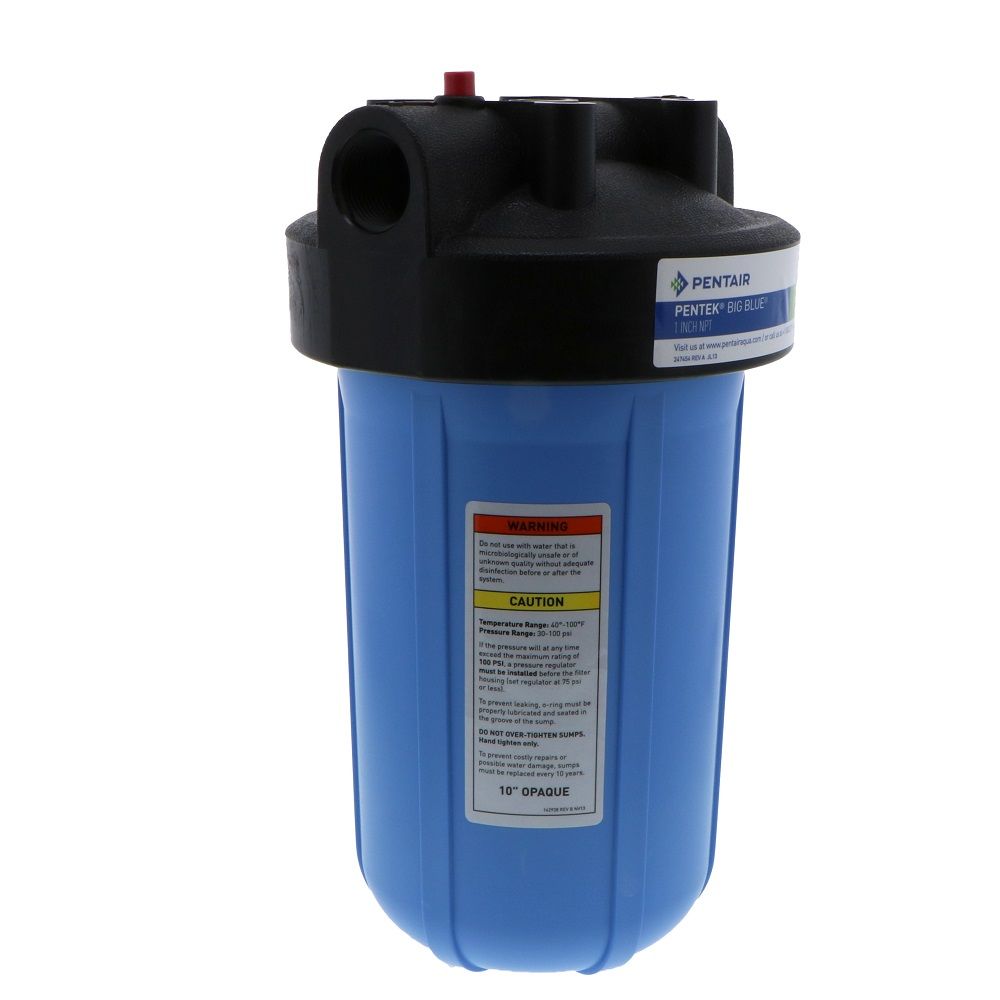

Pentek 10" Big Blue Water Filter Housing With Pressure Relief

4.9

(15 reviews)

Part Number: 150469

1 3

Pentair Water

Pentek 10" Big Blue Water Filter Housing With Pressure Relief

4.9

(15 reviews)

Part Number: 150469

MSRP: $64.78

$57.02

Choose:

3/4" FPT 1" FPT 1-1/2" FPT

Product variants

This item is discontinued. We recommend the Pentek 20" Big Blue Water Filter Housing With Pressure Relief as a substitute.

You May Also Need

Optional Accessory
Mounting Bracket with Hardware for 10" & 20" Large Diameter Filter Housing

Regular price From $11.95
Optional Accessory

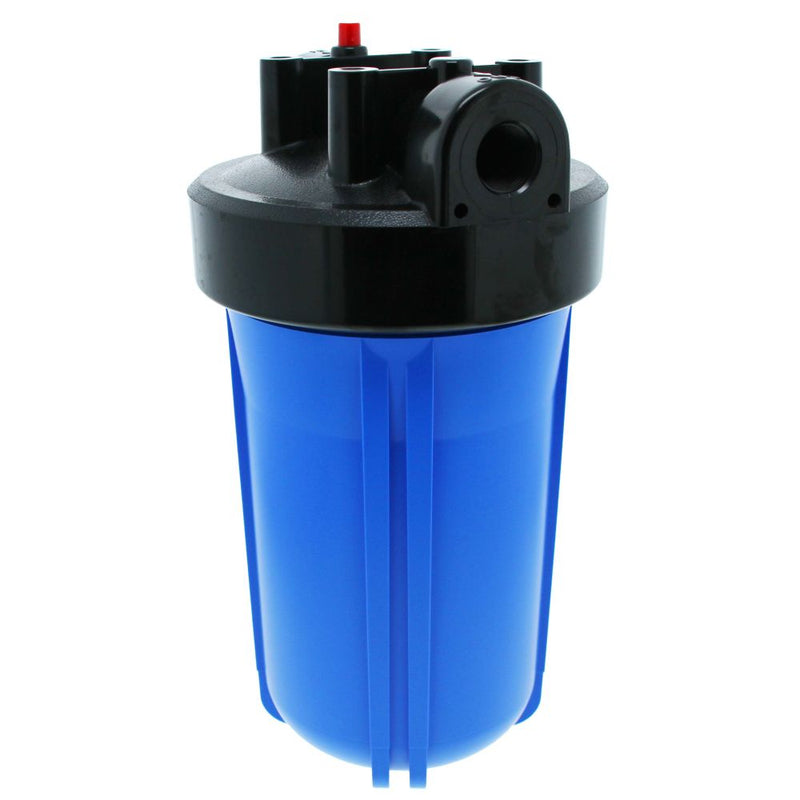

10" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 3/4" with Pressure Relief

Regular price From $30.90
Optional Accessory
10" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 1" with Pressure Relief

Regular price From $30.90
Optional Accessory
10" Heavy Duty Sediment Prefilter Kit - 3/4"

Regular price $117.76
Optional Accessory
Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic

Regular price From $14.49
Optional Accessory

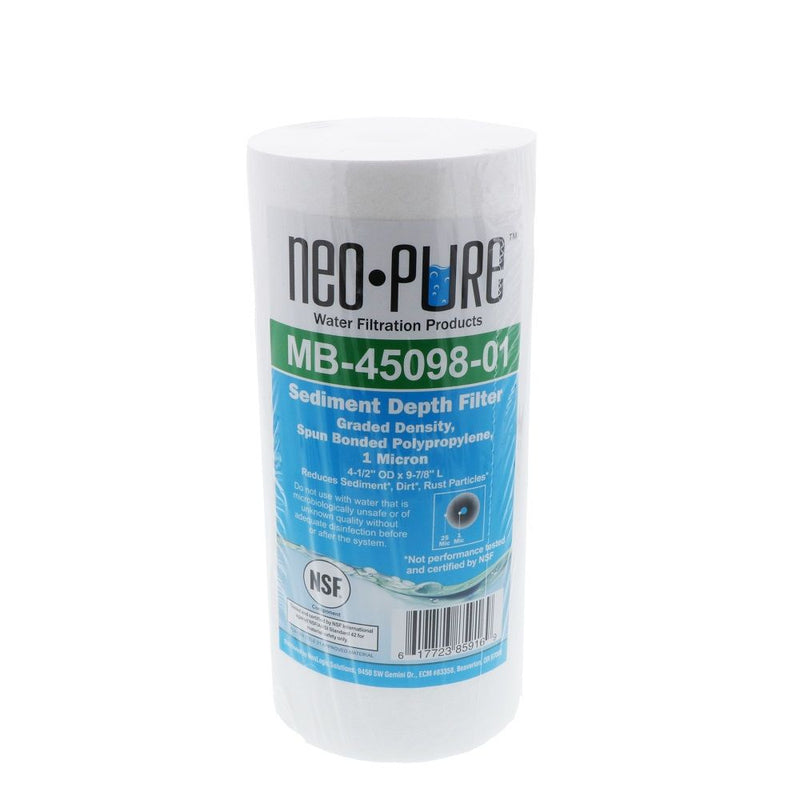

Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Regular price From $12.03
Optional Accessory
Neo-Pure SW-3E Filter Wrench for 10” and 20” Big Blue Housings (FHBB-HDX, HF45, WWQ FH5000 and FH10000)

Regular price $3.37

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Pentek 10" Big Blue Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. The Pentek Big Blue 150469 Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:

Polypropylene cap and sump
151122 Buna-N O-ring
Max Temperature: 100°F
Max Pressure: 100 psi (6.9 bar)
NSF Certified to Standard 42

Compatible with:

3M Water Filtration

5585701

Specifications

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1 1/2" FPT
Max Pressure (Psi)	100
Max Temp (°F)	100°F
O-Rings	Buna-N
Outlet Connection	3/4" FPT,1" FPT,1 1/2" FPT
Psid@Flow Rate	1 PSI @ 15 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Flow Rate	Up to 25 GPM @60 PSI
Origin	U.S.A.
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	15 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	13.5
Product Width	7.25
Product Weight (lbs)	5.103

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1 1/2" FPT
Max Pressure (Psi)	100
Max Temp (°F)	100°F
O-Rings	Buna-N
Outlet Connection	3/4" FPT,1" FPT,1 1/2" FPT
Psid@Flow Rate	1 PSI @ 15 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Flow Rate	Up to 25 GPM @60 PSI
Origin	U.S.A.
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	15 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	13.5
Product Width	7.25
Product Weight (lbs)	5.162

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1 1/2" FPT
Max Pressure (Psi)	100
Max Temp (°F)	100°F
O-Rings	Buna-N
Outlet Connection	3/4" FPT,1" FPT,1 1/2" FPT
Psid@Flow Rate	1 PSI @ 15 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Flow Rate	Up to 25 GPM @60 PSI
Origin	U.S.A.
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	15 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	14
Product Width	7.25
Product Weight (lbs)	5.411

Downloads

Reviews (15)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

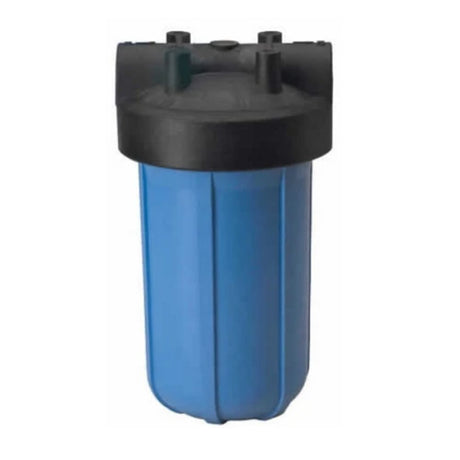

Facet	Pentair Water Pentek 10" Big Blue Water Filter Housing With Pressure Relief 4.9 Regular price From $51.51 Part #: 150469 Current Product	Sold Out Pentair Water Pentek 10" Big Blue Water Filter Housing No Pressure Relief 5.0 Regular price From $52.24 Sold out Part #: 150238 View details	Neo-Pure 10" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 1" with Pressure Relief 4.0 Regular price From $30.90 Part #: FHBB-1010REB1 Save up to 5% with bulk pricing View details	Neo-Pure 10" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 3/4" with Pressure Relief 5.0 Regular price From $30.90 Part #: FHBB-1034REB1 Save up to 5% with bulk pricing View details
