Fluid-o-Tech

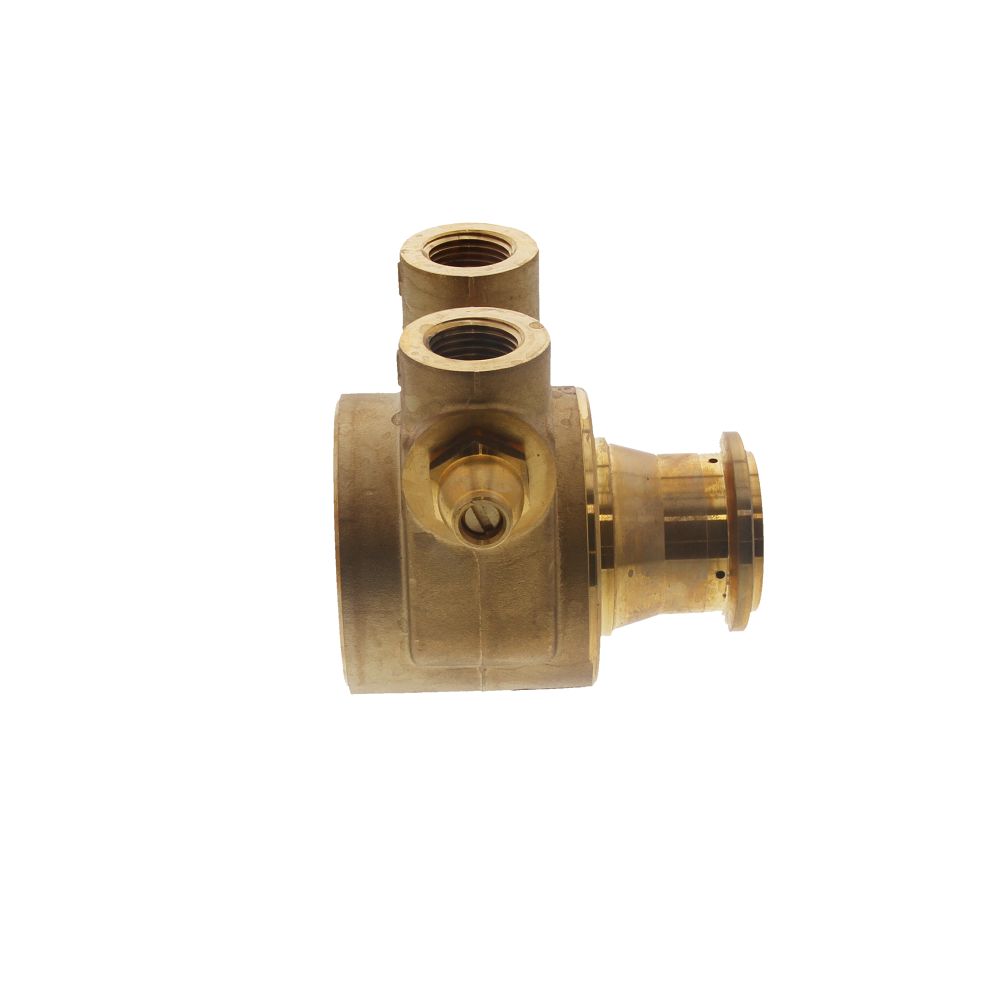

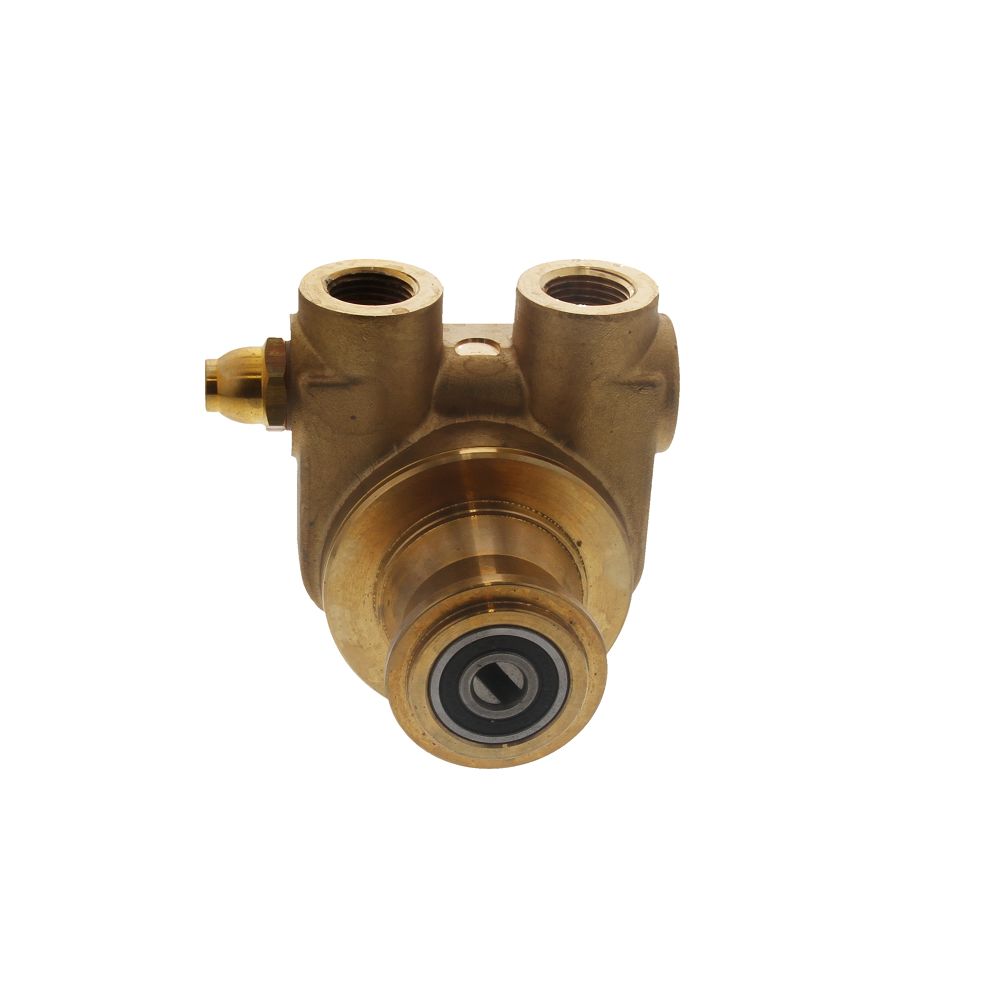

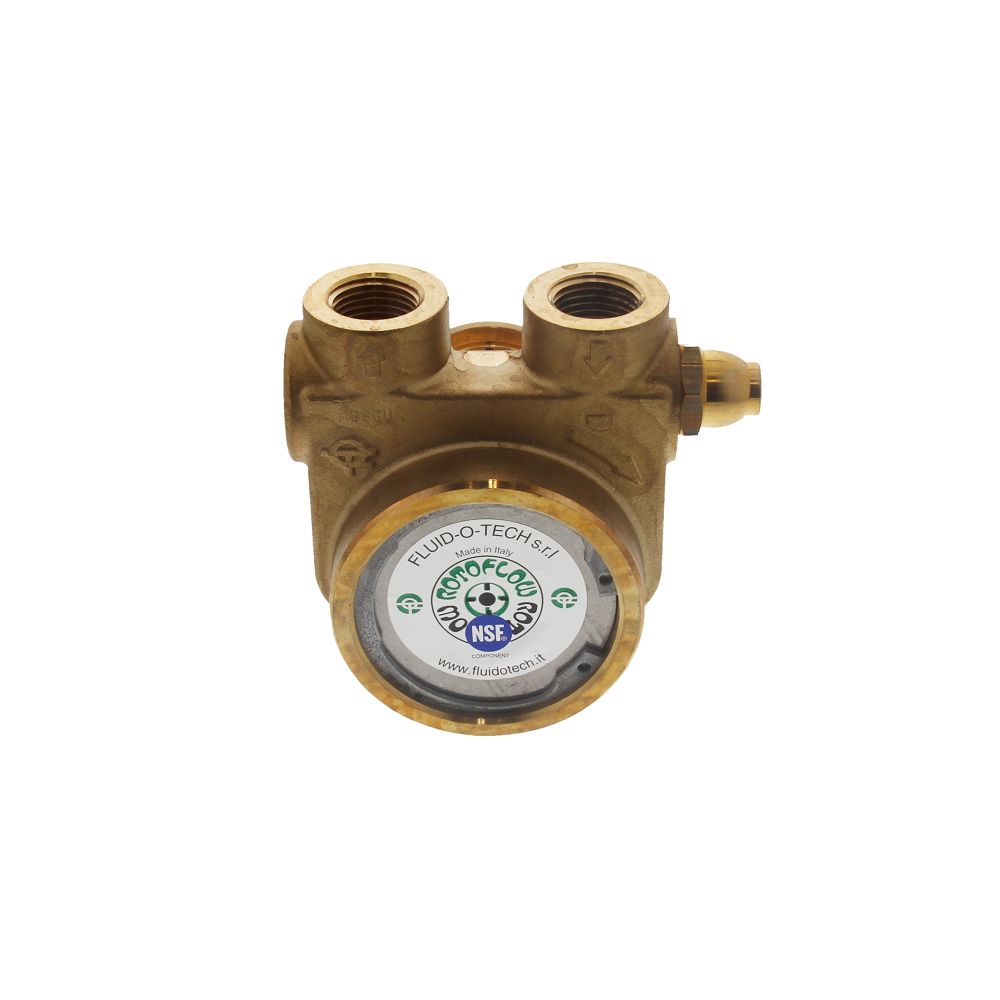

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 240 gph 1/2" NPT

Part Number: PA0801ANDFN5032

In Stock

out of stock

In Stock

$123.95

Fluid-o-Tech PA0801ANDFN5032 is a 240 gallon per hour rotary vane pump. The PA0801ANDFN5032 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 240 gallons per hour
  • Material: lead-free brass housing, graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1725 RPM
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment




Weight & Dimensions

Weight (lbs)

4.5

Details

Body Material

Brass

Flow Rate

240 GPH

Mounting Options

Clamp On

Power

1 hp, 2 hp

Size

1/2"

Elastomer Type

Buna-N

Max Outlet Pressure

230 PSI

Nominal Speed - Rpm

1450

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Certifications

NSF 169; WRAS
