Home / Pumps & Motors / Rotary Vane Pumps & Motors / Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 190 gph 1/2" NPT
Fluid-o-Tech

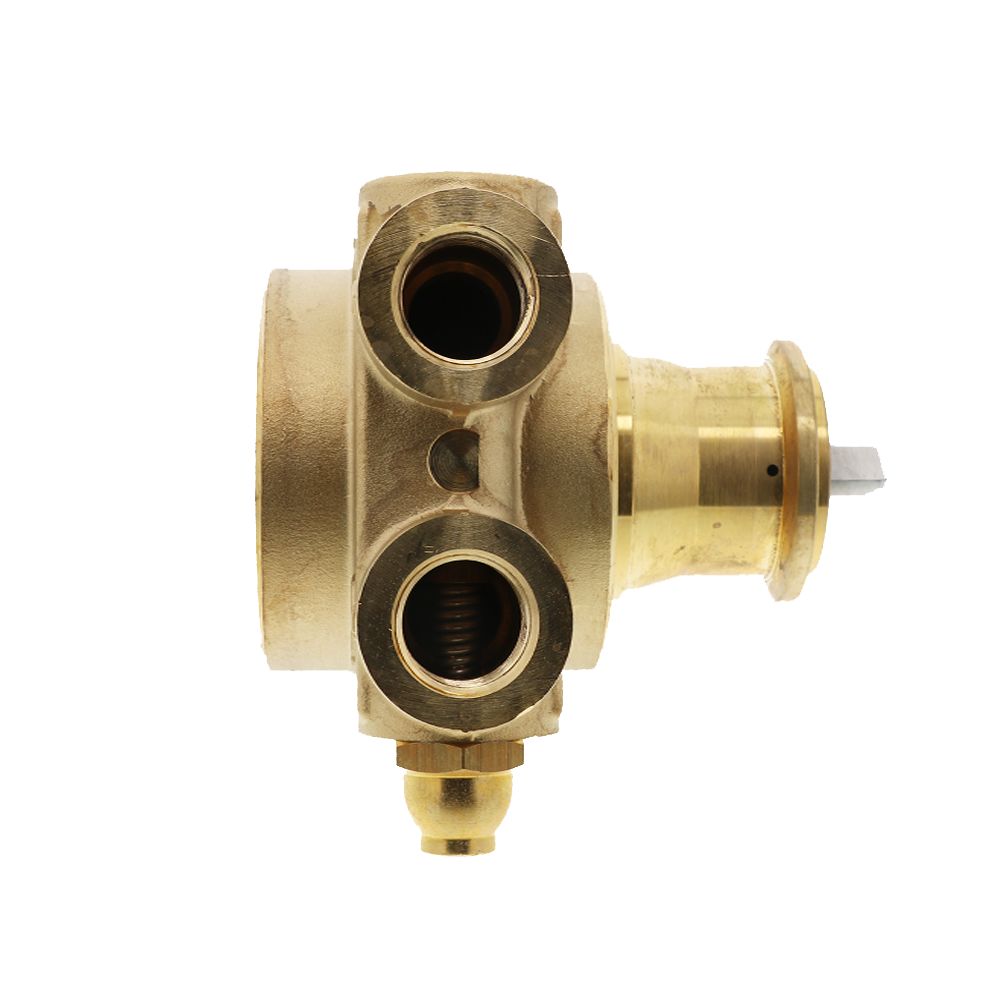

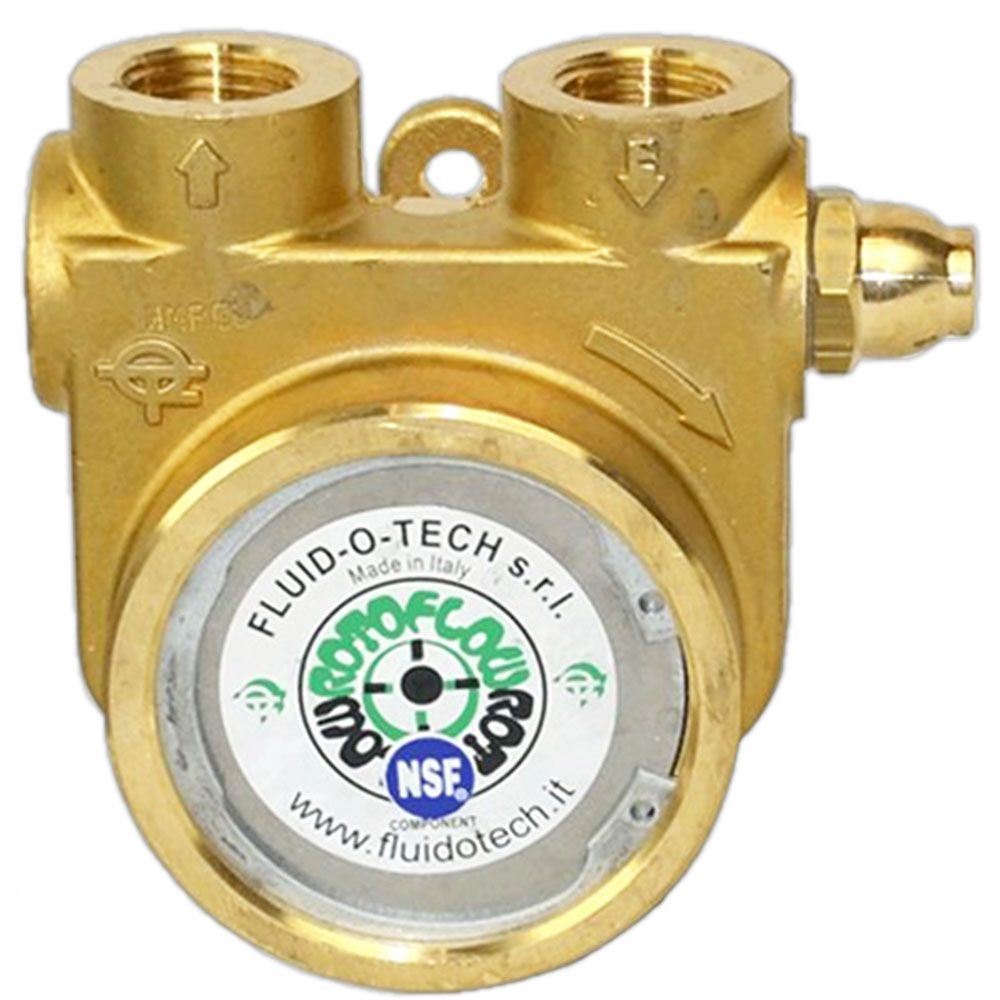

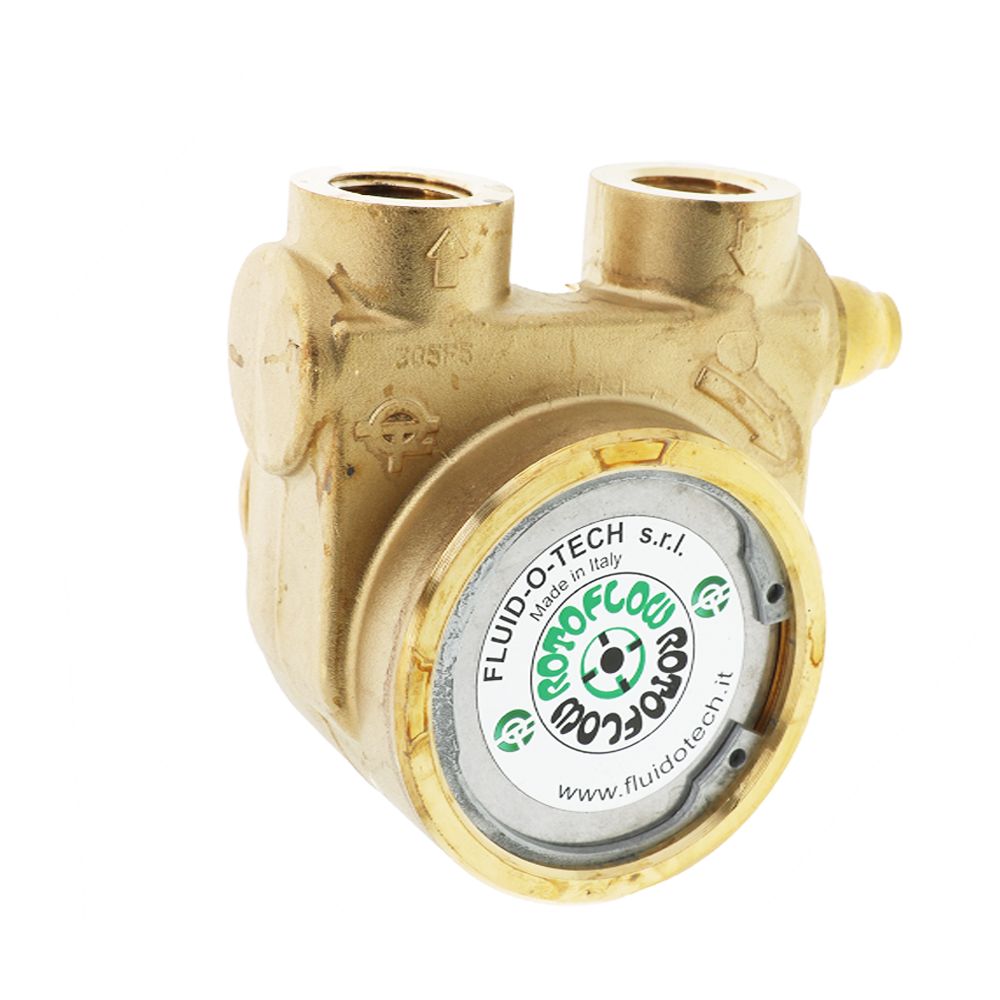

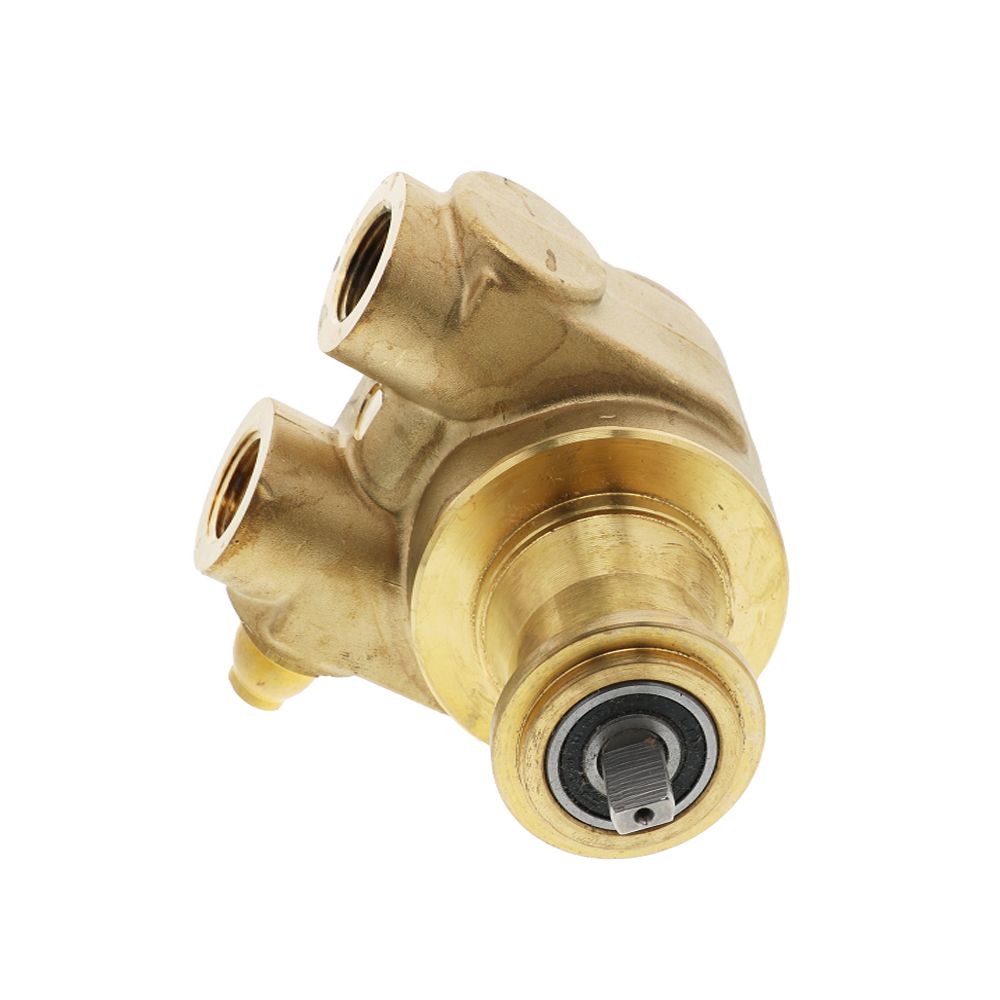

Fluid-o-Tech Lead Free Brass Rotary Vane Pump with Brass Key 190 gph 1/2" NPT

Part Number: PO0601ANDNV0000
Alt. Part Number: PV601-225
Your price:
Fluid-o-Tech PV601-225 is a 225 gallon per hour rotary vane pump. The PV601-225 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.

Specifications:
  • Flow rate: 225 gallons per hour
  • Material: lead-free brass housing, graphite chamber
  • 1/2" NPT ports
  • Clamp Mount: 4.2 lbs. (1.9kg)
  • Max Static Pressure: 290 PSI
  • Max Operating Temperature: 158°F
  • Max Speed: 1725 RPM
Applications:
  • Beverage Vending Machines
  • Booster Systems
  • Cooling Systems
  • Espresso Coffee Machines
  • Post Mix Drink Dispensers
  • Water Dispensers
  • Water Treatment
