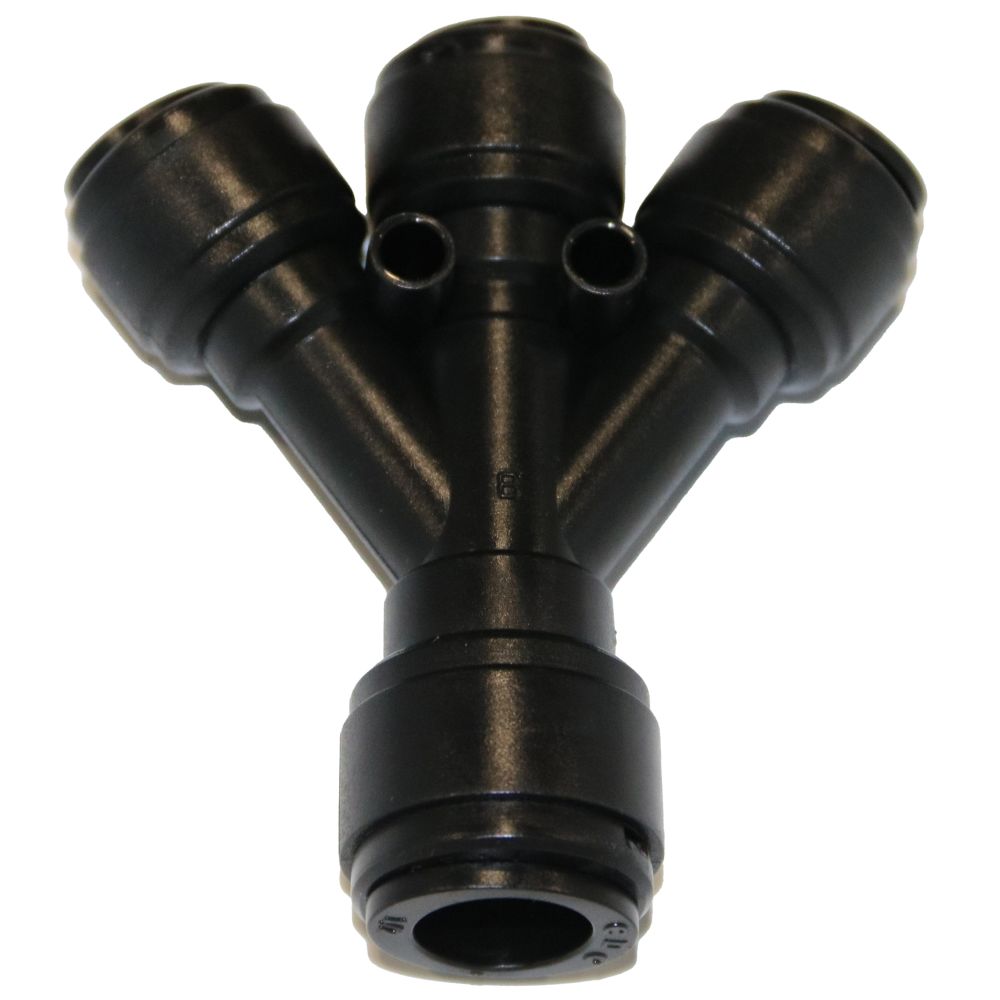

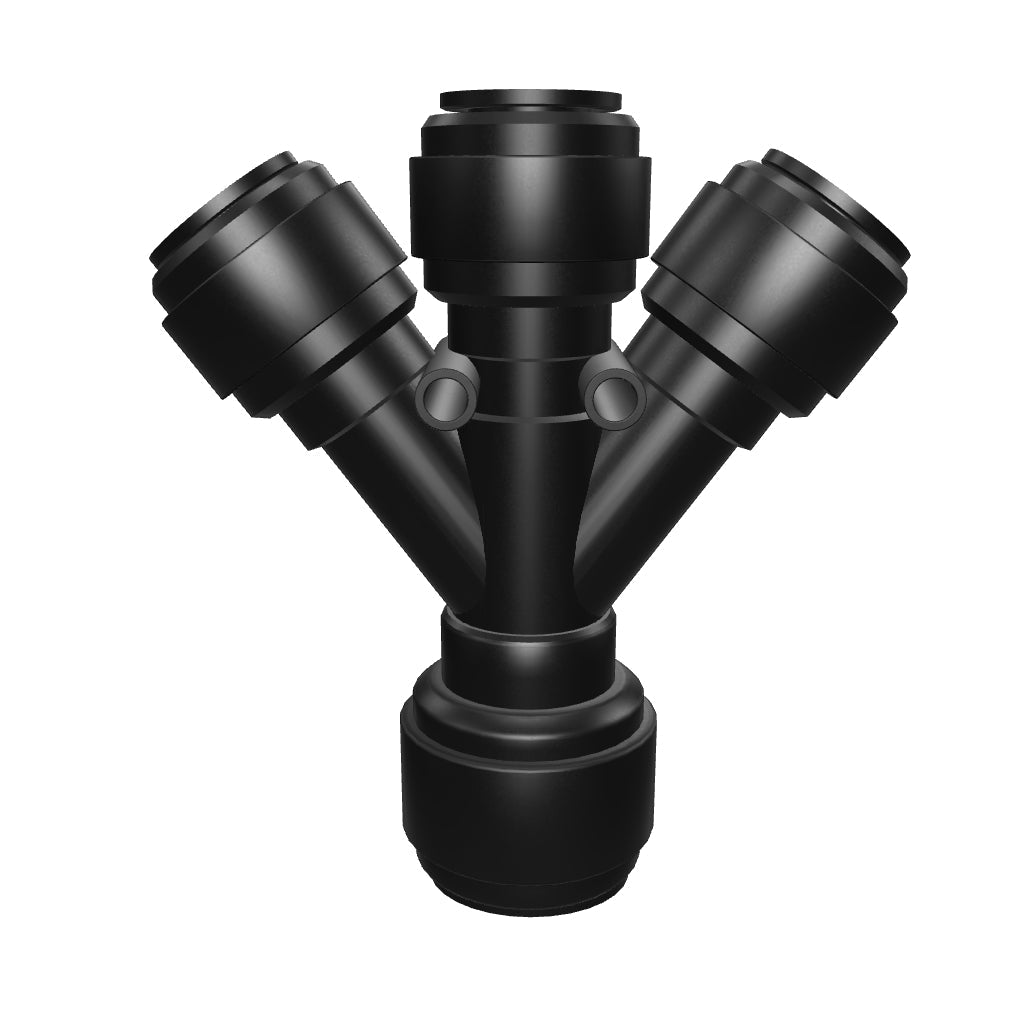

NeoFit - Acetal Black Three Way Divider 1/2" tube x 3/8" tube

Part Number: ATWHD86-E

1 6

NeoFit

NeoFit - Acetal Black Three Way Divider 1/2" tube x 3/8" tube

Part Number: ATWHD86-E

MSRP: $9.24

$5.91

Quantity

Unit Price

Price

Savings

$5.91

—

$5.90

$35.43

—

$5.44

$272.14

300

$5.61

$1,684.35

$5.81

$116.23

$5.71

$342.78

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The dividers are used to divide the flow into multiple flow paths. Manufactured in acetal copolymer with food grade EPDM O-ring, these fittings are suitable for pure water, potable liquids, air & gas.

Features:

Used to divide the flow into multiple paths
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Also suitable for air & gas
Acetal body with food grade EDPM O-Ring
Made with Lead Free materials

Fittings Comparison - PSI @ Temp

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI @ Temp
1/4"	290psi @ 68F / 232psi @ 150F	230psi @ 68F / 150psi @ 150F	230psi @ 68F / 100psi @ 150F
3/8"	232psi @ 68F / 203psi @ 150F	150psi @ 68F / 100psi @ 150F	170psi @ 68F / 100psi @ 150F
1/2"	203psi @ 68F / 116psi @ 150F	150psi @ 68F / 100psi @ 150F	170psi @ 68F / 100psi @ 150F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified

Fittings Comparison - Max Torque

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1 ft/lb (1.5 Nm)	1 ft/lb (1.5 Nm)	1 ft/lb (1.5 Nm)
3/8"	2 ft/lb (3 Nm)	2 ft/lb (3 Nm)	2 ft/lb (3 Nm)
1/2"	2 ft/lb (3 Nm)	2 ft/lb (3 Nm)	2 ft/lb (3 Nm)

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD 3/8" OD
Shape	Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.08

Product Details
Max Pressure (Psi)	Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD 3/8" OD
Shape	Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.8

Product Details
Max Pressure (Psi)	Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD 3/8" OD
Shape	Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	4

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/2" OD 3/8" OD
Series	ATHWD
Shape	Double Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	10 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	27

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/2" OD 3/8" OD
Series	ATHWD
Shape	Double Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	3

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/2" OD 3/8" OD
Series	ATHWD
Shape	Double Wye
Color / Finish	Black
Sub-Type	Three-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Weight (lbs)	9
