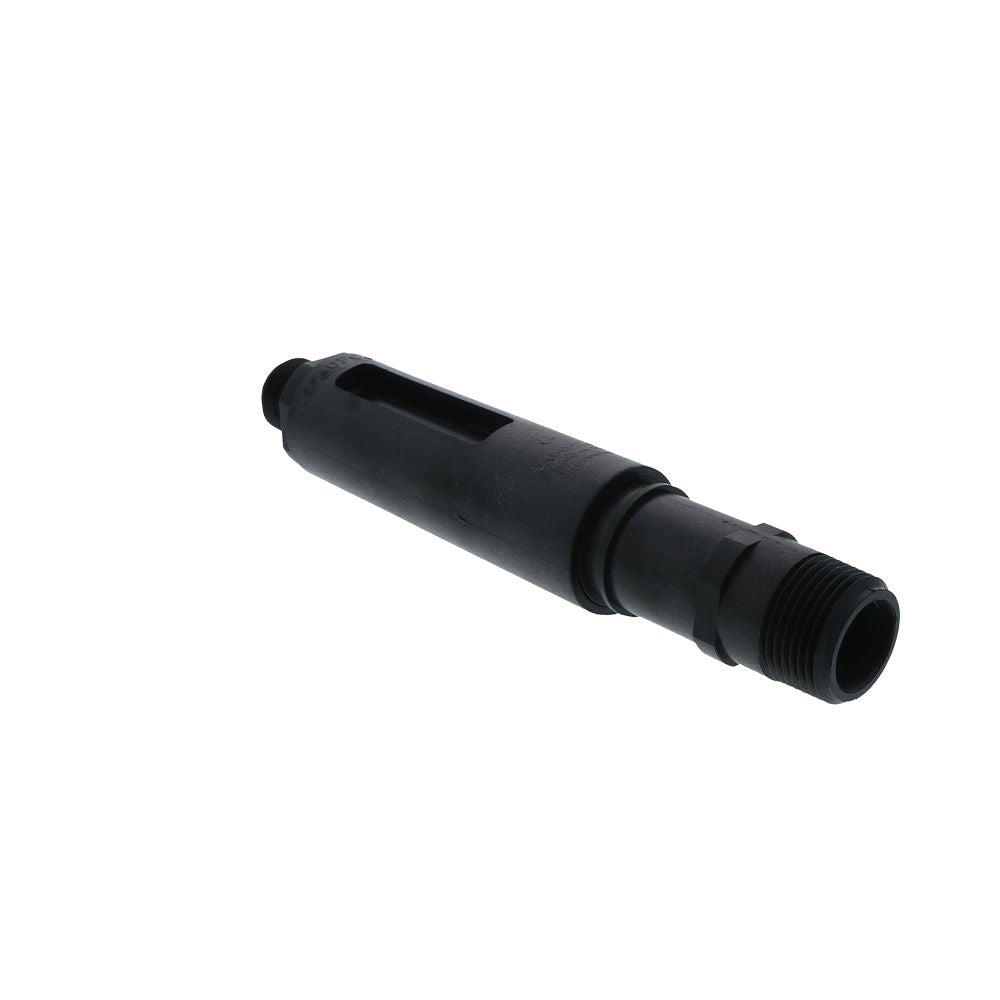

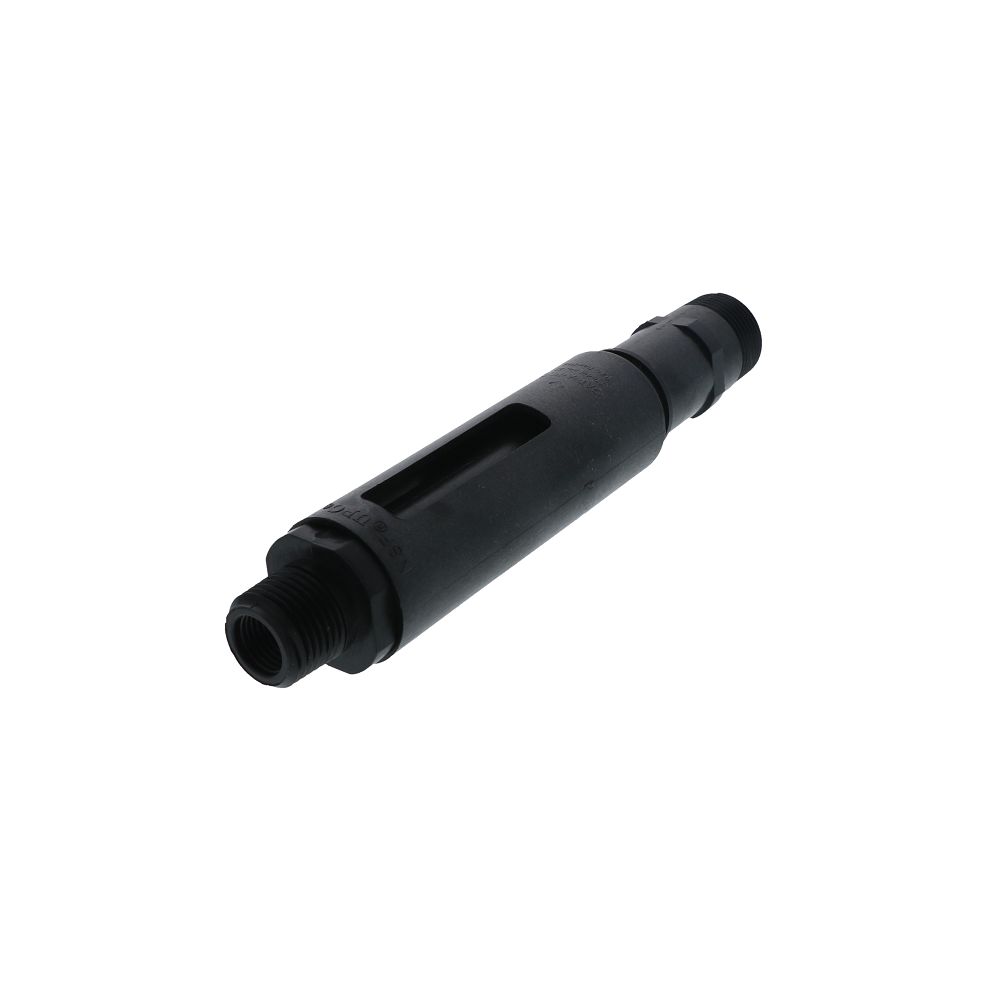

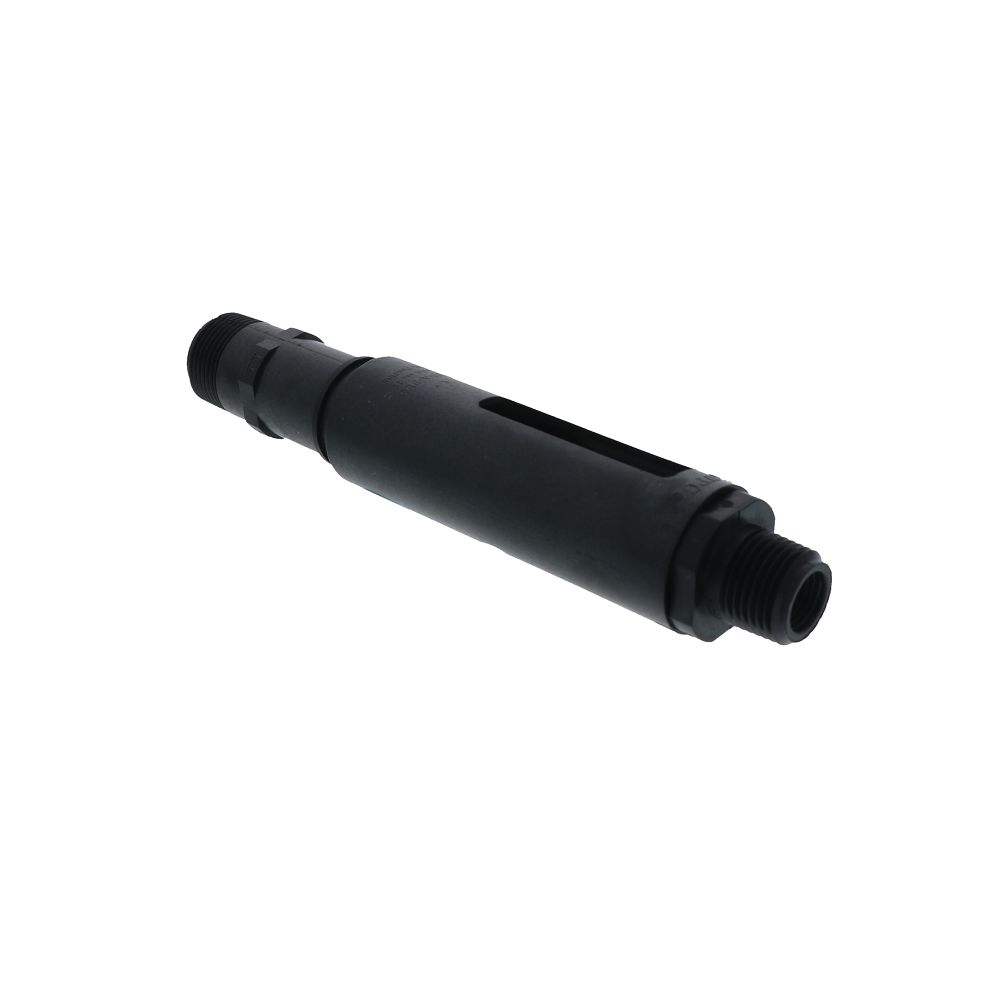

Provides an in-line air gap, usually installed in the last 5 feet (1.5 meters) of the indirect drain piping and must be in the down leg of the drain line piping.

Features:

• Unit can be tilted at any angle (down as low as 45° angle) when installing if needed
• Molded clamp groove plus included "Jiffy Clip" enable easy vertical wall mounting
• Unique design incorporates a rotatable splash guard/splatter shield, to eliminate splatter of water droplets out of either air gap opening
• Unit approximately 8" (20.32 cm) long
• Unit design lab tested at 15 G.P.M. (56.8 Liters/minute). Recommended usage is 1 to 12 G.P.M.
• All noted threads are American NPT threads

• Use the 1/4" F.I.P. threads only with the included injector washer (P/N 211207) with flow rates less than 1 GPM. Injector washer should be fully seated in top of unit. Push washer down using a wooden pencil or similar object.

• Multiple air gap openings far exceed the code mandated minimum of 1" vertical.
• Listed by NSF and IPC
