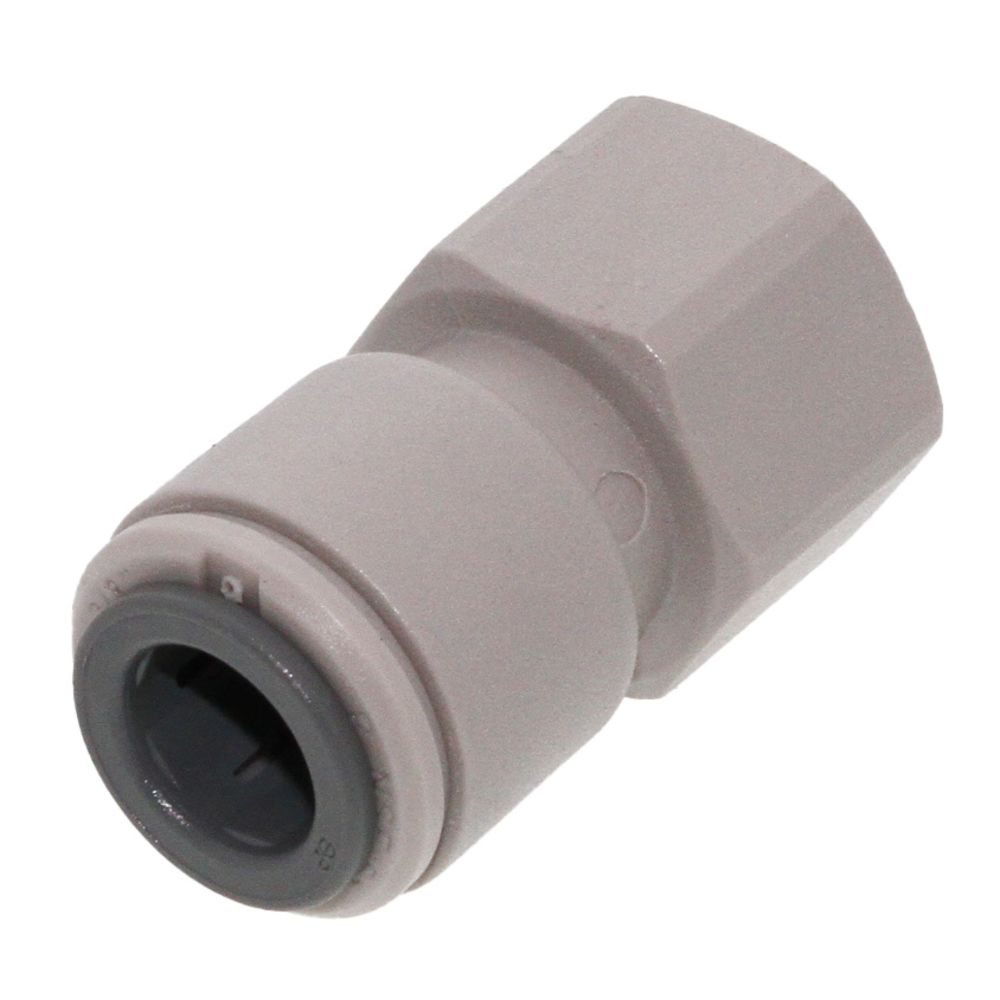

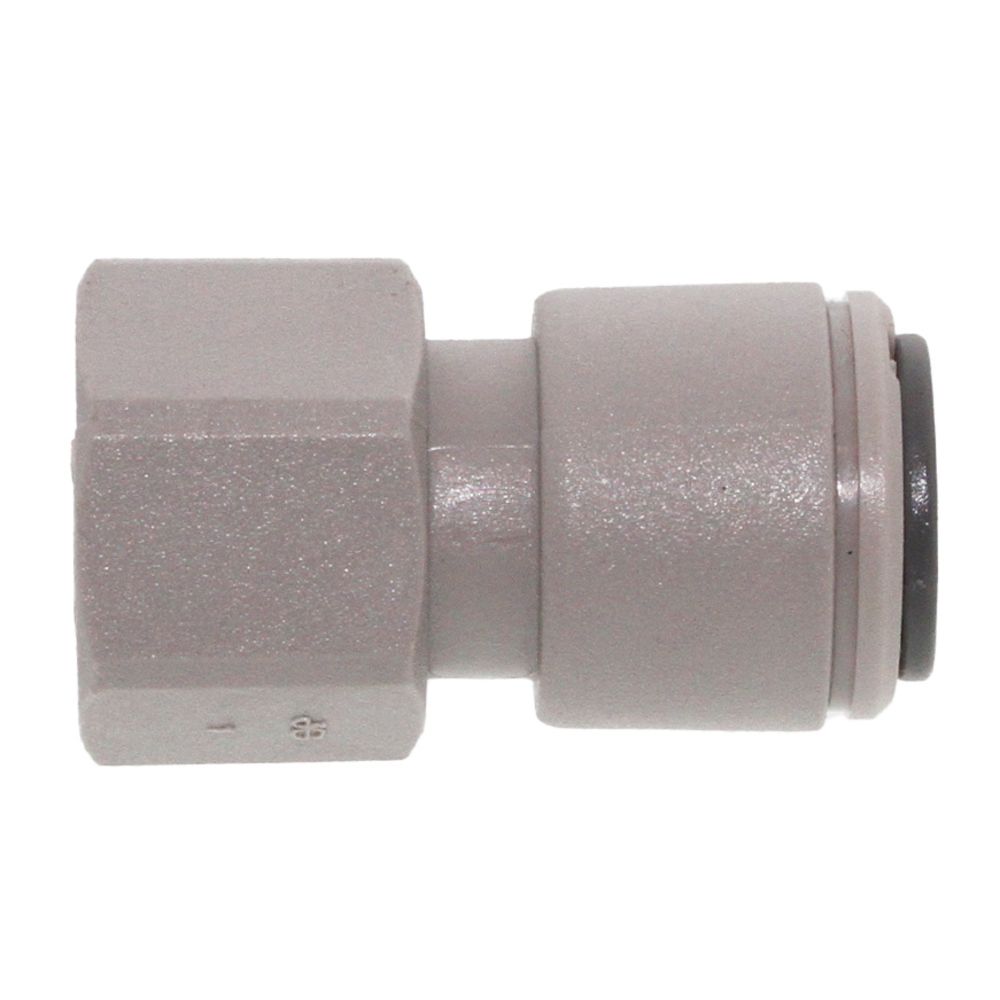

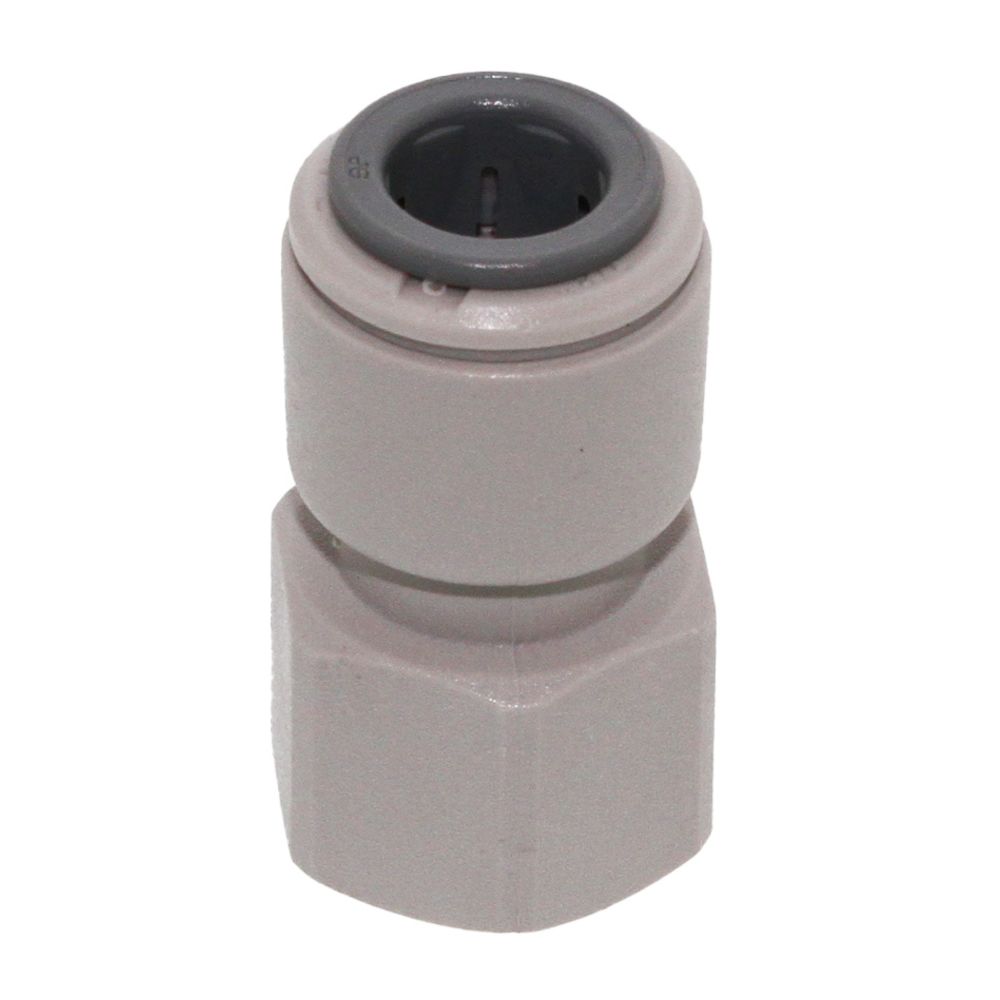

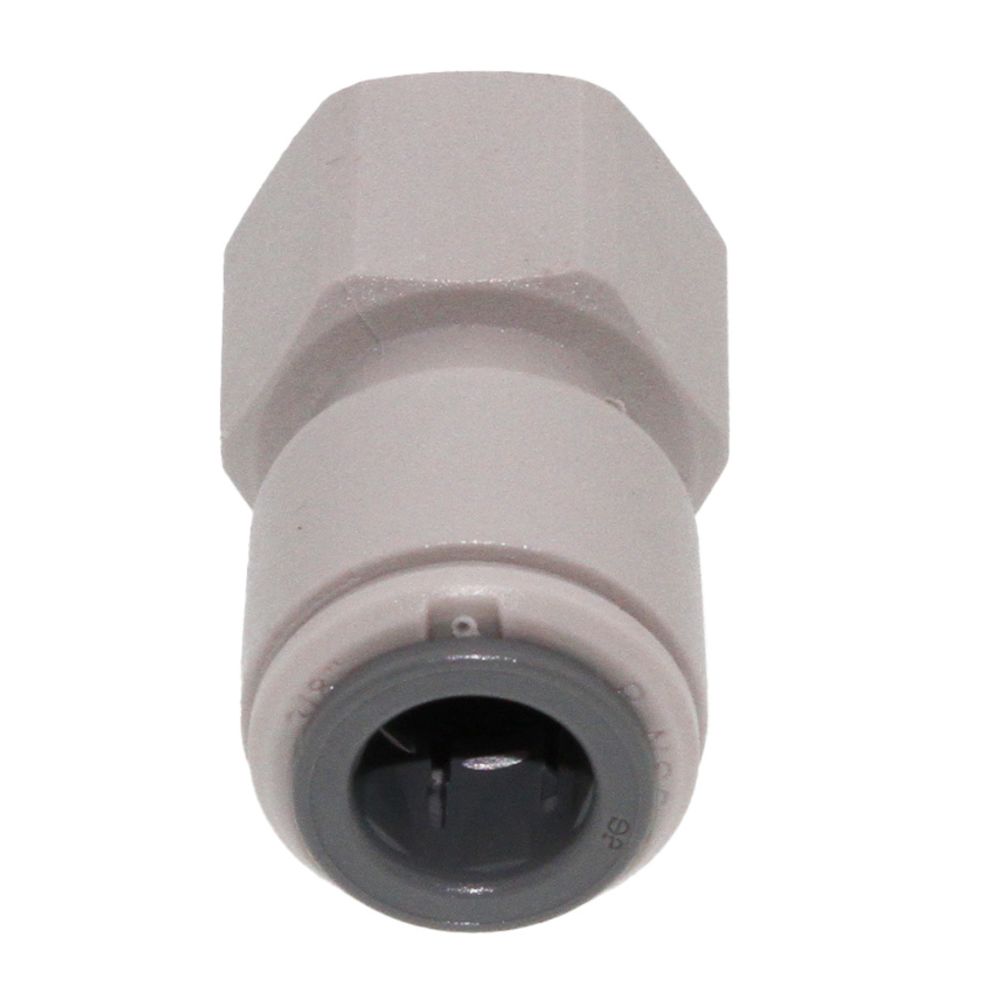

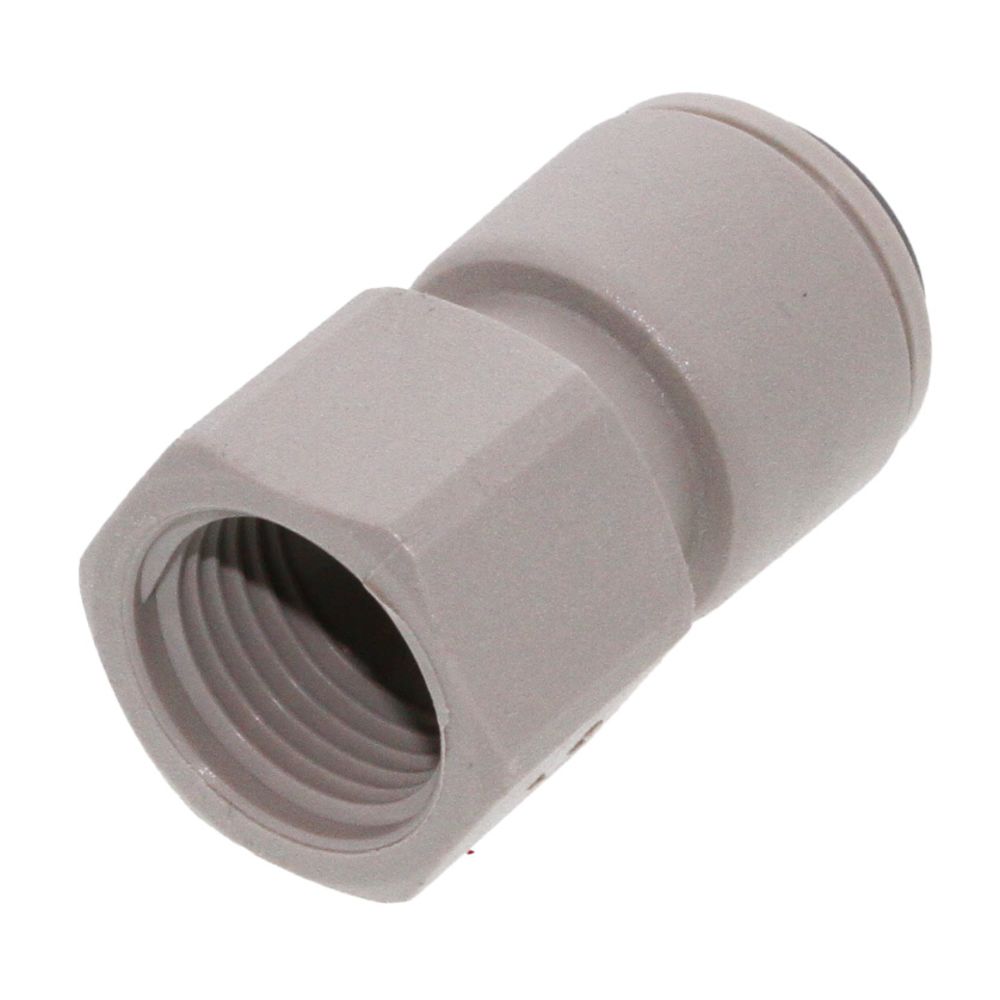

John Guest Female Adapter Flare - 3/8 x 3/8 Flare

5.0

(1 reviews)

Part Number: PI4512F6S Alt. Part Number: AFAV6-UF10-G, PI4512F6S

1 5

John Guest

John Guest Female Adapter Flare - 3/8 x 3/8 Flare

5.0

(1 reviews)

Part Number: PI4512F6S Alt. Part Number: AFAV6-UF10-G, PI4512F6S

MSRP: $5.09

$3.06

Quantity

Unit Price

Price

Savings

$3.06

—

$2.74

$27.44

10%

200

$2.66

$533.43

13%

Product variants

You May Also Need

Optional Accessory

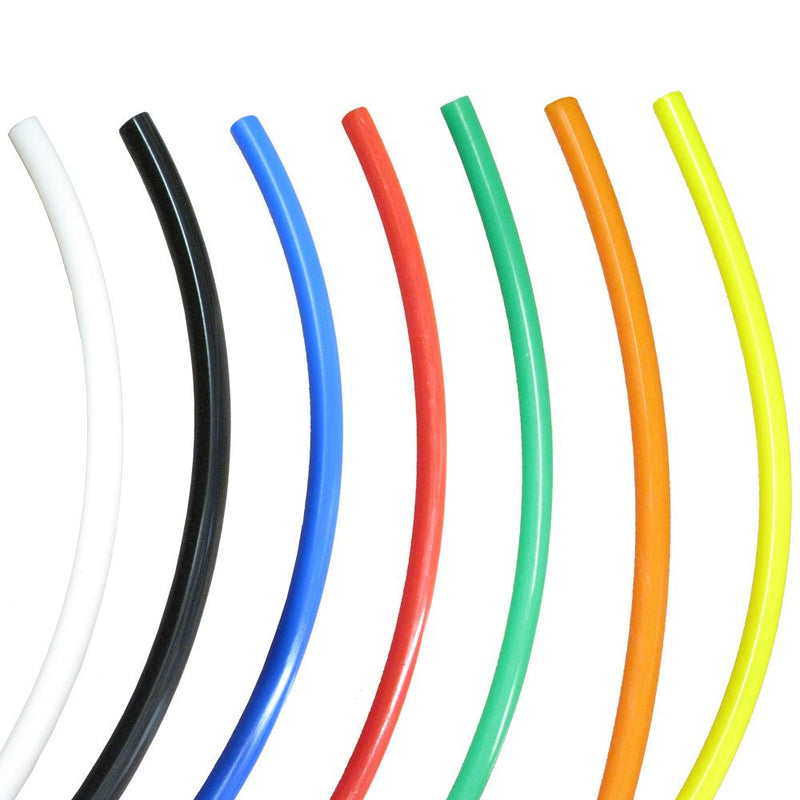

John Guest Red 4mm OD LLDPE Polyethylene Tubing

Regular price From $1.16

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest female adapter connecting OD tubing to male flare threads quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing to male flare Threads
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with Nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 68° F
Max. 100 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

Compatible with:

Parker

F6FF6

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	PI
Shape	Straight
Size	3/8"
Color / Finish	Gray
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.5 in.
Shipping Width	0.875 in.
Shipping Height	0.875 in.
Product Weight & Dimensions
Product Height	0.875 in.
Product Length	1.5 in.
Product Width	0.875 in.
Product Weight (lbs)	0.0216

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	PI
Shape	Straight
Size	3/8"
Color / Finish	Gray
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.216

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	PI
Shape	Straight
Size	3/8"
Color / Finish	Gray
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	4.32

Downloads

John Guest Female Adapter Flare - 3/8 x 3/8 Flare Manual

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

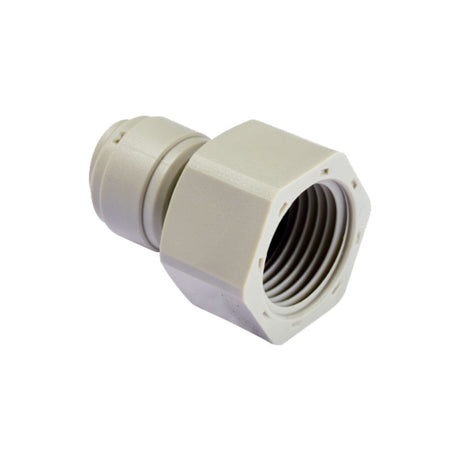

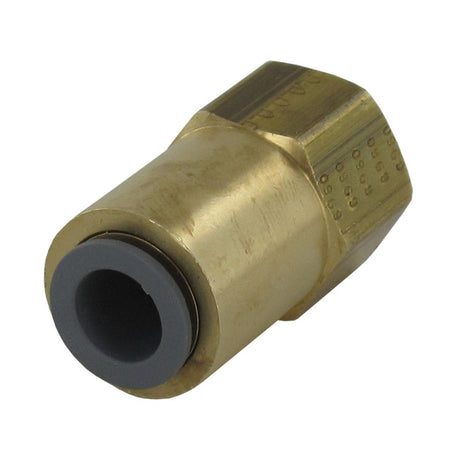

Facet	John Guest John Guest Female Adapter Flare - 3/8 x 3/8 Flare 5.0 Regular price From $3.06 Part #: PI4512F6S Save up to 13% with bulk pricing Current Product	NeoFit NeoFit - Gray Female Adapter- UNF V Type- 3/8" tube OD X 5/8"-18UNF- V Type Regular price From $2.44 Part #: AFAC6-UF10-G Save up to 8% with bulk pricing View details	John Guest John Guest Lead Free Brass Flare Female Connector - 3/8 x 3/8 FFL 1.0 Regular price From $8.87 Part #: MI4512F6SLF Save up to 12% with bulk pricing View details	Parker Parker Prestolok Lead-Free Brass Fitting Female Flare - 3/8 QC x 3/8 FFL Regular price From $16.52 Low stock Part #: L66PLNF-6-6 Save up to 5% with bulk pricing View details
