Norgren

Norgren R07-200-RGKA Relieving Air Pressure Regulator 1/4 FPT w/ Gauge

Part Number: R07200RGKA

Alt. Part Number: R07

In Stock

out of stock

In Stock

$37.75

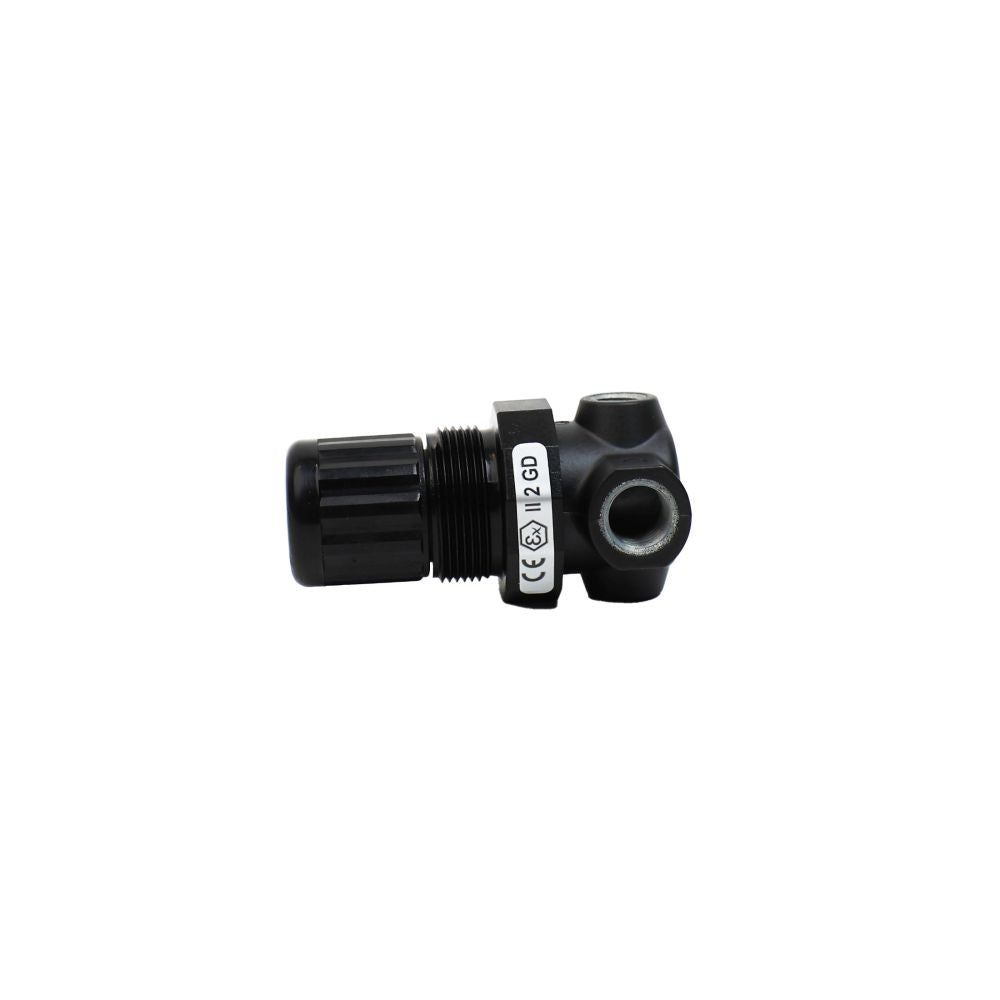

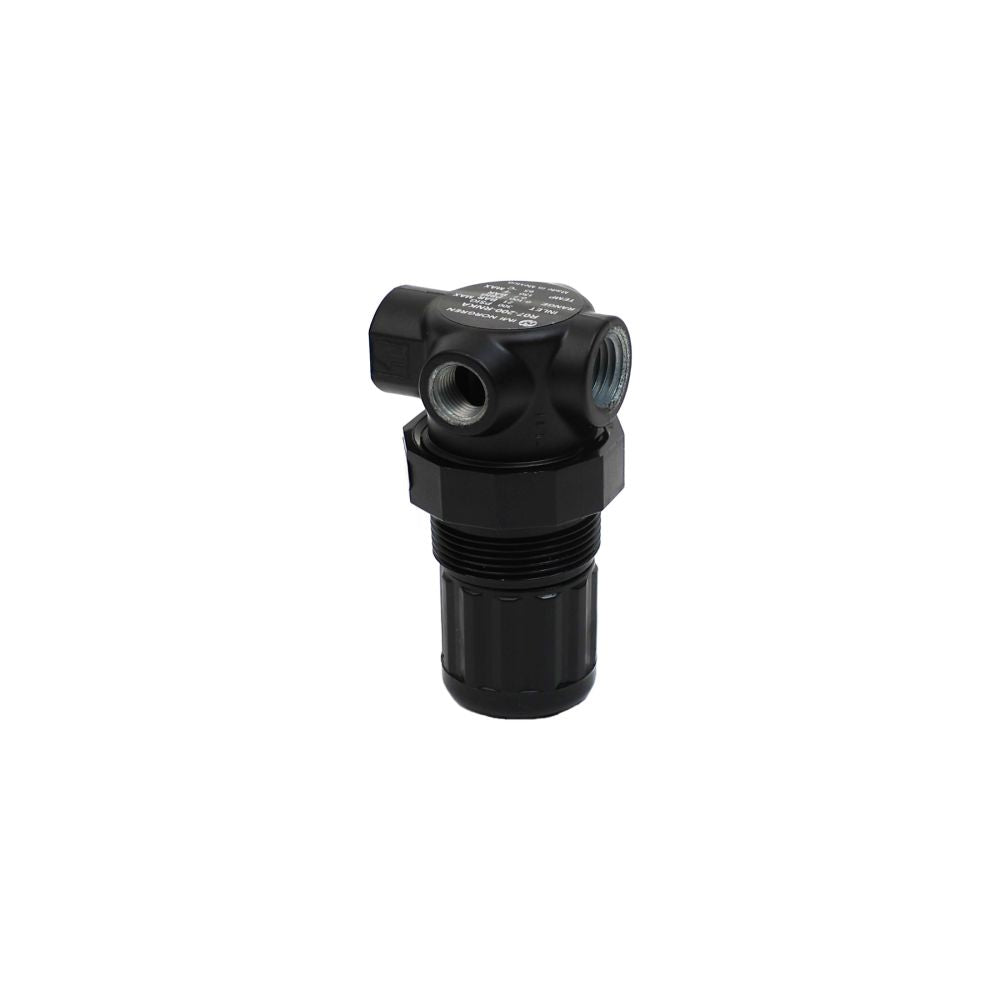

The Norgren R07-200-RGKA air pressure regulator features a compact corrosion resistant design. The R07-200-RGKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Zinc body with plastic bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended

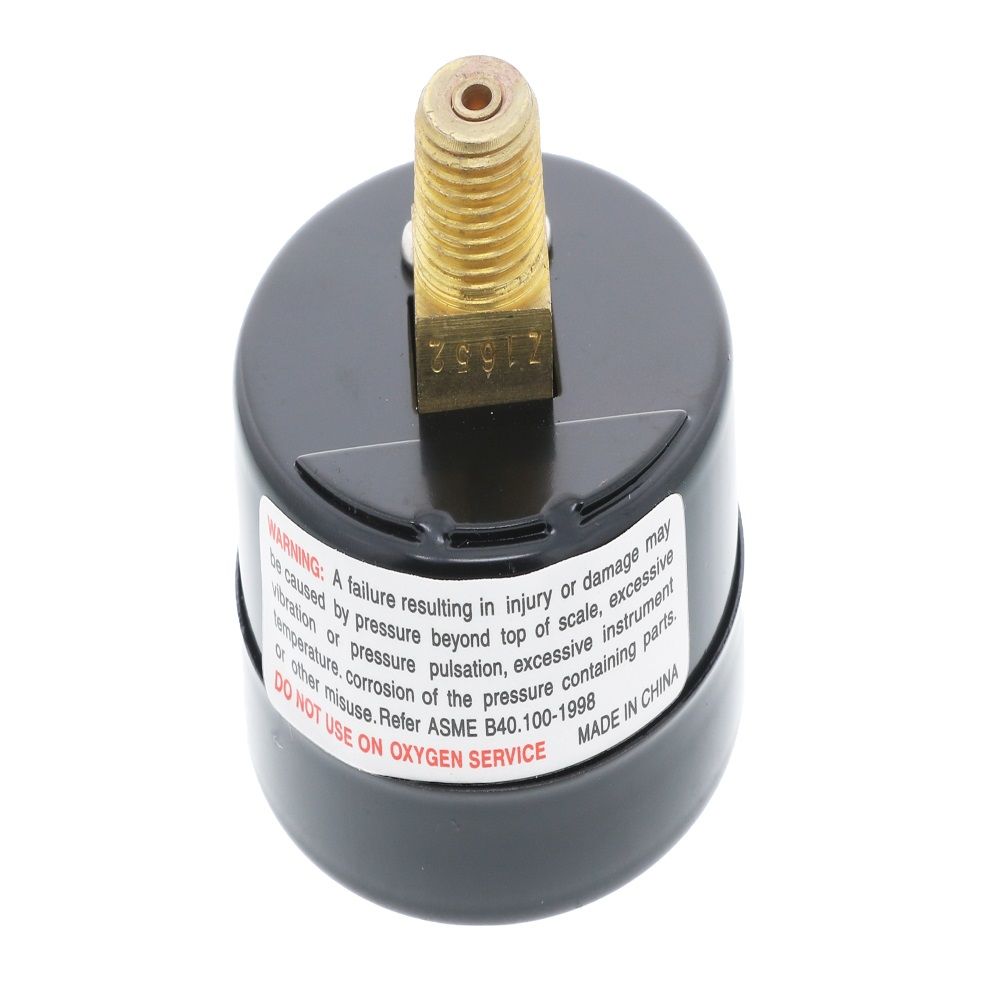

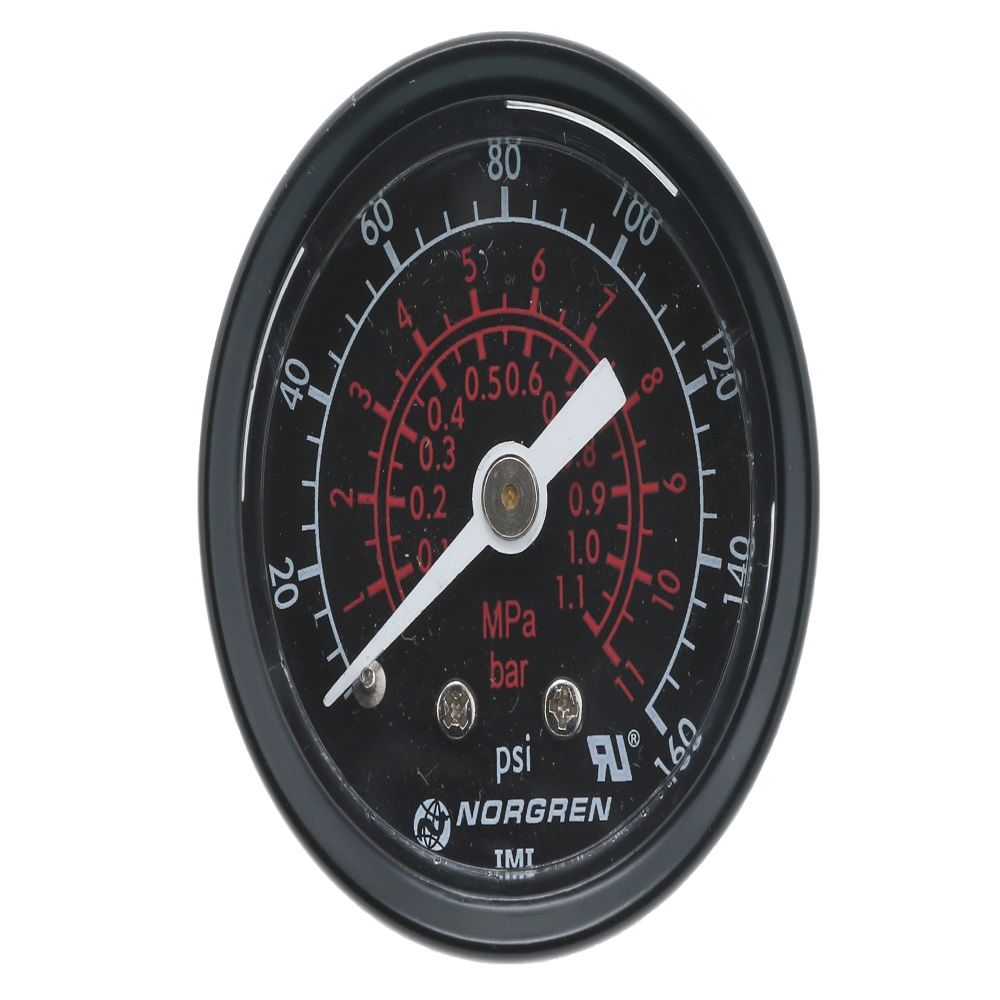

  • Includes pressure gauge
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 300 psig (28 Bar)
  • Max outlet pressure: 100 psig (7 Bar)
  • Outlet pressure adjustable from 5-100 psig (0.3-7 Bar)
  • Max flow rate (air): 15.0 scfm
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)



Weight & Dimensions

Approx Height (Inches)

2.91"

Approx Length (Inches)

1.63"

Weight (lbs)

0.5

Details

Body Material

Zinc

Elastomer Type

Nitrile

Flow Rate

15 scfm

Max Inlet Pressure

300 psi (20 Bar)

Max Outlet Pressure

100 PSIg (7 Bar)

Max Temp (°F)

150

Min Temp (°F)

-34

Outlet Pressure

5-100 psig (0.3-7 Bar) PSI

Port Size

1/8" FPT"; 1/4" FNPT

Seat

Acetal


Norgren

Norgren




The Norgren R07-200-RGKA air pressure regulator features a compact corrosion resistant design. The R07-200-RGKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Zinc body with plastic bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • Includes pressure gauge
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 300 psig (28 Bar)
  • Max outlet pressure: 100 psig (7 Bar)
  • Outlet pressure adjustable from 5-100 psig (0.3-7 Bar)
  • Max flow rate (air): 15.0 scfm
NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
