Neo-Pure

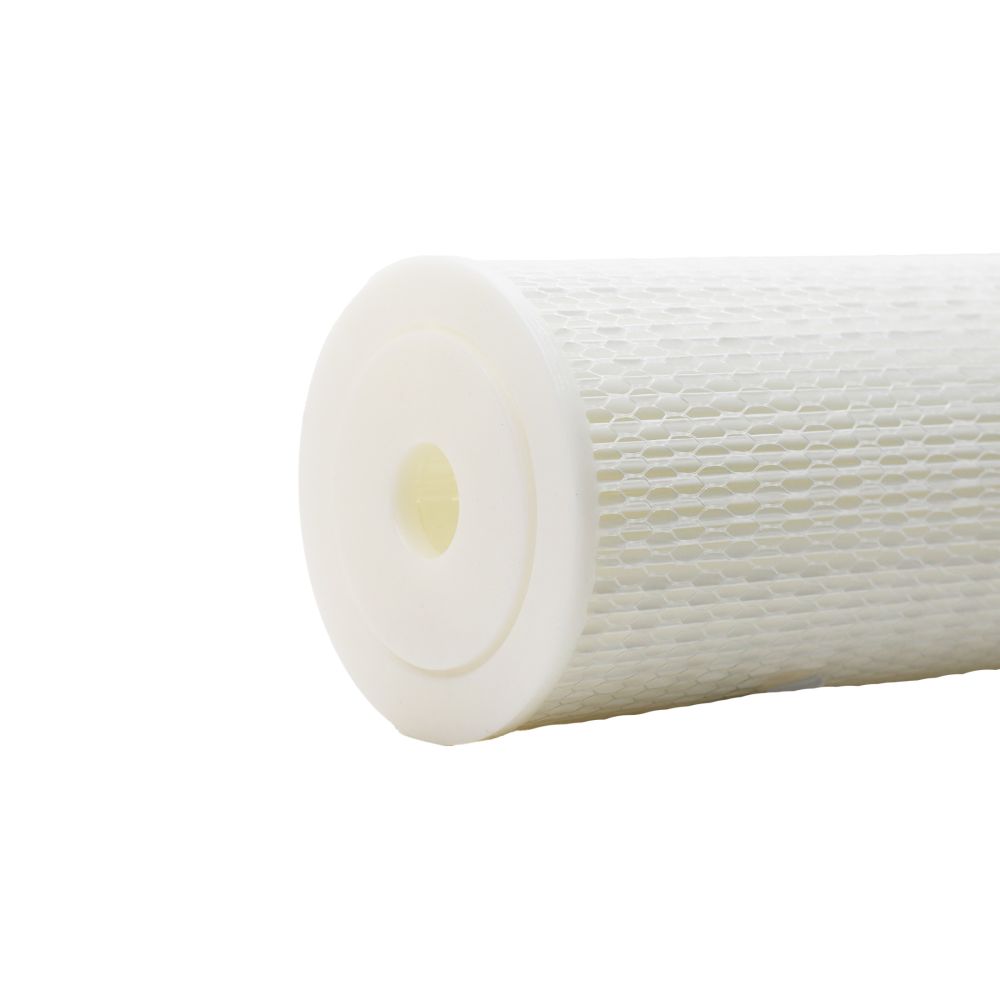

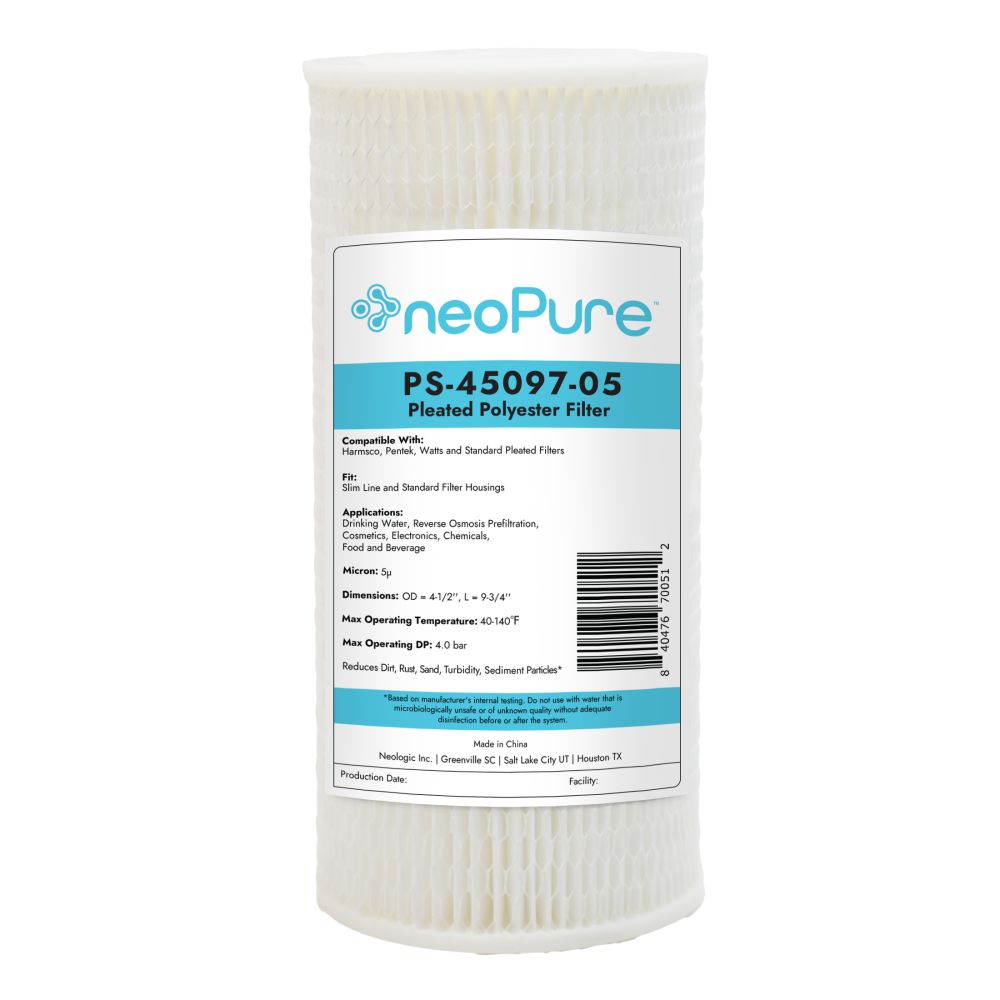

Neo-Pure PS-45097-05 9-3/4" BB Standard Efficiency Pleated Filter 5 micron

Part Number: PS-45097-05

In Stock

out of stock

In Stock

$10.59


The Neo-Pure PS-45097-05 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-45097-05 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-45097-05 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Filter Design. The pleated filter design of the PS-45097-05 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
  • High Value At A Competitive Price. The Neo-Pure PS-45097-05 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified. The Neo-Pure PS-45097-05 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.

Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 5.0 micron
  • Surface Area: 9.5 sq. ft.
  • Temperature range: 40-180°F

Compatible with: Ace Hardware | 4021341, American Plumber | W5CPHD, 155184-51, Culligan Water Filters | 155184, CP5-BB, CP5-BBS, CP5-BBSa, Harmsco® Compatible | WB-HB-10-5W, HB-10-5W, Hydronix | SPC-45-1005, Keystone | GPC5, Liquatec | SPF-45-1005, Purwater | PC05-BB-S, Watts | FM-BB-10-5, PWPL10BBM5


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Polypropylene

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Media Type

Pleated Polyester

Micron Rating (Absolute)

5 Micron

Operating Temperature Range

40 - 180 Degrees Fahrenheit

Origin

China

Outer Diameter

4.5" (11.4 cm)

Surface Area

9.5 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 42 for material requirements only


Neo-Pure





The Neo-Pure PS-45097-05 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-45097-05 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-45097-05 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Filter Design. The pleated filter design of the PS-45097-05 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
  • High Value At A Competitive Price. The Neo-Pure PS-45097-05 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified. The Neo-Pure PS-45097-05 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.

Specifications:
  • Length: 9-3/4"
  • Diameter: 4-1/2"
  • Micron Rating: 5.0 micron
  • Surface Area: 9.5 sq. ft.
  • Temperature range: 40-180°F

Compatible with: Ace Hardware | 4021341, American Plumber | W5CPHD, 155184-51, Culligan Water Filters | 155184, CP5-BB, CP5-BBS, CP5-BBSa, Harmsco® Compatible | WB-HB-10-5W, HB-10-5W, Hydronix | SPC-45-1005, Keystone | GPC5, Liquatec | SPF-45-1005, Purwater | PC05-BB-S, Watts | FM-BB-10-5, PWPL10BBM5

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Polypropylene

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Media Type

Pleated Polyester

Micron Rating (Absolute)

5 Micron

Operating Temperature Range

40 - 180 Degrees Fahrenheit

Origin

China

Outer Diameter

4.5" (11.4 cm)

Surface Area

9.5 Square Feet

Warranty & Certifications

Certifications

Tested and certified by WQA according to NSF/ANSI Standard 42 for material requirements only
