Neo-Pure

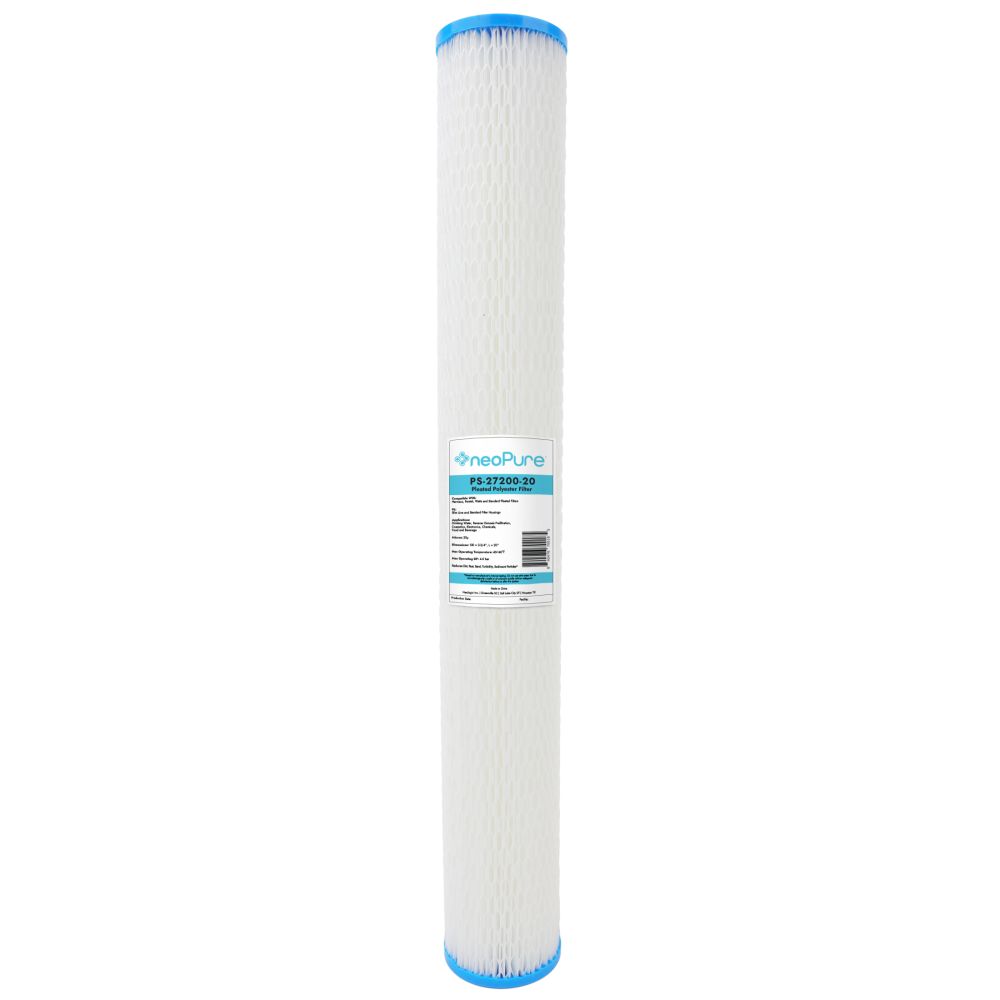

Neo-Pure PS-27200-20 20" Standard Efficiency Pleated Filter 20 Micron

Part Number: PS-27200-20

In Stock

out of stock

In Stock

$17.18

The Neo-Pure PS-27200-20 Standard Efficiency Pleated Filter is constructed out of 5 square feet of pleated polyester media wrapped around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria.

Features:
  • Reduces Sediment and Rust. The Neo-Pure PS-27200-20 filter is manufactured using pleated polyester for improved reduction of sediment, dirt and rust.
  • Perfect for Residential, Commercial and Industrial Filtration. The PS-27200-20 is ideal for use as a reverse osmosis prefilter. It's large surface area make this filter perfect for drinking water and filtration in residential, commercial and industrial applications.
  • Pleated Filter Design. The pleated filter design of the PS-27200-20 offers an extended filter area to provide high flow rates, low pressure drops, and increased dirt-holding capacity.
  • Polyester Media and Polypropylene Core. Polyester is a non-cellulose fabric; this material provides excellent resistance to bacteria and chemicals. The polypropylene core is durable, extending the life of the filter.
  • High Value At A Competitive Price. The Neo-Pure PS-27200-20 filter cartridge offers an economical and competitive price while providing exceptional performance and high bacterial resistance.
  • WQA Certified. The Neo-Pure PS-27200-20 is tested and certified by the WQA against NSF/ANSI 42 Standard for material requirements.
Specifications:
  • Length: 20"
  • Diameter: 2-3/4"
  • Micron Rating: 20 micron
  • Surface Area: 10 sq. ft.
  • Temperature range: 40-180°F



Compatible with:
Graver TechnologiesPME20-200PS
Harmsco® CompatibleWB-20-20W, 801-20/20, 801-20/20W, 701-20/20
HydronixSPC-25-2020
LiquatecSPF-25-2020
WattsFM-20-20, PWPL20M20

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

25

Weight (lbs)

1

Details

Capacity

As Needed

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

< 1 psid typical

Surface Area

10 Square Feet

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Inner Diameter

1-1/16"

Media Type

Polyester

Micron Rating

20 µm

Origin

China

Product Length

20"

Warranty & Certifications

Certifications

NSF/ANSI 42
