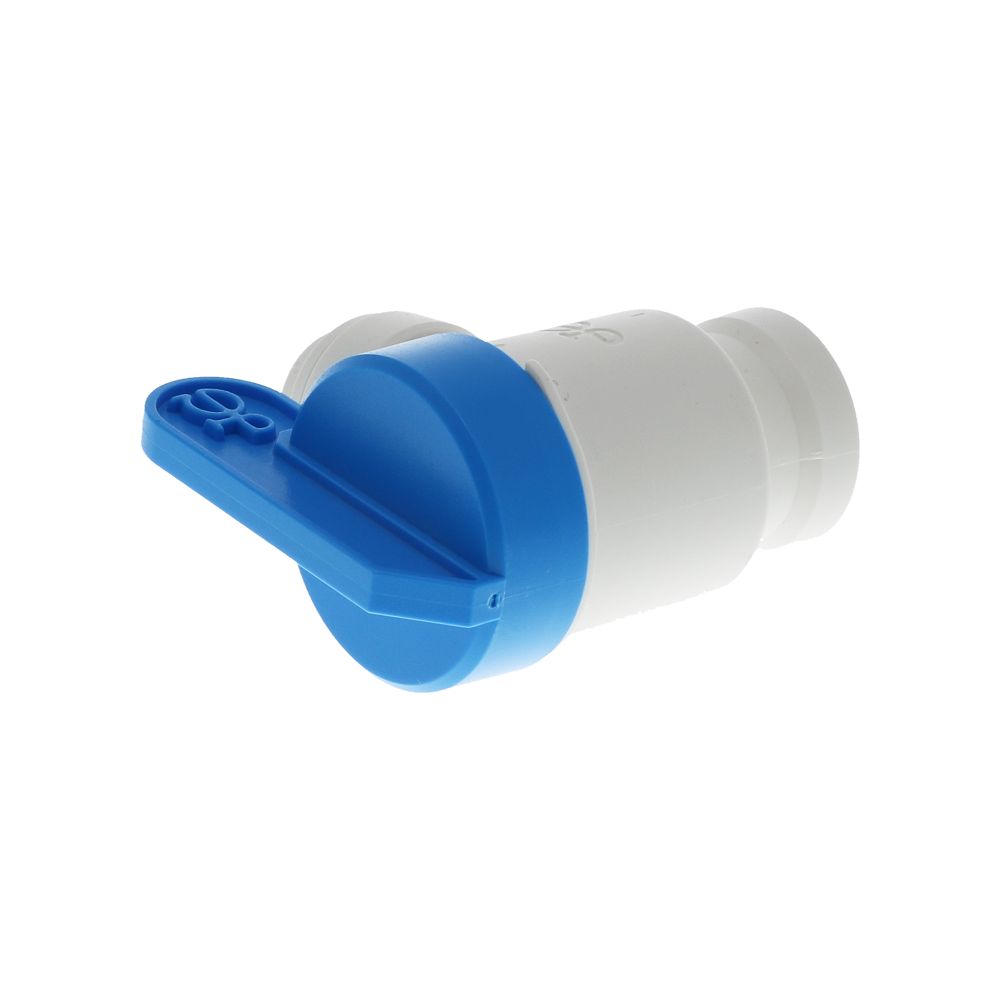

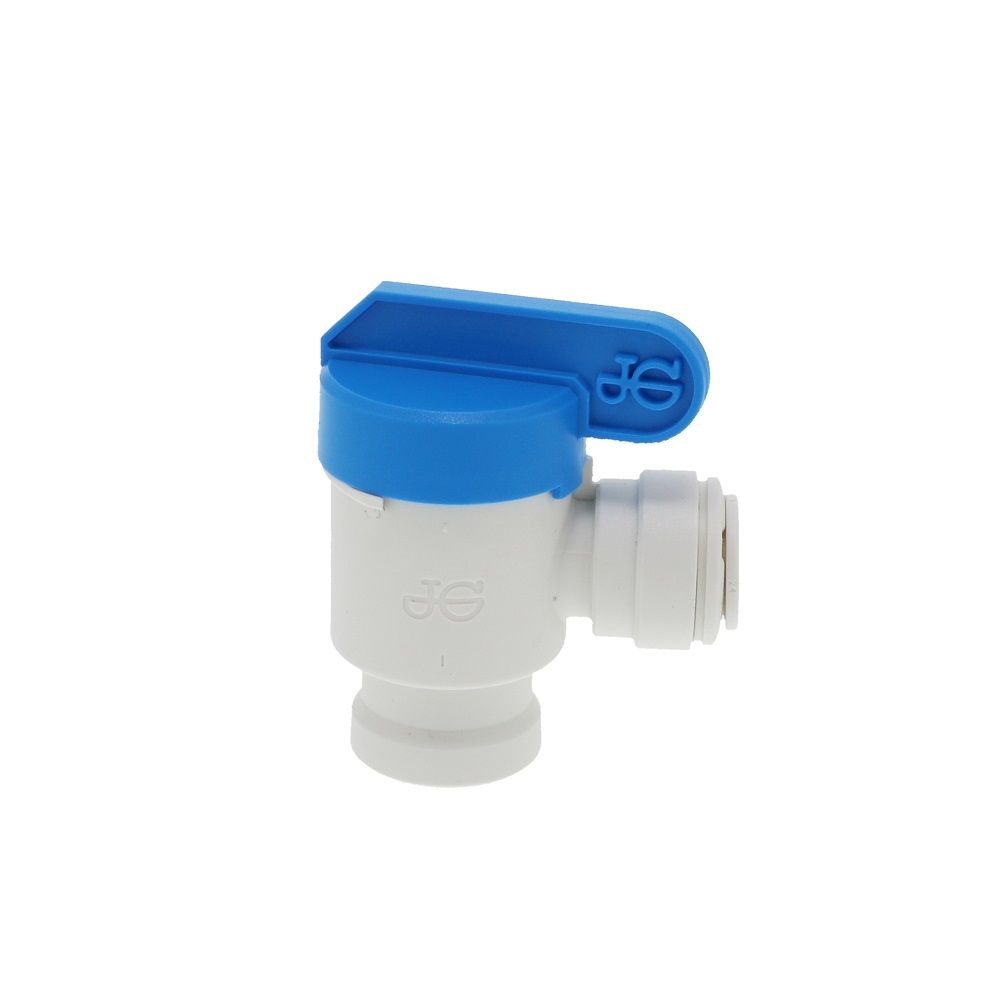

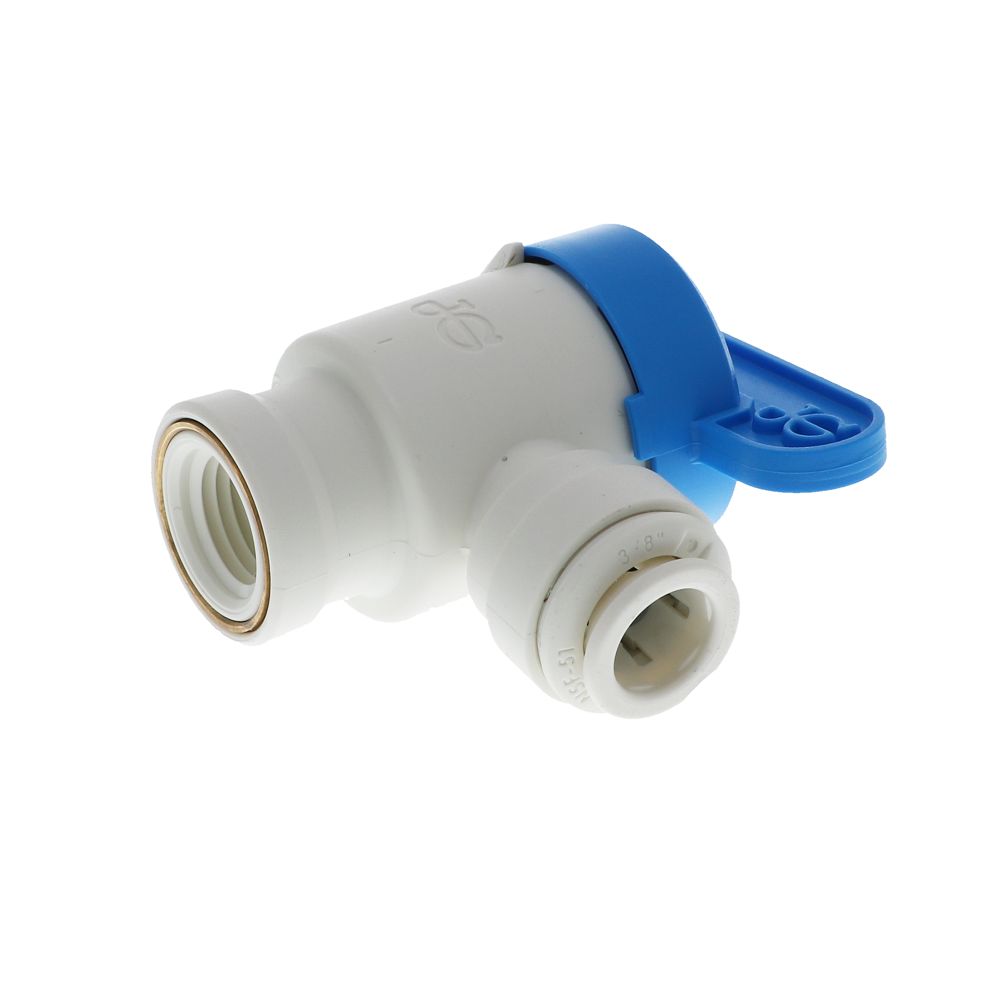

John Guest Shut-Off Valve-Polypro Elbow NPTF - 3/8 x 1/4 NPTF
Part Number: PPSV501222W-X
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to isolate the supply for service and maintenance
- Quarter turn to open or close
- Connect, disconnect, and reconnect in seconds without tools
- Compatible with plastic or copper OD sized tubing
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
WARNING!
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Outlet Connection | 1/4" FPT |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | 90 |
Size | 1/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
Origin | UK |
Type | Shut-Off Valves |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
| Shipping Dimensions | |
Shipping Length | 1 in. |
Shipping Width | 1 in. |
Shipping Height | 1 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 0.01 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Outlet Connection | 1/4" FPT |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | 90 |
Size | 1/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
Origin | UK |
Type | Shut-Off Valves |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
| Shipping Dimensions | |
Shipping Length | 10 in. |
Shipping Width | 10 in. |
Shipping Height | 10 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 0.7 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Outlet Connection | 1/4" FPT |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | 90 |
Size | 1/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
Origin | UK |
Type | Shut-Off Valves |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
| Shipping Dimensions | |
Shipping Length | 11.024 in. |
Shipping Width | 10.236 in. |
Shipping Height | 3.937 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 6.31 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Outlet Connection | 1/4" FPT |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | 90 |
Size | 1/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
Origin | UK |
Type | Shut-Off Valves |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
| Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 10 in. |
Shipping Height | 7 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 5 |
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to isolate the supply for service and maintenance
- Quarter turn to open or close
- Connect, disconnect, and reconnect in seconds without tools
- Compatible with plastic or copper OD sized tubing
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
