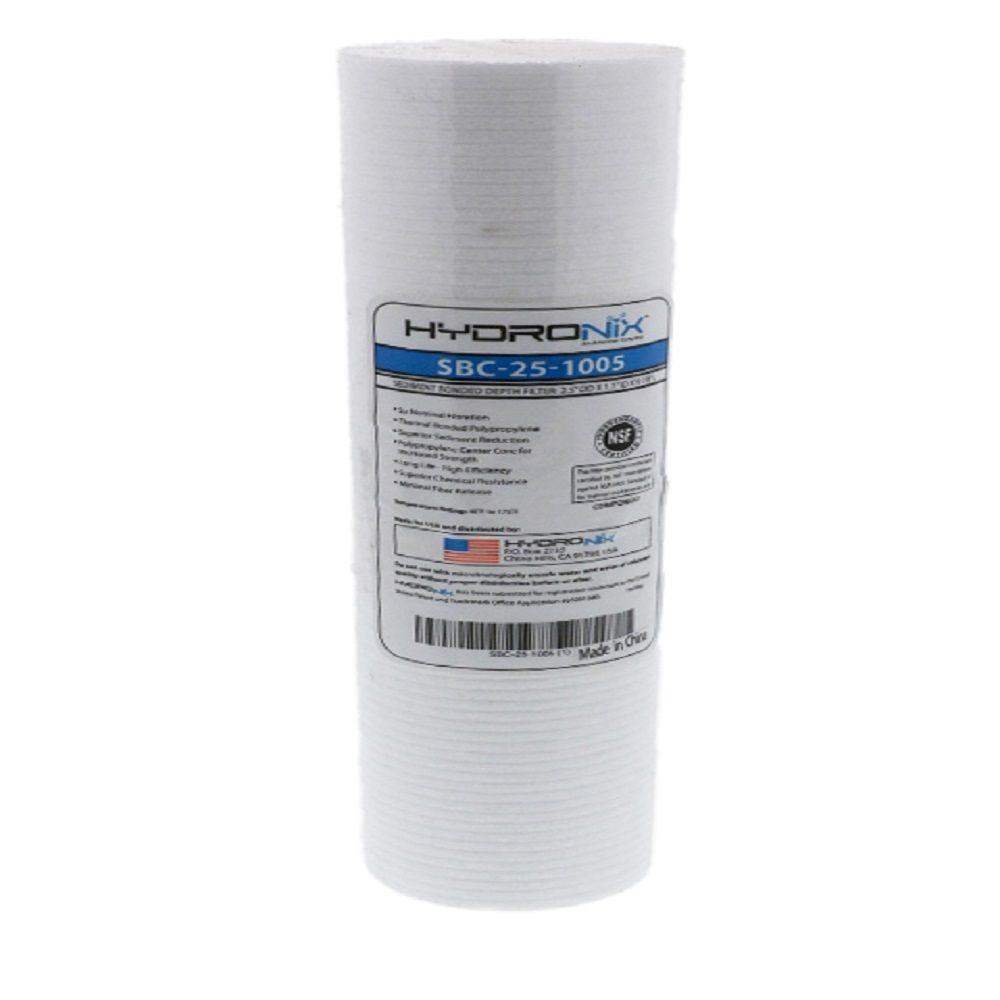

Hydronix SBC-25-1005 9-7/8" Thermally Bonded Sediment Depth Filter 5 mic

Part Number: SBC-25-1005

In Stock

out of stock

In Stock

$4.59

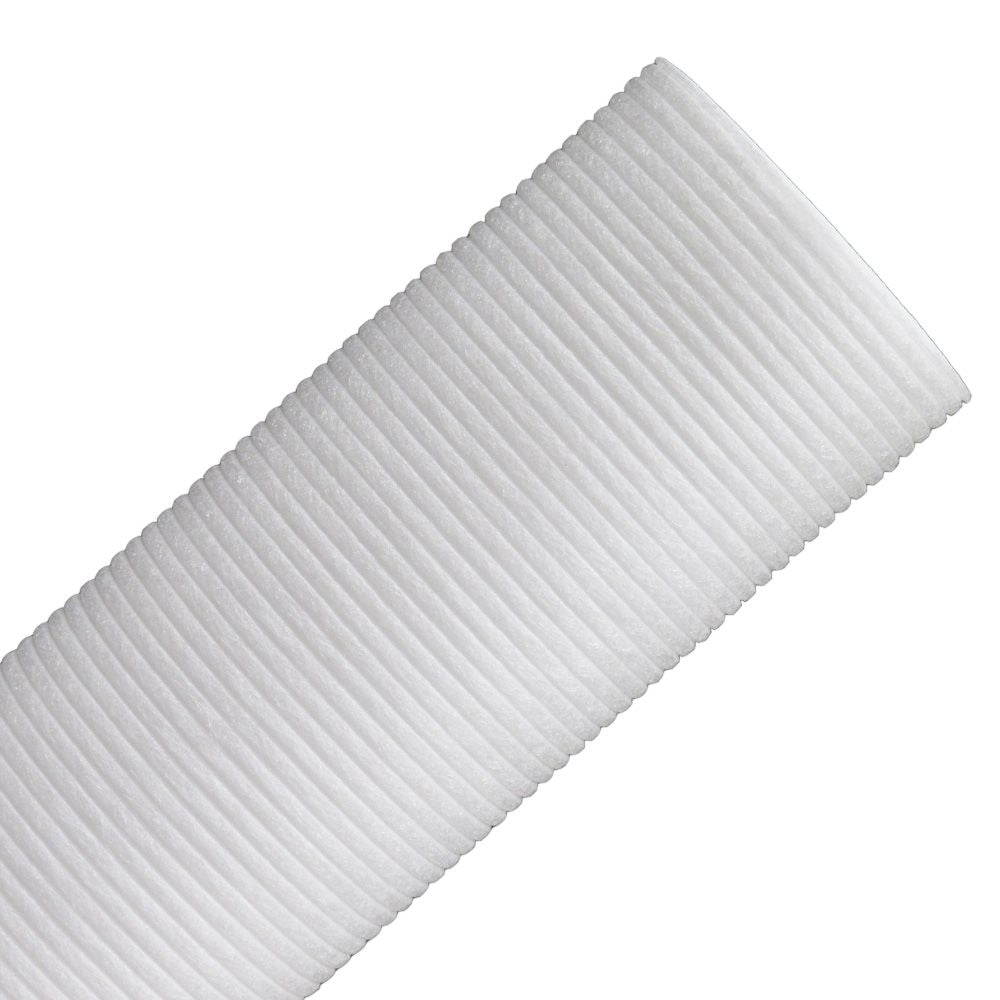

The Hydronix SBC-25-1005 Thermally Bonded Sediment Depth Filter is a specially designed thermally bonded polypropylene filter that provides superior filtration without imparting any color, taste or odor on the liquid being filtered. The SBC-25-1005 has fine grooves on the outside of the filter for increased surface area and will not release fibers, which makes them ideal for food and beverage applications.

Features:
  • Thermally Bonded Polypropylene
  • Fine grooves for increased surface area
  • Will not impart color, taste and odor
  • Superior chemical resistance
  • Resists bacterial attack
  • Produce consistent flow rates
  • Minimal fiber release
Applications:
  • Electric Components
  • Plating
  • Parts Washing
  • Pulp and Paper
  • Ink
  • Bottled Water
  • Soft Drinks
  • Juice
  • Oil and Gas
  • Reverse Osmosis Pre-Filtration
  • Rinse Water



Compatible with:
LiquatecSBD-25-1005
PentekPD-5-934, 155749-43

Weight & Dimensions

Weight (lbs)

0.6

Approx Length (Inches)

9-7/8"

Details

Max Temp (°F)

175

Min Temp (°F)

40

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

40

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

2 GPM

Initial Pressure Drop

2 psi @ 2 gpm PSI Differential

Media Type

Thermally Bonded Polypropylene

Micron Rating (Nominal)

5 µm

Outer Diameter

2-1/2"

Warranty & Certifications

Certifications

NSF 42


Hydronix




The Hydronix SBC-25-1005 Thermally Bonded Sediment Depth Filter is a specially designed thermally bonded polypropylene filter that provides superior filtration without imparting any color, taste or odor on the liquid being filtered. The SBC-25-1005 has fine grooves on the outside of the filter for increased surface area and will not release fibers, which makes them ideal for food and beverage applications.

Features:
  • Thermally Bonded Polypropylene
  • Fine grooves for increased surface area
  • Will not impart color, taste and odor
  • Superior chemical resistance
  • Resists bacterial attack
  • Produce consistent flow rates
  • Minimal fiber release
Applications:
  • Electric Components
  • Plating
  • Parts Washing
  • Pulp and Paper
  • Ink
  • Bottled Water
  • Soft Drinks
  • Juice
  • Oil and Gas
  • Reverse Osmosis Pre-Filtration
  • Rinse Water



Compatible with:
LiquatecSBD-25-1005
PentekPD-5-934, 155749-43

Weight & Dimensions

Weight (lbs)

0.6

Approx Length (Inches)

9-7/8"

Details

Max Temp (°F)

175

Min Temp (°F)

40

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

40

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

2 GPM

Initial Pressure Drop

2 psi @ 2 gpm PSI Differential

Media Type

Thermally Bonded Polypropylene

Micron Rating (Nominal)

5 µm

Outer Diameter

2-1/2"

Warranty & Certifications

Certifications

NSF 42
