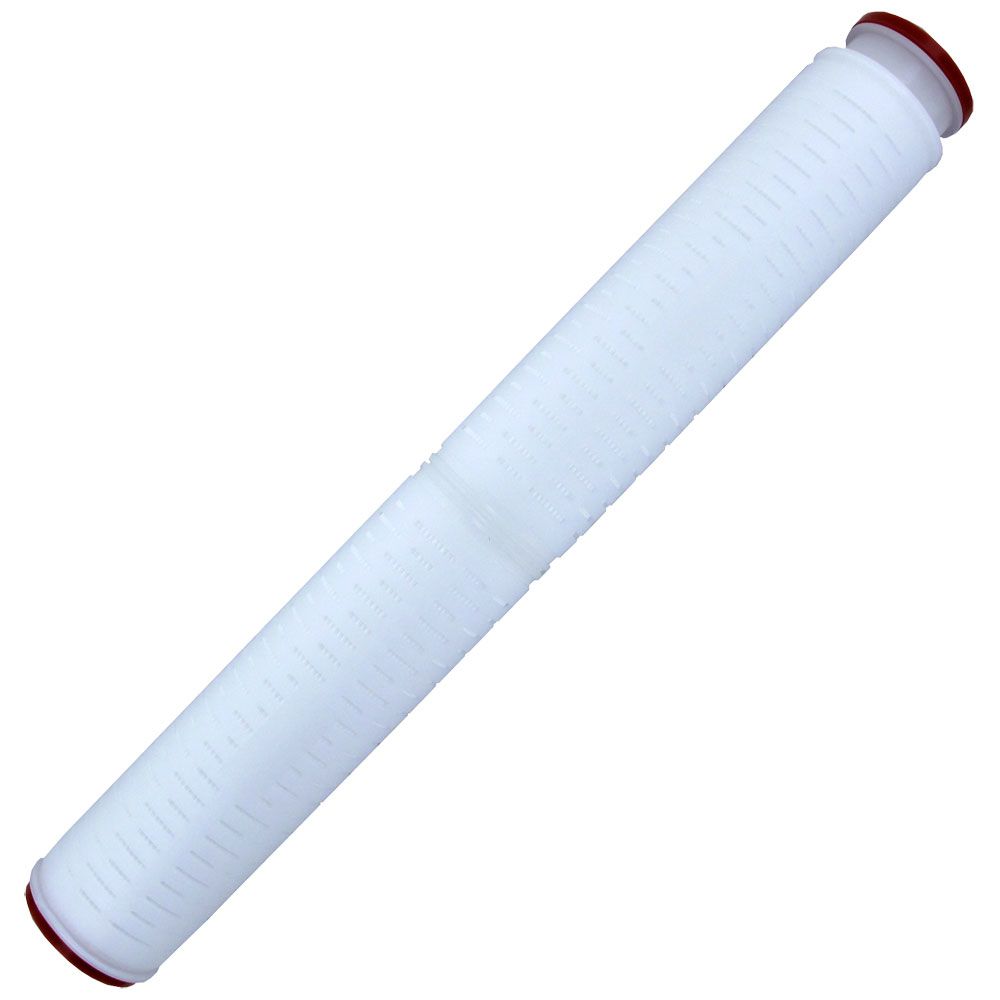

Construction of melt-blown polypropylene fiber, Poly-Ray pleated filter combines exceptional solids holding capabilities with precise micron ratings better than depth filters. Double sheets of melt-blown media provide absolute particle retention, high solid loading and long service life. Poly-Ray filters are also designed for membrane pre-filtration.
Features:
- End Cap Style - Double Open Ended (DOE)
- Silicone O-ring Material
- Double-layer structure, absolute efficiency
- 100% polypropylene for compatibility with a wide range of process fluids
- Manufactured in clean room, highly clean cartridge
- End configuration to fit all standard housings
- Certificated by USP XXXIII and FDA CFR Title 21
- Compatible with CUNO Poly Flow-G and Polypro filtration
- Compatible with Pall HDC II and Ultipleat Profile filtration
- Compatible with Millipore Polyguard-CN and Filterite Poly-Fine II
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Details
Cap Material | Polypropylene |
Capacity | As Needed |
Cartridge Style | Drop-In |
Case Quantity | 20 |
Efficiency | >99.9 Percent |
End Cap Type | DOE |
Filter Application | High Purity |
Initial Pressure Drop | 35.6 PSI Differential |
Media Type | Polypropylene |
Micron Rating (Absolute) | 0.2 Micron |
O Rings | Silicone |
Operating Temperature Range | MAX 203 Degrees Fahrenheit |
Origin | China |
Outer Diameter | 2.5" |
Construction of melt-blown polypropylene fiber, Poly-Ray pleated filter combines exceptional solids holding capabilities with precise micron ratings better than depth filters. Double sheets of melt-blown media provide absolute particle retention, high solid loading and long service life. Poly-Ray filters are also designed for membrane pre-filtration.
Features:
- End Cap Style - Double Open Ended (DOE)
- Silicone O-ring Material
- Double-layer structure, absolute efficiency
- 100% polypropylene for compatibility with a wide range of process fluids
- Manufactured in clean room, highly clean cartridge
- End configuration to fit all standard housings
- Certificated by USP XXXIII and FDA CFR Title 21
- Compatible with CUNO Poly Flow-G and Polypro filtration
- Compatible with Pall HDC II and Ultipleat Profile filtration
- Compatible with Millipore Polyguard-CN and Filterite Poly-Fine II
Weight & Dimensions
Approx Length (Inches) | 20" (50.8 cm) |
Details
Cap Material | Polypropylene |
Capacity | As Needed |
Cartridge Style | Drop-In |
Case Quantity | 20 |
Efficiency | >99.9 Percent |
End Cap Type | DOE |
Filter Application | High Purity |
Initial Pressure Drop | 35.6 PSI Differential |
Media Type | Polypropylene |
Micron Rating (Absolute) | 0.2 Micron |
O Rings | Silicone |
Operating Temperature Range | MAX 203 Degrees Fahrenheit |
Origin | China |
Outer Diameter | 2.5" |
