Hydronix

Hydronix AR0020SF1 AR Series 10" Filter

Part Number: AR0020SF1

In Stock

out of stock

In Stock

$45.67

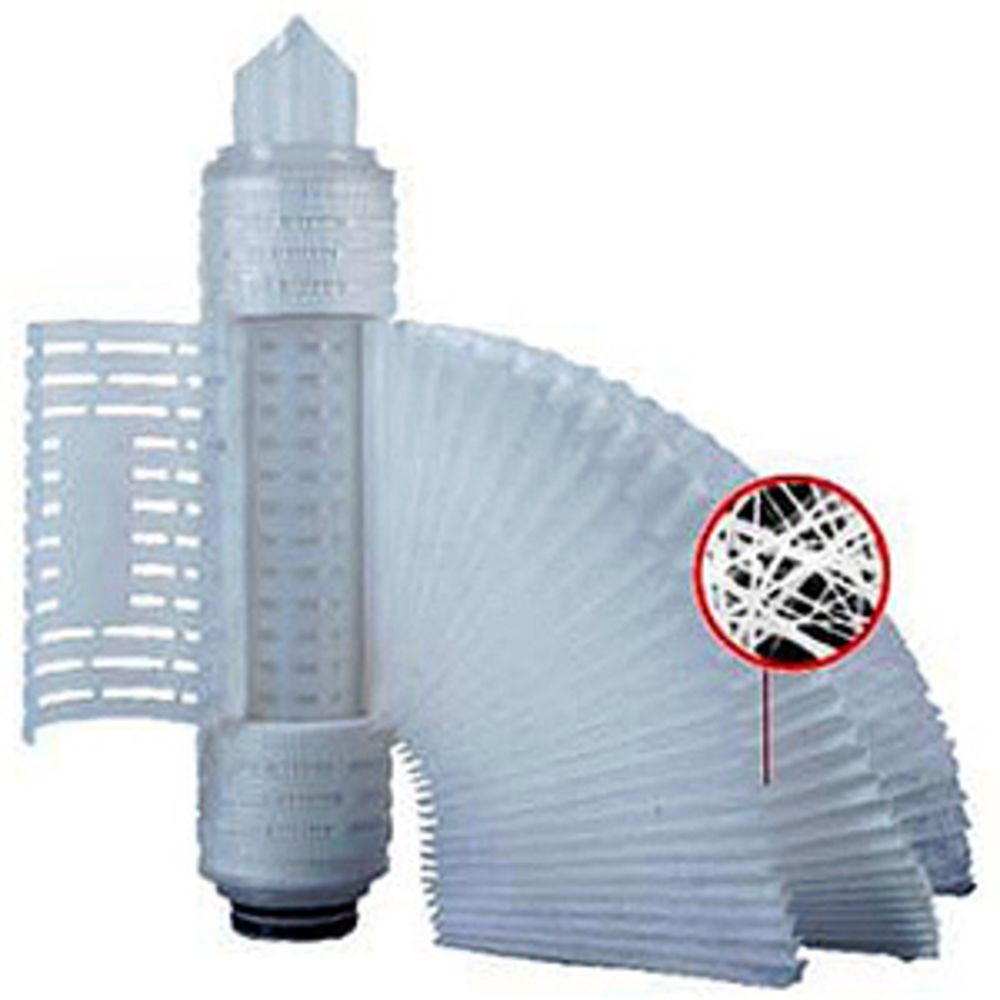

Construction of melt-blown polypropylene fiber, Poly-Ray pleated filter combines exceptional solids holding capabilities with precise micron ratings better than depth filters. Double sheets of melt-blown media provide absolute particle retention, high solid loading and long service life. Poly-Ray filters are also designed for membrane pre-filtration.

Features:
  • End Cap Style - Double Open End (DOE)
  • Double-layer structure, absolute efficiency
  • 100% polypropylene for compatibility with a wide range of process fluids
  • Manufactured in clean room, highly clean cartridge
  • Pre-flush with 18 Megohm-cm DI water, TOC content lower than 40 ppb
  • End configuration to fit all standard housings
  • Certificated by USP XXXIII and FDA CFR Title 21
  • Compatible with CUNO Betafine D and Polypro filtration
  • Compatible with Pall HDC II and Ultipleat Profile filtration




Weight & Dimensions

Approx Length (Inches)

10"

Case Quantity

24

Weight (lbs)

24

Details

Cap Material

Polypropylene

Cartridge Style

Drop-In

End Cap Type

Double Open Ended (DOE)

Filter Application (New!)

Sediment/Dirt/Rust

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Initial Pressure Drop

35.6 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Psid

70 psid

Max Temp (°F)

203

Media Type

Poly-Ray Pleated Silicone

Micron Rating

0.2 µm ABS

Micron Rating (Absolute)

0.2 µm

O-Rings

Silicone

Outer Diameter

2-1/2"

Product Length

10"

Psid@Flow Rate

2.8 psid @ 21.1 GPM


Hydronix




Construction of melt-blown polypropylene fiber, Poly-Ray pleated filter combines exceptional solids holding capabilities with precise micron ratings better than depth filters. Double sheets of melt-blown media provide absolute particle retention, high solid loading and long service life. Poly-Ray filters are also designed for membrane pre-filtration.

Features:
  • End Cap Style - Double Open End (DOE)
  • Double-layer structure, absolute efficiency
  • 100% polypropylene for compatibility with a wide range of process fluids
  • Manufactured in clean room, highly clean cartridge
  • Pre-flush with 18 Megohm-cm DI water, TOC content lower than 40 ppb
  • End configuration to fit all standard housings
  • Certificated by USP XXXIII and FDA CFR Title 21
  • Compatible with CUNO Betafine D and Polypro filtration
  • Compatible with Pall HDC II and Ultipleat Profile filtration



Weight & Dimensions

Approx Length (Inches)

10"

Case Quantity

24

Weight (lbs)

24

Details

Cap Material

Polypropylene

Cartridge Style

Drop-In

End Cap Type

Double Open Ended (DOE)

Filter Application (New!)

Sediment/Dirt/Rust

Filter Construction

Melt Blown

Filter Type

Sediment Depth

Initial Pressure Drop

35.6 PSI Differential

Inner/Outer Wraps

Polypropylene

Max Psid

70 psid

Max Temp (°F)

203

Media Type

Poly-Ray Pleated Silicone

Micron Rating

0.2 µm ABS

Micron Rating (Absolute)

0.2 µm

O-Rings

Silicone

Outer Diameter

2-1/2"

Product Length

10"

Psid@Flow Rate

2.8 psid @ 21.1 GPM
