GE Water

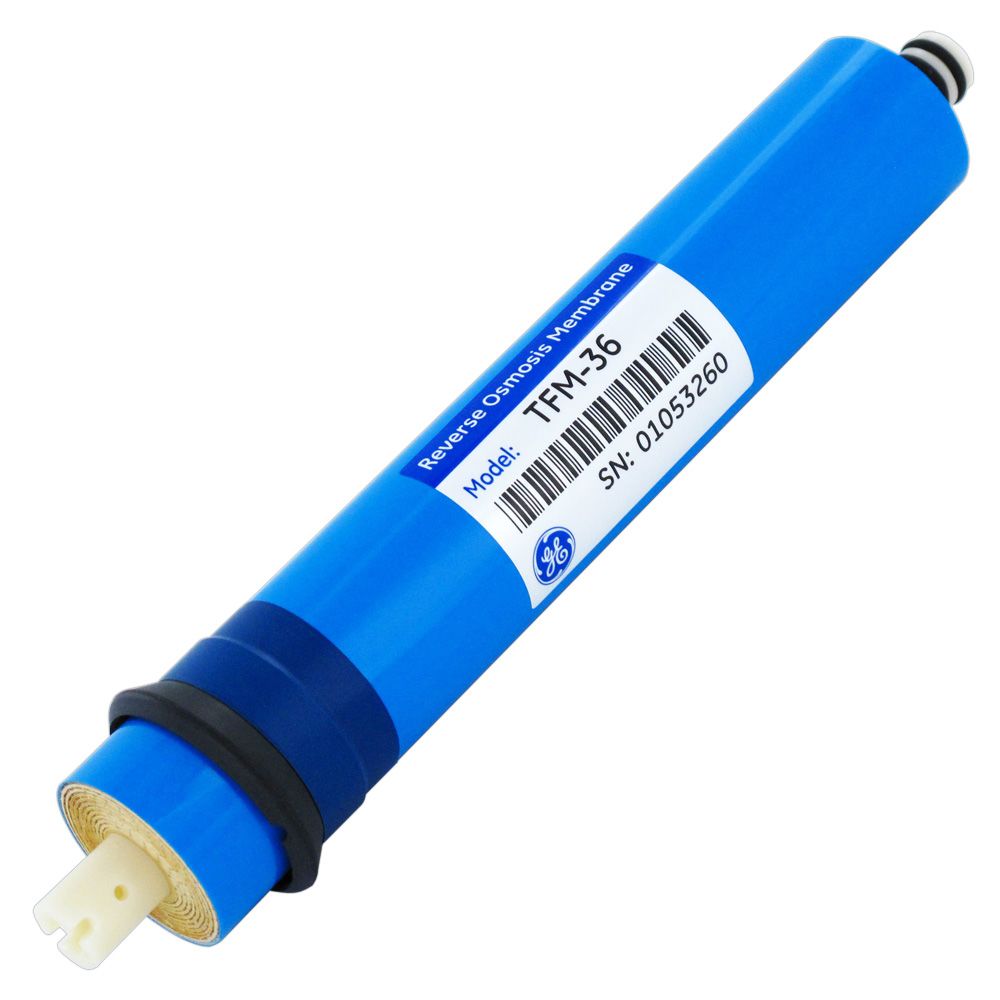

GE Osmonics Desal TFM-36 TFC RO Membrane Element

Part Number: 1220190

In Stock

out of stock

In Stock

This item is discontinued. We recommend the AXEON TFM-36 TFC Residential RO Membrane 35 GPD as a substitute.

GE Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation




Weight & Dimensions

Weight (lbs)

0.75

Approx Length (Inches)

11-3/4"

Details

Capacity

24-36 Months

Cartridge Style

Drop-In

Diameter

1.8"

Flow Rate

36 GPD

Inner/Outer Wraps

Tape

Material Of Construction

CA (Cellulose Acetate)

Origin

China

Average Nacl Rejection

0.98

Direction

Outside - In

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.68"

Warranty & Certifications

Certifications

ANSI/NSF 58


GE




GE Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation



NOTE: This item is discontinued. We recommend the AXEON TFM-36 TFC Residential RO Membrane 35 GPD as a substitute.

Weight & Dimensions

Weight (lbs)

0.75

Approx Length (Inches)

11-3/4"

Details

Capacity

24-36 Months

Cartridge Style

Drop-In

Diameter

1.8"

Flow Rate

36 GPD

Inner/Outer Wraps

Tape

Material Of Construction

CA (Cellulose Acetate)

Origin

China

Average Nacl Rejection

0.98

Direction

Outside - In

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.68"

Warranty & Certifications

Certifications

ANSI/NSF 58
