Flex-Lite FL7 Composite Well Pressure Tank 22 gallon

Part Number: FL7
Sold Out

Flex-Lite FL7 Composite Well Pressure Tank 22 gallon

Part Number: FL7
Regular price $1,091.00

This item is discontinued. We recommend the WellMate WM-6 Well Pressure Tank 20 gal as a substitute.

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

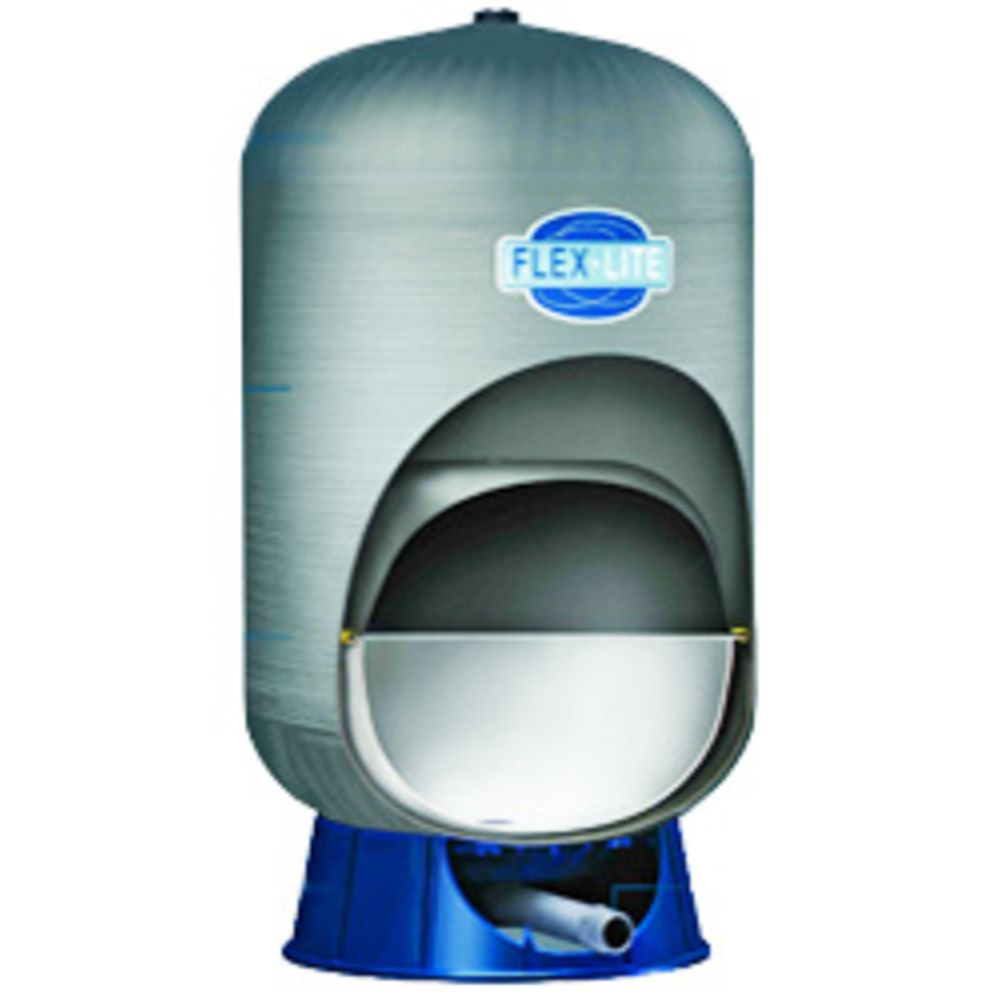

The Flex-Lite FL7 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.
Features:
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 7.5 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA
Applications:
  • WellMate WM6
  • Sta-Rite SR20, PSP-FW20-6, PSC-20-6, PS19T-T02, PSP19T-T02
  • Flex2Pro H2PL22

Specifications

  • Product Details
  • Application
    Pressure Pump Tank
  • Body Material
    Composite
  • Diaphragm Materials
    Butyl Rubber
  • Inlet Connection
    1" MPT
  • Material Of Construction
    Polypropylene
  • Outlet Connection
    1" MPT
  • Volume
    22 Gallons
  • Shipping Dimensions
