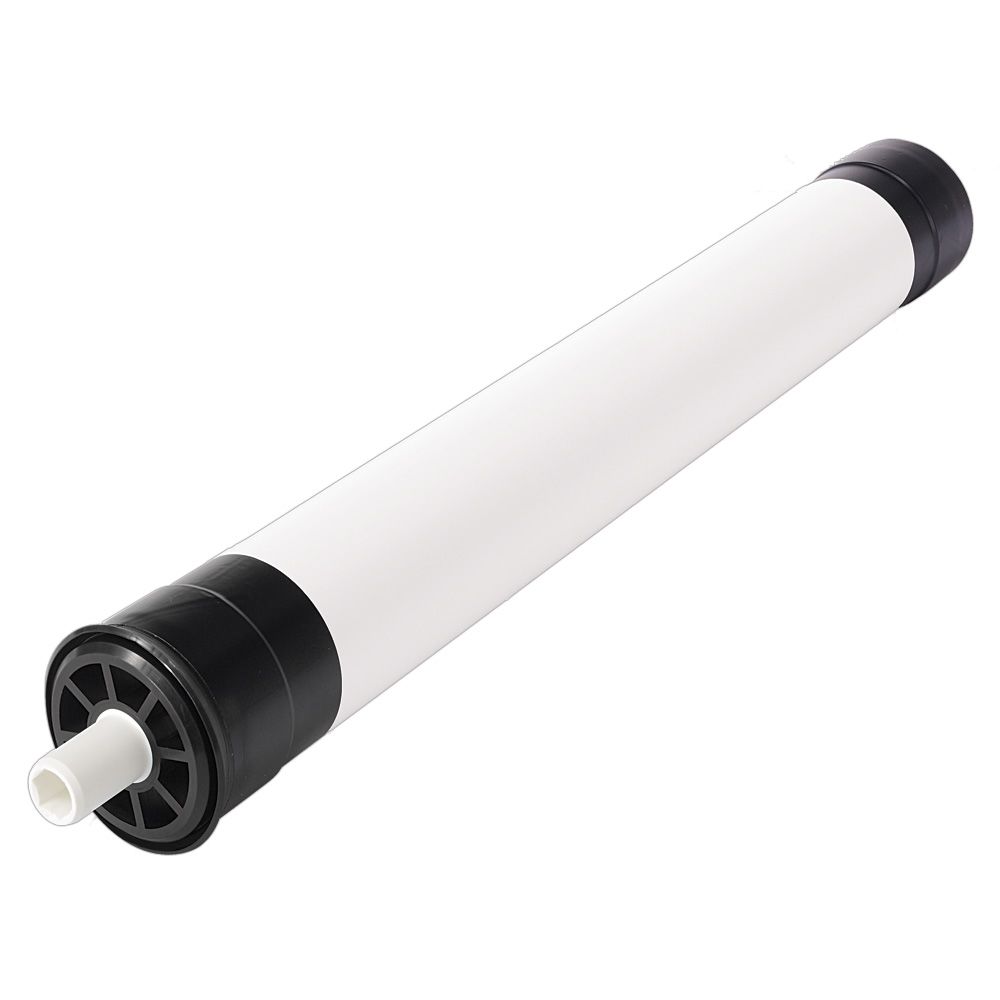

AXEON HF5-2514 225 GPD RO Membrane Element

Part Number: 208125

AXEON HF5-2514 225 GPD RO Membrane Element

Part Number: 208125
MSRP: $194.00
Regular price $116.39

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF5-2514 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 225 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 80 psi
  • Dimensions: 2.5" x 14"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water


AXEON RO membranes are dry packed

Specifications

    Product Details

    Application

    Brackish Water

    Average Nacl Rejection

    0.985

    Chlorine Tolerance

    0 ppm

    Cleaning Ph Range

    1-13

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    80 PSI

    Material Of Construction

    Polyamide Thin-Film

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Feed Water Turbidity

    <1 Nephelometric Turbidity Units

    Max Pressure Drop

    13 PSI Differential

    Max Pressure (Psi)

    400psi

    Max Temp (°F)

    113°F

    Membrane Type

    Spiral Wound

    Minimum Salt Rejection Cl- (%)

    0.96

    Permeate Flow Rate

    225 gpd / (0.85 m³/d)

    Permeate Tube Diameter

    3/4"

    Ph Range

    2 - 11

    Recovery Rate

    0.15

    Change Frequency

    12-36 Months

    Diameter

    2.40"

    Origin

    U.S.A.

    Shipping Dimensions

    Shipping Length

    16 in.

    Shipping Width

    6 in.

    Shipping Height

    6 in.

    Product Weight & Dimensions

    Product Length

    14 in.

    Product Weight (lbs)

    1.5
