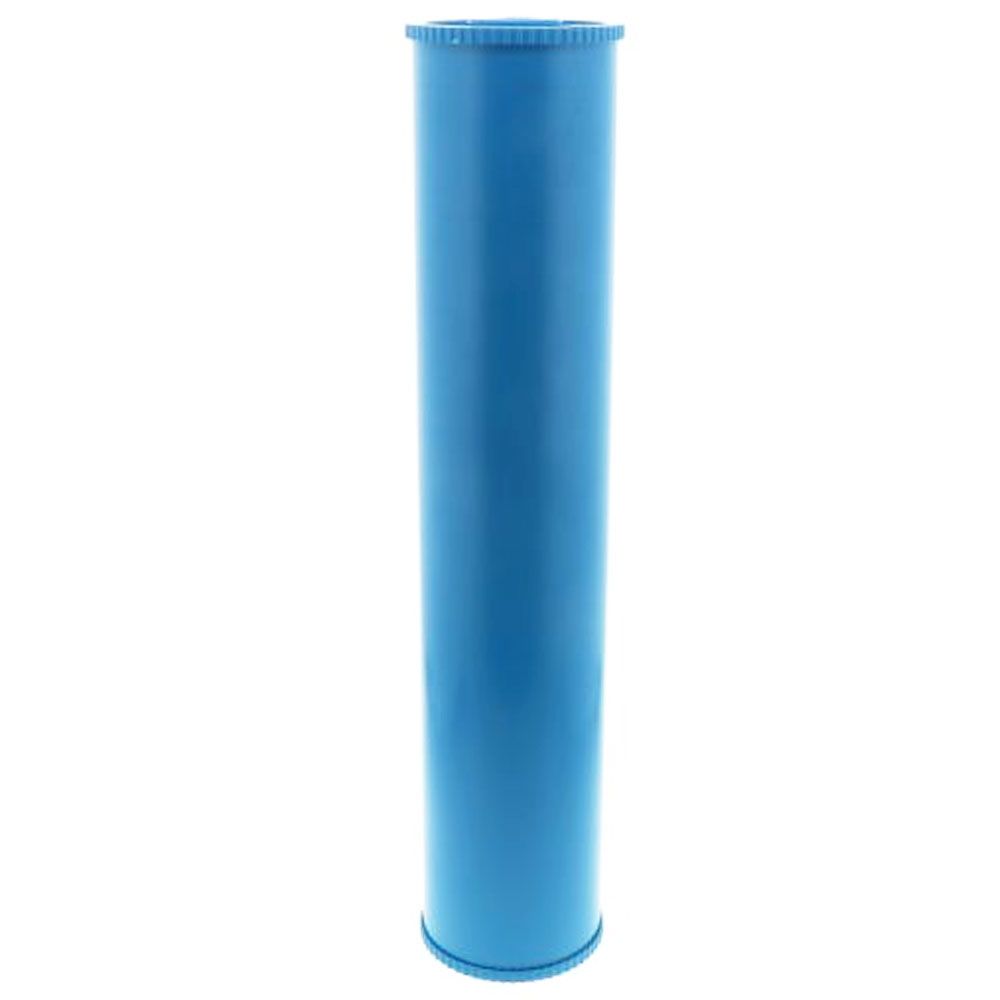

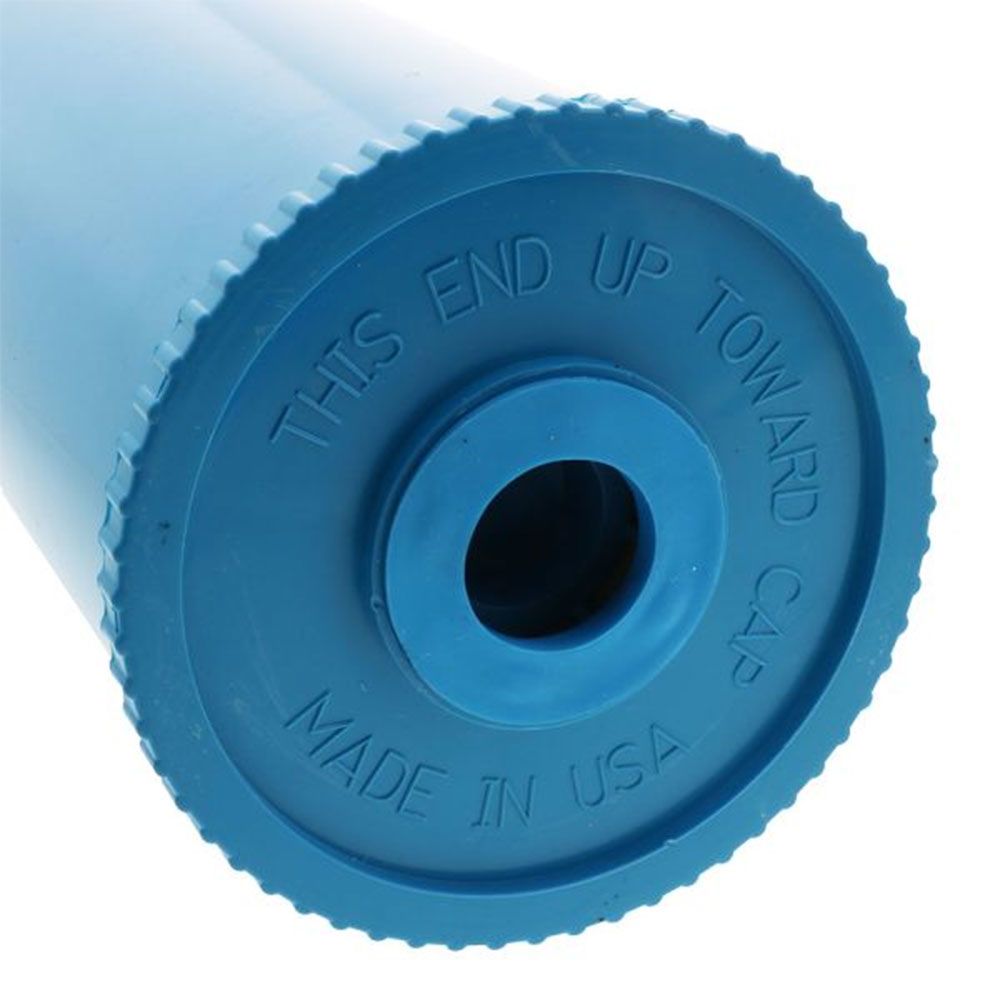

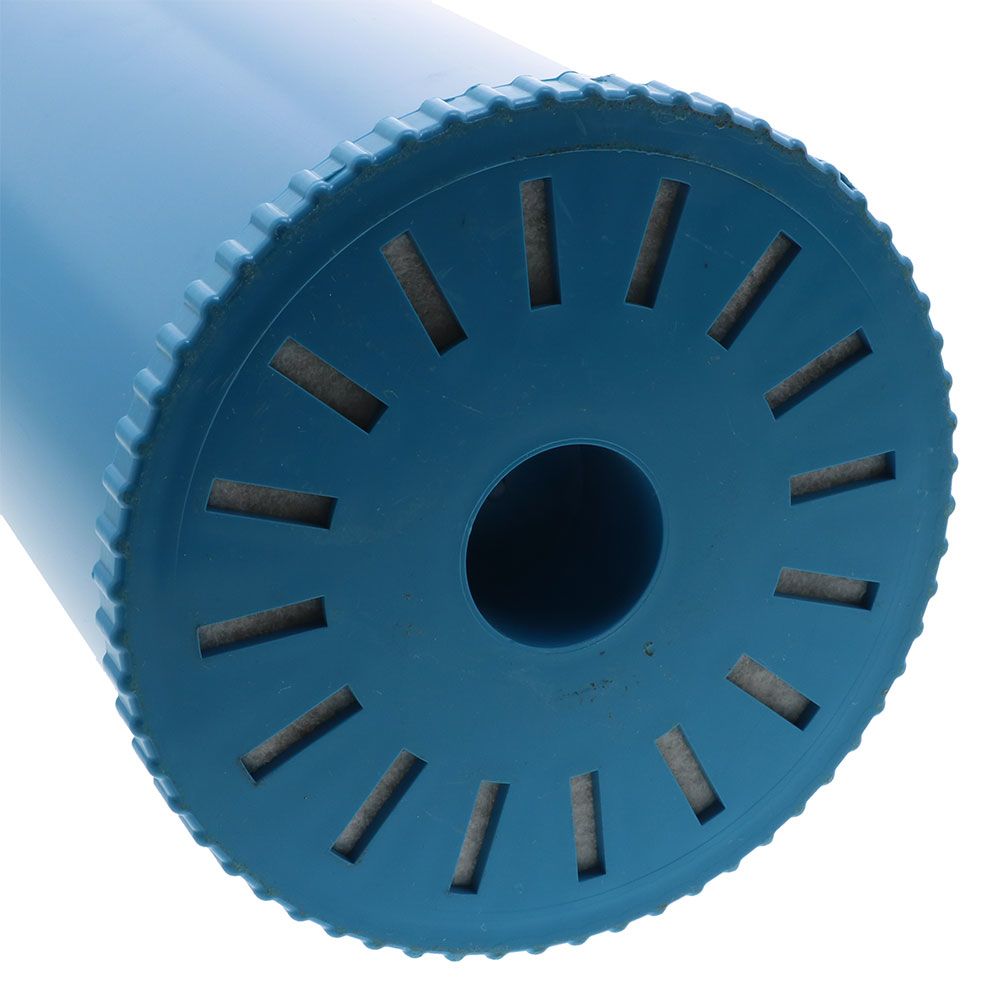

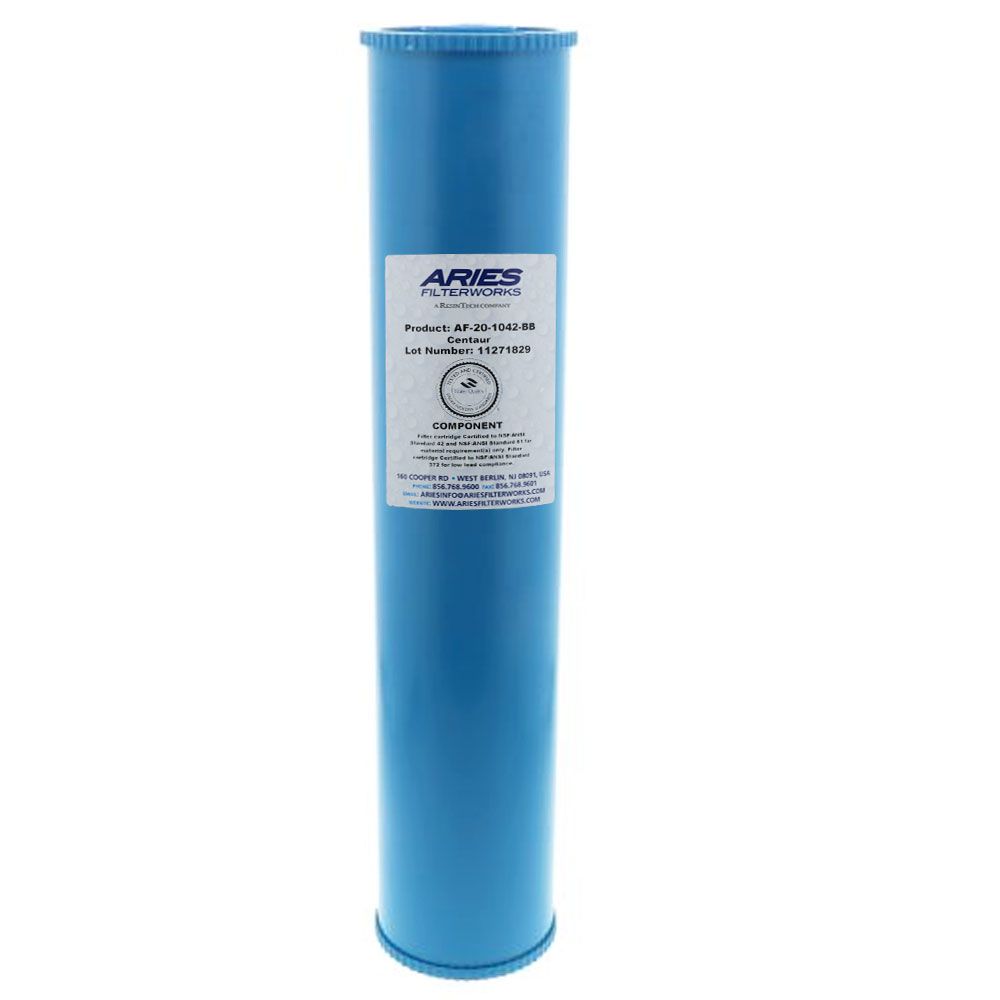

The Aries AF-20-1042-BB 20" x 4-1/2" Catalytic Carbon Filter is a specialty cartridge designed for chloramine or hydrogen sulfide reduction. The filter cartridge features Calgon Centaur™ catalytic carbon.
Specifications:
- Body materials are FDA approved
- Calgon Centaur catalytic carbon media
- 80% reduction at 3 ppm of chloramine
- CTO reduction: 8,750 gallons @ 3 GPM
- Chloramine reduction:
- 7500 gallons @ 3 GPM
- 15,000 gallons @ 1.5 GPM
Weight & Dimensions
Approx Length (Inches) | 20" |
Length (inches) | 20" |
Weight (lbs) | 6.5 |
Details
Capacity | 7,500 Gallons |
Cto Reduction Capacity | 8,750 Gallons @ 3 GPM |
Gaskets | Thermoplaster Elastomer (TPE) |
Inner/Outer Wraps | ABS |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 90 °F |
Micron Rating (Nominal) | 25 µm |
Min Pressure (Psi) | 20 |
Min Temp (°F) | 40 °F |
Cap Material | ABS |
Cartridge Style | Drop-in |
Change Frequency | 7,500 Gallons |
Contaminants Reduced | Chloramine, Hydrogen Sulfide |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Type | Granular Activated Carbon (GAC) |
Flow Rate | 3 GPM |
Media Type | Catalytic Carbon |
Origin | USA |
Product Length | 20" |
Warranty & Certifications
Certifications | NSF/ANSI 61 |
The Aries AF-20-1042-BB 20" x 4-1/2" Catalytic Carbon Filter contains Calgon Centaur™ Carbon. This is a specially enhanced carbon developed through an advanced process starting as Granular Activated Carbon (GAC). By altering the electron structure of GAC, it enhances its catalytic capability, enabling it to cause chemical reactions without changing its structure. As a result, it promotes a wide range of chemical reactions where conventional carbons are not effective.
